Rolling Ball Bearings-Miniature Ball Bearings-Miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes

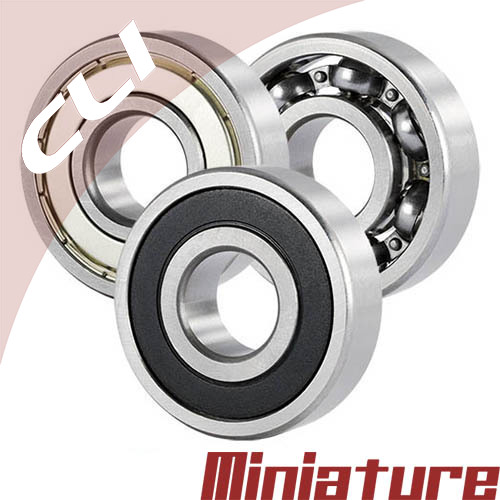

Original miniature bearings plain chrome 402
Product Picture
Original 1 miniature ball bearings chrome steel aisi52100 nw
Download PDF Catalogue

Miniature ball bearings - CHROME STEEL AISI52100

METRIC size



Miniature ball bearings are deep groove ball bearings in small. Their dimensions make them suitable for special applications. In addition, they allow very high speeds with low noise.

CLI Miniature ball bearings are extremely economical, withstand extremely high load-ratings and are suitable for temperatures from circa -10°C up to +120°C, in case of rubber seals up to circa +100°C in the long run. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

CLI miniature bearings are sometimes referred to as instrument bearings or micro bearings and are used in applications as varied as gyros, anemometers, miniature gearboxes, small motors and radio controlled models.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI52100 chrome steel miniature bearings
for shaft sizes from
1.5 mm to 9 mm




BORE

(mm)

O.D.

(mm)

OPEN BEARING (No Suffix)

SHIELDED BEARING (ZZ)

SEALED BEARING (2RS)

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

1.5

4

1.2

681X

DETAILS

2

681XZZ

DETAILS







5

2

691X

DETAILS

2.6

691XZZ

DETAILS







6

2.5

601X

DETAILS

3

601XZZ

DETAILS







2

5

1.5

682

DETAILS

2.3

682ZZ

DETAILS







5

2

MR52

DETAILS

2.5

MR52ZZ

DETAILS







6

2.3

692

DETAILS

3

692ZZ

DETAILS







6







2.3

692ZZW23

DETAILS







6

2.5

MR62

DETAILS

2.5

MR62ZZ

DETAILS







7

2.5

MR72

DETAILS

3

MR72ZZ

DETAILS







7

2.8

602

DETAILS

3.5

602ZZ

DETAILS







2.5

6

1.8

682X

DETAILS

2.6

682XZZ

DETAILS







7

2.5

692X

DETAILS

3.5

692XZZ

DETAILS







8

2.8

602X

DETAILS

4

602XZZ

DETAILS







8







2.8

602XZZW28

DETAILS







3

6

2

MR63

DETAILS

2.5

MR63ZZ

DETAILS







7

2

683

DETAILS

3

683ZZ

DETAILS







8

2.5

MR83

DETAILS

3

MR83ZZ

DETAILS







8

3

693

DETAILS

4

693ZZ

DETAILS







9

2.5

MR93

DETAILS

4

MR93ZZ

DETAILS







9

3

603

DETAILS

5

603ZZ

DETAILS







10

4

623

DETAILS

4

623ZZ

DETAILS

4

623-2RS

DETAILS

13

5

633

DETAILS

5

633ZZ

DETAILS

5

633-2RS

DETAILS

3.5

9







4

684ZZB35

DETAILS







4

7

2

MR74

DETAILS

2.5

MR74ZZ

DETAILS







8

2

MR84

DETAILS

3

MR84ZZ

DETAILS

3

MR84-2RS

DETAILS

9

2.5

684

DETAILS

4

684ZZ

DETAILS

4

684-2RS

DETAILS

9







3.5

684ZZW35

DETAILS







10

3

MR104

DETAILS

4

MR104ZZ

DETAILS







11

4

694

DETAILS

4

694ZZ

DETAILS

4

694-2RS

DETAILS

12

4

604

DETAILS

4

604ZZ

DETAILS

4

604-2RS

DETAILS

13

5

624

DETAILS

5

624ZZ

DETAILS

5

624-2RS

DETAILS

16

5

634

DETAILS

5

634ZZ

DETAILS

5

634-2RS

DETAILS

5

8

2

MR85

DETAILS

2.5

MR85ZZ

DETAILS

2.5

MR85-2RS

DETAILS

9

2.5

MR95

DETAILS

3

MR95ZZ

DETAILS

3

MR95-2RS

DETAILS

10

3

MR105

DETAILS

4

MR105ZZ

DETAILS

4

MR105-2RS

DETAILS

11







4

MR115ZZ

DETAILS

4

MR115-2RS

DETAILS

11

3

685

DETAILS

5

685ZZ

DETAILS

5

685-2RS

DETAILS

13

4

695

DETAILS

4

695ZZ

DETAILS

4

695-2RS

DETAILS

13







5

695ZZW5

DETAILS







14

5

605

DETAILS

5

605ZZ

DETAILS

5

605-2RS

DETAILS

16

5

625

DETAILS

5

625ZZ

DETAILS

5

625-2RS

DETAILS

19

6

635

DETAILS

6

635ZZ

DETAILS

6

635-2RS

DETAILS

6

10

2.5

MR106

DETAILS

3

MR106ZZ

DETAILS

3

MR106-2RS

DETAILS

12

3

MR126

DETAILS

4

MR126ZZ

DETAILS

4

MR126-2RS

DETAILS

13

3.5

686

DETAILS

5

686ZZ

DETAILS

5

686-2RS

DETAILS

13







4.5

686ZZW45

DETAILS

4.5

686-2RSW45

DETAILS

15

5

696

DETAILS

5

696ZZ

DETAILS

5

696-2RS

DETAILS

16







5

696AZZ

DETAILS

5

696A-2RS

DETAILS

17

6

606

DETAILS

6

606ZZ

DETAILS

6

606-2RS

DETAILS

19

6

626

DETAILS

6

626ZZ

DETAILS

6

626-2RS

DETAILS

19







8

626ZZW8

DETAILS







19













5.15

626-2RSW515

DETAILS

22

7

636

DETAILS

7

636ZZ

DETAILS

7

636-2RS

DETAILS

7

11

2.5

MR117

DETAILS

3

MR117ZZ

DETAILS







13

3

MR137

DETAILS

4

MR137ZZ

DETAILS







14

3.5

687

DETAILS

5

687ZZ

DETAILS

5

687-2RS

DETAILS

14

4

687W4

DETAILS













17

5

697

DETAILS

5

697ZZ

DETAILS

5

697-2RS

DETAILS

19

6

607

DETAILS

6

607ZZ

DETAILS

6

607-2RS

DETAILS

22

7

627

DETAILS

7

627ZZ

DETAILS

7

627-2RS

DETAILS

26

9

637

DETAILS

9

637ZZ

DETAILS

9

637-2RS

DETAILS

8

12

2.5

MR128

DETAILS

3.5

MR128ZZ

DETAILS

3.5

MR128-2RS

DETAILS

14

3.5

MR148

DETAILS

4

MR148ZZ

DETAILS

4

MR148-2RS

DETAILS

16

4

688

DETAILS

5

688ZZ

DETAILS

5

688-2RS

DETAILS

16







4

688ZZW4

DETAILS

4

688-2RSW4

DETAILS

16







6

688ZZW6

DETAILS

6

688-2RSW6

DETAILS

19

6

698

DETAILS

6

698ZZ

DETAILS

6

698-2RS

DETAILS

22

7

608

DETAILS

7

608ZZ

DETAILS

7

608-2RS

DETAILS

22

6

608W6

DETAILS













22







10.3

608ZZW103

DETAILS

10.3

608-2RSW103

DETAILS

22













11

608-2RSW11

DETAILS

24

8

628

DETAILS

8

628ZZ

DETAILS

8

628-2RS

DETAILS

28

9

638

DETAILS

9

638ZZ

DETAILS

9

638-2RS

DETAILS

9

14

3

679

DETAILS

4.5

679ZZ

DETAILS







17

4

689

DETAILS

5

689ZZ

DETAILS

5

689-2RS

DETAILS

17







6

689ZZW6

DETAILS

6

689-2RSW6

DETAILS

20

6

699

DETAILS

6

699ZZ

DETAILS

6

699-2RS

DETAILS

24

7

609

DETAILS

7

609ZZ

DETAILS

7

609-2RS

DETAILS

26

8

629

DETAILS

8

629ZZ

DETAILS

8

629-2RS

DETAILS

30

10

639

DETAILS

10

639ZZ

DETAILS
