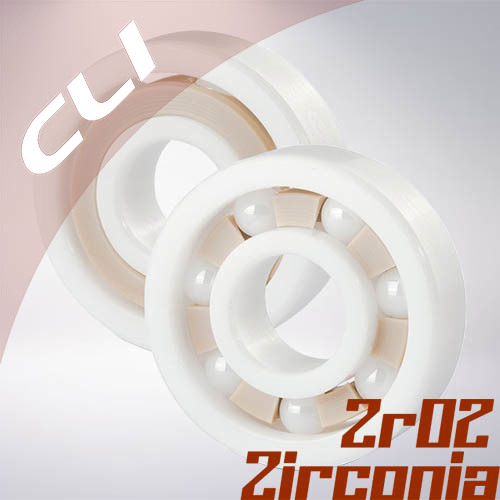

Zirconia ZrO2 Ceramic Ball Bearings,
PEEK cage, OPEN type or closured with PTFE / PEEK covers, ROHS compliant




• The ZrO2 Zirconia full ceramic ball bearings listed below are available as full complement (no cage) or with cages made from PEEK or PTFE. These are non-magnetic, non-conductive and highly corrosion resistant to most chemicals although ZrO2 bearings are not recommended for prolonged contact with steam. Full complement bearings (no cage) can be used up to 400°C while bearings with a PEEK or PTFE cage are rated up to 250°C. For temperatures below -70°C, PTFE cages are preferred.

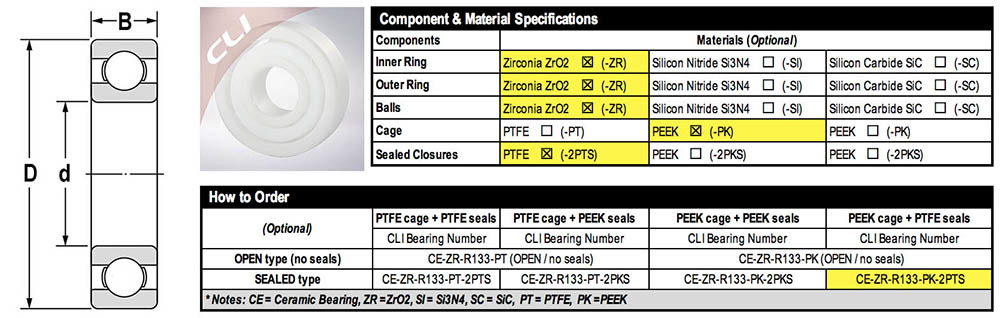

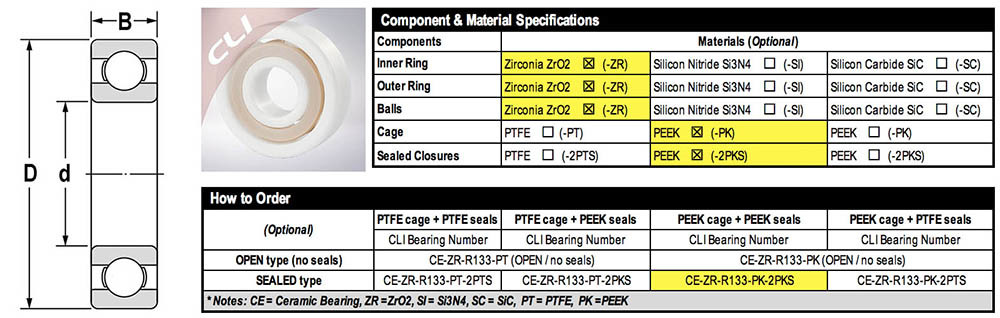

• Sealed type Zirconia ZrO2 Ceramic Ball Bearings can be closured by PEFE or PEEK covers to protect the inside rolling races and rolling elements

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
BEARING LIST & BEARING DETAILS

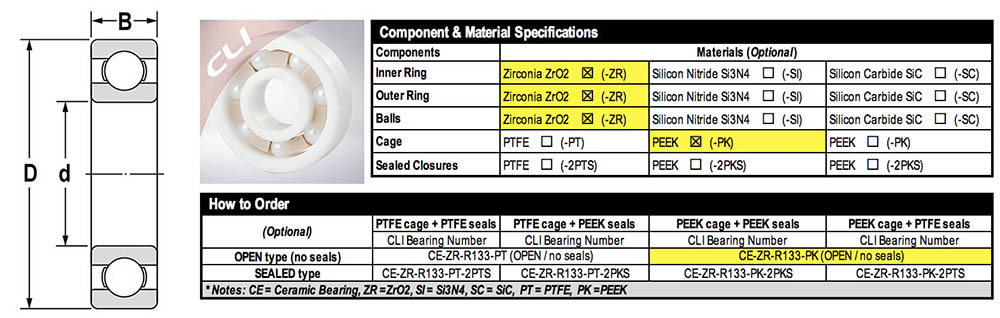

PEEK cage, OPEN type
Zirconia ZrO2 Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm

CLI Bearing No. Details Cage Seal Bearing Dimension Dynamic Static Max
Bore Dia Outer Dia Width radial radial Speed
Type Type (d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
CE-ZR-R133-PK Details PEEK OPEN 0.0938" | 2.381 mm 0.1875" | 4.763 mm 0.0937" | 2.38 mm 37.374 13.347 57
CE-ZR-R1-5-PK Details PEEK OPEN 0.0938" | 2.381 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 141.486 42.711 42.6
CE-ZR-R144-PK Details PEEK OPEN 0.125" | 3.175 mm 0.25" | 6.35 mm 0.1094" | 2.779 mm 72.078 22.692 48
CE-ZR-R2-5-PK Details PEEK OPEN 0.125" | 3.175 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 142.818 42.711 40.2
CE-ZR-R2-6-PK Details PEEK OPEN 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1406" | 3.571 mm 162.84 54.726 37.8
CE-ZR-R2-PK Details PEEK OPEN 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1562" | 3.967 mm 161.505 52.056 40.2
CE-ZR-R2A-PK Details PEEK OPEN 0.125" | 3.175 mm 0.5" | 12.7 mm 0.1719" | 4.366 mm 162.84 54.726 37.8
CE-ZR-R155-PK Details PEEK OPEN 0.1563" | 3.969 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 92.097 36.039 37.8
CE-ZR-R156-PK Details PEEK OPEN 0.1875" | 4.763 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 92.097 36.039 37.8
CE-ZR-R166-PK Details PEEK OPEN 0.1875" | 4.763 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 181.527 65.403 36
CE-ZR-R3-PK Details PEEK OPEN 0.1875" | 4.763 mm 0.5" | 12.7 mm 0.196" | 4.978 mm 332.355 117.459 31.8
CE-ZR-R3A-PK Details PEEK OPEN 0.1875" | 4.763 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 377.736 149.493 27
CE-ZR-1601-PK Details PEEK OPEN 0.1875" | 4.763 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 180 66 3.6
CE-ZR-R168-PK Details PEEK OPEN 0.25" | 6.35 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 94.767 41.379 33.6
CE-ZR-R188-PK Details PEEK OPEN 0.25" | 6.35 mm 0.5" | 12.7 mm 0.1875" | 4.763 mm 276.294 106.782 30
CE-ZR-R4-PK Details PEEK OPEN 0.25" | 6.35 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 377.736 149.493 27
CE-ZR-1602-PK Details PEEK OPEN 0.25" | 6.35 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 190.5 72 3.6
CE-ZR-R4A-PK Details PEEK OPEN 0.25" | 6.35 mm 0.75" | 19.05 mm 0.2812" | 7.142 mm 595.302 214.896 25.8
CE-ZR-R1810-PK Details PEEK OPEN 0.3125" | 7.938 mm 0.5" | 12.7 mm 0.1562" | 3.967 mm 138.816 66.738 28.8
CE-ZR-1603-PK Details PEEK OPEN 0.3125" | 7.938 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 223.5 93 3.6
CE-ZR-1605-PK Details PEEK OPEN 0.3125" | 7.938 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 223.5 94.5 3.6
CE-ZR-1604-PK Details PEEK OPEN 0.375" | 9.525 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 225 96 3.6
CE-ZR-R6-PK Details PEEK OPEN 0.375" | 9.525 mm 0.875" | 22.225 mm 0.2812" | 7.142 mm 850.242 341.7 22.8
CE-ZR-1606-PK Details PEEK OPEN 0.375" | 9.525 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 225 96 3.6
CE-ZR-1614-PK Details PEEK OPEN 0.375" | 9.525 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 342 156 3.6
CE-ZR-1607-PK Details PEEK OPEN 0.4375" | 11.113 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 304.5 129 3.6
CE-ZR-1615-PK Details PEEK OPEN 0.4375" | 11.113 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 343.5 159 3.6
CE-ZR-1620-PK Details PEEK OPEN 0.4375" | 11.113 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 507 240 3.6
CE-ZR-1616-PK Details PEEK OPEN 0.5" | 12.7 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 345 135 3.6
CE-ZR-R8-PK Details PEEK OPEN 0.5" | 12.7 mm 1.125" | 28.575 mm 0.3125" | 7.938 mm 344.7 153.3 19.2
CE-ZR-1621-PK Details PEEK OPEN 0.5" | 12.7 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 510 244.5 3.6
CE-ZR-1622-PK Details PEEK OPEN 0.5625" | 14.288 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 513 247.5 3.6
CE-ZR-1623-PK Details PEEK OPEN 0.625" | 15.875 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 516 250.5 3.6
CE-ZR-R10-PK Details PEEK OPEN 0.625" | 15.875 mm 1.375" | 34.925 mm 0.3438" | 8.733 mm 475.5 220.5 15
CE-ZR-1628-PK Details PEEK OPEN 0.625" | 15.875 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 630 328.5 3.6
CE-ZR-1633-PK Details PEEK OPEN 0.625" | 15.875 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 630 336 3.6
CE-ZR-1630-PK Details PEEK OPEN 0.75" | 19.05 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 633 334.5 3.6
CE-ZR-R12-PK Details PEEK OPEN 0.75" | 19.05 mm 1.625" | 41.275 mm 0.4375" | 11.113 mm 743.1 353.1 12.6
CE-ZR-1635-PK Details PEEK OPEN 0.75" | 19.05 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 634.5 342 3.6
CE-ZR-1638-PK Details PEEK OPEN 0.75" | 19.05 mm 2" | 50.8 mm 0.5625" | 14.288 mm 681 387 3.6
CE-ZR-R14-PK Details PEEK OPEN 0.875" | 22.225 mm 1.875" | 47.625 mm 0.5" | 12.7 mm 797.4 392.1 7.2
CE-ZR-1640-PK Details PEEK OPEN 0.875" | 22.225 mm 2" | 50.8 mm 0.5625" | 14.288 mm 679.5 394.5 3.6
CE-ZR-1641-PK Details PEEK OPEN 1" | 25.4 mm 2" | 50.8 mm 0.5625" | 14.288 mm 678 403.5 3.6
CE-ZR-R16-PK Details PEEK OPEN 1" | 25.4 mm 2" | 50.8 mm 0.5" | 12.7 mm 795.6 392.1 6.6
CE-ZR-R18-PK Details PEEK OPEN 1.125" | 28.575 mm 2.125" | 53.975 mm 0.5" | 12.7 mm 1047.6 545.1 6
CE-ZR-1652-PK Details PEEK OPEN 1.125" | 28.575 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 1080.9 684 3.6
CE-ZR-R20-PK Details PEEK OPEN 1.25" | 31.75 mm 2.25" | 57.15 mm 0.5" | 12.7 mm 1108.5 595.8 5.4
CE-ZR-1654-PK Details PEEK OPEN 1.25" | 31.75 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 1080 690 3.6
CE-ZR-1657-PK Details PEEK OPEN 1.25" | 31.75 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1320 750 3.6
CE-ZR-1658-PK Details PEEK OPEN 1.3125" | 33.338 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1311 780 3.6
CE-ZR-R22-PK Details PEEK OPEN 1.375" | 34.925 mm 2.5" | 63.5 mm 0.5625" | 14.288 mm 1220.1 674.1 4.8
CE-ZR-R24-PK Details PEEK OPEN 1.5" | 38.1 mm 2.625" | 66.675 mm 0.5625" | 14.288 mm 1327.8 733.8 1467.6
CE-ZR-682-PK Details PEEK OPEN 2 mm 5mm 2.3mm 43.2 12 60
CE-ZR-MR52-PK Details PEEK OPEN 2 mm 5mm 2.5mm 43.2 12 60
CE-ZR-692-PK Details PEEK OPEN 2 mm 6mm 3mm 84.3 23.7 54
CE-ZR-MR62-PK Details PEEK OPEN 2 mm 6mm 2.5mm 84.3 23.7 54
CE-ZR-602-PK Details PEEK OPEN 2 mm 7mm 3.5mm 98.4 30.9 42.6
CE-ZR-MR72-PK Details PEEK OPEN 2 mm 7mm 3mm 98.4 30.9 45
CE-ZR-682x-PK Details PEEK OPEN 2.5 mm 6mm 2.6mm 53.4 17.7 48
CE-ZR-692x-PK Details PEEK OPEN 2.5 mm 7mm 3.5mm 98.4 30.9 45
CE-ZR-602x-PK Details PEEK OPEN 2.5 mm 8mm 4mm 140.7 42.6 42.6
CE-ZR-MR82x-PK Details PEEK OPEN 2.5 mm 8mm 2.5mm 142.2 43.2 40.2
CE-ZR-MR63-PK Details PEEK OPEN 3 mm 6mm 2.5mm 53.4 17.7 48
CE-ZR-683-PK Details PEEK OPEN 3 mm 7mm 3mm 79.2 27 45
CE-ZR-693-PK Details PEEK OPEN 3 mm 8mm 4mm 142.2 43.2 40.2
CE-ZR-MR83-PK Details PEEK OPEN 3 mm 8mm 3mm 100.8 33.9 40.2
CE-ZR-603-PK Details PEEK OPEN 3 mm 9mm 5mm 69 45.3 40.2
CE-ZR-MR93-PK Details PEEK OPEN 3 mm 9mm 4mm 145.5 45.3 40.2
CE-ZR-623-PK Details PEEK OPEN 3 mm 10mm 4mm 160.8 52.5 36
CE-ZR-633-PK Details PEEK OPEN 3 mm 13mm 5mm 331.8 117 28.8
CE-ZR-MR74-PK Details PEEK OPEN 4 mm 7mm 2.5mm 65.1 25.8 40.2
CE-ZR-MR84-PK Details PEEK OPEN 4 mm 8mm 3mm 100.8 33.9 40.2
CE-ZR-684-PK Details PEEK OPEN 4 mm 9mm 4mm 163.5 54.6 37.8
CE-ZR-MR104-PK Details PEEK OPEN 4 mm 10mm 4mm 181.2 65.4 33.6
CE-ZR-694-PK Details PEEK OPEN 4 mm 11mm 4mm 244.2 84 33.6
CE-ZR-604-PK Details PEEK OPEN 4 mm 12mm 4mm 244.2 84 33.6
CE-ZR-624-PK Details PEEK OPEN 4 mm 13mm 5mm 331.8 117 28.8
CE-ZR-634-PK Details PEEK OPEN 4 mm 16mm 5mm 341.7 125.4 25.8
CE-ZR-MR85-PK Details PEEK OPEN 5 mm 8mm 2.5mm 55.5 21.6 37.8
CE-ZR-MR95-PK Details PEEK OPEN 5 mm 9mm 3mm 109.8 40.5 36
CE-ZR-MR105-PK Details PEEK OPEN 5 mm 10mm 4mm 109.8 40.5 36
CE-ZR-685-PK Details PEEK OPEN 5 mm 11mm 5mm 182.7 67.8 31.8
CE-ZR-MR115-PK Details PEEK OPEN 5 mm 11mm 4mm 182.7 67.8 37.8
CE-ZR-695-PK Details PEEK OPEN 5 mm 13mm 4mm 274.8 103.8 30
CE-ZR-605-PK Details PEEK OPEN 5 mm 14mm 5mm 339 121.8 30
CE-ZR-625-PK Details PEEK OPEN 5 mm 16mm 5mm 441 162 25.8
CE-ZR-635-PK Details PEEK OPEN 5 mm 19mm 6mm 595.8 215.1 24
CE-ZR-MR106-PK Details PEEK OPEN 6 mm 10mm 3mm 126.6 52.2 31.8
CE-ZR-MR126-PK Details PEEK OPEN 6 mm 12mm 4mm 182.7 70.8 30
CE-ZR-686-PK Details PEEK OPEN 6 mm 13mm 5mm 276 106.2 30
CE-ZR-696-PK Details PEEK OPEN 6 mm 15mm 5mm 341.7 125.4 27
CE-ZR-606-PK Details PEEK OPEN 6 mm 17mm 6mm 577.2 203.1 27
CE-ZR-626-PK Details PEEK OPEN 6 mm 19mm 6mm 595.8 215.1 24
CE-ZR-636-PK Details PEEK OPEN 6 mm 22mm 7mm 849.9 341.4 21.6
CE-ZR-MR117-PK Details PEEK OPEN 7 mm 11mm 3mm 116.1 48.6 30
CE-ZR-MR137-PK Details PEEK OPEN 7 mm 13mm 4mm 138 66.3 28.8
CE-ZR-687-PK Details PEEK OPEN 7 mm 14mm 5mm 299.1 123 30
CE-ZR-697-PK Details PEEK OPEN 7 mm 17mm 5mm 409.2 172.5 25.8
CE-ZR-607-PK Details PEEK OPEN 7 mm 19mm 6mm 595.8 215.1 25.8
CE-ZR-627-PK Details PEEK OPEN 7 mm 22mm 7mm 838.2 330.9 21.6
CE-ZR-637-PK Details PEEK OPEN 7 mm 26mm 9mm 1163.7 475.8 20.4
CE-ZR-MR128-PK Details PEEK OPEN 8mm 12mm 3.5mm 138.6 65.7 28.8
CE-ZR-MR148-PK Details PEEK OPEN 8 mm 14mm 4mm 208.5 92.7 27
CE-ZR-688-PK Details PEEK OPEN 8 mm 16mm 5mm 319.2 142.2 25.8
CE-ZR-698-PK Details PEEK OPEN 8 mm 19mm 6mm 570.6 220.2 25.8
CE-ZR-608-PK Details PEEK OPEN 8 mm 22mm 7mm 839.7 330.9 24
CE-ZR-628-PK Details PEEK OPEN 8 mm 24mm 8mm 849.9 341.4 20.4
CE-ZR-638-PK Details PEEK OPEN 8 mm 28mm 9mm 1163.7 475.8 20.4
CE-ZR-679-PK Details PEEK OPEN 9 mm 14mm 4.5mm 234.3 112.2 25.2
CE-ZR-689-PK Details PEEK OPEN 9 mm 17mm 5mm 338.4 160.2 25.8
CE-ZR-699-PK Details PEEK OPEN 9 mm 20mm 6mm 629.1 259.5 24
CE-ZR-609-PK Details PEEK OPEN 9 mm 24mm 7mm 855.9 346.5 22.8
CE-ZR-629-PK Details PEEK OPEN 9mm 26mm 8mm 1163.7 475.8 20.4
CE-ZR-639-PK Details PEEK OPEN 9mm 30mm 10mm 1188 499.2 18
CE-ZR-6700-PK Details PEEK OPEN 10mm 15mm 4mm 257.1 130.5 10.2
CE-ZR-63800-PK Details PEEK OPEN 10mm 19mm 7mm 516 252 24
CE-ZR-6800-PK Details PEEK OPEN 10mm 19mm 5mm 516 252 24
CE-ZR-6900-PK Details PEEK OPEN 10mm 22mm 6mm 810 381 22.2
CE-ZR-6000-PK Details PEEK OPEN 10 mm 26mm 8mm 1365 585 21.6
CE-ZR-6200-PK Details PEEK OPEN 10 mm 30mm 9mm 1530 720 17.4
CE-ZR-6300-PK Details PEEK OPEN 10 mm 35mm 11mm 2430 1035 16.2
CE-ZR-6701-PK Details PEEK OPEN 12mm 18mm 4mm 278.4 159.6 9
CE-ZR-63801-PK Details PEEK OPEN 12mm 21mm 7mm 576 312 21.6
CE-ZR-6801-PK Details PEEK OPEN 12mm 21mm 5mm 576 312 21.6
CE-ZR-6901-PK Details PEEK OPEN 12mm 24mm 6mm 867 438 19.8
CE-ZR-6001-PK Details PEEK OPEN 12 mm 28mm 8mm 1530 720 19.2
CE-ZR-6201-PK Details PEEK OPEN 12 mm 32mm 10mm 2040 915 16.2
CE-ZR-6301-PK Details PEEK OPEN 12 mm 37mm 12mm 2910 1260 15
CE-ZR-6702-PK Details PEEK OPEN 15mm 21mm 4mm 281.1 174.3 7.8
CE-ZR-63802-PK Details PEEK OPEN 15mm 24mm 7mm 621 378 18.6
CE-ZR-6802-PK Details PEEK OPEN 15mm 24mm 5mm 621 378 18.6
CE-ZR-6902-PK Details PEEK OPEN 15mm 28mm 7mm 1299 675 17.4
CE-ZR-6002-PK Details PEEK OPEN 15 mm 32mm 9mm 1680 855 16.2
CE-ZR-6202-PK Details PEEK OPEN 15 mm 35mm 11mm 2295 1125 14.4
CE-ZR-6302-PK Details PEEK OPEN 15 mm 42mm 13mm 3420 1635 12
CE-ZR-6703-PK Details PEEK OPEN 17mm 23mm 4mm 299.7 197.1 6.6
CE-ZR-63803-PK Details PEEK OPEN 17mm 26mm 7mm 669 438 17.4
CE-ZR-6803-PK Details PEEK OPEN 17mm 26mm 5mm 669 438 17.4
CE-ZR-6903-PK Details PEEK OPEN 17mm 30mm 7mm 1377 768 15.6
CE-ZR-6003-PK Details PEEK OPEN 17 mm 35mm 10mm 1800 975 15
CE-ZR-6203-PK Details PEEK OPEN 17 mm 40mm 12mm 2865 1440 12.6
CE-ZR-6303-PK Details PEEK OPEN 17 mm 47mm 14mm 4080 1995 10.8
CE-ZR-6704-PK Details PEEK OPEN 20mm 27mm 4mm 303 216.6 6
CE-ZR-63804-PK Details PEEK OPEN 20mm 32mm 10mm 1206 738 15
CE-ZR-6804-PK Details PEEK OPEN 20mm 32mm 7mm 1206 738 15
CE-ZR-6904-PK Details PEEK OPEN 20mm 37mm 9mm 1914 1104 13.2
CE-ZR-6004-PK Details PEEK OPEN 20 mm 42mm 12mm 2820 1515 12.6
CE-ZR-6204-PK Details PEEK OPEN 20 mm 47mm 14mm 3840 1995 10.2
CE-ZR-6304-PK Details PEEK OPEN 20 mm 52mm 15mm 4770 2355 10.2
CE-ZR-6705-PK Details PEEK OPEN 25mm 32mm 4mm 330 251.4 4.8
CE-ZR-63805-PK Details PEEK OPEN 25mm 37mm 10mm 1290 882 12.6
CE-ZR-6805-PK Details PEEK OPEN 25mm 37mm 7mm 1290 882 12.6
CE-ZR-6905-PK Details PEEK OPEN 25mm 42mm 9mm 2103 1365 11.4
CE-ZR-6005-PK Details PEEK OPEN 25 mm 47mm 12mm 3030 1755 10.8
CE-ZR-6205-PK Details PEEK OPEN 25 mm 52mm 15mm 4200 2355 9
CE-ZR-6305-PK Details PEEK OPEN 25 mm 62mm 17mm 6180 3390 7.8
CE-ZR-6706-PK Details PEEK OPEN 30mm 37mm 4mm 342 284.1 4.2
CE-ZR-63806-PK Details PEEK OPEN 30mm 42mm 10mm 1361.4 1020.6 10.8
CE-ZR-6806-PK Details PEEK OPEN 30mm 42mm 7mm 1335 1032 10.8
CE-ZR-6906-PK Details PEEK OPEN 30mm 47mm 9mm 2172 1503 10.2
CE-ZR-6006-PK Details PEEK OPEN 30 mm 55mm 13mm 3960 2475 9
CE-ZR-6206-PK Details PEEK OPEN 30 mm 62mm 16mm 5850 3390 7.8
CE-ZR-6306-PK Details PEEK OPEN 30 mm 72mm 19mm 8010 4500 7.2
CE-ZR-6707-PK Details PEEK OPEN 35mm 44mm 5mm 558 489 3.6
CE-ZR-6807-PK Details PEEK OPEN 35mm 47mm 7mm 1422 1146 9.6
CE-ZR-6907-PK Details PEEK OPEN 35mm 55mm 10mm 3270 2325 8.4
CE-ZR-6007-PK Details PEEK OPEN 35 mm 62mm 14mm 4770 3090 7.8
CE-ZR-6207-PK Details PEEK OPEN 35 mm 72mm 17mm 7710 4620 6.6
CE-ZR-6307-PK Details PEEK OPEN 35 mm 80mm 21mm 10020 5790 6
CE-ZR-6708-PK Details PEEK OPEN 40mm 50mm 6mm 753 669 3
CE-ZR-6808-PK Details PEEK OPEN 40mm 52mm 7mm 1479 1254 8.4
CE-ZR-6908-PK Details PEEK OPEN 40mm 62mm 12mm 4110 2976 7.8
CE-ZR-6008-PK Details PEEK OPEN 40 mm 68mm 15mm 5010 3450 7.2
CE-ZR-6208-PK Details PEEK OPEN 40 mm 80mm 18mm 8730 5340 6
CE-ZR-6308-PK Details PEEK OPEN 40 mm 90mm 23mm 12210 7200 5.4
CE-ZR-6709-PK Details PEEK OPEN 45mm 55mm 6mm 771 720 2.76
CE-ZR-6809-PK Details PEEK OPEN 45mm 58mm 7mm 1863 1614 7.8
CE-ZR-6909-PK Details PEEK OPEN 45mm 68mm 12mm 4230 3270 6.6
CE-ZR-6009-PK Details PEEK OPEN 45 mm 75mm 16mm 6300 4530 4.8
CE-ZR-6209-PK Details PEEK OPEN 45 mm 85mm 19mm 9810 6090 5.52
CE-ZR-6309-PK Details PEEK OPEN 45 mm 100mm 25mm 15900 9600 4.8
CE-ZR-6710-PK Details PEEK OPEN 50mm 62mm 6mm 801 795 2.46
CE-ZR-6810-PK Details PEEK OPEN 50mm 65mm 7mm 1851 1728 6.6
CE-ZR-6910-PK Details PEEK OPEN 50mm 72mm 12mm 4350 3510 6.6
CE-ZR-6010-PK Details PEEK OPEN 50 mm 80mm 16mm 6540 4980 5.94
CE-ZR-6210-PK Details PEEK OPEN 50 mm 90mm 20mm 10530 6990 4.5
CE-ZR-6310-PK Details PEEK OPEN 50 mm 110mm 27mm 18600 11490 4.5
CE-ZR-6811-PK Details PEEK OPEN 55mm 72mm 9mm 2640 2424 6
CE-ZR-6911-PK Details PEEK OPEN 55mm 80mm 13mm 4980 4230 5.76
CE-ZR-6011-PK Details PEEK OPEN 55 mm 90mm 18mm 8490 6360 5.4
CE-ZR-6211-PK Details PEEK OPEN 55 mm 100mm 21mm 13020 8820 4.5
CE-ZR-6311-PK Details PEEK OPEN 55 mm 120mm 29mm 21480 13500 4.02
CE-ZR-6812-PK Details PEEK OPEN 60mm 78mm 10mm 3450 3180 5.64
CE-ZR-6912-PK Details PEEK OPEN 60mm 85mm 13mm 6060 5190 5.34
CE-ZR-6012-PK Details PEEK OPEN 60 mm 95mm 18mm 8820 6960 5.1
CE-ZR-6212-PK Details PEEK OPEN 60 mm 110mm 22mm 15720 10860 4.26
CE-ZR-6312-PK Details PEEK OPEN 60 mm 130mm 31mm 24570 15660 3.78
CE-ZR-6813-PK Details PEEK OPEN 65mm 85mm 10mm 3570 3450 5.16
CE-ZR-6913-PK Details PEEK OPEN 65mm 90mm 13mm 5190 4800 4.98
CE-ZR-6013-PK Details PEEK OPEN 65 mm 100mm 18mm 9150 7560 4.8
CE-ZR-6213-PK Details PEEK OPEN 65 mm 120mm 23mm 17160 12030 3.78
CE-ZR-6313-PK Details PEEK OPEN 65 mm 140mm 33mm 27810 17970 3.6
CE-ZR-6814-PK Details PEEK OPEN 70mm 90mm 10mm 3480 3540 4.86
CE-ZR-6914-PK Details PEEK OPEN 70mm 100mm 16mm 7110 6330 4.56
CE-ZR-6014-PK Details PEEK OPEN 70 mm 110mm 20mm 11430 9270 4.26
CE-ZR-6214-PK Details PEEK OPEN 70 mm 125mm 24mm 18660 13230 3.78
CE-ZR-6314-PK Details PEEK OPEN 70 mm 150mm 35mm 31200 20460 3.18
CE-ZR-6815-PK Details PEEK OPEN 75mm 95mm 10mm 3690 3840 4.56
CE-ZR-6915-PK Details PEEK OPEN 75mm 105mm 16mm 7200 6780 4.26
CE-ZR-6015-PK Details PEEK OPEN 75 mm 115mm 20mm 11880 10050 4.02
CE-ZR-6215-PK Details PEEK OPEN 75 mm 130mm 25mm 20220 14490 3.36
CE-ZR-6315-PK Details PEEK OPEN 75 mm 160mm 37mm 33900 23160 3
CE-ZR-6816-PK Details PEEK OPEN 80mm 100mm 10mm 3780 3990 4.26
CE-ZR-6916-PK Details PEEK OPEN 80mm 110mm 16mm 7440 7170 4.02
CE-ZR-6016-PK Details PEEK OPEN 80 mm 125mm 22mm 14280 11940 3.78
CE-ZR-6216-PK Details PEEK OPEN 80 mm 140mm 26mm 21810 15900 3.18
CE-ZR-6316-PK Details PEEK OPEN 80 mm 170mm 39mm 36900 26010 2.88
CE-ZR-6817-PK Details PEEK OPEN 85mm 110mm 13mm 5610 5700 3.96
CE-ZR-6917-PK Details PEEK OPEN 85mm 120mm 18mm 9570 8880 3.72
CE-ZR-6017-PK Details PEEK OPEN 85 mm 130mm 22mm 14850 12930 3.6
CE-ZR-6217-PK Details PEEK OPEN 85 mm 150mm 28mm 25200 18570 3
CE-ZR-6317-PK Details PEEK OPEN 85 mm 180mm 41mm 39900 29040 2.7
CE-ZR-6818-PK Details PEEK OPEN 90mm 115mm 13mm 5490 5850 3.72
CE-ZR-6918-PK Details PEEK OPEN 90mm 125mm 18mm 9840 9480 3.6
CE-ZR-6018-PK Details PEEK OPEN 90 mm 140mm 24mm 17460 14910 3.36
CE-ZR-6218-PK Details PEEK OPEN 90 mm 160mm 30mm 28830 21450 2.88
CE-ZR-6318-PK Details PEEK OPEN 90 mm 190mm 43mm 42900 32100 2.58
CE-ZR-6819-PK Details PEEK OPEN 95mm 120mm 13mm 5640 6090 3.54
CE-ZR-6019-PK Details PEEK OPEN 95 mm 145mm 24mm 18120 16170 3.18
CE-ZR-6219-PK Details PEEK OPEN 95 mm 170mm 32mm 32700 24570 2.7
CE-ZR-6319-PK Details PEEK OPEN 95 mm 200mm 45mm 45900 35700 3.18
CE-ZR-6020-PK Details PEEK OPEN 100 mm 150mm 24mm 18060 16260 3.18
CE-ZR-6220-PK Details PEEK OPEN 100 mm 180mm 34mm 36600 27930 2.58
CE-ZR-6320-PK Details PEEK OPEN 100 mm 215mm 47mm 51900 42300 2.04
CE-ZR-6021-PK Details PEEK OPEN 105 mm 160mm 26mm 21690 19740 2.88
CE-ZR-6221-PK Details PEEK OPEN 105 mm 190mm 36mm 39900 31500 2.4
CE-ZR-6321-PK Details PEEK OPEN 105 mm 225mm 49mm 55200 45900 1.92

BEARING LIST & BEARING DETAILS

PEEK cage, PTFE SEALED type
Zirconia ZrO2 Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm

CLI Bearing No. Details Cage Seal Bearing Dimension Dynamic Static Max
Bore Dia Outer Dia Width radial radial Speed
Type Type (d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
CE-ZR-R133-PK-2PTS Details PEEK PTFE 0.0938" | 2.381 mm 0.1875" | 4.763 mm 0.0937" | 2.38 mm 37.374 13.347 57
CE-ZR-R1-5-PK-2PTS Details PEEK PTFE 0.0938" | 2.381 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 141.486 42.711 42.6
CE-ZR-R144-PK-2PTS Details PEEK PTFE 0.125" | 3.175 mm 0.25" | 6.35 mm 0.1094" | 2.779 mm 72.078 22.692 48
CE-ZR-R2-5-PK-2PTS Details PEEK PTFE 0.125" | 3.175 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 142.818 42.711 40.2
CE-ZR-R2-6-PK-2PTS Details PEEK PTFE 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1406" | 3.571 mm 162.84 54.726 37.8
CE-ZR-R2-PK-2PTS Details PEEK PTFE 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1562" | 3.967 mm 161.505 52.056 40.2
CE-ZR-R2A-PK-2PTS Details PEEK PTFE 0.125" | 3.175 mm 0.5" | 12.7 mm 0.1719" | 4.366 mm 162.84 54.726 37.8
CE-ZR-R155-PK-2PTS Details PEEK PTFE 0.1563" | 3.969 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 92.097 36.039 37.8
CE-ZR-R156-PK-2PTS Details PEEK PTFE 0.1875" | 4.763 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 92.097 36.039 37.8
CE-ZR-R166-PK-2PTS Details PEEK PTFE 0.1875" | 4.763 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 181.527 65.403 36
CE-ZR-R3-PK-2PTS Details PEEK PTFE 0.1875" | 4.763 mm 0.5" | 12.7 mm 0.196" | 4.978 mm 332.355 117.459 31.8
CE-ZR-R3A-PK-2PTS Details PEEK PTFE 0.1875" | 4.763 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 377.736 149.493 27
CE-ZR-1601-PK-2PTS Details PEEK PTFE 0.1875" | 4.763 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 180 66 3.6
CE-ZR-R168-PK-2PTS Details PEEK PTFE 0.25" | 6.35 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 94.767 41.379 33.6
CE-ZR-R188-PK-2PTS Details PEEK PTFE 0.25" | 6.35 mm 0.5" | 12.7 mm 0.1875" | 4.763 mm 276.294 106.782 30
CE-ZR-R4-PK-2PTS Details PEEK PTFE 0.25" | 6.35 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 377.736 149.493 27
CE-ZR-1602-PK-2PTS Details PEEK PTFE 0.25" | 6.35 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 190.5 72 3.6
CE-ZR-R4A-PK-2PTS Details PEEK PTFE 0.25" | 6.35 mm 0.75" | 19.05 mm 0.2812" | 7.142 mm 595.302 214.896 25.8
CE-ZR-R1810-PK-2PTS Details PEEK PTFE 0.3125" | 7.938 mm 0.5" | 12.7 mm 0.1562" | 3.967 mm 138.816 66.738 28.8
CE-ZR-1603-PK-2PTS Details PEEK PTFE 0.3125" | 7.938 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 223.5 93 3.6
CE-ZR-1605-PK-2PTS Details PEEK PTFE 0.3125" | 7.938 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 223.5 94.5 3.6
CE-ZR-1604-PK-2PTS Details PEEK PTFE 0.375" | 9.525 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 225 96 3.6
CE-ZR-R6-PK-2PTS Details PEEK PTFE 0.375" | 9.525 mm 0.875" | 22.225 mm 0.2812" | 7.142 mm 850.242 341.7 22.8
CE-ZR-1606-PK-2PTS Details PEEK PTFE 0.375" | 9.525 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 225 96 3.6
CE-ZR-1614-PK-2PTS Details PEEK PTFE 0.375" | 9.525 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 342 156 3.6
CE-ZR-1607-PK-2PTS Details PEEK PTFE 0.4375" | 11.113 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 304.5 129 3.6
CE-ZR-1615-PK-2PTS Details PEEK PTFE 0.4375" | 11.113 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 343.5 159 3.6
CE-ZR-1620-PK-2PTS Details PEEK PTFE 0.4375" | 11.113 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 507 240 3.6
CE-ZR-1616-PK-2PTS Details PEEK PTFE 0.5" | 12.7 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 345 135 3.6
CE-ZR-R8-PK-2PTS Details PEEK PTFE 0.5" | 12.7 mm 1.125" | 28.575 mm 0.3125" | 7.938 mm 344.7 153.3 19.2
CE-ZR-1621-PK-2PTS Details PEEK PTFE 0.5" | 12.7 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 510 244.5 3.6
CE-ZR-1622-PK-2PTS Details PEEK PTFE 0.5625" | 14.288 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 513 247.5 3.6
CE-ZR-1623-PK-2PTS Details PEEK PTFE 0.625" | 15.875 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 516 250.5 3.6
CE-ZR-R10-PK-2PTS Details PEEK PTFE 0.625" | 15.875 mm 1.375" | 34.925 mm 0.3438" | 8.733 mm 475.5 220.5 15
CE-ZR-1628-PK-2PTS Details PEEK PTFE 0.625" | 15.875 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 630 328.5 3.6
CE-ZR-1633-PK-2PTS Details PEEK PTFE 0.625" | 15.875 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 630 336 3.6
CE-ZR-1630-PK-2PTS Details PEEK PTFE 0.75" | 19.05 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 633 334.5 3.6
CE-ZR-R12-PK-2PTS Details PEEK PTFE 0.75" | 19.05 mm 1.625" | 41.275 mm 0.4375" | 11.113 mm 743.1 353.1 12.6
CE-ZR-1635-PK-2PTS Details PEEK PTFE 0.75" | 19.05 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 634.5 342 3.6
CE-ZR-1638-PK-2PTS Details PEEK PTFE 0.75" | 19.05 mm 2" | 50.8 mm 0.5625" | 14.288 mm 681 387 3.6
CE-ZR-R14-PK-2PTS Details PEEK PTFE 0.875" | 22.225 mm 1.875" | 47.625 mm 0.5" | 12.7 mm 797.4 392.1 7.2
CE-ZR-1640-PK-2PTS Details PEEK PTFE 0.875" | 22.225 mm 2" | 50.8 mm 0.5625" | 14.288 mm 679.5 394.5 3.6
CE-ZR-1641-PK-2PTS Details PEEK PTFE 1" | 25.4 mm 2" | 50.8 mm 0.5625" | 14.288 mm 678 403.5 3.6
CE-ZR-R16-PK-2PTS Details PEEK PTFE 1" | 25.4 mm 2" | 50.8 mm 0.5" | 12.7 mm 795.6 392.1 6.6
CE-ZR-R18-PK-2PTS Details PEEK PTFE 1.125" | 28.575 mm 2.125" | 53.975 mm 0.5" | 12.7 mm 1047.6 545.1 6
CE-ZR-1652-PK-2PTS Details PEEK PTFE 1.125" | 28.575 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 1080.9 684 3.6
CE-ZR-R20-PK-2PTS Details PEEK PTFE 1.25" | 31.75 mm 2.25" | 57.15 mm 0.5" | 12.7 mm 1108.5 595.8 5.4
CE-ZR-1654-PK-2PTS Details PEEK PTFE 1.25" | 31.75 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 1080 690 3.6
CE-ZR-1657-PK-2PTS Details PEEK PTFE 1.25" | 31.75 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1320 750 3.6
CE-ZR-1658-PK-2PTS Details PEEK PTFE 1.3125" | 33.338 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1311 780 3.6
CE-ZR-R22-PK-2PTS Details PEEK PTFE 1.375" | 34.925 mm 2.5" | 63.5 mm 0.5625" | 14.288 mm 1220.1 674.1 4.8
CE-ZR-R24-PK-2PTS Details PEEK PTFE 1.5" | 38.1 mm 2.625" | 66.675 mm 0.5625" | 14.288 mm 1327.8 733.8 1467.6
CE-ZR-682-PK-2PTS Details PEEK PTFE 2 mm 5mm 2.3mm 43.2 12 60
CE-ZR-MR52-PK-2PTS Details PEEK PTFE 2 mm 5mm 2.5mm 43.2 12 60
CE-ZR-692-PK-2PTS Details PEEK PTFE 2 mm 6mm 3mm 84.3 23.7 54
CE-ZR-MR62-PK-2PTS Details PEEK PTFE 2 mm 6mm 2.5mm 84.3 23.7 54
CE-ZR-602-PK-2PTS Details PEEK PTFE 2 mm 7mm 3.5mm 98.4 30.9 42.6
CE-ZR-MR72-PK-2PTS Details PEEK PTFE 2 mm 7mm 3mm 98.4 30.9 45
CE-ZR-682x-PK-2PTS Details PEEK PTFE 2.5 mm 6mm 2.6mm 53.4 17.7 48
CE-ZR-692x-PK-2PTS Details PEEK PTFE 2.5 mm 7mm 3.5mm 98.4 30.9 45
CE-ZR-602x-PK-2PTS Details PEEK PTFE 2.5 mm 8mm 4mm 140.7 42.6 42.6
CE-ZR-MR82x-PK-2PTS Details PEEK PTFE 2.5 mm 8mm 2.5mm 142.2 43.2 40.2
CE-ZR-MR63-PK-2PTS Details PEEK PTFE 3 mm 6mm 2.5mm 53.4 17.7 48
CE-ZR-683-PK-2PTS Details PEEK PTFE 3 mm 7mm 3mm 79.2 27 45
CE-ZR-693-PK-2PTS Details PEEK PTFE 3 mm 8mm 4mm 142.2 43.2 40.2
CE-ZR-MR83-PK-2PTS Details PEEK PTFE 3 mm 8mm 3mm 100.8 33.9 40.2
CE-ZR-603-PK-2PTS Details PEEK PTFE 3 mm 9mm 5mm 69 45.3 40.2
CE-ZR-MR93-PK-2PTS Details PEEK PTFE 3 mm 9mm 4mm 145.5 45.3 40.2
CE-ZR-623-PK-2PTS Details PEEK PTFE 3 mm 10mm 4mm 160.8 52.5 36
CE-ZR-633-PK-2PTS Details PEEK PTFE 3 mm 13mm 5mm 331.8 117 28.8
CE-ZR-MR74-PK-2PTS Details PEEK PTFE 4 mm 7mm 2.5mm 65.1 25.8 40.2
CE-ZR-MR84-PK-2PTS Details PEEK PTFE 4 mm 8mm 3mm 100.8 33.9 40.2
CE-ZR-684-PK-2PTS Details PEEK PTFE 4 mm 9mm 4mm 163.5 54.6 37.8
CE-ZR-MR104-PK-2PTS Details PEEK PTFE 4 mm 10mm 4mm 181.2 65.4 33.6
CE-ZR-694-PK-2PTS Details PEEK PTFE 4 mm 11mm 4mm 244.2 84 33.6
CE-ZR-604-PK-2PTS Details PEEK PTFE 4 mm 12mm 4mm 244.2 84 33.6
CE-ZR-624-PK-2PTS Details PEEK PTFE 4 mm 13mm 5mm 331.8 117 28.8
CE-ZR-634-PK-2PTS Details PEEK PTFE 4 mm 16mm 5mm 341.7 125.4 25.8
CE-ZR-MR85-PK-2PTS Details PEEK PTFE 5 mm 8mm 2.5mm 55.5 21.6 37.8
CE-ZR-MR95-PK-2PTS Details PEEK PTFE 5 mm 9mm 3mm 109.8 40.5 36
CE-ZR-MR105-PK-2PTS Details PEEK PTFE 5 mm 10mm 4mm 109.8 40.5 36
CE-ZR-685-PK-2PTS Details PEEK PTFE 5 mm 11mm 5mm 182.7 67.8 31.8
CE-ZR-MR115-PK-2PTS Details PEEK PTFE 5 mm 11mm 4mm 182.7 67.8 37.8
CE-ZR-695-PK-2PTS Details PEEK PTFE 5 mm 13mm 4mm 274.8 103.8 30
CE-ZR-605-PK-2PTS Details PEEK PTFE 5 mm 14mm 5mm 339 121.8 30
CE-ZR-625-PK-2PTS Details PEEK PTFE 5 mm 16mm 5mm 441 162 25.8
CE-ZR-635-PK-2PTS Details PEEK PTFE 5 mm 19mm 6mm 595.8 215.1 24
CE-ZR-MR106-PK-2PTS Details PEEK PTFE 6 mm 10mm 3mm 126.6 52.2 31.8
CE-ZR-MR126-PK-2PTS Details PEEK PTFE 6 mm 12mm 4mm 182.7 70.8 30
CE-ZR-686-PK-2PTS Details PEEK PTFE 6 mm 13mm 5mm 276 106.2 30
CE-ZR-696-PK-2PTS Details PEEK PTFE 6 mm 15mm 5mm 341.7 125.4 27
CE-ZR-606-PK-2PTS Details PEEK PTFE 6 mm 17mm 6mm 577.2 203.1 27
CE-ZR-626-PK-2PTS Details PEEK PTFE 6 mm 19mm 6mm 595.8 215.1 24
CE-ZR-636-PK-2PTS Details PEEK PTFE 6 mm 22mm 7mm 849.9 341.4 21.6
CE-ZR-MR117-PK-2PTS Details PEEK PTFE 7 mm 11mm 3mm 116.1 48.6 30
CE-ZR-MR137-PK-2PTS Details PEEK PTFE 7 mm 13mm 4mm 138 66.3 28.8
CE-ZR-687-PK-2PTS Details PEEK PTFE 7 mm 14mm 5mm 299.1 123 30
CE-ZR-697-PK-2PTS Details PEEK PTFE 7 mm 17mm 5mm 409.2 172.5 25.8
CE-ZR-607-PK-2PTS Details PEEK PTFE 7 mm 19mm 6mm 595.8 215.1 25.8
CE-ZR-627-PK-2PTS Details PEEK PTFE 7 mm 22mm 7mm 838.2 330.9 21.6
CE-ZR-637-PK-2PTS Details PEEK PTFE 7 mm 26mm 9mm 1163.7 475.8 20.4
CE-ZR-MR128-PK-2PTS Details PEEK PTFE 8mm 12mm 3.5mm 138.6 65.7 28.8
CE-ZR-MR148-PK-2PTS Details PEEK PTFE 8 mm 14mm 4mm 208.5 92.7 27
CE-ZR-688-PK-2PTS Details PEEK PTFE 8 mm 16mm 5mm 319.2 142.2 25.8
CE-ZR-698-PK-2PTS Details PEEK PTFE 8 mm 19mm 6mm 570.6 220.2 25.8
CE-ZR-608-PK-2PTS Details PEEK PTFE 8 mm 22mm 7mm 839.7 330.9 24
CE-ZR-628-PK-2PTS Details PEEK PTFE 8 mm 24mm 8mm 849.9 341.4 20.4
CE-ZR-638-PK-2PTS Details PEEK PTFE 8 mm 28mm 9mm 1163.7 475.8 20.4
CE-ZR-679-PK-2PTS Details PEEK PTFE 9 mm 14mm 4.5mm 234.3 112.2 25.2
CE-ZR-689-PK-2PTS Details PEEK PTFE 9 mm 17mm 5mm 338.4 160.2 25.8
CE-ZR-699-PK-2PTS Details PEEK PTFE 9 mm 20mm 6mm 629.1 259.5 24
CE-ZR-609-PK-2PTS Details PEEK PTFE 9 mm 24mm 7mm 855.9 346.5 22.8
CE-ZR-629-PK-2PTS Details PEEK PTFE 9mm 26mm 8mm 1163.7 475.8 20.4
CE-ZR-639-PK-2PTS Details PEEK PTFE 9mm 30mm 10mm 1188 499.2 18
CE-ZR-6700-PK-2PTS Details PEEK PTFE 10mm 15mm 4mm 257.1 130.5 10.2
CE-ZR-63800-PK-2PTS Details PEEK PTFE 10mm 19mm 7mm 516 252 24
CE-ZR-6800-PK-2PTS Details PEEK PTFE 10mm 19mm 5mm 516 252 24
CE-ZR-6900-PK-2PTS Details PEEK PTFE 10mm 22mm 6mm 810 381 22.2
CE-ZR-6000-PK-2PTS Details PEEK PTFE 10 mm 26mm 8mm 1365 585 21.6
CE-ZR-6200-PK-2PTS Details PEEK PTFE 10 mm 30mm 9mm 1530 720 17.4
CE-ZR-6300-PK-2PTS Details PEEK PTFE 10 mm 35mm 11mm 2430 1035 16.2
CE-ZR-6701-PK-2PTS Details PEEK PTFE 12mm 18mm 4mm 278.4 159.6 9
CE-ZR-63801-PK-2PTS Details PEEK PTFE 12mm 21mm 7mm 576 312 21.6
CE-ZR-6801-PK-2PTS Details PEEK PTFE 12mm 21mm 5mm 576 312 21.6
CE-ZR-6901-PK-2PTS Details PEEK PTFE 12mm 24mm 6mm 867 438 19.8
CE-ZR-6001-PK-2PTS Details PEEK PTFE 12 mm 28mm 8mm 1530 720 19.2
CE-ZR-6201-PK-2PTS Details PEEK PTFE 12 mm 32mm 10mm 2040 915 16.2
CE-ZR-6301-PK-2PTS Details PEEK PTFE 12 mm 37mm 12mm 2910 1260 15
CE-ZR-6702-PK-2PTS Details PEEK PTFE 15mm 21mm 4mm 281.1 174.3 7.8
CE-ZR-63802-PK-2PTS Details PEEK PTFE 15mm 24mm 7mm 621 378 18.6
CE-ZR-6802-PK-2PTS Details PEEK PTFE 15mm 24mm 5mm 621 378 18.6
CE-ZR-6902-PK-2PTS Details PEEK PTFE 15mm 28mm 7mm 1299 675 17.4
CE-ZR-6002-PK-2PTS Details PEEK PTFE 15 mm 32mm 9mm 1680 855 16.2
CE-ZR-6202-PK-2PTS Details PEEK PTFE 15 mm 35mm 11mm 2295 1125 14.4
CE-ZR-6302-PK-2PTS Details PEEK PTFE 15 mm 42mm 13mm 3420 1635 12
CE-ZR-6703-PK-2PTS Details PEEK PTFE 17mm 23mm 4mm 299.7 197.1 6.6
CE-ZR-63803-PK-2PTS Details PEEK PTFE 17mm 26mm 7mm 669 438 17.4
CE-ZR-6803-PK-2PTS Details PEEK PTFE 17mm 26mm 5mm 669 438 17.4
CE-ZR-6903-PK-2PTS Details PEEK PTFE 17mm 30mm 7mm 1377 768 15.6
CE-ZR-6003-PK-2PTS Details PEEK PTFE 17 mm 35mm 10mm 1800 975 15
CE-ZR-6203-PK-2PTS Details PEEK PTFE 17 mm 40mm 12mm 2865 1440 12.6
CE-ZR-6303-PK-2PTS Details PEEK PTFE 17 mm 47mm 14mm 4080 1995 10.8
CE-ZR-6704-PK-2PTS Details PEEK PTFE 20mm 27mm 4mm 303 216.6 6
CE-ZR-63804-PK-2PTS Details PEEK PTFE 20mm 32mm 10mm 1206 738 15
CE-ZR-6804-PK-2PTS Details PEEK PTFE 20mm 32mm 7mm 1206 738 15
CE-ZR-6904-PK-2PTS Details PEEK PTFE 20mm 37mm 9mm 1914 1104 13.2
CE-ZR-6004-PK-2PTS Details PEEK PTFE 20 mm 42mm 12mm 2820 1515 12.6
CE-ZR-6204-PK-2PTS Details PEEK PTFE 20 mm 47mm 14mm 3840 1995 10.2
CE-ZR-6304-PK-2PTS Details PEEK PTFE 20 mm 52mm 15mm 4770 2355 10.2
CE-ZR-6705-PK-2PTS Details PEEK PTFE 25mm 32mm 4mm 330 251.4 4.8
CE-ZR-63805-PK-2PTS Details PEEK PTFE 25mm 37mm 10mm 1290 882 12.6
CE-ZR-6805-PK-2PTS Details PEEK PTFE 25mm 37mm 7mm 1290 882 12.6
CE-ZR-6905-PK-2PTS Details PEEK PTFE 25mm 42mm 9mm 2103 1365 11.4
CE-ZR-6005-PK-2PTS Details PEEK PTFE 25 mm 47mm 12mm 3030 1755 10.8
CE-ZR-6205-PK-2PTS Details PEEK PTFE 25 mm 52mm 15mm 4200 2355 9
CE-ZR-6305-PK-2PTS Details PEEK PTFE 25 mm 62mm 17mm 6180 3390 7.8
CE-ZR-6706-PK-2PTS Details PEEK PTFE 30mm 37mm 4mm 342 284.1 4.2
CE-ZR-63806-PK-2PTS Details PEEK PTFE 30mm 42mm 10mm 1361.4 1020.6 10.8
CE-ZR-6806-PK-2PTS Details PEEK PTFE 30mm 42mm 7mm 1335 1032 10.8
CE-ZR-6906-PK-2PTS Details PEEK PTFE 30mm 47mm 9mm 2172 1503 10.2
CE-ZR-6006-PK-2PTS Details PEEK PTFE 30 mm 55mm 13mm 3960 2475 9
CE-ZR-6206-PK-2PTS Details PEEK PTFE 30 mm 62mm 16mm 5850 3390 7.8
CE-ZR-6306-PK-2PTS Details PEEK PTFE 30 mm 72mm 19mm 8010 4500 7.2
CE-ZR-6707-PK-2PTS Details PEEK PTFE 35mm 44mm 5mm 558 489 3.6
CE-ZR-6807-PK-2PTS Details PEEK PTFE 35mm 47mm 7mm 1422 1146 9.6
CE-ZR-6907-PK-2PTS Details PEEK PTFE 35mm 55mm 10mm 3270 2325 8.4
CE-ZR-6007-PK-2PTS Details PEEK PTFE 35 mm 62mm 14mm 4770 3090 7.8
CE-ZR-6207-PK-2PTS Details PEEK PTFE 35 mm 72mm 17mm 7710 4620 6.6
CE-ZR-6307-PK-2PTS Details PEEK PTFE 35 mm 80mm 21mm 10020 5790 6
CE-ZR-6708-PK-2PTS Details PEEK PTFE 40mm 50mm 6mm 753 669 3
CE-ZR-6808-PK-2PTS Details PEEK PTFE 40mm 52mm 7mm 1479 1254 8.4
CE-ZR-6908-PK-2PTS Details PEEK PTFE 40mm 62mm 12mm 4110 2976 7.8
CE-ZR-6008-PK-2PTS Details PEEK PTFE 40 mm 68mm 15mm 5010 3450 7.2
CE-ZR-6208-PK-2PTS Details PEEK PTFE 40 mm 80mm 18mm 8730 5340 6
CE-ZR-6308-PK-2PTS Details PEEK PTFE 40 mm 90mm 23mm 12210 7200 5.4
CE-ZR-6709-PK-2PTS Details PEEK PTFE 45mm 55mm 6mm 771 720 2.76
CE-ZR-6809-PK-2PTS Details PEEK PTFE 45mm 58mm 7mm 1863 1614 7.8
CE-ZR-6909-PK-2PTS Details PEEK PTFE 45mm 68mm 12mm 4230 3270 6.6
CE-ZR-6009-PK-2PTS Details PEEK PTFE 45 mm 75mm 16mm 6300 4530 4.8
CE-ZR-6209-PK-2PTS Details PEEK PTFE 45 mm 85mm 19mm 9810 6090 5.52
CE-ZR-6309-PK-2PTS Details PEEK PTFE 45 mm 100mm 25mm 15900 9600 4.8
CE-ZR-6710-PK-2PTS Details PEEK PTFE 50mm 62mm 6mm 801 795 2.46
CE-ZR-6810-PK-2PTS Details PEEK PTFE 50mm 65mm 7mm 1851 1728 6.6
CE-ZR-6910-PK-2PTS Details PEEK PTFE 50mm 72mm 12mm 4350 3510 6.6
CE-ZR-6010-PK-2PTS Details PEEK PTFE 50 mm 80mm 16mm 6540 4980 5.94
CE-ZR-6210-PK-2PTS Details PEEK PTFE 50 mm 90mm 20mm 10530 6990 4.5
CE-ZR-6310-PK-2PTS Details PEEK PTFE 50 mm 110mm 27mm 18600 11490 4.5
CE-ZR-6811-PK-2PTS Details PEEK PTFE 55mm 72mm 9mm 2640 2424 6
CE-ZR-6911-PK-2PTS Details PEEK PTFE 55mm 80mm 13mm 4980 4230 5.76
CE-ZR-6011-PK-2PTS Details PEEK PTFE 55 mm 90mm 18mm 8490 6360 5.4
CE-ZR-6211-PK-2PTS Details PEEK PTFE 55 mm 100mm 21mm 13020 8820 4.5
CE-ZR-6311-PK-2PTS Details PEEK PTFE 55 mm 120mm 29mm 21480 13500 4.02
CE-ZR-6812-PK-2PTS Details PEEK PTFE 60mm 78mm 10mm 3450 3180 5.64
CE-ZR-6912-PK-2PTS Details PEEK PTFE 60mm 85mm 13mm 6060 5190 5.34
CE-ZR-6012-PK-2PTS Details PEEK PTFE 60 mm 95mm 18mm 8820 6960 5.1
CE-ZR-6212-PK-2PTS Details PEEK PTFE 60 mm 110mm 22mm 15720 10860 4.26
CE-ZR-6312-PK-2PTS Details PEEK PTFE 60 mm 130mm 31mm 24570 15660 3.78
CE-ZR-6813-PK-2PTS Details PEEK PTFE 65mm 85mm 10mm 3570 3450 5.16
CE-ZR-6913-PK-2PTS Details PEEK PTFE 65mm 90mm 13mm 5190 4800 4.98
CE-ZR-6013-PK-2PTS Details PEEK PTFE 65 mm 100mm 18mm 9150 7560 4.8
CE-ZR-6213-PK-2PTS Details PEEK PTFE 65 mm 120mm 23mm 17160 12030 3.78
CE-ZR-6313-PK-2PTS Details PEEK PTFE 65 mm 140mm 33mm 27810 17970 3.6
CE-ZR-6814-PK-2PTS Details PEEK PTFE 70mm 90mm 10mm 3480 3540 4.86
CE-ZR-6914-PK-2PTS Details PEEK PTFE 70mm 100mm 16mm 7110 6330 4.56
CE-ZR-6014-PK-2PTS Details PEEK PTFE 70 mm 110mm 20mm 11430 9270 4.26
CE-ZR-6214-PK-2PTS Details PEEK PTFE 70 mm 125mm 24mm 18660 13230 3.78
CE-ZR-6314-PK-2PTS Details PEEK PTFE 70 mm 150mm 35mm 31200 20460 3.18
CE-ZR-6815-PK-2PTS Details PEEK PTFE 75mm 95mm 10mm 3690 3840 4.56
CE-ZR-6915-PK-2PTS Details PEEK PTFE 75mm 105mm 16mm 7200 6780 4.26
CE-ZR-6015-PK-2PTS Details PEEK PTFE 75 mm 115mm 20mm 11880 10050 4.02
CE-ZR-6215-PK-2PTS Details PEEK PTFE 75 mm 130mm 25mm 20220 14490 3.36
CE-ZR-6315-PK-2PTS Details PEEK PTFE 75 mm 160mm 37mm 33900 23160 3
CE-ZR-6816-PK-2PTS Details PEEK PTFE 80mm 100mm 10mm 3780 3990 4.26
CE-ZR-6916-PK-2PTS Details PEEK PTFE 80mm 110mm 16mm 7440 7170 4.02
CE-ZR-6016-PK-2PTS Details PEEK PTFE 80 mm 125mm 22mm 14280 11940 3.78
CE-ZR-6216-PK-2PTS Details PEEK PTFE 80 mm 140mm 26mm 21810 15900 3.18
CE-ZR-6316-PK-2PTS Details PEEK PTFE 80 mm 170mm 39mm 36900 26010 2.88
CE-ZR-6817-PK-2PTS Details PEEK PTFE 85mm 110mm 13mm 5610 5700 3.96
CE-ZR-6917-PK-2PTS Details PEEK PTFE 85mm 120mm 18mm 9570 8880 3.72
CE-ZR-6017-PK-2PTS Details PEEK PTFE 85 mm 130mm 22mm 14850 12930 3.6
CE-ZR-6217-PK-2PTS Details PEEK PTFE 85 mm 150mm 28mm 25200 18570 3
CE-ZR-6317-PK-2PTS Details PEEK PTFE 85 mm 180mm 41mm 39900 29040 2.7
CE-ZR-6818-PK-2PTS Details PEEK PTFE 90mm 115mm 13mm 5490 5850 3.72
CE-ZR-6918-PK-2PTS Details PEEK PTFE 90mm 125mm 18mm 9840 9480 3.6
CE-ZR-6018-PK-2PTS Details PEEK PTFE 90 mm 140mm 24mm 17460 14910 3.36
CE-ZR-6218-PK-2PTS Details PEEK PTFE 90 mm 160mm 30mm 28830 21450 2.88
CE-ZR-6318-PK-2PTS Details PEEK PTFE 90 mm 190mm 43mm 42900 32100 2.58
CE-ZR-6819-PK-2PTS Details PEEK PTFE 95mm 120mm 13mm 5640 6090 3.54
CE-ZR-6019-PK-2PTS Details PEEK PTFE 95 mm 145mm 24mm 18120 16170 3.18
CE-ZR-6219-PK-2PTS Details PEEK PTFE 95 mm 170mm 32mm 32700 24570 2.7
CE-ZR-6319-PK-2PTS Details PEEK PTFE 95 mm 200mm 45mm 45900 35700 3.18
CE-ZR-6020-PK-2PTS Details PEEK PTFE 100 mm 150mm 24mm 18060 16260 3.18
CE-ZR-6220-PK-2PTS Details PEEK PTFE 100 mm 180mm 34mm 36600 27930 2.58
CE-ZR-6320-PK-2PTS Details PEEK PTFE 100 mm 215mm 47mm 51900 42300 2.04
CE-ZR-6021-PK-2PTS Details PEEK PTFE 105 mm 160mm 26mm 21690 19740 2.88
CE-ZR-6221-PK-2PTS Details PEEK PTFE 105 mm 190mm 36mm 39900 31500 2.4
CE-ZR-6321-PK-2PTS Details PEEK PTFE 105 mm 225mm 49mm 55200 45900 1.92

BEARING LIST & BEARING DETAILS

PEEK cage, PEEK SEALED type
Zirconia ZrO2 Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm
CLI Bearing No. Details Cage Type Seal Type Bearing Dimension Dynamic Static Max
Bore Dia Outer Dia Width radial radial Speed
(d) (D) (B) (Newtons) (Newtons) (X1000 RPM)
CE-ZR-R133-PK-2PKS Details PEEK PEEK 0.0938" | 2.381 mm 0.1875" | 4.763 mm 0.0937" | 2.38 mm 37.374 13.347 57
CE-ZR-R1-5-PK-2PKS Details PEEK PEEK 0.0938" | 2.381 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 141.486 42.711 42.6
CE-ZR-R144-PK-2PKS Details PEEK PEEK 0.125" | 3.175 mm 0.25" | 6.35 mm 0.1094" | 2.779 mm 72.078 22.692 48
CE-ZR-R2-5-PK-2PKS Details PEEK PEEK 0.125" | 3.175 mm 0.3125" | 7.938 mm 0.1406" | 3.571 mm 142.818 42.711 40.2
CE-ZR-R2-6-PK-2PKS Details PEEK PEEK 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1406" | 3.571 mm 162.84 54.726 37.8
CE-ZR-R2-PK-2PKS Details PEEK PEEK 0.125" | 3.175 mm 0.375" | 9.525 mm 0.1562" | 3.967 mm 161.505 52.056 40.2
CE-ZR-R2A-PK-2PKS Details PEEK PEEK 0.125" | 3.175 mm 0.5" | 12.7 mm 0.1719" | 4.366 mm 162.84 54.726 37.8
CE-ZR-R155-PK-2PKS Details PEEK PEEK 0.1563" | 3.969 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 92.097 36.039 37.8
CE-ZR-R156-PK-2PKS Details PEEK PEEK 0.1875" | 4.763 mm 0.3125" | 7.938 mm 0.125" | 3.175 mm 92.097 36.039 37.8
CE-ZR-R166-PK-2PKS Details PEEK PEEK 0.1875" | 4.763 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 181.527 65.403 36
CE-ZR-R3-PK-2PKS Details PEEK PEEK 0.1875" | 4.763 mm 0.5" | 12.7 mm 0.196" | 4.978 mm 332.355 117.459 31.8
CE-ZR-R3A-PK-2PKS Details PEEK PEEK 0.1875" | 4.763 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 377.736 149.493 27
CE-ZR-1601-PK-2PKS Details PEEK PEEK 0.1875" | 4.763 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 180 66 3.6
CE-ZR-R168-PK-2PKS Details PEEK PEEK 0.25" | 6.35 mm 0.375" | 9.525 mm 0.125" | 3.175 mm 94.767 41.379 33.6
CE-ZR-R188-PK-2PKS Details PEEK PEEK 0.25" | 6.35 mm 0.5" | 12.7 mm 0.1875" | 4.763 mm 276.294 106.782 30
CE-ZR-R4-PK-2PKS Details PEEK PEEK 0.25" | 6.35 mm 0.625" | 15.875 mm 0.196" | 4.978 mm 377.736 149.493 27
CE-ZR-1602-PK-2PKS Details PEEK PEEK 0.25" | 6.35 mm 0.6875" | 17.463 mm 0.3125" | 7.938 mm 190.5 72 3.6
CE-ZR-R4A-PK-2PKS Details PEEK PEEK 0.25" | 6.35 mm 0.75" | 19.05 mm 0.2812" | 7.142 mm 595.302 214.896 25.8
CE-ZR-R1810-PK-2PKS Details PEEK PEEK 0.3125" | 7.938 mm 0.5" | 12.7 mm 0.1562" | 3.967 mm 138.816 66.738 28.8
CE-ZR-1603-PK-2PKS Details PEEK PEEK 0.3125" | 7.938 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 223.5 93 3.6
CE-ZR-1605-PK-2PKS Details PEEK PEEK 0.3125" | 7.938 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 223.5 94.5 3.6
CE-ZR-1604-PK-2PKS Details PEEK PEEK 0.375" | 9.525 mm 0.875" | 22.225 mm 0.3438" | 8.733 mm 225 96 3.6
CE-ZR-R6-PK-2PKS Details PEEK PEEK 0.375" | 9.525 mm 0.875" | 22.225 mm 0.2812" | 7.142 mm 850.242 341.7 22.8
CE-ZR-1606-PK-2PKS Details PEEK PEEK 0.375" | 9.525 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 225 96 3.6
CE-ZR-1614-PK-2PKS Details PEEK PEEK 0.375" | 9.525 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 342 156 3.6
CE-ZR-1607-PK-2PKS Details PEEK PEEK 0.4375" | 11.113 mm 0.9062" | 23.017 mm 0.3125" | 7.938 mm 304.5 129 3.6
CE-ZR-1615-PK-2PKS Details PEEK PEEK 0.4375" | 11.113 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 343.5 159 3.6
CE-ZR-1620-PK-2PKS Details PEEK PEEK 0.4375" | 11.113 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 507 240 3.6
CE-ZR-1616-PK-2PKS Details PEEK PEEK 0.5" | 12.7 mm 1.125" | 28.575 mm 0.375" | 9.525 mm 345 135 3.6
CE-ZR-R8-PK-2PKS Details PEEK PEEK 0.5" | 12.7 mm 1.125" | 28.575 mm 0.3125" | 7.938 mm 344.7 153.3 19.2
CE-ZR-1621-PK-2PKS Details PEEK PEEK 0.5" | 12.7 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 510 244.5 3.6
CE-ZR-1622-PK-2PKS Details PEEK PEEK 0.5625" | 14.288 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 513 247.5 3.6
CE-ZR-1623-PK-2PKS Details PEEK PEEK 0.625" | 15.875 mm 1.375" | 34.925 mm 0.4375" | 11.113 mm 516 250.5 3.6
CE-ZR-R10-PK-2PKS Details PEEK PEEK 0.625" | 15.875 mm 1.375" | 34.925 mm 0.3438" | 8.733 mm 475.5 220.5 15
CE-ZR-1628-PK-2PKS Details PEEK PEEK 0.625" | 15.875 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 630 328.5 3.6
CE-ZR-1633-PK-2PKS Details PEEK PEEK 0.625" | 15.875 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 630 336 3.6
CE-ZR-1630-PK-2PKS Details PEEK PEEK 0.75" | 19.05 mm 1.625" | 41.275 mm 0.5" | 12.7 mm 633 334.5 3.6
CE-ZR-R12-PK-2PKS Details PEEK PEEK 0.75" | 19.05 mm 1.625" | 41.275 mm 0.4375" | 11.113 mm 743.1 353.1 12.6
CE-ZR-1635-PK-2PKS Details PEEK PEEK 0.75" | 19.05 mm 1.75" | 44.45 mm 0.5" | 12.7 mm 634.5 342 3.6
CE-ZR-1638-PK-2PKS Details PEEK PEEK 0.75" | 19.05 mm 2" | 50.8 mm 0.5625" | 14.288 mm 681 387 3.6
CE-ZR-R14-PK-2PKS Details PEEK PEEK 0.875" | 22.225 mm 1.875" | 47.625 mm 0.5" | 12.7 mm 797.4 392.1 7.2
CE-ZR-1640-PK-2PKS Details PEEK PEEK 0.875" | 22.225 mm 2" | 50.8 mm 0.5625" | 14.288 mm 679.5 394.5 3.6
CE-ZR-1641-PK-2PKS Details PEEK PEEK 1" | 25.4 mm 2" | 50.8 mm 0.5625" | 14.288 mm 678 403.5 3.6
CE-ZR-R16-PK-2PKS Details PEEK PEEK 1" | 25.4 mm 2" | 50.8 mm 0.5" | 12.7 mm 795.6 392.1 6.6
CE-ZR-R18-PK-2PKS Details PEEK PEEK 1.125" | 28.575 mm 2.125" | 53.975 mm 0.5" | 12.7 mm 1047.6 545.1 6
CE-ZR-1652-PK-2PKS Details PEEK PEEK 1.125" | 28.575 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 1080.9 684 3.6
CE-ZR-R20-PK-2PKS Details PEEK PEEK 1.25" | 31.75 mm 2.25" | 57.15 mm 0.5" | 12.7 mm 1108.5 595.8 5.4
CE-ZR-1654-PK-2PKS Details PEEK PEEK 1.25" | 31.75 mm 2.5" | 63.5 mm 0.625" | 15.875 mm 1080 690 3.6
CE-ZR-1657-PK-2PKS Details PEEK PEEK 1.25" | 31.75 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1320 750 3.6
CE-ZR-1658-PK-2PKS Details PEEK PEEK 1.3125" | 33.338 mm 2.5625" | 65.088 mm 0.6875" | 17.463 mm 1311 780 3.6
CE-ZR-R22-PK-2PKS Details PEEK PEEK 1.375" | 34.925 mm 2.5" | 63.5 mm 0.5625" | 14.288 mm 1220.1 674.1 4.8
CE-ZR-R24-PK-2PKS Details PEEK PEEK 1.5" | 38.1 mm 2.625" | 66.675 mm 0.5625" | 14.288 mm 1327.8 733.8 1467.6
CE-ZR-682-PK-2PKS Details PEEK PEEK 2 mm 5mm 2.3mm 43.2 12 60
CE-ZR-MR52-PK-2PKS Details PEEK PEEK 2 mm 5mm 2.5mm 43.2 12 60
CE-ZR-692-PK-2PKS Details PEEK PEEK 2 mm 6mm 3mm 84.3 23.7 54
CE-ZR-MR62-PK-2PKS Details PEEK PEEK 2 mm 6mm 2.5mm 84.3 23.7 54
CE-ZR-602-PK-2PKS Details PEEK PEEK 2 mm 7mm 3.5mm 98.4 30.9 42.6
CE-ZR-MR72-PK-2PKS Details PEEK PEEK 2 mm 7mm 3mm 98.4 30.9 45
CE-ZR-682x-PK-2PKS Details PEEK PEEK 2.5 mm 6mm 2.6mm 53.4 17.7 48
CE-ZR-692x-PK-2PKS Details PEEK PEEK 2.5 mm 7mm 3.5mm 98.4 30.9 45
CE-ZR-602x-PK-2PKS Details PEEK PEEK 2.5 mm 8mm 4mm 140.7 42.6 42.6
CE-ZR-MR82x-PK-2PKS Details PEEK PEEK 2.5 mm 8mm 2.5mm 142.2 43.2 40.2
CE-ZR-MR63-PK-2PKS Details PEEK PEEK 3 mm 6mm 2.5mm 53.4 17.7 48
CE-ZR-683-PK-2PKS Details PEEK PEEK 3 mm 7mm 3mm 79.2 27 45
CE-ZR-693-PK-2PKS Details PEEK PEEK 3 mm 8mm 4mm 142.2 43.2 40.2
CE-ZR-MR83-PK-2PKS Details PEEK PEEK 3 mm 8mm 3mm 100.8 33.9 40.2
CE-ZR-603-PK-2PKS Details PEEK PEEK 3 mm 9mm 5mm 69 45.3 40.2
CE-ZR-MR93-PK-2PKS Details PEEK PEEK 3 mm 9mm 4mm 145.5 45.3 40.2
CE-ZR-623-PK-2PKS Details PEEK PEEK 3 mm 10mm 4mm 160.8 52.5 36
CE-ZR-633-PK-2PKS Details PEEK PEEK 3 mm 13mm 5mm 331.8 117 28.8
CE-ZR-MR74-PK-2PKS Details PEEK PEEK 4 mm 7mm 2.5mm 65.1 25.8 40.2
CE-ZR-MR84-PK-2PKS Details PEEK PEEK 4 mm 8mm 3mm 100.8 33.9 40.2
CE-ZR-684-PK-2PKS Details PEEK PEEK 4 mm 9mm 4mm 163.5 54.6 37.8
CE-ZR-MR104-PK-2PKS Details PEEK PEEK 4 mm 10mm 4mm 181.2 65.4 33.6
CE-ZR-694-PK-2PKS Details PEEK PEEK 4 mm 11mm 4mm 244.2 84 33.6
CE-ZR-604-PK-2PKS Details PEEK PEEK 4 mm 12mm 4mm 244.2 84 33.6
CE-ZR-624-PK-2PKS Details PEEK PEEK 4 mm 13mm 5mm 331.8 117 28.8
CE-ZR-634-PK-2PKS Details PEEK PEEK 4 mm 16mm 5mm 341.7 125.4 25.8
CE-ZR-MR85-PK-2PKS Details PEEK PEEK 5 mm 8mm 2.5mm 55.5 21.6 37.8
CE-ZR-MR95-PK-2PKS Details PEEK PEEK 5 mm 9mm 3mm 109.8 40.5 36
CE-ZR-MR105-PK-2PKS Details PEEK PEEK 5 mm 10mm 4mm 109.8 40.5 36
CE-ZR-685-PK-2PKS Details PEEK PEEK 5 mm 11mm 5mm 182.7 67.8 31.8
CE-ZR-MR115-PK-2PKS Details PEEK PEEK 5 mm 11mm 4mm 182.7 67.8 37.8
CE-ZR-695-PK-2PKS Details PEEK PEEK 5 mm 13mm 4mm 274.8 103.8 30
CE-ZR-605-PK-2PKS Details PEEK PEEK 5 mm 14mm 5mm 339 121.8 30
CE-ZR-625-PK-2PKS Details PEEK PEEK 5 mm 16mm 5mm 441 162 25.8
CE-ZR-635-PK-2PKS Details PEEK PEEK 5 mm 19mm 6mm 595.8 215.1 24
CE-ZR-MR106-PK-2PKS Details PEEK PEEK 6 mm 10mm 3mm 126.6 52.2 31.8
CE-ZR-MR126-PK-2PKS Details PEEK PEEK 6 mm 12mm 4mm 182.7 70.8 30
CE-ZR-686-PK-2PKS Details PEEK PEEK 6 mm 13mm 5mm 276 106.2 30
CE-ZR-696-PK-2PKS Details PEEK PEEK 6 mm 15mm 5mm 341.7 125.4 27
CE-ZR-606-PK-2PKS Details PEEK PEEK 6 mm 17mm 6mm 577.2 203.1 27
CE-ZR-626-PK-2PKS Details PEEK PEEK 6 mm 19mm 6mm 595.8 215.1 24
CE-ZR-636-PK-2PKS Details PEEK PEEK 6 mm 22mm 7mm 849.9 341.4 21.6
CE-ZR-MR117-PK-2PKS Details PEEK PEEK 7 mm 11mm 3mm 116.1 48.6 30
CE-ZR-MR137-PK-2PKS Details PEEK PEEK 7 mm 13mm 4mm 138 66.3 28.8
CE-ZR-687-PK-2PKS Details PEEK PEEK 7 mm 14mm 5mm 299.1 123 30
CE-ZR-697-PK-2PKS Details PEEK PEEK 7 mm 17mm 5mm 409.2 172.5 25.8
CE-ZR-607-PK-2PKS Details PEEK PEEK 7 mm 19mm 6mm 595.8 215.1 25.8
CE-ZR-627-PK-2PKS Details PEEK PEEK 7 mm 22mm 7mm 838.2 330.9 21.6
CE-ZR-637-PK-2PKS Details PEEK PEEK 7 mm 26mm 9mm 1163.7 475.8 20.4
CE-ZR-MR128-PK-2PKS Details PEEK PEEK 8mm 12mm 3.5mm 138.6 65.7 28.8
CE-ZR-MR148-PK-2PKS Details PEEK PEEK 8 mm 14mm 4mm 208.5 92.7 27
CE-ZR-688-PK-2PKS Details PEEK PEEK 8 mm 16mm 5mm 319.2 142.2 25.8
CE-ZR-698-PK-2PKS Details PEEK PEEK 8 mm 19mm 6mm 570.6 220.2 25.8
CE-ZR-608-PK-2PKS Details PEEK PEEK 8 mm 22mm 7mm 839.7 330.9 24
CE-ZR-628-PK-2PKS Details PEEK PEEK 8 mm 24mm 8mm 849.9 341.4 20.4
CE-ZR-638-PK-2PKS Details PEEK PEEK 8 mm 28mm 9mm 1163.7 475.8 20.4
CE-ZR-679-PK-2PKS Details PEEK PEEK 9 mm 14mm 4.5mm 234.3 112.2 25.2
CE-ZR-689-PK-2PKS Details PEEK PEEK 9 mm 17mm 5mm 338.4 160.2 25.8
CE-ZR-699-PK-2PKS Details PEEK PEEK 9 mm 20mm 6mm 629.1 259.5 24
CE-ZR-609-PK-2PKS Details PEEK PEEK 9 mm 24mm 7mm 855.9 346.5 22.8
CE-ZR-629-PK-2PKS Details PEEK PEEK 9mm 26mm 8mm 1163.7 475.8 20.4
CE-ZR-639-PK-2PKS Details PEEK PEEK 9mm 30mm 10mm 1188 499.2 18
CE-ZR-6700-PK-2PKS Details PEEK PEEK 10mm 15mm 4mm 257.1 130.5 10.2
CE-ZR-63800-PK-2PKS Details PEEK PEEK 10mm 19mm 7mm 516 252 24
CE-ZR-6800-PK-2PKS Details PEEK PEEK 10mm 19mm 5mm 516 252 24
CE-ZR-6900-PK-2PKS Details PEEK PEEK 10mm 22mm 6mm 810 381 22.2
CE-ZR-6000-PK-2PKS Details PEEK PEEK 10 mm 26mm 8mm 1365 585 21.6
CE-ZR-6200-PK-2PKS Details PEEK PEEK 10 mm 30mm 9mm 1530 720 17.4
CE-ZR-6300-PK-2PKS Details PEEK PEEK 10 mm 35mm 11mm 2430 1035 16.2
CE-ZR-6701-PK-2PKS Details PEEK PEEK 12mm 18mm 4mm 278.4 159.6 9
CE-ZR-63801-PK-2PKS Details PEEK PEEK 12mm 21mm 7mm 576 312 21.6
CE-ZR-6801-PK-2PKS Details PEEK PEEK 12mm 21mm 5mm 576 312 21.6
CE-ZR-6901-PK-2PKS Details PEEK PEEK 12mm 24mm 6mm 867 438 19.8
CE-ZR-6001-PK-2PKS Details PEEK PEEK 12 mm 28mm 8mm 1530 720 19.2
CE-ZR-6201-PK-2PKS Details PEEK PEEK 12 mm 32mm 10mm 2040 915 16.2
CE-ZR-6301-PK-2PKS Details PEEK PEEK 12 mm 37mm 12mm 2910 1260 15
CE-ZR-6702-PK-2PKS Details PEEK PEEK 15mm 21mm 4mm 281.1 174.3 7.8
CE-ZR-63802-PK-2PKS Details PEEK PEEK 15mm 24mm 7mm 621 378 18.6
CE-ZR-6802-PK-2PKS Details PEEK PEEK 15mm 24mm 5mm 621 378 18.6
CE-ZR-6902-PK-2PKS Details PEEK PEEK 15mm 28mm 7mm 1299 675 17.4
CE-ZR-6002-PK-2PKS Details PEEK PEEK 15 mm 32mm 9mm 1680 855 16.2
CE-ZR-6202-PK-2PKS Details PEEK PEEK 15 mm 35mm 11mm 2295 1125 14.4
CE-ZR-6302-PK-2PKS Details PEEK PEEK 15 mm 42mm 13mm 3420 1635 12
CE-ZR-6703-PK-2PKS Details PEEK PEEK 17mm 23mm 4mm 299.7 197.1 6.6
CE-ZR-63803-PK-2PKS Details PEEK PEEK 17mm 26mm 7mm 669 438 17.4
CE-ZR-6803-PK-2PKS Details PEEK PEEK 17mm 26mm 5mm 669 438 17.4
CE-ZR-6903-PK-2PKS Details PEEK PEEK 17mm 30mm 7mm 1377 768 15.6
CE-ZR-6003-PK-2PKS Details PEEK PEEK 17 mm 35mm 10mm 1800 975 15
CE-ZR-6203-PK-2PKS Details PEEK PEEK 17 mm 40mm 12mm 2865 1440 12.6
CE-ZR-6303-PK-2PKS Details PEEK PEEK 17 mm 47mm 14mm 4080 1995 10.8
CE-ZR-6704-PK-2PKS Details PEEK PEEK 20mm 27mm 4mm 303 216.6 6
CE-ZR-63804-PK-2PKS Details PEEK PEEK 20mm 32mm 10mm 1206 738 15
CE-ZR-6804-PK-2PKS Details PEEK PEEK 20mm 32mm 7mm 1206 738 15
CE-ZR-6904-PK-2PKS Details PEEK PEEK 20mm 37mm 9mm 1914 1104 13.2
CE-ZR-6004-PK-2PKS Details PEEK PEEK 20 mm 42mm 12mm 2820 1515 12.6
CE-ZR-6204-PK-2PKS Details PEEK PEEK 20 mm 47mm 14mm 3840 1995 10.2
CE-ZR-6304-PK-2PKS Details PEEK PEEK 20 mm 52mm 15mm 4770 2355 10.2
CE-ZR-6705-PK-2PKS Details PEEK PEEK 25mm 32mm 4mm 330 251.4 4.8
CE-ZR-63805-PK-2PKS Details PEEK PEEK 25mm 37mm 10mm 1290 882 12.6
CE-ZR-6805-PK-2PKS Details PEEK PEEK 25mm 37mm 7mm 1290 882 12.6
CE-ZR-6905-PK-2PKS Details PEEK PEEK 25mm 42mm 9mm 2103 1365 11.4
CE-ZR-6005-PK-2PKS Details PEEK PEEK 25 mm 47mm 12mm 3030 1755 10.8
CE-ZR-6205-PK-2PKS Details PEEK PEEK 25 mm 52mm 15mm 4200 2355 9
CE-ZR-6305-PK-2PKS Details PEEK PEEK 25 mm 62mm 17mm 6180 3390 7.8
CE-ZR-6706-PK-2PKS Details PEEK PEEK 30mm 37mm 4mm 342 284.1 4.2
CE-ZR-63806-PK-2PKS Details PEEK PEEK 30mm 42mm 10mm 1361.4 1020.6 10.8
CE-ZR-6806-PK-2PKS Details PEEK PEEK 30mm 42mm 7mm 1335 1032 10.8
CE-ZR-6906-PK-2PKS Details PEEK PEEK 30mm 47mm 9mm 2172 1503 10.2
CE-ZR-6006-PK-2PKS Details PEEK PEEK 30 mm 55mm 13mm 3960 2475 9
CE-ZR-6206-PK-2PKS Details PEEK PEEK 30 mm 62mm 16mm 5850 3390 7.8
CE-ZR-6306-PK-2PKS Details PEEK PEEK 30 mm 72mm 19mm 8010 4500 7.2
CE-ZR-6707-PK-2PKS Details PEEK PEEK 35mm 44mm 5mm 558 489 3.6
CE-ZR-6807-PK-2PKS Details PEEK PEEK 35mm 47mm 7mm 1422 1146 9.6
CE-ZR-6907-PK-2PKS Details PEEK PEEK 35mm 55mm 10mm 3270 2325 8.4
CE-ZR-6007-PK-2PKS Details PEEK PEEK 35 mm 62mm 14mm 4770 3090 7.8
CE-ZR-6207-PK-2PKS Details PEEK PEEK 35 mm 72mm 17mm 7710 4620 6.6
CE-ZR-6307-PK-2PKS Details PEEK PEEK 35 mm 80mm 21mm 10020 5790 6
CE-ZR-6708-PK-2PKS Details PEEK PEEK 40mm 50mm 6mm 753 669 3
CE-ZR-6808-PK-2PKS Details PEEK PEEK 40mm 52mm 7mm 1479 1254 8.4
CE-ZR-6908-PK-2PKS Details PEEK PEEK 40mm 62mm 12mm 4110 2976 7.8
CE-ZR-6008-PK-2PKS Details PEEK PEEK 40 mm 68mm 15mm 5010 3450 7.2
CE-ZR-6208-PK-2PKS Details PEEK PEEK 40 mm 80mm 18mm 8730 5340 6
CE-ZR-6308-PK-2PKS Details PEEK PEEK 40 mm 90mm 23mm 12210 7200 5.4
CE-ZR-6709-PK-2PKS Details PEEK PEEK 45mm 55mm 6mm 771 720 2.76
CE-ZR-6809-PK-2PKS Details PEEK PEEK 45mm 58mm 7mm 1863 1614 7.8
CE-ZR-6909-PK-2PKS Details PEEK PEEK 45mm 68mm 12mm 4230 3270 6.6
CE-ZR-6009-PK-2PKS Details PEEK PEEK 45 mm 75mm 16mm 6300 4530 4.8
CE-ZR-6209-PK-2PKS Details PEEK PEEK 45 mm 85mm 19mm 9810 6090 5.52
CE-ZR-6309-PK-2PKS Details PEEK PEEK 45 mm 100mm 25mm 15900 9600 4.8
CE-ZR-6710-PK-2PKS Details PEEK PEEK 50mm 62mm 6mm 801 795 2.46
CE-ZR-6810-PK-2PKS Details PEEK PEEK 50mm 65mm 7mm 1851 1728 6.6
CE-ZR-6910-PK-2PKS Details PEEK PEEK 50mm 72mm 12mm 4350 3510 6.6
CE-ZR-6010-PK-2PKS Details PEEK PEEK 50 mm 80mm 16mm 6540 4980 5.94
CE-ZR-6210-PK-2PKS Details PEEK PEEK 50 mm 90mm 20mm 10530 6990 4.5
CE-ZR-6310-PK-2PKS Details PEEK PEEK 50 mm 110mm 27mm 18600 11490 4.5
CE-ZR-6811-PK-2PKS Details PEEK PEEK 55mm 72mm 9mm 2640 2424 6
CE-ZR-6911-PK-2PKS Details PEEK PEEK 55mm 80mm 13mm 4980 4230 5.76
CE-ZR-6011-PK-2PKS Details PEEK PEEK 55 mm 90mm 18mm 8490 6360 5.4
CE-ZR-6211-PK-2PKS Details PEEK PEEK 55 mm 100mm 21mm 13020 8820 4.5
CE-ZR-6311-PK-2PKS Details PEEK PEEK 55 mm 120mm 29mm 21480 13500 4.02
CE-ZR-6812-PK-2PKS Details PEEK PEEK 60mm 78mm 10mm 3450 3180 5.64
CE-ZR-6912-PK-2PKS Details PEEK PEEK 60mm 85mm 13mm 6060 5190 5.34
CE-ZR-6012-PK-2PKS Details PEEK PEEK 60 mm 95mm 18mm 8820 6960 5.1
CE-ZR-6212-PK-2PKS Details PEEK PEEK 60 mm 110mm 22mm 15720 10860 4.26
CE-ZR-6312-PK-2PKS Details PEEK PEEK 60 mm 130mm 31mm 24570 15660 3.78
CE-ZR-6813-PK-2PKS Details PEEK PEEK 65mm 85mm 10mm 3570 3450 5.16
CE-ZR-6913-PK-2PKS Details PEEK PEEK 65mm 90mm 13mm 5190 4800 4.98
CE-ZR-6013-PK-2PKS Details PEEK PEEK 65 mm 100mm 18mm 9150 7560 4.8
CE-ZR-6213-PK-2PKS Details PEEK PEEK 65 mm 120mm 23mm 17160 12030 3.78
CE-ZR-6313-PK-2PKS Details PEEK PEEK 65 mm 140mm 33mm 27810 17970 3.6
CE-ZR-6814-PK-2PKS Details PEEK PEEK 70mm 90mm 10mm 3480 3540 4.86
CE-ZR-6914-PK-2PKS Details PEEK PEEK 70mm 100mm 16mm 7110 6330 4.56
CE-ZR-6014-PK-2PKS Details PEEK PEEK 70 mm 110mm 20mm 11430 9270 4.26
CE-ZR-6214-PK-2PKS Details PEEK PEEK 70 mm 125mm 24mm 18660 13230 3.78
CE-ZR-6314-PK-2PKS Details PEEK PEEK 70 mm 150mm 35mm 31200 20460 3.18
CE-ZR-6815-PK-2PKS Details PEEK PEEK 75mm 95mm 10mm 3690 3840 4.56
CE-ZR-6915-PK-2PKS Details PEEK PEEK 75mm 105mm 16mm 7200 6780 4.26
CE-ZR-6015-PK-2PKS Details PEEK PEEK 75 mm 115mm 20mm 11880 10050 4.02
CE-ZR-6215-PK-2PKS Details PEEK PEEK 75 mm 130mm 25mm 20220 14490 3.36
CE-ZR-6315-PK-2PKS Details PEEK PEEK 75 mm 160mm 37mm 33900 23160 3
CE-ZR-6816-PK-2PKS Details PEEK PEEK 80mm 100mm 10mm 3780 3990 4.26
CE-ZR-6916-PK-2PKS Details PEEK PEEK 80mm 110mm 16mm 7440 7170 4.02
CE-ZR-6016-PK-2PKS Details PEEK PEEK 80 mm 125mm 22mm 14280 11940 3.78
CE-ZR-6216-PK-2PKS Details PEEK PEEK 80 mm 140mm 26mm 21810 15900 3.18
CE-ZR-6316-PK-2PKS Details PEEK PEEK 80 mm 170mm 39mm 36900 26010 2.88
CE-ZR-6817-PK-2PKS Details PEEK PEEK 85mm 110mm 13mm 5610 5700 3.96
CE-ZR-6917-PK-2PKS Details PEEK PEEK 85mm 120mm 18mm 9570 8880 3.72
CE-ZR-6017-PK-2PKS Details PEEK PEEK 85 mm 130mm 22mm 14850 12930 3.6
CE-ZR-6217-PK-2PKS Details PEEK PEEK 85 mm 150mm 28mm 25200 18570 3
CE-ZR-6317-PK-2PKS Details PEEK PEEK 85 mm 180mm 41mm 39900 29040 2.7
CE-ZR-6818-PK-2PKS Details PEEK PEEK 90mm 115mm 13mm 5490 5850 3.72
CE-ZR-6918-PK-2PKS Details PEEK PEEK 90mm 125mm 18mm 9840 9480 3.6
CE-ZR-6018-PK-2PKS Details PEEK PEEK 90 mm 140mm 24mm 17460 14910 3.36
CE-ZR-6218-PK-2PKS Details PEEK PEEK 90 mm 160mm 30mm 28830 21450 2.88
CE-ZR-6318-PK-2PKS Details PEEK PEEK 90 mm 190mm 43mm 42900 32100 2.58
CE-ZR-6819-PK-2PKS Details PEEK PEEK 95mm 120mm 13mm 5640 6090 3.54
CE-ZR-6019-PK-2PKS Details PEEK PEEK 95 mm 145mm 24mm 18120 16170 3.18
CE-ZR-6219-PK-2PKS Details PEEK PEEK 95 mm 170mm 32mm 32700 24570 2.7
CE-ZR-6319-PK-2PKS Details PEEK PEEK 95 mm 200mm 45mm 45900 35700 3.18
CE-ZR-6020-PK-2PKS Details PEEK PEEK 100 mm 150mm 24mm 18060 16260 3.18
CE-ZR-6220-PK-2PKS Details PEEK PEEK 100 mm 180mm 34mm 36600 27930 2.58
CE-ZR-6320-PK-2PKS Details PEEK PEEK 100 mm 215mm 47mm 51900 42300 2.04
CE-ZR-6021-PK-2PKS Details PEEK PEEK 105 mm 160mm 26mm 21690 19740 2.88
CE-ZR-6221-PK-2PKS Details PEEK PEEK 105 mm 190mm 36mm 39900 31500 2.4
CE-ZR-6321-PK-2PKS Details PEEK PEEK 105 mm 225mm 49mm 55200 45900 1.92




+ About Us
+ Contact Us
+ Site Map
+ Bearing Catalogues
+ Products
- Ball Bearings
- Roll Bearings
- Sliding Bearings
- Housing&Units
- Spherical Plain Bearings
- Rod Ends
+ Technical Reference
- Ball Bearings
- Roll Bearings
- Sliding Bearings
- Housing&Units
- Spherical Plain Bearings
+ News And Exhibitions
Tel: 0086 28 8669 3910
Email: sales@clibearings.com
Web: www.clibearings.com
Home
