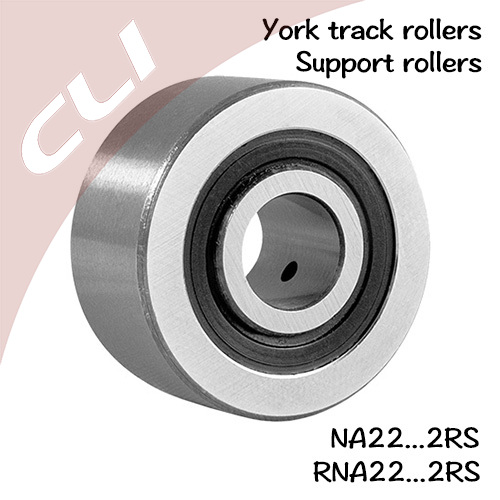

| Yoke track rollers NA22...2RS / RNA22...2RS support rollers（ METRIC size ） |
 |
| Part Number |
Dimensions (mm) |
Load Rating (N) |
Limiting Speed
(RPM) |
Weight (g) |
| Without Inner Ring |
With Inner Ring |
D |
d |
Fw / F |
B |
C |
Dynamic |
Static |
RNA22..2RS |
NA22..2RS |
| RNA22/6-2RS |
NA22/6-2RS |
19 |
6 |
10 |
12 |
12 |
3900 |
3700 |
9000 |
18 |
22 |
| RNA22/8-2RS |
NA22/8-2RS |
24 |
8 |
12 |
12 |
12 |
4800 |
4300 |
7000 |
29 |
34 |
| RNA2200-2RS |
NA2200-2RS |
30 |
10 |
14 |
14 |
14 |
7000 |
6900 |
5500 |
52 |
60 |
| RNA2201-2RS |
NA2201-2RS |
32 |
12 |
16 |
14 |
14 |
7500 |
8300 |
4700 |
57 |
67 |
| RNA2202-2RS |
NA2202-2RS |
35 |
15 |
20 |
14 |
14 |
7600 |
9800 |
3400 |
60 |
75 |
| RNA2203-2RS |
NA2203-2RS |
40 |
17 |
22 |
16 |
16 |
9900 |
14000 |
3000 |
94 |
112 |
| RNA2204-2RS |
NA2204-2RS |
47 |
20 |
25 |
18 |
18 |
14000 |
19100 |
2300 |
152 |
177 |
| RNA2205-2RS |
NA2205-2RS |
52 |
25 |
30 |
18 |
18 |
14400 |
20800 |
1800 |
179 |
209 |
| RNA2206-2RS |
NA2206-2RS |
62 |
30 |
35 |
20 |
20 |
17100 |
26000 |
1400 |
284 |
324 |
| RNA2207-2RS |
NA2207-2RS |
72 |
35 |
42 |
23 |
23 |
21500 |
36000 |
1100 |
432 |
505 |
| RNA2208-2RS |
NA2208-2RS |
80 |
40 |
48 |
23 |
23 |
26000 |
41000 |
850 |
530 |
628 |
| -- |
NA2210-2RS |
90 |
50 |
58 |
23 |
23 |
26000 |
43000 |
650 |
-- |
690 |
|
