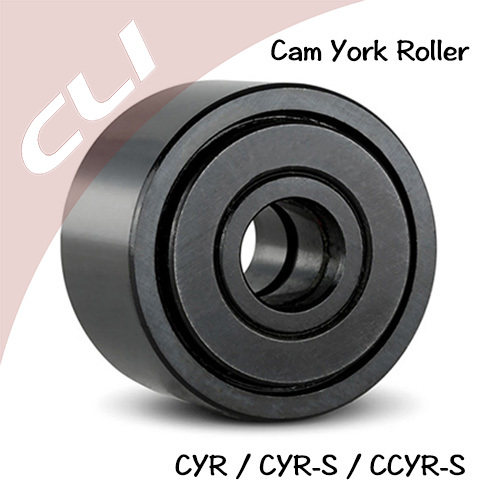

Roller Bearings / Cam Followers / Stud Track Rollers / Yoke Rollers- CYR / CYR-S / CCYR-S Yoke Type

Product Picture

Download PDF Catalogue

Technical References

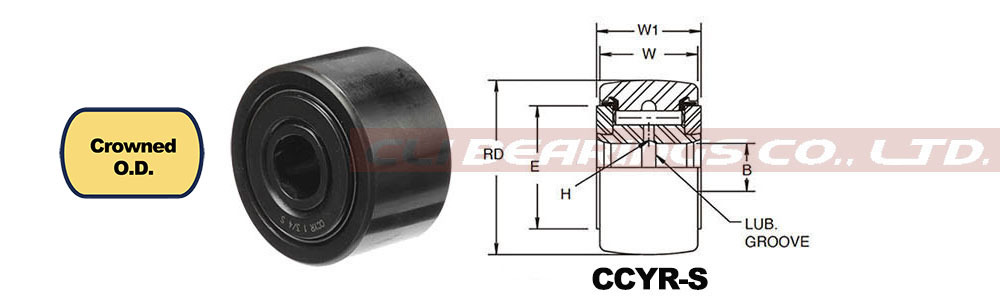

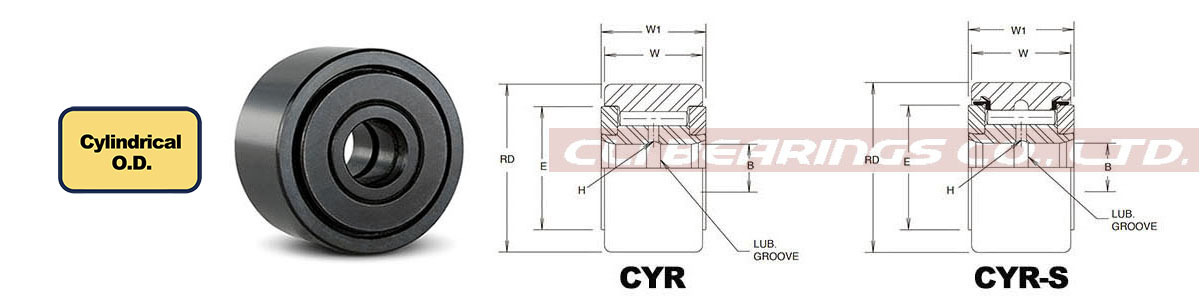

CYR / CYR-S / CCYR-S Cam Yoke Rollers CLI Part No. ROLLER DIA ROLLER WIDTH BORE WIDTH OVER END PLATES DIA. OF END PLATE OIL HOLE DIA. MIN. BOSS DIA. LOAD RATING (LBS) Without Seals With Seals Crowned OD RD W B W1 E H 　 Static Dynamic CYR-3/4 CYR-3/4-S CCYR-3/4-S 0.750 0.500 0.250 0.5625 39/64 3/32 1/2 4130 1660 CYR-7/8 CYR-7/8-S CCYR-7/8-S 0.875 0.500 0.250 0.5625 39/64 1/2 4130 1660 CYR-1 CYR-1-S CCYR-1-S 1.000 0.625 0.3125 0.6875 25/32 41/64 6120 2225 CYR-1 1/8 CYR-1 1/8-S CCYR-1 1/8-S 1.125 0.625 0.3125 0.6875 25/32 41/64 6120 2225 CYR-1 1/4 CYR-1 1/4-S CCYR-1 1/4-S 1.250 0.750 0.375 0.8125 63/64 49/64 8500 3930 CYR-1 3/8 CYR-1 3/8-S CCYR-1 3/8-S 1.375 0.750 0.375 0.8125 63/64 49/64 8500 3930 CYR-1 1/2 CYR-1 1/2-S CCYR-1 1/2-S 1.500 0.875 0.4375 0.9375 1 3/32 57/64 11280 4840 CYR-1 5/8 CYR-1 5/8-S CCYR-1 5/8-S 1.625 0.875 0.4375 0.9375 1 3/32 57/64 11280 4840 CYR-1 3/4 CYR-1 3/4-S CCYR-1 3/4-S 1.750 1.000 0.500 1.0625 1 1/4 1 3/64 15840 6385 CYR-1 7/8 CYR-1 7/8-S CCYR-1 7/8-S 1.875 1.000 0.500 1.0625 1 1/4 1 3/64 15840 6385 CYR-2 CYR-2-S CCYR-2-S 2.000 1.250 0.625 1.3125 1 13/32 1 13/64 21140 8090 CYR-2 1/4 CYR-2 1/4-S CCYR-2 1/4-S 2.250 1.250 0.625 1.3125 1 13/32 1 13/64 21140 8090 CYR-2 1/2 CYR-2 1/2-S CCYR-2 1/2-S 2.500 1.500 0.750 1.5625 1 11/16 1/8 1 5/16 32900 11720 CYR-2 3/4 CYR-2 3/4-S CCYR-2 3/4-S 2.750 1.500 0.750 1.5625 1 11/16 1 5/16 32900 11720 CYR-3 CYR-3-S CCYR-3-S 3.000 1.750 1.000 1.8125 2 1/8 1 3/4 49820 15720 CYR-3 1/4 CYR-3 1/4-S CCYR-3 1/4-S 3.250 1.750 1.000 1.8125 2 1/8 1 3/4 49820 15720 CYR-3 1/2 CYR-3 1/2-S CCYR-3 1/2-S 3.500 2.000 1.125 2.0625 2 7/16 1 59/64 63250 22800 CYR-4 CYR-4-S CCYR-4-S 4.000 2.250 1.250 2.3125 2 51/64 2 9/32 89540 29985 　 CYR-5-S CCYR-5-S 5.000 2.750 1.750 2.8750 3 9/16 3/16 2 7/8 135900 46575 　 CYR-6-S CCYR-6-S 6.000 3.250 2.250 3.3750 4 15/32 3 3/8 160900 60000 　 CYR-7-S CCYR-7-S 7.000 3.750 2.750 3.8750 5 3/16 3 7/8 213860 75380 　 CYR-8-S CCYR-8-S 8.000 4.250 3.255 4.500 4 3/8 1/4 4 3/8 288200 92200 　 CYR-9-S CCYR-9-S 9.000 4.750 3.755 5.000 5 1/16 5/16 5 1/16 366850 113260 　 CYR-10-S CCYR-10-S 10.000 5.250 4.255 5.500 5 15/32 3/8 5 15/32 431130 131545
