Roller Bearings-Cam Follower Bearings / Stud Track Rollers / Yoke Rollers-Yoke track rollers NUTR / PWTR...2RS / NNTR...2ZL support rollers with flange ring, chrome steel, METRIC size

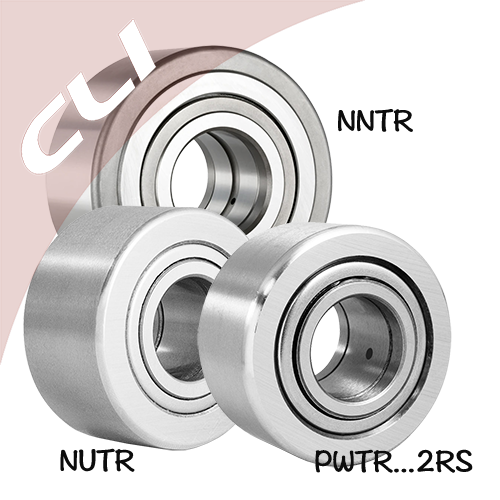

Product Picture

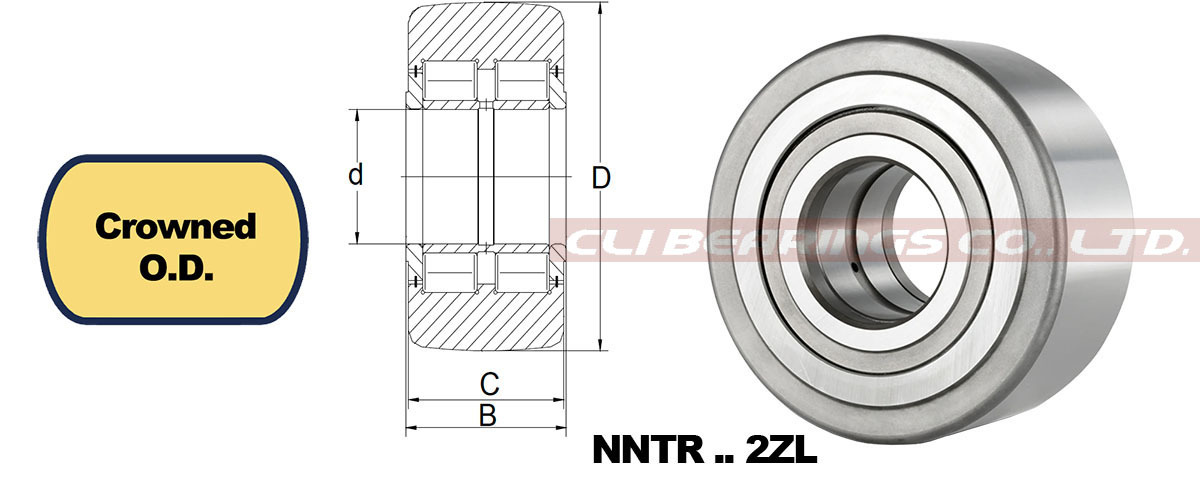

Yoke track rollers NNTR...2ZL ( METRIC size ) Part Number Dimension(mm) Load Rating (KN) Limiting Speed (RPM) Weight (Kg) D d B C Dynamic Static NNTR50X130X65-2ZL 130 50 65 63 193 265 1100 5.2 NNTR55X140X70-2ZL 140 55 70 68 226 315 850 6.4 NNTR60X150X75-2ZL 150 60 75 73 255 365 800 7.8 NNTR65X160X75-2ZL 160 65 75 73 280 395 700 8.8 NNTR70X180X85-2ZL 180 70 85 83 355 510 600 13 NNTR80X200X90-2ZL 200 80 90 88 415 610 500 16.8 NNTR90X220X100-2ZL 220 90 100 98 500 750 400 22.5 NNTR100X240X105-2ZL 240 100 105 103 560 870 340 28 NNTR110X260X115-2ZL 260 110 115 113 670 1050 300 35.6 NNTR120X290X135-2ZL 290 120 135 133 880 1400 260 52.8 NNTR130X310X146-2ZL 310 130 146 144 1010 1630 240 65.2

Yoke track rollers PWTR...2RS ( METRIC size ) Part Number Dimension (mm) Load Rating (N) Limiting Speed (RPM) Weight (Kg) D d B C Dynamic Static PWTR15-2RS 35 15 19 18 12600 14600 6000 0.099 PWTR17-2RS 40 17 21 20 14300 17900 5000 0.147 PWTR1542-2RS 42 15 19 18 14700 16200 6000 0.158 PWTR1747-2RS 47 17 21 20 15900 18400 5000 0.22 PWTR20-2RS 47 20 25 24 24500 30500 3800 0.245 PWTR2052-2RS 52 20 25 24 27000 35000 3800 0.321 PWTR25-2RS 52 25 25 24 25000 33000 3800 0.281 PWTR2562-2RS 62 25 25 24 30000 42500 3800 0.45 PWTR30-2RS 62 30 29 28 35000 45500 2200 0.465 PWTR3072-2RS 72 30 29 28 41000 56000 2200 0.697 PWTR35-2RS 72 35 29 28 38500 54000 1800 0.63 PWTR3580-2RS 80 35 29 28 43500 63000 1800 0.836 PWTR40-2RS 80 40 32 30 45000 61000 1500 0.816 PWTR45-2RS 85 45 32 30 45500 63000 1300 0.883 PWTR4090-2RS 90 40 32 30 52000 75000 1500 1.129 PWTR50-2RS 90 50 32 30 46000 66000 1100 0.95 PWTR45100-2RS 100 45 32 30 56000 85000 1300 1.396 PWTR50110-2RS 110 50 32 30 59000 94000 1100 1.69  *** Remark: Other types like NUTW and RBY are also workable.

Yoke track rollers NUTR ( METRIC size ) Part Number Dimension (mm) Load Rating (N) Limiting Speed (RPM) Weight (Kg) D d B C d2 Dynamic Static NUTR15 35 15 19 18 20 15300 18700 6500 0.099 NUTR17 40 17 21 20 22 18700 24900 5500 0.147 NUTR1542 42 15 19 18 20 18300 24300 6500 0.158 NUTR1747 47 17 21 20 22 21600 30500 5500 0.22 NUTR20 47 20 25 24 27 28500 37500 4200 0.245 NUTR2052 52 20 25 24 27 32000 44000 4200 0.321 NUTR25 52 25 25 24 31 29000 40500 4200 0.281 NUTR2562 62 25 25 24 31 35500 54000 4200 0.45 NUTR30 62 30 29 28 38 40000 55000 2600 0.465 NUTR3072 72 30 29 28 38 48000 70000 2600 0.697 NUTR35 72 35 29 28 44 45000 65000 2100 0.63 NUTR3580 80 35 29 28 44 51000 78000 2100 0.836 NUTR40 80 40 32 30 51 56000 80000 1600 0.816 NUTR45 85 45 32 30 55 56000 83000 1400 0.883 NUTR4090 90 40 32 30 51 66000 101000 1600 1.129 NUTR50 90 50 32 30 60 56000 86000 1300 0.95 NUTR45100 100 45 32 30 55 72000 115000 1400 1.396 NUTR50110 110 50 32 30 60 76000 128000 1300 1.69  *** Remark: Other types like NURT..R, MCYRD, MUTD, FGU and DCZM..R are also workable.
