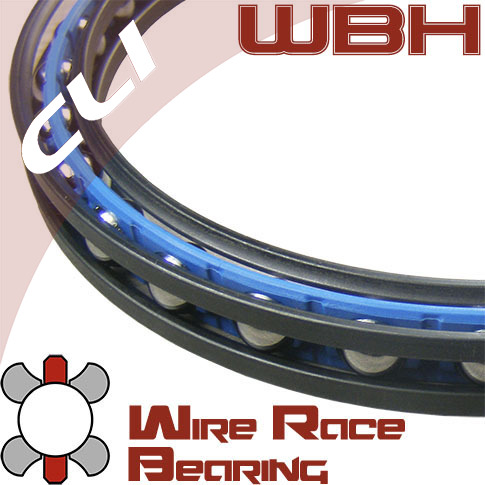

| Wire Race Bearings WBH series |
||||||||||
 |
||||||||||

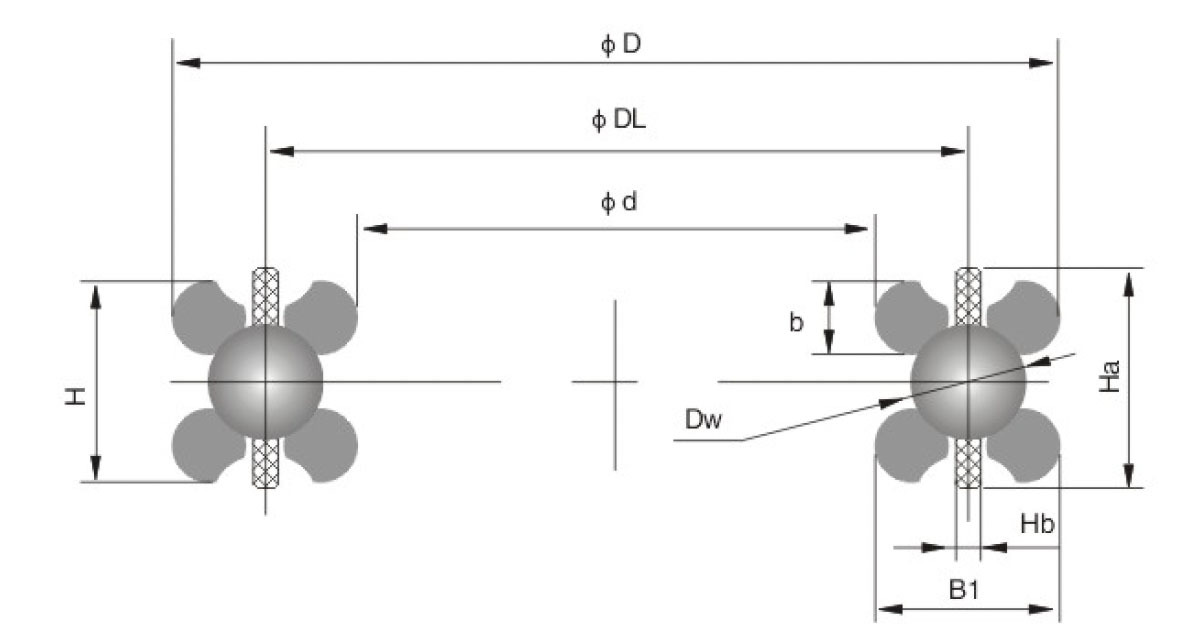

| WBH Size Range | Ball Diameter | Wire Race Diameter | Bearing Dimensions | Cage Dimensions | ||||||
| DL | mm | inch | b | d | D | H | B1 | Ha | Hb | |
| WBH 100 ~ 1500 | 9,.525 | 3/8 | 4.0 | DL-B1 | DL+B1 | 12.86 | 12.86 | 12.6 | 2.5 | |
| Size List - WBH series | |||||||||||||||
|
|||||||||||||||
| CLI Part No. | Other Part No. | Boundary Dimension (mm) | Rated Loading (KN) | Weight | CLI Part No. | Othter Part No. | Boundary Dimension (mm) | Rated Loading (KN) | Weight | ||||||
| d | D | DL | Cr | Cor | kg | d | D | DL | Cr | Cor | kg | ||||
| WBH-100 | LED4-0100 | 87.14 | 112.86 | 100 | 17 | 25 | 0.26 | WBH-215 | LED4-0215 | 202.14 | 227.86 | 215 | 23 | 57 | 0.42 |
| WBH-105 | LED4-0105 | 92.14 | 117.86 | 105 | 17 | 26 | 0.27 | WBH-220 | LED4-0220 | 207.14 | 232.86 | 220 | 24 | 58 | 0.43 |
| WBH-110 | LED4-0110 | 97.14 | 122.86 | 110 | 18 | 28 | 0.27 | WBH-225 | LED4-0225 | 212.14 | 237.86 | 225 | 24 | 59 | 0.44 |
| WBH-115 | LED4-0115 | 102.14 | 127.86 | 115 | 18 | 29 | 0.28 | WBH-230 | LED4-0230 | 217.14 | 242.86 | 230 | 24 | 60 | 0.45 |
| WBH-120 | LED4-0120 | 107.14 | 132.86 | 120 | 18 | 30 | 0.28 | WBH-235 | LED4-0235 | 222.14 | 247.86 | 235 | 24 | 61 | 0.46 |
| WBH-125 | LED4-0125 | 112.14 | 137.86 | 125 | 19 | 33 | 0.29 | WBH-240 | LED4-0240 | 227.14 | 252.86 | 240 | 24 | 63 | 0.47 |
| WBH-130 | LED4-0130 | 117.14 | 142.86 | 130 | 19 | 34 | 0.3 | WBH-245 | LED4-0245 | 232.14 | 257.86 | 245 | 24 | 64 | 0.48 |
| WBH-135 | LED4-0135 | 122.14 | 147.86 | 135 | 20 | 35 | 0.3 | WBH-250 | LED4-0250 | 237.14 | 262.86 | 250 | 25 | 66 | 0.49 |
| WBH-140 | LED4-0140 | 127.14 | 152.86 | 140 | 20 | 36 | 0.31 | WBH-255 | LED4-0255 | 242.14 | 267.86 | 255 | 25 | 67 | 0.5 |
| WBH-145 | LED4-0145 | 132.14 | 157.86 | 145 | 20 | 37 | 0.31 | WBH-260 | LED4-0260 | 247.14 | 272.86 | 260 | 25 | 69 | 0.51 |
| WBH-150 | LED4-0150 | 137.14 | 162.86 | 150 | 20 | 39 | 0.32 | WBH-265 | LED4-0265 | 252.14 | 277.86 | 265 | 25 | 70 | 0.52 |
| WBH-155 | LED4-0155 | 142.14 | 167.86 | 155 | 20 | 40 | 0.33 | WBH-270 | LED4-0270 | 257.14 | 282.86 | 270 | 25 | 71 | 0.54 |
| WBH-160 | LED4-0160 | 147.14 | 172.86 | 160 | 20 | 41 | 0.34 | WBH-275 | LED4-0275 | 262.14 | 287.86 | 275 | 26 | 72 | 0.55 |
| WBH-165 | LED4-0165 | 152.14 | 177.86 | 165 | 21 | 43 | 0.34 | WBH-280 | LED4-0280 | 267.14 | 292.86 | 280 | 26 | 73 | 0.56 |
| WBH-170 | LED4-0170 | 157.14 | 182.86 | 170 | 21 | 45 | 0.35 | WBH-285 | LED4-0285 | 272.14 | 297.86 | 285 | 26 | 75 | 0.57 |
| WBH-175 | LED4-0175 | 162.14 | 187.86 | 175 | 21 | 46 | 0.36 | WBH-290 | LED4-0290 | 277.14 | 302.86 | 290 | 26 | 77 | 0.58 |
| WBH-180 | LED4-0180 | 167.14 | 192.86 | 180 | 22 | 47 | 0.37 | WBH-295 | LED4-0295 | 282.14 | 307.86 | 295 | 26 | 78 | 0.6 |
| WBH-185 | LED4-0185 | 172.14 | 197.86 | 185 | 22 | 48 | 0.37 | WBH-300 | LED4-0300 | 287.14 | 312.86 | 300 | 27 | 79 | 0.61 |
| WBH-190 | LED4-0190 | 177.14 | 202.86 | 190 | 22 | 49 | 0.38 | WBH-310 | LED4-0310 | 297.14 | 322.86 | 310 | 27 | 82 | 0.62 |
| WBH-195 | LED4-0195 | 182.14 | 207.86 | 195 | 22 | 51 | 0.39 | WBH-320 | LED4-0320 | 307.14 | 332.86 | 320 | 27 | 84 | 0.64 |
| WBH-200 | LED4-0200 | 187.14 | 212.86 | 200 | 23 | 52 | 0.4 | WBH-330 | LED4-0330 | 317.14 | 342.86 | 330 | 28 | 88 | 0.65 |
| WBH-205 | LED4-0205 | 192.14 | 217.86 | 205 | 23 | 54 | 0.41 | WBH-340 | LED4-0340 | 327.14 | 352.86 | 340 | 28 | 90 | 0.66 |
| WBH-210 | LED4-0210 | 197.14 | 222.86 | 210 | 23 | 55 | 0.42 | WBH-350 | LED4-0350 | 337.14 | 362.86 | 350 | 28 | 92 | 0.68 |
| *** Please contact CLI salesman to get more information on the bearings by sending us the email to sales@clibearings.com | |||||||||||||||
| Size List - WBH series | |||||||||||||||
|
|||||||||||||||
| CLI Part No. | Other Part No. | Boundary Dimension (mm) | Rated Loading (KN) | Weight | CLI Part No. | Othter Part No. | Boundary Dimension (mm) | Rated Loading (KN) | Weight | ||||||
| d | D | DL | Cr | Cor | kg | d | D | DL | Cr | Cor | kg | ||||
| WBH-360 | LED4-0360 | 347.14 | 372.86 | 360 | 28 | 95 | 0.69 | WBH-590 | LED4-0590 | 577.14 | 602.86 | 590 | 34 | 157 | 1.13 |
| WBH-370 | LED4-0370 | 357.14 | 382.86 | 370 | 29 | 98 | 0.71 | WBH-600 | LED4-0600 | 587.14 | 612.86 | 600 | 34 | 159 | 1.15 |
| WBH-380 | LED4-0380 | 367.14 | 392.86 | 380 | 29 | 100 | 0.72 | WBH-610 | LED4-0610 | 597.14 | 622.86 | 610 | 34 | 162 | 1.18 |
| WBH-390 | LED4-0390 | 377.14 | 402.86 | 390 | 29 | 103 | 0.74 | WBH-620 | LED4-0620 | 607.14 | 632.86 | 620 | 35 | 165 | 1.2 |
| WBH-400 | LED4-0400 | 387.14 | 412.86 | 400 | 29 | 106 | 0.75 | WBH-630 | LED4-0630 | 617.14 | 642.86 | 630 | 35 | 168 | 1.23 |
| WBH-410 | LED4-0410 | 397.14 | 422.86 | 410 | 30 | 109 | 0.77 | WBH-640 | LED4-0640 | 627.14 | 652.86 | 640 | 35 | 170 | 1.25 |
| WBH-420 | LED4-0420 | 407.14 | 432.86 | 420 | 30 | 112 | 0.79 | WBH-650 | LED4-0650 | 637.14 | 662.86 | 650 | 35 | 173 | 1.28 |
| WBH-430 | LED4-0430 | 417.14 | 442.86 | 430 | 30 | 114 | 0.8 | WBH-660 | LED4-0660 | 647.14 | 672.86 | 660 | 36 | 176 | 1.31 |
| WBH-440 | LED4-0440 | 427.14 | 452.86 | 440 | 31 | 116 | 0.82 | WBH-670 | LED4-0670 | 657.14 | 682.86 | 670 | 36 | 179 | 1.34 |
| WBH-450 | LED4-0450 | 437.14 | 462.86 | 450 | 31 | 119 | 0.84 | WBH-680 | LED4-0680 | 667.14 | 692.86 | 680 | 36 | 181 | 1.37 |
| WBH-460 | LED4-0460 | 447.14 | 472.86 | 460 | 31 | 122 | 0.86 | WBH-690 | LED4-0690 | 677.14 | 702.86 | 690 | 36 | 183 | 1.4 |
| WBH-470 | LED4-0470 | 457.14 | 482.86 | 470 | 31 | 125 | 0.87 | WBH-700 | LED4-0700 | 687.14 | 712.86 | 700 | 36 | 187 | 1.43 |
| WBH-480 | LED4-0480 | 467.14 | 492.86 | 480 | 32 | 127 | 0.89 | WBH-710 | LED4-0710 | 697.14 | 722.86 | 710 | 36 | 189 | 1.46 |
| WBH-490 | LED4-0490 | 477.14 | 502.86 | 490 | 32 | 130 | 0.91 | WBH-720 | LED4-0720 | 707.14 | 732.86 | 720 | 37 | 192 | 1.49 |
| WBH-500 | LED4-0500 | 487.14 | 512.86 | 500 | 32 | 133 | 0.93 | WBH-730 | LED4-0730 | 717.14 | 742.86 | 730 | 37 | 194 | 1.52 |
| WBH-510 | LED4-0510 | 497.14 | 522.86 | 510 | 32 | 136 | 0.95 | WBH-740 | LED4-0740 | 727.14 | 752.86 | 740 | 37 | 198 | 1.55 |
| WBH-520 | LED4-0520 | 507.14 | 532.86 | 520 | 33 | 138 | 0.97 | WBH-750 | LED4-0750 | 737.14 | 762.86 | 750 | 37 | 200 | 1.59 |
| WBH-530 | LED4-0530 | 517.14 | 542.86 | 530 | 33 | 140 | 0.99 | WBH-760 | LED4-0760 | 747.14 | 772.86 | 760 | 37 | 203 | 1.62 |
| WBH-540 | LED4-0540 | 527.14 | 552.86 | 540 | 33 | 144 | 1.01 | WBH-770 | LED4-0770 | 757.14 | 782.86 | 770 | 38 | 205 | 1.65 |
| WBH-550 | LED4-0550 | 537.14 | 562.86 | 550 | 33 | 146 | 1.04 | WBH-780 | LED4-0780 | 767.14 | 792.86 | 780 | 38 | 209 | 1.69 |
| WBH-560 | LED4-0560 | 547.14 | 572.86 | 560 | 33 | 149 | 1.06 | WBH-790 | LED4-0790 | 777.14 | 802.86 | 790 | 38 | 211 | 1.72 |
| WBH-570 | LED4-0570 | 557.14 | 582.86 | 570 | 34 | 151 | 1.08 | WBH-800 | LED4-0800 | 787.14 | 812.86 | 800 | 38 | 213 | 1.75 |
| WBH-580 | LED4-0580 | 567.14 | 592.86 | 580 | 34 | 155 | 1.1 | WBH-810 | LED4-0810 | 797.14 | 822.86 | 810 | 38 | 216 | 1.78 |
| *** Please contact CLI salesman to get more information on the bearings by sending us the email to sales@clibearings.com | |||||||||||||||
| Size List - WBH series | |||||||||||||||
|
|||||||||||||||
| CLI Part No. | Other Part No. | Boundary Dimension (mm) | Rated Loading (KN) | Weight | CLI Part No. | Othter Part No. | Boundary Dimension (mm) | Rated Loading (KN) | Weight | ||||||
| d | D | DL | Cr | Cor | kg | d | D | DL | Cr | Cor | kg | ||||
| WBH-820 | LED4-0820 | 807.14 | 832.86 | 820 | 39 | 219 | 1.81 | WBH-1200 | LED4-1200 | 1187.14 | 1212.86 | 1200 | 44 | 321 | 3.1 |
| WBH-830 | LED4-0830 | 817.14 | 842.86 | 830 | 39 | 222 | 1.85 | WBH-1220 | LED4-1220 | 1207.14 | 1232.86 | 1220 | 45 | 326 | 3.16 |
| WBH-840 | LED4-0840 | 827.14 | 852.86 | 840 | 39 | 224 | 1.9 | WBH-1240 | LED4-1240 | 1227.14 | 1252.86 | 1240 | 45 | 332 | 3.22 |
| WBH-850 | LED4-0850 | 837.14 | 862.86 | 850 | 39 | 226 | 1.94 | WBH-1260 | LED4-1260 | 1247.14 | 1272.86 | 1260 | 45 | 337 | 3.28 |
| WBH-860 | LED4-0860 | 847.14 | 872.86 | 860 | 39 | 229 | 1.99 | WBH-1280 | LED4-1280 | 1267.14 | 1292.86 | 1280 | 45 | 343 | 3.35 |
| WBH-870 | LED4-0870 | 857.14 | 882.86 | 870 | 39 | 232 | 2.05 | WBH-1300 | LED4-1300 | 1287.14 | 1312.86 | 1300 | 46 | 347 | 3.42 |
| WBH-880 | LED4-0880 | 867.14 | 892.86 | 880 | 40 | 235 | 2.1 | WBH-1320 | LED4-1320 | 1307.14 | 1332.86 | 1320 | 46 | 353 | 3.49 |
| WBH-890 | LED4-0890 | 877.14 | 902.86 | 890 | 40 | 237 | 2.17 | WBH-1340 | LED4-1340 | 1327.14 | 1352.86 | 1340 | 46 | 358 | 3.56 |
| WBH-900 | LED4-0900 | 887.14 | 912.86 | 900 | 40 | 240 | 2.21 | WBH-1360 | LED4-1360 | 1347.14 | 1372.86 | 1360 | 46 | 364 | 3.61 |
| WBH-920 | LED4-0920 | 907.14 | 932.86 | 920 | 40 | 246 | 2.28 | WBH-1380 | LED4-1380 | 1367.12 | 1392.86 | 1380 | 47 | 369 | 3.69 |
| WBH-940 | LED4-0940 | 927.14 | 952.86 | 940 | 40 | 250 | 2.33 | WBH-1400 | LED4-1400 | 1387.14 | 1412.86 | 1400 | 47 | 375 | 3.75 |
| WBH-960 | LED4-0960 | 947.14 | 972.86 | 960 | 41 | 256 | 2.39 | WBH-1420 | LED4-1420 | 1407.14 | 1432.86 | 1420 | 47 | 400 | 3.81 |
| WBH-980 | LED4-0980 | 967.14 | 992.86 | 980 | 41 | 261 | 2.44 | WBH-1440 | LED4-1440 | 1427.14 | 1452.86 | 1440 | 47 | 430 | 3.9 |
| WBH-1000 | LED4-1000 | 987.14 | 1012.86 | 1000 | 41 | 267 | 2.49 | WBH-1460 | LED4-1460 | 1447.14 | 1472.86 | 1460 | 48 | 435 | 3.98 |
| WBH-1020 | LED4-1020 | 1007.14 | 1032.86 | 1020 | 42 | 272 | 2.54 | WBH-1480 | LED4-1480 | 1467.14 | 1492.86 | 1480 | 48 | 442 | 4.05 |
| WBH-1040 | LED4-1040 | 1027.14 | 1052.86 | 1040 | 42 | 278 | 2.59 | WBH-1500 | LED4-1500 | 1487.14 | 1512.86 | 1500 | 48 | 447 | 4.13 |
| WBH-1060 | LED4-1060 | 1047.14 | 1072.86 | 1060 | 42 | 283 | 2.65 | *** Please contact CLI salesman to get more information on the bearings by sending us the email to sales@clibearings.com | |||||||
| WBH-1080 | LED4-1080 | 1067.14 | 1092.86 | 1080 | 43 | 289 | 2.71 | ||||||||
| WBH-1100 | LED4-1100 | 1087.14 | 1112.86 | 1100 | 43 | 293 | 2.76 | ||||||||
| WBH-1120 | LED4-1120 | 1107.14 | 1132.86 | 1120 | 43 | 299 | 2.82 | ||||||||
| WBH-1140 | LED4-1140 | 1127.14 | 1152.86 | 1140 | 43 | 304 | 2.9 | ||||||||
| WBH-1160 | LED4-1160 | 1147.14 | 1172.86 | 1160 | 44 | 310 | 2.97 | ||||||||
| WBH-1180 | LED4-1180 | 1167.14 | 1192.86 | 1180 | 44 | 315 | 3.03 | ||||||||
