UK2 | UK3 | Chrome Steel Bearing Insert, Standard duty, Tapered Bore, Adapter Sleeve Locking, Metric Sizes

Product Picture

UK2 / UK3
Chrome Steel Bearing Insert, Standard duty, Tapered Bore, Adapter Sleeve Locking,
Metric Sizes

UK2 and UK3 types ball bearings are assembled into the various housings with adapter mounted. They are suitable to the long shaft or to the place where the shaft diameter precision is uneven. Since it is provided with the complete dust-proof mechanism, the bearing sevice life is surprisingly long.

UK2 and UK3 typoe bearing with suffix "G" means this UK2 and UK3 bearing is with lubrication groove and holes on outer rings.

UK2 and UK3 type bearing with suffix "N" means this UK2 and UK3 bearing is non-lubrication type, and without lubrication groove & holes, as well as without anti-rotation pin and holes.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

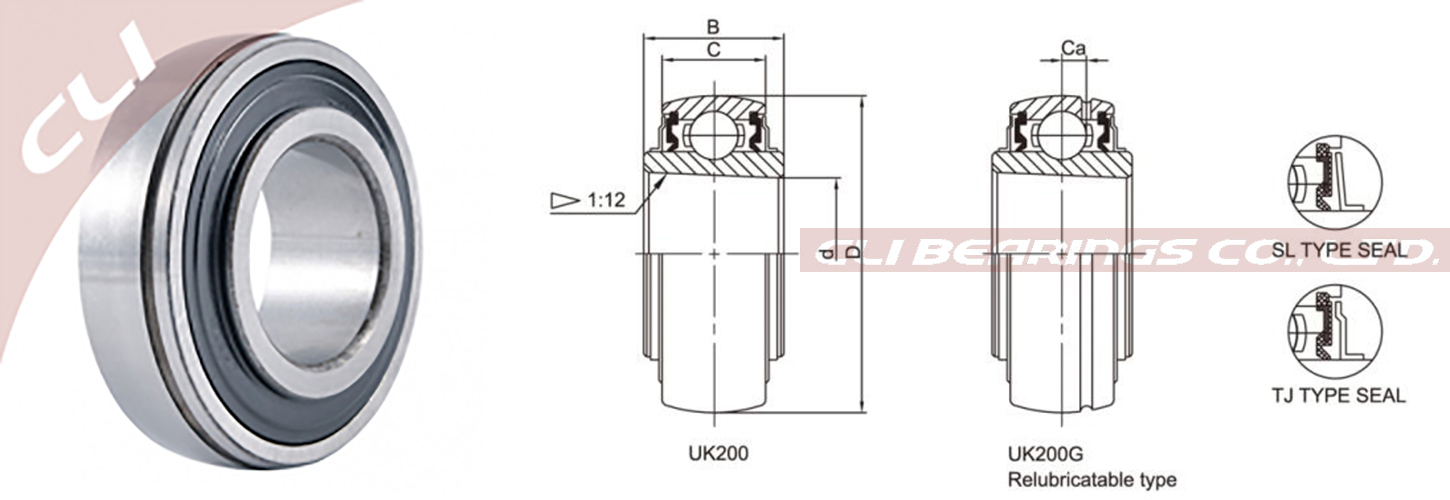

UK2
Chrome Steel Bearing Insert, Standard duty, Tapered Bore, Adapter Sleeve Locking,
for shaft metric sizes from 12 mm to 90 mm

CLI Bearing No.	Dimensions (mm)						Basic Load Rating ( KN )		Weight
CLI Bearing No.	d1	d	D	B	C	Ca	Dvnamic Cr	Static Cor	(kg)
UK205	20	25	52	23	17	4	14.03	8.05	0.21
UK206	25	30	62	26	19	5.3	19.47	11.43	0.31
UK207	30	35	72	28	20	5.8	25.69	15.55	0.46
UK208	35	40	80	29	21	6.2	29.51	18.14	0.63
UK209	40	45	85	30	22	6.5	31.85	20.8	0.68
UK210	45	50	90	32	24	7	34.99	23.7	0.78
UK211	50	55	100	36	25	7.4	43.34	29.39	1.07
UK212	55	60	110	38	27	7.6	47.68	33.43	1.51
UK213	60	65	120	40	28	8.5	57.2	40.01	1.86
UK215	65	75	130	43	30	9.2	62.08	44.82	2.21
UK216	70	80	140	45	33	9.5	72.62	53.34	2.79
UK217	75	85	150	46	35	11.1	83.15	65.54	3.38
UK218	80	90	160	47	37	11.8	95.84	72.64	4.46

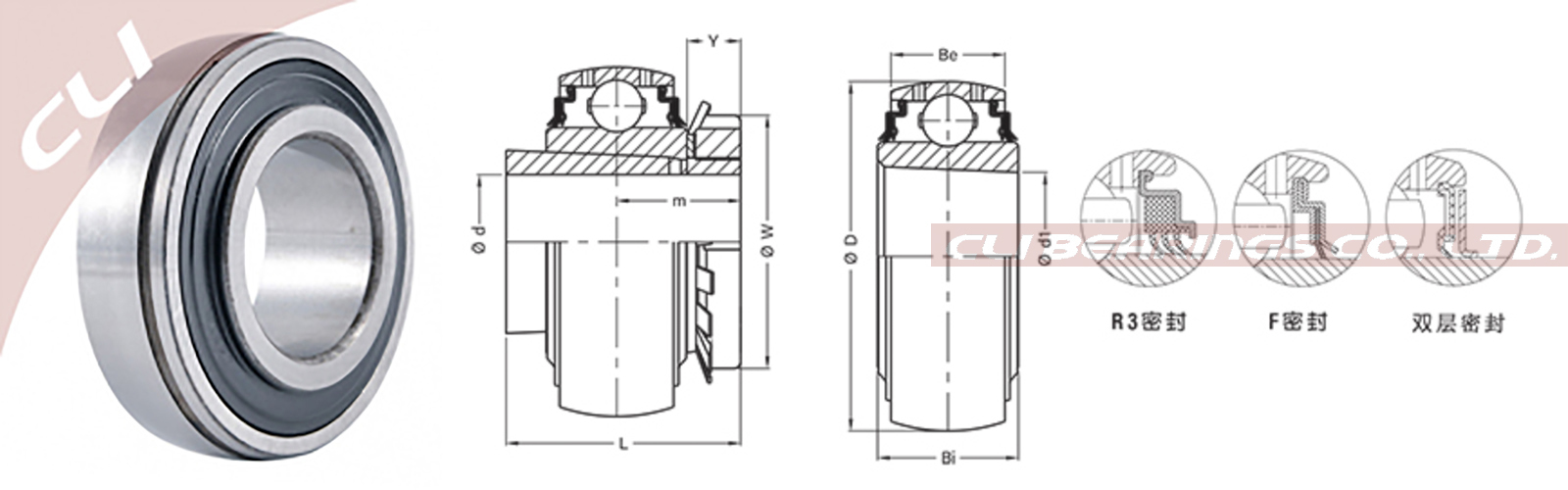

UK3
Chrome Steel Bearing Insert, Standard duty, Tapered Bore, Adapter Sleeve Locking,
for shaft metric sizes from 12 mm to 90 mm

CLI Bearing No.	Shaft Dia d		Dimensions (mm)								Basic Load Rating (KN)	Basic Static Load Rating (KN)	Weight (kg)
CLI Bearing No.	(in)	(mm)	D	L	d	Bi	Be	T	y	w	Basic Load Rating (KN)	Basic Static Load Rating (KN)	Weight (kg)
UK305-3/4 UK305	3/4	20	62	35	25	26	21	6.1	8	38	2170	1120	1.07
UK306-1 UK306	1	25	72	38	30	29	23	6.7	8	45	2730	1530	1.32
UK307-1-1/8 UK307	1-1/8	30	80	43	35	31	25	7.4	9	52	3400	1960	1.65
UK308-1-1/4 UK308-1-3/8 UK308	1-1/4 1-3/8	35	90	46	40	34	27	8.2	10	58	4150	2440	2.25
UK309-1-1/2 UK309-1-5/8 UK309	1-1/2 1-5/8	40	100	50	45	37	30	9	11	65	5250	3000	2.92
UK310-1-3/4 UK310	1-3/4	45	110	55	50	40	32	10	12	70	6300	3900	3.75
UK311-1-7/8 UK311-2 UK311	1-7/8 2	50	120	59	55	43	34	10.7	12	75	7300	4600	4.59
UK312-2-1/8 UK312	2-1/8	55	130	62	60	46	36	11.5	13	80	8300	5300	5.64
UK313-2-1/4 UK313-2-3/8 UK313	2-1/4 2-3/8	60	140	65	65	48	38	12.2	14	85	9450	6100	6.85
UK315-2-1/2 UK315	2-1/2	65	160	73	75	54	42	13.8	15	98	11600	7800	10.6
UK316-2-3/4 UK316	2-3/4	70	170	78	80	57	44	14.5	17	105	12500	8800	12.6
UK317-3 UK317	3	75	180	82	85	60	46	15	18	110	13500	9800	14.7
UK318-3-1/8 UK318	3-1/8	80	190	86	90	63	48	15.9	18	120	14600	10900	16.8
UK319-3-1/4 UK319	3-1/4	85	200	90	95	66	50	16.7	19	125	15600	12100	19.5
UK320-3-1/2 UK320	3-1/2	90	215	97	100	72	54	18	20	130	17700	14300	24.1
UK322-4 UK322	4	100	240	105	110	80	60	21	21	145	20900	18200	32.1
UK324		110	260	112	120	86	64	22	22	155	21100	18900	40.2
UK326		115	280	121	130	92	68	23	23	165	23400	21900	52
UK328		125	300	131	140	98	73	25	24	180	26000	25100	64.2

* Suffix Descriptions:

G	→	Bearing is re-lubricatable. Bearing Lubrication groove and holes on outer rings.	→	UK204G
N	→	Non-lubrication type. Bearing has no lubrication groove, lubrication holes, anti-rotation pin and holes.	→	UK204N
