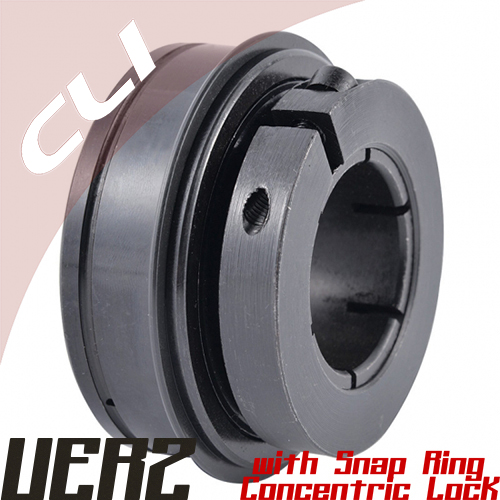

UER2
Chrome Steel Bearing Insert, Cylindrical Outer Ring & Snap Ring, Concentric Locking,
Easy Method of Assembling or Dismantling, Outstanding Locking Performance,
Metric Sizes & Inch Sizes
|
|
UER2 typoe bearing with suffix "G" means this UER2 bearing is with lubrication groove and holes on outer rings.
UER2 typoe bearing with suffix "N" means this UER2 bearing is non-lubrication type, and without lubrication groove & holes, as well as without anti-rotation pin and holes.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
UER2
Chrome Steel Bearing Insert, Cylindrical Outer Ring & Snap Ring, Concentric Locking,
Easy Method of Assembling or Dismantling, Outstanding Locking Performance,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |

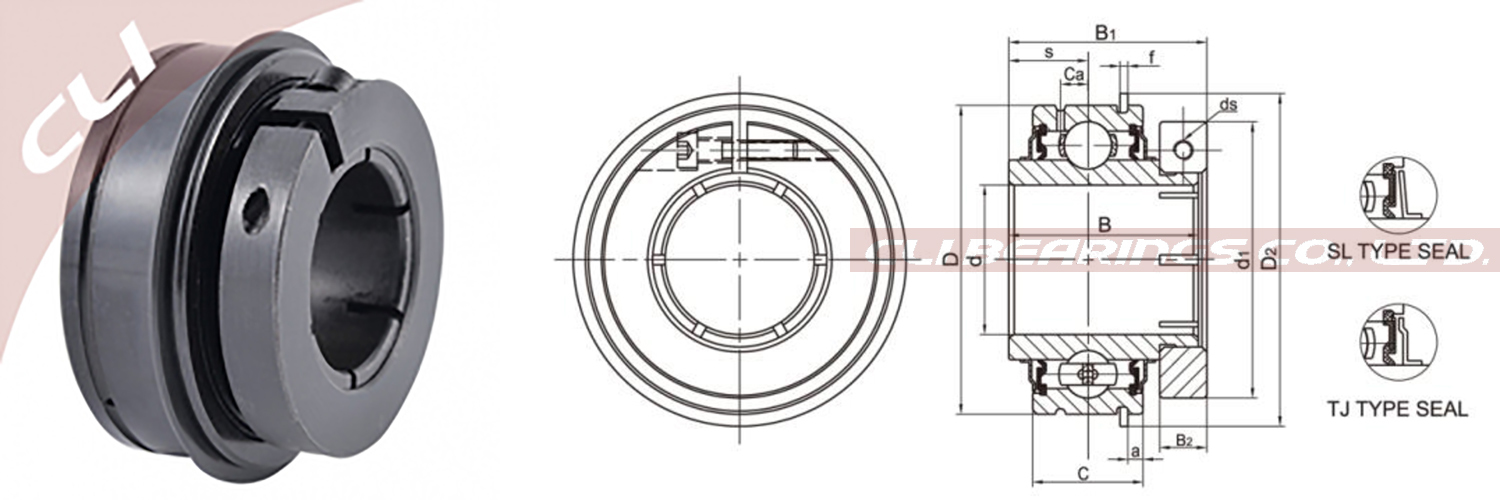

CLI
Bearing No. |
Shaft Dia |
Dimensions (mm) |
Load rating
( KN )
|
Weight (kg) |
| d |
D |
B |
C |
S |
B1 |
B2 |
a |
f |
D2 |
d1 |
ds |
Ca |
Dynamic |
Static |
| (in) |
(mm) |
(max) |
Cr |
Cor |
| UER204 |
|
20 |
47 |
31 |
15.9 |
10.3 |
33 |
9.5 |
2.38 |
1.07 |
52.7 |
40.8 |
M4 |
4.05 |
12.82 |
6.65 |
0.22 |
| UER204-12 |
3/4 |
|
47 |
31 |
15.9 |
10.3 |
33 |
9.5 |
2.38 |
1.07 |
52.7 |
40.8 |
M4 |
4.05 |
0.22 |
| UER205 |
|
25 |
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
14.03 |
8.05 |
0.28 |
| UER205-13 |
13/16 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| UER205-14 |
7/8 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| UER205-15 |
15/16 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| UER205-16 |
1 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| UER206 |
|
30 |
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
19.47 |
11.43 |
0.38 |
| UER206-17 |
1-1/16 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| UER206-18 |
1-1/8 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| UER206-19 |
1-3/16 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| UER206-20 |
1-1/4 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| UER207 |
|
35 |
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
25.69 |
15.55 |
0.56 |
| UER207-20 |
1-1/4 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| UER207-21 |
1-5/16 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| UER207-22 |
1-3/8 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| UER207-23 |
1-7/16 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| UER208 |
|
40 |
80 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
86.6 |
68 |
M5 |
7.5 |
29.51 |
18.14 |
0.87 |
| UER208-24 |
1-1/2 |
|
80 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
86.6 |
68 |
M5 |
7.5 |
0.87 |
| UER208-25 |
1-9/16 |
|
80 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
86.6 |
68 |
M5 |
7.5 |
0.87 |
| UER209 |
|
45 |
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
31.85 |
20.8 |
0.95 |
| UER209-26 |
1-5/8 |
|
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
0.95 |
| UER209-27 |
1-11/16 |
|
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
0.95 |
| UER209-28 |
1-3/4 |
|
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
0.95 |
| UER210 |
|
50 |
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
34.99 |
23.7 |
1.03 |
| UER210-30 |
1-7/8 |
|
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
1.03 |
| UER210-31 |
1-15/16 |
|
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
1.03 |
| UER210-32 |
2 |
|
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
1.03 |
| UER211 |
|
55 |
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
43.34 |
29.39 |
1.21 |
| UER211-32 |
2 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| UER211-33 |
2-1/16 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| UER211-34 |
2-1/8 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| UER211-35 |
2-3/16 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| UER212 |
|
60 |
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
47.68 |
33.43 |
1.68 |
| UER212-36 |
2-1/4 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
| UER212-37 |
2-5/16 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
| UER212-38 |
2-3/8 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
| UER212-39 |
2-7/16 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
|
| |
|
* Suffix Descriptions:
| G |
→ |
Bearing is re-lubricatable. Bearing Lubrication groove and holes on outer rings. |
→ |
UER204G |
| N |
→ |
Non-lubrication type. Bearing has no lubrication groove, lubrication holes, anti-rotation pin and holes. |
→ |
UER204N |
|
| |
