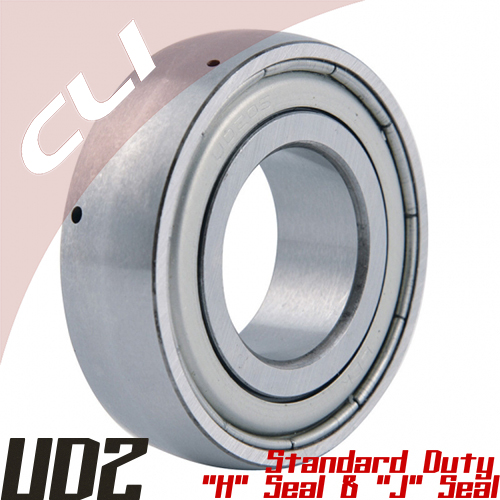

UD2

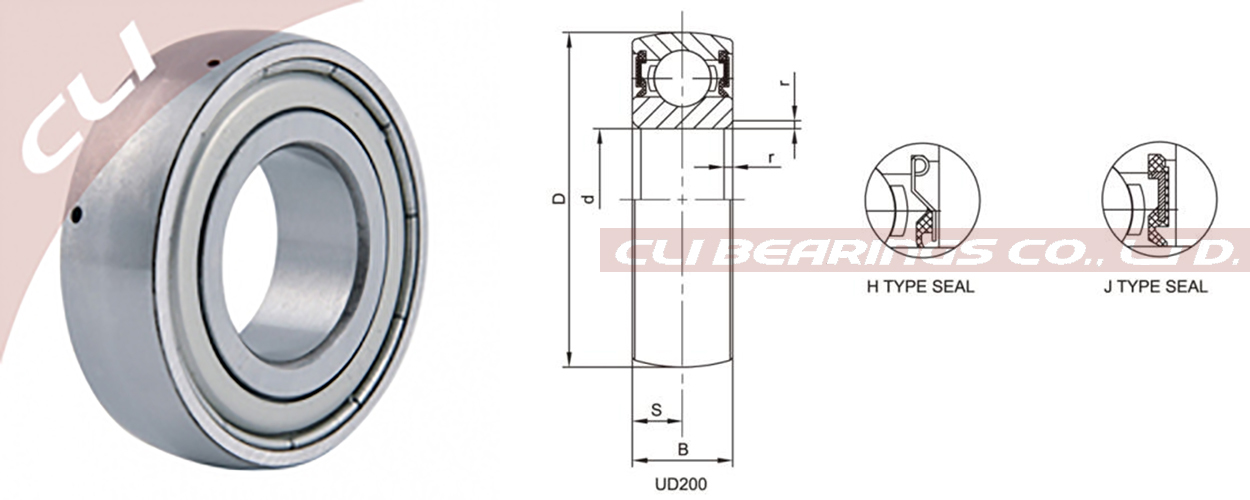

Chrome Steel Bearing Insert, Standard Duty, Cylindrical Bore, H type Seal & J type Seal,
Metric Sizes
|
|
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
UD2
Chrome Steel Bearing Insert, Standard Duty, Cylindrical Bore, H type Seal & J type Seal,
for shaft metric sizes from 12 mm to 90 mm
|
 |
| |
CLI
Bearing No. |
Dimensions
(mm) |
Basic load ratings
( KN )
|
Weight
(kg)
|
| d |
D |
B |
S |
r |
Dynamic
( N )
|
Static
Cor
|
| UD203 |
17 |
40 |
12 |
6.0 |
1.0 |
9.55 |
4.78 |
0.07 |
| UD204 |
20 |
47 |
14 |
7.0 |
1.5 |
12.82 |
6.65 |
0.12 |
| UD205 |
25 |
52 |
15 |
7.5 |
1.5 |
14.03 |
8.05 |
0.18 |
| UD206 |
30 |
62 |
16 |
8.0 |
1.5 |
19.47 |
11.43 |
0.26 |
| UD207 |
35 |
72 |
17 |
8.5 |
2.0 |
25.69 |
15.55 |
0.43 |
| UD208 |
40 |
80 |
18 |
9.0 |
2.0 |
29.51 |
18.14 |
0.60 |
| UD209 |
45 |
85 |
19 |
9.5 |
2.0 |
31.85 |
20.8 |
0.8 |
| UD210 |
50 |
90 |
20 |
10.0 |
2.0 |
34.99 |
23.7 |
0.83 |
| UD211 |
55 |
100 |
21 |
10.5 |
2.0 |
43.34 |
29.39 |
1.12 |
| UD212 |
60 |
110 |
22 |
11 |
2.0 |
47.68 |
33.43 |
1.55 |
|
| |
| |
