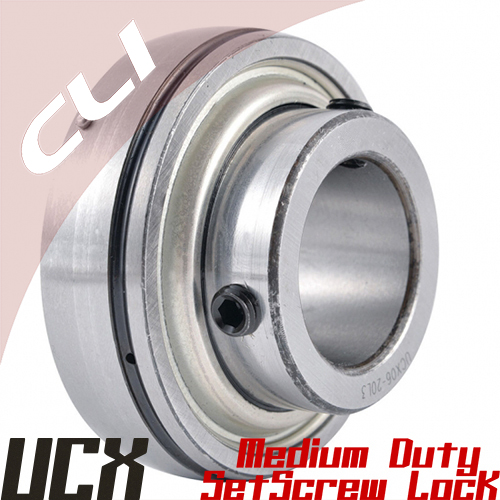

UCX / UCX...L3
Chrome Steel Bearing Insert, MEDIUM Duty, Wider Inner Ring, Setscrew Locking,
Metric Size & Inch Size



UCX, UCX...L3 type ball bearings are assembled into the various housings. The bearing inner diameter surface is of cylindircial bore type and the setscrews are used to mount to the shaft.

The UCX and UCX...L3 ball bearing insert can be ordered with a triple lip seal by using a suffix L3 or R3 as designation, eg: UCX05L3 or UCX05R3.
"L3" type seal consists of a metal cap and synthetic rubber seal, which are baked together to form a single seal. Seal lips have enough tightening allowance. In addition, the lip layers are of triple construction and outside matters, such as dust, water, etc., are shut out. This sealing system shows its outstanding function under bad conditions.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

UCX / UCX...L3
Chrome Steel Bearing Insert, MEDIUM Duty, Wider Inner Ring, Setscrew Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch

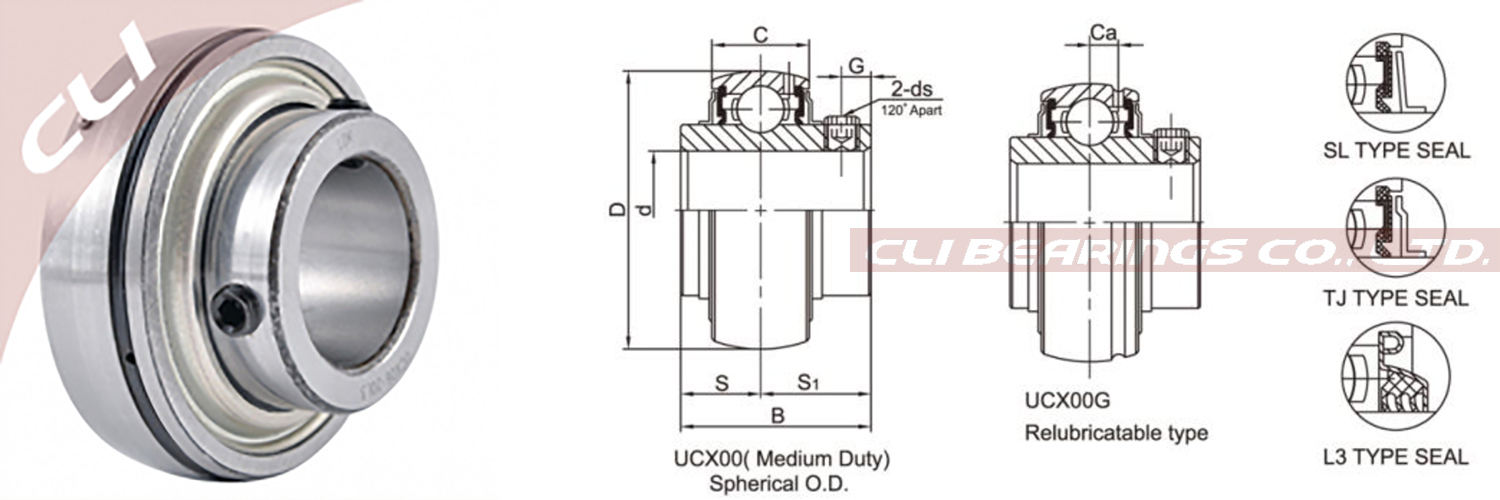

Bearing No. Shaft Dia Dimensions (mm)

Basic dynamic Load ratings

( KN )

Basic static Load ratings

( KN )

 Weight (kg)
d D B C S S1 G ds Ca
(in) (mm) (mm) (in.UNF)
UCX05    25 62 38.1 19 15.9 22.2 5.5 M6X1   5.3 19.47 11.43 0.39
UCX05-13  13/16    62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.39
UCX05-14  7/8    62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.39
UCX05-15  15/16    62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.39
UCX05-16 1   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.39
UCX06    30 72 42.9 20 17.5 25.4 6.9 M8X1   5.8 25.69 15.55 0.68
UCX06-17  1-1/16    72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.68
UCX06-18  1-1/8    72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.68
UCX06-19  1-3/16    72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.68
UCX06-20 1-1/4   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.68
UCX07    35 80 49.2 21 19 30.2 8 M8X1   6.2 29.51 18.14 0.82
UCX07-21  1-5/16    80 49.2 21 19 30.2 8   5/16-24 6.2 0.82
UCX07-22  1-3/8    80 49.2 21 19 30.2 8   5/16-24 6.2 0.82
UCX07-23 1-7/16   80 49.2 21 19 30.2 8   5/16-24 6.2 0.82
UCX08    40 85 49.2 22 19 30.2 8 M8X1   6.5 31.85 20.8 0.93
UCX08-24  1-1/2    85 49.2 22 19 30.2 8   5/16-24 6.5 0.93
UCX08-25 1-9/16   85 49.2 22 19 30.2 8   5/16-24 6.5 0.93
UCX09    45 90 51.6 24 19 32.6 10 M10X1.25   7 34.99 23.7 1.00
UCX09-26  1-5/8    90 51.6 24 19 32.6 10   3/8-24 7 1.00
UCX09-27  1-11/16    90 51.6 24 19 32.6 10   3/8-24 7 1.00
UCX09-28 1-3/4   90 51.6 24 19 32.6 10   3/8-24 7 1.00
UCX10    50 100 55.6 25 22.2 33.4 10 M10X1.25   7.4 43.34 29.39 1.35
UCX10-30  1-7/8    100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.35
UCX10-31 1-15/16   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.35
UCX11    55 110 65.1 27 25.4 39.7 10 M10X1.25   7.6 47.68 33.43 1.90
UCX11-33  2-1/16    110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.90
UCX11-34  2-1/8    110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.90
UCX11-35  2-3/16    110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.90
UCX11-36 2-1/4   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.90
UCX12    60 120 65.1 28 25.4 39.7 10 M10X1.25   8.5 57.2 40.01 2.27
UCX12-38  2-3/8    120 65.1 28 25.4 39.7 10   3/8-24 8.5 2.27
UCX12-39 2-7/16   120 65.1 28 25.4 39.7 10   3/8-24 8.5 2.27
UCX13    65 125 74.6 29 30.2 44.4 12 M12X1.25   8.9 62.19 43.9 2.45
UCX13-40  2-1/2    125 74.6 29 30.2 44.4 12   7/16-20 8.9 2.45
UCX13-41 2-9/16   125 74.6 29 30.2 44.4 12   7/16-20 8.9 2.45
UCX14    70 130 77.8 30 33.3 44.5 12 M12X1.25   9.2 62.08 44.82 2.47
UCX14-42  2-3/8    130 77.8 30 33.3 44.5 12   7/16-20 9.2 2.47
UCX14-43  2-11/16    130 77.8 30 33.3 44.5 12   7/16-20 9.2 2.47
UCX14-44 2-3/4   130 77.8 30 33.3 44.5 12   7/16-20 9.2 2.47
UCX15    75 140 82.6 33 33.3 49.3 12 M12X1.25   9.5 72.62 53.34 3.11
UCX15-45  2-13/16    140 82.6 33 33.3 49.3 12   7/16-20 9.5 3.11
UCX15-46  2-7/8    140 82.6 33 33.3 49.3 12   7/16-20 9.5 3.11
UCX15-47  2-15/16    140 82.6 33 33.3 49.3 12   7/16-20 9.5 3.11
UCX15-48 3   140 82.6 33 33.3 49.3 12   7/16-20 9.5 3.11
UCX16    80 150 85.7 35 34.1 51.6 12 M12X1.25   11.1 83.15 64.54 3.79
UCX16-49  3-1/16    150 85.7 35 34.1 51.6 12   7/16-20 11.1 3.79
UCX16-50  3-1/8    150 85.7 35 34.1 51.6 12   7/16-20 11.1 3.79
UCX16-51 3-3/16   150 85.7 35 34.1 51.6 12   7/16-20 11.1 3.79
UCX17    85 160 96 37 39.7 56.3 12 M12X1.25   11.8 95.84 72.64 4.82
UCX17-53  3-5/16    160 96 37 39.7 56.3 12   1/2-20 11.8 4.82
UCX17-55 3-7/16   160 96 37 39.7 56.3 12   1/2-20 11.8 4.82





 * Suffix Descriptions:

 L3    →   Bearing with a triple lip seals   →   UCX05L3
 R3   →   Bearing with a triple lip seals   →   UCX05R3
 G   →   Bearing is re-lubricatable   →   UC205G
