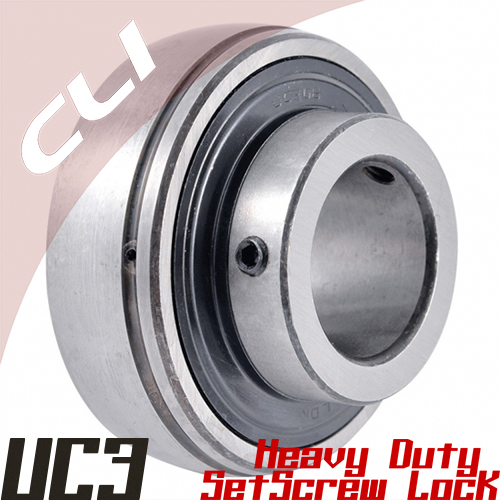

UC3
Chrome Steel Bearing Insert, HEAVY Duty, Wider Inner Ring, Setscrew Locking,
Metric Sizes & Inch Sizes




UC3 type ball bearings are assembled into the various housings. The bearing inner diameter surface is of cylindircial bore type and the setscrews are used to mount to the shaft.

The UC3 ball bearing insert can be ordered with a triple lip seal by using a suffix L3 or R3 as designation, eg: UC305L3 or UC305R3.
"L3" type seal consists of a metal cap and synthetic rubber seal, which are baked together to form a single seal. Seal lips have enough tightening allowance. In addition, the lip layers are of triple construction and outside matters, such as dust, water, etc., are shut out. This sealing system shows its outstanding function under bad conditions.

F type seals can be used in UC2, UC2...L3, CUC2 bearings, eg: UC305F or UC305F.
"F" type seal encloses a synthetic rubber washer between two metal shields. Due to the three pieces design with protective ourter  shroud, the sealing is excellent.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

UC3
Chrome Steel Bearing Insert, HEAVY Duty, Wider Inner Ring, Setscrew Locking,
for shaft m
etric sizes
 from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch



Bearing No.

Shaft Dia

Dimensions (mm)

Basic dynamic Load ratings

( KN )

Basic static Load ratings

( KN )

Weight (kg)

d

D

B

C

S

S1

G

ds

Ca

(in)

(mm)

(mm)

(in.UNF)

UC305



25

62

38

21

15

23

6

M6X1

6.4

22.46

11.57

0.44

UC305-14

7/8

62

38

21

15

23

6

1/4-28

6.4

0.44

UC305-15

15/16

62

38

21

15

23

6

1/4-28

6.4

0.44

UC305-16

1

62

38

21

15

23

6

1/4-28

6.4

0.44

UC306



30

72

43

23

17

26

6

M6X1

7.1

27.14

15.2

0.56

UC306-18

1-1/8

72

43

23

17

26

6

1/4-28

7.1

0.56

UC306-19

1-3/16

72

43

23

17

26

6

1/4-28

7.1

0.56

UC307



35

80

48

25

19

29

8

M8X1

8

33.53

19.22

0.71

UC307-20

1-1/4

80

48

25

19

29

8

5/16-24

8

0.71

UC307-21

1-5/16

80

48

25

19

29

8

5/16-24

8

0.71

UC307-22

1-3/8

80

48

25

19

29

8

5/16-24

8

0.71

UC308



40

90

52

27

19

33

10

M10X1.25

9

40.96

24.01

1.00

UC308-24

1-1/2

90

52

27

19

33

10

3/8-24

9

1.00

UC308-25

1-9/16

90

52

27

19

33

10

3/8-24

9

1.00

UC309



45

100

57

30

22

35

10

M10X1.25

9.5

53.33

32.19

1.28

UC309-26

1-5/8

100

57

30

22

35

10

3/8-24

9.5

1.28

UC309-27

1-11/16

100

57

30

22

35

10

3/8-24

9.5

1.28

UC309-28

1-3/4

100

57

30

22

35

10

3/8-24

9.5

1.28

UC310



50

110

61

32

22

39

12

M12X1.25

10.5

62.38

38.32

1.65

UC310-30

1-7/8

110

61

32

22

39

12

7/16-20

10.5

1.65

UC310-31

1-15/16

110

61

32

22

39

12

7/16-20

10.5

1.65

UC311



55

120

66

34

25

41

12

M12X1.25

11

72.05

44.97

2.07

UC311-32

2

120

66

34

25

41

12

7/16-20

11

2.07

UC311-34

2-1/8

120

66

34

25

41

12

7/16-20

11

2.07

UC311-35

2-3/16

120

66

34

25

41

12

7/16-20

11

2.07

UC312



60

130

71

36

26

45

12

M12X1.25

11.5

82.33

52.16

2.59

UC312-36

2-1/4

130

71

36

26

45

12

7/16-20

11.5

2.59

UC312-38

2-3/8

130

71

36

26

45

12

7/16-20

11.5

2.59

UC312-39

2-7/16

130

71

36

26

45

12

7/16-20

11.5

2.59

UC313



65

140

75

38

30

45

12

M12X1.25

12.5

94.54

60.82

3.15

UC313-40

2-1/2

140

75

38

30

45

12

7/16-20

12.5

3.15

UC314



70

150

78

40

33

45

12

M12X1.25

13.2

104.7

68.13

3.83

UC314-44

2-3/4

150

78

40

33

45

12

7/16-20

13.2

3.83

UC315



75

160

82

42

32

50

12

M14X1.5

14

113.97

78.66

4.59

UC315-48

3

160

82

42

32

50

12

1/2-20

14

4.59

UC316

80

170

86

44

34

52

14

M14X1.5

14.9

123.46

88.18

5.40

UC317



85

180

96

46

40

56

16

M16X1.5

16

133.16

98.25

6.58

UC317-52

3-1/4

180

96

46

40

56

16

5/8-18

16

6.58

UC318



90

190

96

48

40

56

16

M16X1.5

17.3

144.67

110.59

7.34

UC318-56

3-1/2

190

96

48

40

56

16

5/8-18

17.3

7.34

UC319



95

200

103

50

41

62

16

M16X1.5

18.3

156.68

122.07

8.70

UC319-60

3-3/4

200

103

50

41

62

16

5/8-18

18.3

8.70

UC320



100

215

108

54

42

66

18

M18X1.5

20

173.14

140.67

10.80

UC320-64

4

215

108

54

42

66

18

5/8-18

20

10.80

UC321

105

225

112

56

44

68

18

M18X1.5

20.8

183.7

153.2

12.20

UC322

110

240

117

60

46

71

18

M18X1.5

20.9

206.8

179.9

14.30

UC324

120

260

126

64

51

75

18

M18X1.5

22.9

228

208.6

18.50

UC326

130

280

135

68

54

81

20

M20X1.5

24.9

274.2

273.7

23.00

UC328

140

300

145

72

59

86

20

M20X1.5

26.9

296.9

306.5

28.50




 * Suffix Descriptions:

 L3   →   Bearing with a triple lip seals   →   UC305L3
 R3   →   Bearing with a triple lip seals   →   UC305R3
 F   →   Bearing with F type seals   →   UC305F
 G   →   Bearing is re-lubricatable   →   UC305G
