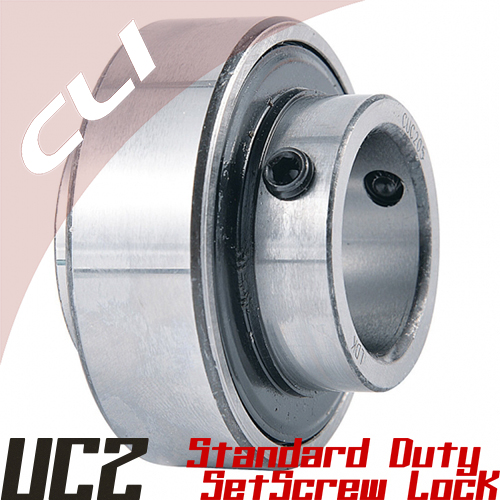

Original 1 uc2 insert bearing 244
Product Picture

UC2 / UC2...L3 / CUC2
Chrome Steel Bearing Insert, Standard Duty, Wider Inner Ring, Setscrew Locking,
Metric Sizes & Inch Sizes



UC2, UC2...L3, CUC2 type ball bearings are assembled into the various housings. The bearing inner diameter surface is of cylindircial bore type and the setscrews are used to mount to the shaft.

The UC2, UC2...L3, CUC2 ball bearing insert can be ordered with a triple lip seal by using a suffix L3 or R3 as designation, eg: UC205L3 or UC205R3.
"L3" type seal consists of a metal cap and synthetic rubber seal, which are baked together to form a single seal. Seal lips have enough tightening allowance. In addition, the lip layers are of triple construction and outside matters, such as dust, water, etc., are shut out. This sealing system shows its outstanding function under bad conditions.

F type seals can be used in UC2, UC2...L3, CUC2 bearings, eg: UC205F or UC205F.
"F" type seal encloses a synthetic rubber washer between two metal shields. Due to the three pieces design with protective ourter  shroud, the sealing is excellent.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

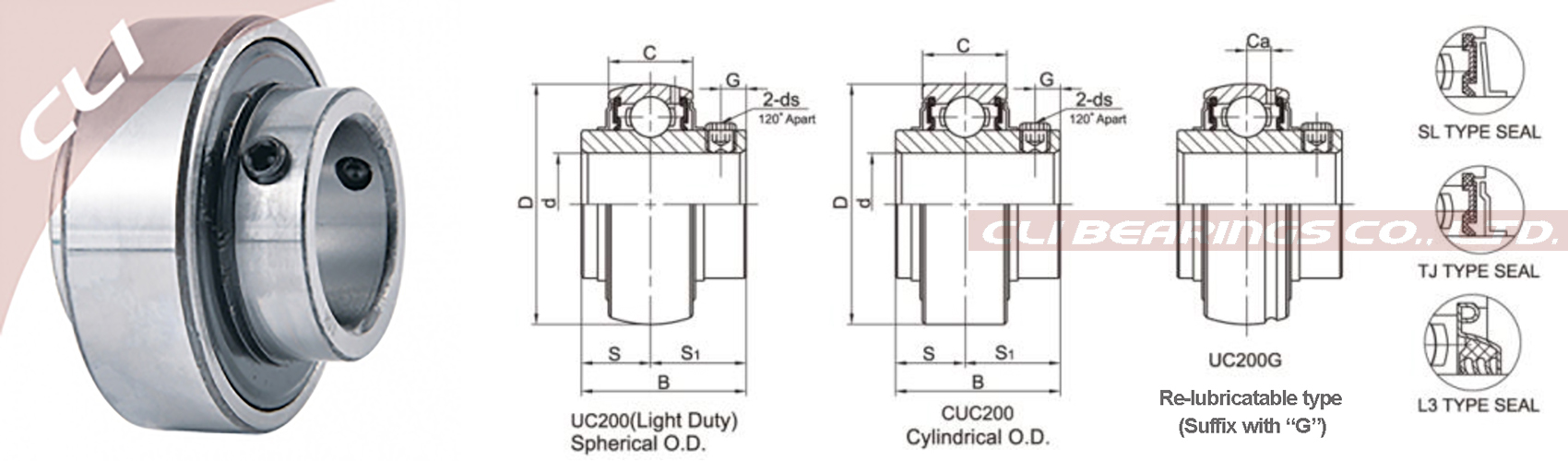

UC2 / UC2...L3 / CUC2
Chrome Steel Bearing Insert, Standard Duty, Wider Inner Ring, Setscrew Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch


CLI
Bearing No.		 Shaft Dia Dimensions( mm) Basic Load Ratings Weight
d D B C S S1 G ds Ca Dynamic Static
(in) (mm) (mm) (in.UNF) ( KN ) ( KN ) (kg)
UCW201 　 12 40 27.4 14 11.5 15.9 4.2 M5x0.8   4.1 9.55 4.78 0.12
UCW201-8 1/2   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.12
UCW202   15 40 27.4 14 11.5 15.9 4.2 M5x0.8   4.1 9.55 4.78 0.11
UCW202-9 9/16   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.11
UCW202-10 5/8   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.11
UCW203   17 40 27.4 14 11.5 15.9 4.2 M5x0.8   4.1 9.55 4.78 0.10
UCW203-11 11/16   40 27.4 14 11.5 15.9 4.2   10-32 4.1 0.10
UC201   12 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.21
UC201-8 1/2   47 31 17 12.7 18.3 5   1/4-28 4.3 0.21
UC202   15 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.19
UC202-9 9/16   47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
UC202-10 5/8   47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
UC203   17 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.18
UC203-11 11/16 　 47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
UC204   20 47 31 17 12.7 18.3 5 M6x1   4.3 12.82 6.65 0.17
UC204-12 3/4   47 31 17 12.7 18.3 5   1/4-28 4.3 0.18
UC205   25 52 34.1 17 14.3 19.8 5.4 M6x1   4 14.03 8.05 0.19
UC205-13 13/16 　 52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.22
UC205-14 7/8   52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.21
UC205-15 15/16   52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.20
UC205-16 1   52 34.1 17 14.3 19.8 5.4   1/4-28 4 0.19
UC206   30 62 38.1 19 15.9 22.2 5.5 M6x1   5.3 19.47 11.43 0.31
UC206-17 1-1/16   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.34
UC206-18 1-1/8   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.33
UC206-19 1-3/16   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.32
UC206-20 1-1/4   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.30
UC207   35 72 42.9 20 17.5 25.4 6.9 M8x1   5.8 25.69 15.55 0.46
UC207-20 1-1/4   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.52
UC207-21 1-5/16   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.51
UC207-22 1-3/8   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.48
UC207-23 1-7/16   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.46
UC208   40 80 49.2 21 19.0 30.2 8 M8x1   6.2 29.51 18.14 0.63
UC208-24 1-1/2   80 49.2 21 19.0 30.2 8   5/16-24 6.2 0.68
UC208-25 1-9/16   80 49.2 21 19.0 30.2 8   5/16-24 6.2 0.64
UC209   45 85 49.2 22 19.0 30.2 8 M8x1   6.5 31.85 20.8 0.68
UC209-26 1-5/8   85 49.2 22 19.0 30.2 8   5/16-24 6.5 0.78
UC209-27 1-11/16   85 49.2 22 19.0 30.2 8   5/16-24 6.5 0.74
UC209-28 1-3/4   85 49.2 22 19.0 30.2 8   5/16-24 6.5 0.70
UC210   50 90 51.6 24 19.0 32.6 10 M10x1.25   7 34.99 23.7 0.78
UC210-30 1-7/8   90 51.6 24 19.0 32.6 10   3/8-24 7 　 　 0.85
UC210-31 1-15/16   90 51.6 24 19.0 32.6 10   3/8-24 7 0.8
UC210-32 2   90 51.6 24 19.0 32.6 10   3/8-24 7 0.78
UC211   55 100 55.6 25 22.2 33.4 10 M10x1.25   7.4 43.34 29.39 1.07
UC211-32 2   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.22
UC211-33 2-1/16   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.16
UC211-34 2-1/8   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.1
UC211-35 2-3/16   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.05
UC212   60 110 65.1 27 25.4 39.7 10 M10x1.25   7.6 47.68 33.43 1.51
UC212-36 2-1/4   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.65
UC212-37 2-5/16   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.59(sk
UC212-38 2-3/8   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.52cha
UC212-39 2-7/16   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.42
(sk
UC213   65 120 65.1 28 25.4 39.7 10 M10x1.25   8.5 57.2 40.01 1.86cha
UC213-39 2-7/16   120 65.1 28 25.4 39.7 10   3/8-24 8.5 1.96
UC213-40 2-1/2   120 65.1 28 25.4 39.7 10   3/8-24 8.5 1.94(m
UC214   70 125 74.6 29 30.2 44.4 12 M12x1.25   8.9 62.19 43.9 bea
2.18
UC214-43 2-11/16   125 74.6 29 30.2 44.4 12   7/16-20 8.9 2.28(m
UC214-44 2-3/4   125 74.6 29 30.2 44.4 12   7/16-20 8.9 2.06bea
UC215   75 130 77.8 30 33.3 44.5 12 M12X1.25   9.2 62.08 44.82 2.21
UC215-47 2-15/16   130 77.8 30 33.3 44.5 12   7/16-20 9.2 2.30
UC215-48 3   130 77.8 30 33.3 44.5 12   7/16-20 9.2 2.13
UC216   80 140 82.6 33 33.3 49.3 12 M12X1.25   9.5 72.62 53.34 2.79
UC217   85 150 85.7 35 34.1 51.6 12 M12X1.25   11.1 83.15 64.54 3.38
UC217-52 3-1/4   150 85.7 35 34.1 51.6 12   7/16-20 11.1 3.59
UC218   90 160 96 37 39.7 56.3 12 M12X1.25   11.8 95.84 72.64 4.46
UC218-56 3-1/2   160 96 37 39.7 56.3 12   7/16-20 11.8 4.56



 * Suffix Descriptions:

 - L3   →   Bearing with a triple lip seals   →   UC205L3
 - R3   →   Bearing with a triple lip seals   →   UC205R3
 - F   →   Bearing with F type seals   →   UC205F
 - G   →   Bearing is re-lubricatable   →   UC205G


* Prefix Descriptions:

 C -   →   Bearing with Cylindrical Outer Ring   →   CUC205
 S -   →   Bearing with Stainless Steel SUS440C / SUS304   →   SUC205
