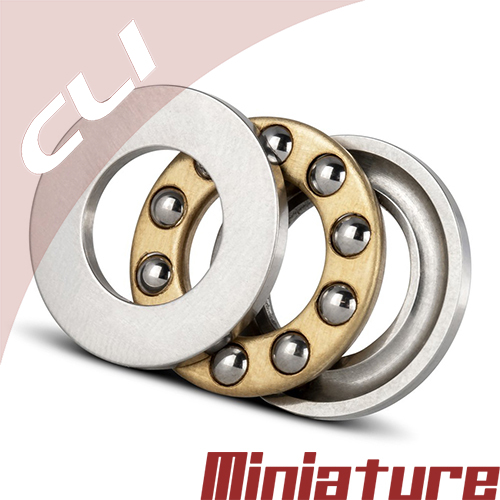

Original miniature thrust ball bearings with grooved washers 402

Product Picture

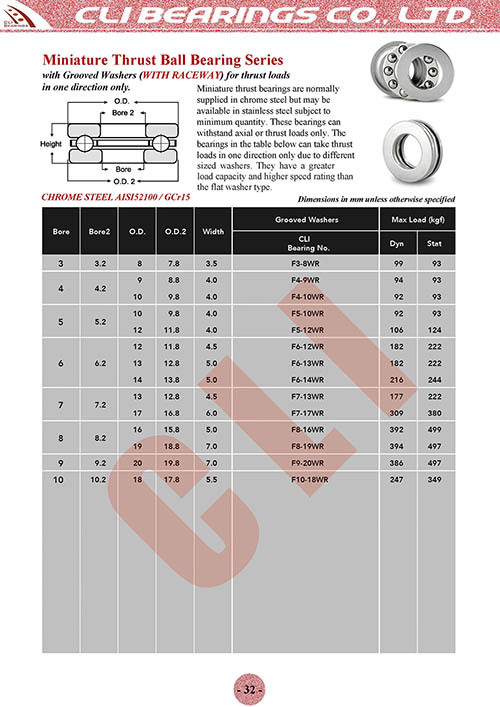

Original 8 miniature thrust ball bearings with grooved washers nw

Download PDF Catalogue

Miniature thrust ball bearings with GROOVED WASHER,
(with Raceway)
CHROME STEEL AISI52100, METRIC sizes

CLI thrust miniature ball bearings is available of washers with grooves (with RACEWAY).
Normally this type bearings are supplied in chrome steel but may be available in stainless steel subject to minimum order quantity.
These Bearings can withstandard axial or thrust loads only. The bearings in the table below can take thrust olads in one direction only due to different sized washers.
They have a greater load capacity and higher speed rating than the flat washers.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI52100 chrome steel
Miniature thrust ball bearings with GROOVED WASHER for
shaft sizes from 2 mm to 10 mm

Part No.	Bore Dia (Bore)	Outside Dia (O.D.)	Height	Washer Type / Washer Material		Cage Material	Ball Material	Weight (g)
F2-6	2 mm	6 mm	3 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	0.60
F2X-7	2.5 mm	7 mm	3.5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	0.90
F3-8	3 mm	8 mm	3.5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	0.60
F3-8GW	3 mm	8 mm	3.5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	0.90
F4-9	4 mm	9 mm	4 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	1.50
F4-9GW	4 mm	9 mm	4 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	1.20
F4-10	4 mm	10 mm	4 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.00
F4-10GW	4 mm	10 mm	4 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	1.50
F5-10GW	5 mm	10 mm	4 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.10
F5-11	5 mm	11 mm	4.5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.40
F5-11GW	5 mm	11 mm	4.5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.10
F5-12GW	5 mm	12 mm	4 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.10
F6-12	6 mm	12 mm	4.5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.50
F6-12GW	6 mm	12 mm	4.5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.20
F6-13GW	6 mm	13 mm	5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.20
F6-14GW	6 mm	14 mm	5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	3.50
F7-13GW	7 mm	13 mm	4.5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	2.60
F7-15	7 mm	15 mm	5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	4.40
F7-15GW	7 mm	15 mm	5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	6.50
F7-17GW	7 mm	17 mm	6 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	6.50
F8-16	8 mm	16 mm	5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	5.00
F8-16GW	8 mm	16 mm	5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	4.50
F8-19GW	8 mm	19 mm	7 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	9.10
F9-17	9 mm	17 mm	5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	5.10
F9-20GW	9 mm	20 mm	7 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	9.90
F10-18	10 mm	18 mm	5.5 mm	Flat Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	6.00
F10-18GW	10 mm	18 mm	5.5 mm	Grooved Washer	Chrome steel 52100	Bronze / Steel	Chrome steel 52100	5.40
