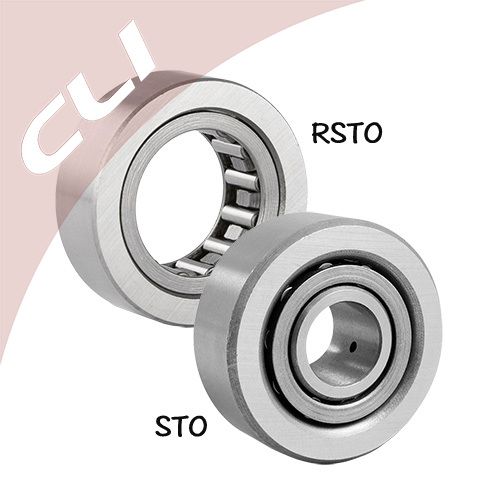

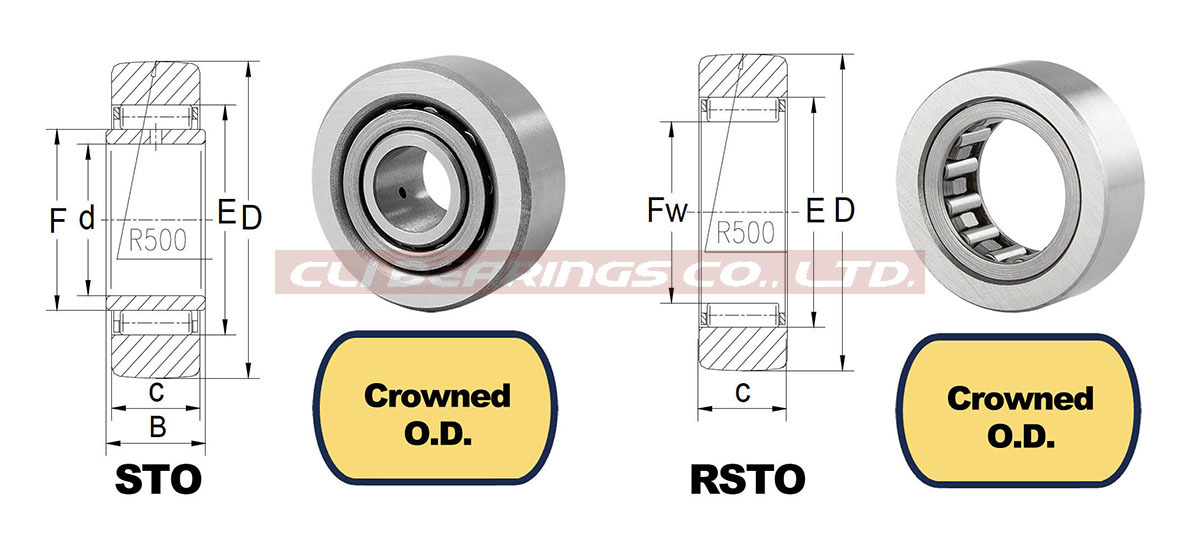

| Support rollers STO / STO...TV / RSTO / RSTO...TV yoke track rollers ( METRIC size ) |
 |
| Part Number |
Dimensions (mm) |
Load Rating (N) |
Limiting Speed (RPM) |
Weight (g) |
| Without Inner Ring |
With Inner Ring |
D |
d |
Fw / F |
B |
C |
E |
Dynamic |
Static |
RSTO |
STO |
| RSTO5TV |
-- |
16 |
-- |
7 |
-- |
7.8 |
10 |
2550 |
2600 |
16000 |
8.5 |
-- |
| RSTO6TV |
STO6TV |
19 |
6 |
10 |
10 |
9.8 |
13 |
3750 |
4550 |
10000 |
12.5 |
17 |
| RSTO8TV |
STO8TV |
24 |
8 |
12 |
10 |
9.8 |
15 |
4200 |
5500 |
8000 |
21 |
26 |
| RSTO10 |
STO10 |
30 |
10 |
14 |
12 |
12 |
20 |
8400 |
9300 |
5500 |
42 |
49 |
| RSTO12 |
STO12 |
32 |
12 |
16 |
12 |
12 |
22 |
9000 |
10300 |
4500 |
49 |
57 |
| RSTO15 |
STO15 |
35 |
15 |
20 |
12 |
12 |
26 |
9100 |
10900 |
3300 |
50 |
63 |
| RSTO17 |
STO17 |
40 |
17 |
22 |
16 |
16 |
29 |
14200 |
17900 |
2800 |
88 |
107 |
| RSTO20 |
STO20 |
47 |
20 |
25 |
16 |
16 |
32 |
16100 |
21700 |
2400 |
130 |
152 |
| RSTO25 |
STO25 |
52 |
25 |
30 |
16 |
16 |
37 |
16400 |
23200 |
1800 |
150 |
177 |
| RSTO30 |
STO30 |
62 |
30 |
38 |
20 |
20 |
46 |
23100 |
35000 |
1300 |
255 |
308 |
| RSTO35 |
STO35 |
72 |
35 |
42 |
20 |
20 |
50 |
25000 |
40500 |
1100 |
375 |
441 |
| RSTO40 |
STO40 |
80 |
40 |
50 |
20 |
20 |
58 |
23700 |
39500 |
850 |
420 |
530 |
| RSTO45 |
STO45 |
85 |
45 |
55 |
20 |
20 |
63 |
25000 |
43500 |
750 |
453 |
576 |
| RSTO50 |
STO50 |
90 |
50 |
60 |
20 |
20 |
68 |
25500 |
46000 |
650 |
481 |
617 |
|
