SUK2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
TAPERED bore, Adapter Sleeve Locking,
Metric Size & Inch Size
|
|

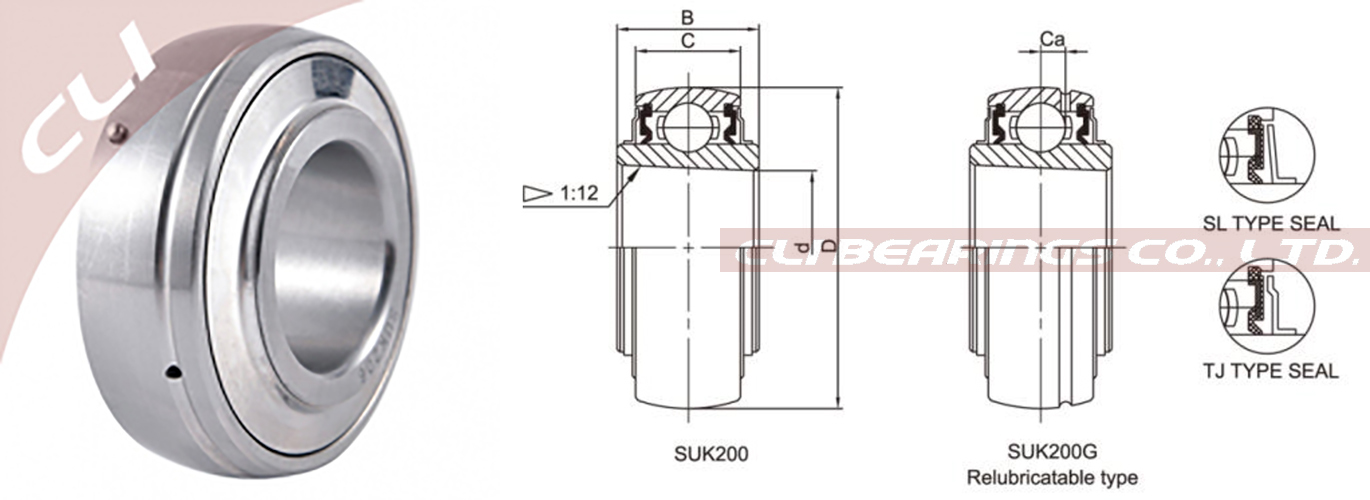

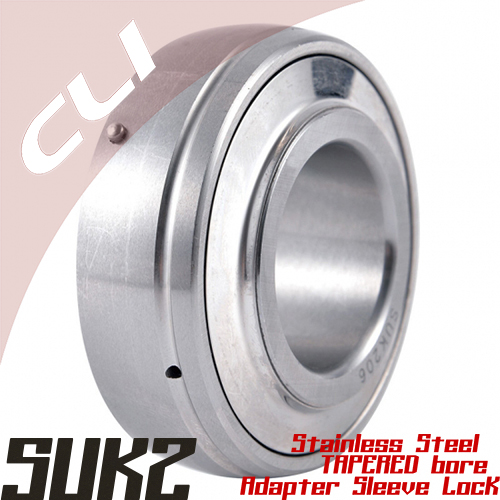

SUK type ball bearing is UK type bearing made in stainless steel SUS440C or SUS304.
SUK type bearing with suffix "G" means this SUK series bearing is with lubrication groove and holes on outer rings.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
SUK2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
TAPERED bore, Adapter Sleeve Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |
CLI
Bearing No. |
Dimensions
(mm) |
Basic Load Rating
( KN )
|
Weight |
| d1 |
d |
D |
B |
C |
Ca |
Dynamic Cr |
Static Cor |
(kg) |
| SUK205 |
20 |
25 |
52 |
23 |
17 |
4.5 |
14.0 |
7.8 |
0.21 |
| SUK206 |
25 |
30 |
62 |
26 |
19 |
5.1 |
19.5 |
11.2 |
0.31 |
| SUK207 |
30 |
35 |
72 |
27 |
20 |
5.8 |
25.7 |
15.2 |
0.46 |
| SUK208 |
35 |
40 |
80 |
29 |
21 |
6.2 |
29.6 |
18.2 |
0.63 |
| SUK209 |
40 |
45 |
85 |
30 |
22 |
6.5 |
31.8 |
20.8 |
0.68 |
| SUK210 |
45 |
50 |
90 |
31 |
24 |
7 |
35.1 |
23.2 |
0.78 |
| SUK211 |
50 |
55 |
100 |
36 |
26 |
7.3 |
43.5 |
29.2 |
1.07 |
| SUK212 |
55 |
60 |
110 |
38 |
27 |
7.7 |
52.5 |
32.8 |
1.51 |
|
| |
|
* Suffix Descriptions:
| G |
→ |
Bearing is re-lubricatable |
→ |
SUK205G |
|
| |
