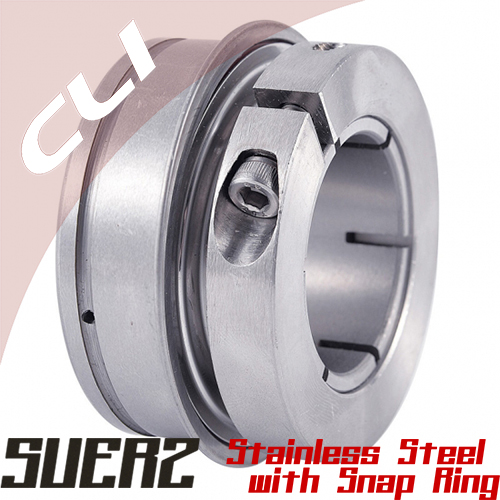

SUER2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Cylindrical Outer Ring & Snap Ring, Concentric Locking,
Metric Size & Inch Size
|
|
SUER type ball bearing is UER type bearing made in stainless steel SUS440C or SUS304.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |

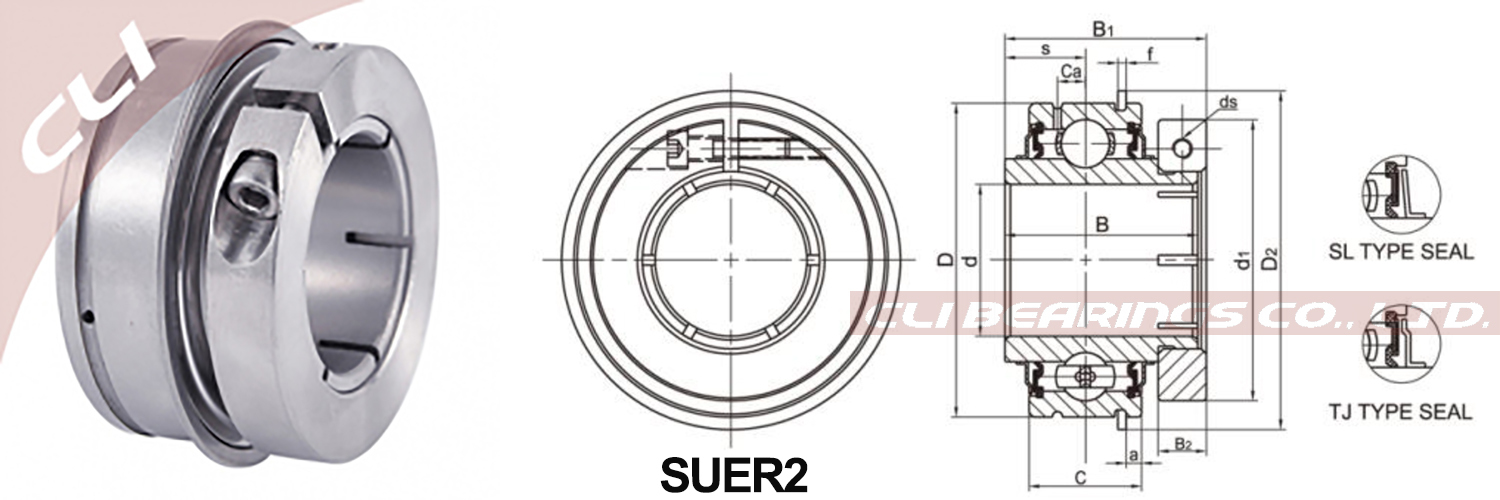

SUER2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Cylindrical Outer Ring & Snap Ring, Concentric Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |
CLI
Bearing No. |
Shaft Dia |
Dimensions
(mm) |
Load rating
( KN )
|
Weight (kg) |
| d |
D |
B |
C |
S |
B1 |
B2 |
a |
f |
D2 |
d1 |
ds |
Ca |
Dynamic |
Static |
| (m) |
(mm) |
(max) |
Cr |
Cor |
| SUER204 |
|
20 |
47 |
31 |
15.9 |
10.3 |
33 |
9.5 |
2.38 |
1.07 |
52.7 |
40.8 |
M4 |
4.05 |
12.82 |
6.65 |
0.22 |
| SUER204-12 |
3/4 |
|
47 |
31 |
15.9 |
10.3 |
33 |
9.5 |
2.38 |
1.07 |
52.7 |
40.8 |
M4 |
4.05 |
0.22 |
| SUER205 |
|
25 |
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
14.03 |
8.05 |
0.28 |
| SUER205-13 |
13/16 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| SUER205-14 |
7/8 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| SUER205-15 |
15/16 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| SUER205-16 |
1 |
|
52 |
34.9 |
19 |
13.1 |
35.4 |
9.5 |
2.38 |
1.07 |
57.9 |
49 |
M4 |
5.5 |
0.28 |
| SUER206 |
|
30 |
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
19.47 |
11.43 |
0.38 |
| SUER206-17 |
1-1/16 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| SUER206-18 |
1-1/8 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| SUER206-19 |
1-3/16 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| SUER206-20 |
1-1/4 |
|
62 |
38.1 |
22.2 |
15.9 |
39.8 |
9.5 |
3.18 |
1.65 |
67.7 |
55.5 |
M4 |
5.5 |
0.38 |
| SUER207 |
|
35 |
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
25.69 |
15.55 |
0.56 |
| SUER207-20 |
1-1/4 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| SUER207-21 |
1-5/16 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| SUER207-22 |
1-3/8 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| SUER207-23 |
1-7/16 |
|
72 |
42.9 |
23.8 |
17.5 |
43.9 |
11 |
3.18 |
1.65 |
78.6 |
64 |
M5 |
6.3 |
0.56 |
| SUER208 |
|
40 |
80 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
86.6 |
68 |
M5 |
7.5 |
29.51 |
18.14 |
0.87 |
| SUER208-24 |
1-1/2 |
|
80 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
86.6 |
68 |
M5 |
7.5 |
0.87 |
| SUER208-25 |
1-9/16 |
|
80 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
86.6 |
68 |
M5 |
7.5 |
0.87 |
| SUER209 |
|
45 |
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
31.85 |
20.8 |
0.95 |
| SUER209-26 |
1-5/8 |
|
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
0.95 |
| SUER209-27 |
1-11/16 |
|
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
0.95 |
| SUER209-28 |
1-3/4 |
|
85 |
49.2 |
27.8 |
19 |
50.2 |
11 |
3.18 |
1.65 |
91.6 |
74 |
M5 |
7.5 |
0.95 |
| SUER210 |
|
50 |
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
34.99 |
23.7 |
1.03 |
| SUER210-30 |
1-7/8 |
|
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
1.03 |
| SUER210-31 |
1-15/16 |
|
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
1.03 |
| SUER210-32 |
2 |
|
90 |
51.6 |
28.6 |
19 |
52.6 |
14.5 |
3.18 |
2.41 |
96.5 |
81 |
M6 |
6.8 |
1.03 |
| SUER211 |
|
55 |
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
43.34 |
29.39 |
1.21 |
| SUER211-32 |
2 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| SUER211-33 |
2-1/16 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| SUER211-34 |
2-1/8 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| SUER211-35 |
2-3/16 |
|
100 |
55.6 |
30.2 |
22.2 |
55.6 |
14.5 |
3.18 |
2.41 |
106.5 |
92 |
M6 |
7.6 |
1.21 |
| SUER212 |
|
60 |
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
47.68 |
33.43 |
1.68 |
| SUER212-36 |
2-1/4 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
| SUER212-37 |
2-5/16 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
| SUER212-38 |
2-3/8 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
| SUER212-39 |
2-7/16 |
|
110 |
65.1 |
31.8 |
25.4 |
66.6 |
17.4 |
3.18 |
2.41 |
116.6 |
103 |
M8 |
8.4 |
1.68 |
|
| |
| |
| |
