SUC2 | SUC2...L3 | Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty, Wider Inner Ring, Setscrew Locking, Metric Sizes & Inch Sizes

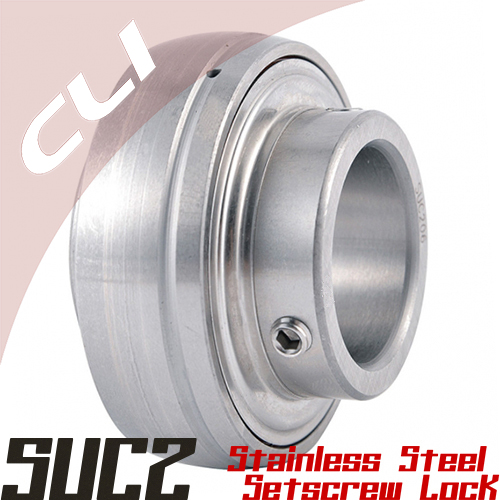

Product Picture

SUC2 / SUC2...L3
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty, Wider Inner Ring, Setscrew Locking,
Metric Sizes & Inch Sizes

SUC2 type ball bearing is UC2 type bearing made in stainless steel SUS440C or SUS304.

SUC2 type bearing with suffix "G" means this SUC series bearing is with lubrication groove and holes on outer rings.

The SUC2, SUC2...L3 ball bearing insert can be ordered with a triple lip seal by using a suffix L3 or R3 as designation, eg: SUC201L3 or SUC201R3.
"L3" type seal consists of a metal cap and synthetic rubber seal, which are baked together to form a single seal. Seal lips have enough tightening allowance. In addition, the lip layers are of triple construction and outside matters, such as dust, water, etc., are shut out. This sealing system shows its outstanding function under bad conditions.

F type seals can be used in SUC2, SUC2...L3 bearings, eg: SUC201F or SUC201F.
"F" type seal encloses a synthetic rubber washer between two metal shields. Due to the three pieces design with protective ourter shroud, the sealing is excellent.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

SUC2 / SUC2...L3
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty, Wider Inner Ring, Setscrew Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 12 inch to 90 inch

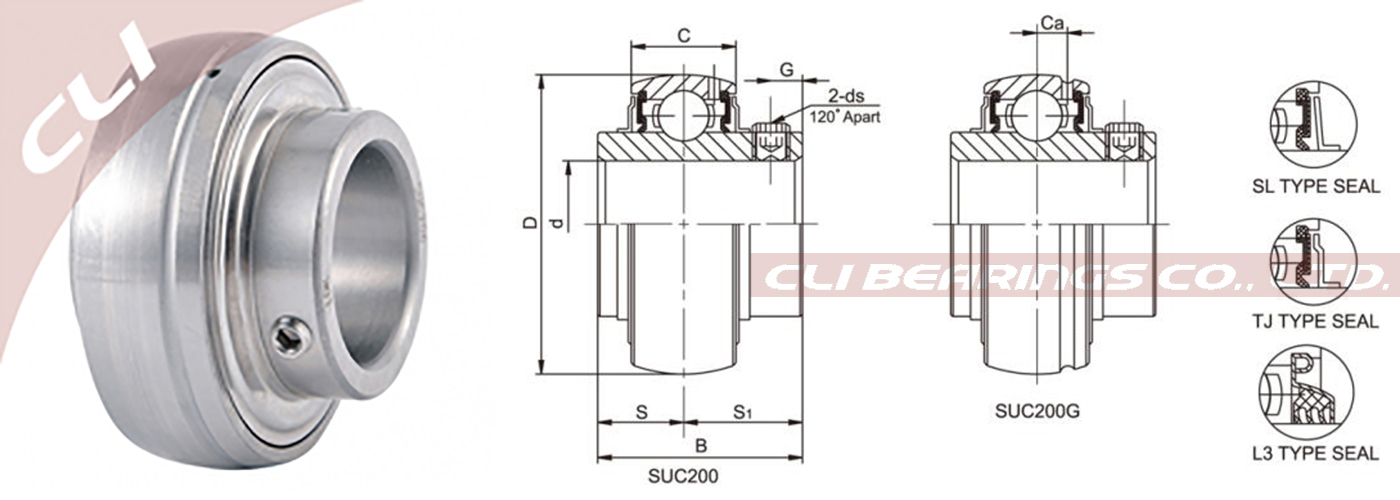

CLI Bearing No.	Shaft Dia		Dimensions (mm)									Load rating ( KN )		Weight (kg)
	d		D	B	C	S	S1	G	ds		Ca	Dynamic Cr	Static Cor
	(in)	(mm)	D	B	C	S	S1	G	(mm)	(in.UNF)	Ca	Dynamic Cr	Static Cor
SUC201		12	47	31	17	12.7	18.3	5	M6x1		4.3	9.55	4.78	0.21
SUC201-8	1/2		47	31	17	12.7	18.3	5		1/4-28	4.3	9.55	4.78	0.21
SUC202		15	47	31	17	12.7	18.3	5	M6x1		4.3	9.55	4.78	0.19
SUC202-9	9/16		47	31	17	12.7	18.3	5		1/4-28	4.3			0.19
SUC202-10	5/8		47	31	17	12.7	18.3	5		1/4-28	4.3			0.19
SUC203		17	47	31	17	12.7	18.3	5	M6x1		4.3	9.55	4.78	0.18
SUC203-11	11/16		47	31	17	12.7	18.3	5		1/4-28	4.3	9.55	4.78	0.18
SUC204		20	47	31	17	12.7	18.3	5	M6x1		4.3	12.82	6.65	0.16
SUC204-12	3/4		47	31	17	12.7	18.3	5		1/4-28	4.3	12.82	6.65	0.16
SUC205		25	52	34.1	17	14.3	19.8	5.4	M6x1		4.2	14.03	8.05	0.18
SUC205-13	13/16		52	34.1	17	14.3	19.8	5.4		1/4-28	4.2			0.18
SUC205-14	7/8		52	34.1	17	14.3	19.8	5.4		1/4-28	4.2			0.18
SUC205-15	15/16		52	34.1	17	14.3	19.8	5.4		1/4-28	4.2			0.18
SUC205-16	1		52	34.1	17	14.3	19.8	5.4		1/4-28	4.2			0.18
SUC206		30	62	38.1	19	15.9	22.2	5.5	M6x1		5.3	19.47	11.43	0.33
SUC206-17	1-1/16		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.33
SUC206-18	1-1/8		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.33
SUC206-19	1-3/16		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.33
SUC206-20	1-1/4		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.33
SUC207		35	72	42.9	20	17.5	25.4	6.9	M8x1		5.8	25.69	15.55	0.49
SUC207-20	1-1/4		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.49
SUC207-21	1-5/16		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.49
SUC207-22	1-3/8		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.49
SUC207-23	1-7/16		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.49
SUC208		40	80	49.2	21	19	30.2	8	M8x1		6.2	29.51	18.14	0.65
SUC208-24	1-1/2		80	49.2	21	19	30.2	8		5/16-24	6.2			0.65
SUC208-25	1-9/16		80	49.2	21	19	30.2	8		5/16-24	6.2			0.65
SUC209		45	85	49.2	22	19	30.2	8	M8x1		6.5	31.85	20.8	0.71
SUC209-26	1-5/8		85	49.2	22	19	30.2	8		5/16-24	6.5			0.71
SUC209-27	1-11/16		85	49.2	22	19	30.2	8		5/16-24	6.5			0.71
SUC209-28	1-3/4		85	49.2	22	19	30.2	8		5/16-24	6.5			0.71
SUC210		50	90	51.6	24	19	32.6	10	M10x1.25		7	34.99	23.7	0.80
SUC210-30	1-7/8		90	51.6	24	19	32.6	10		3/8-24	7			0.80
SUC210-31	1-15/16		90	51.6	24	19	32.6	10		3/8-24	7			0.80
SUC210-32	2		90	51.6	24	19	32.6	10		3/8-24	7			0.80
SUC211		55	100	55.6	25	22.2	33.4	10	M10x1.25		7.4	43.34	29.39	1.08
SUC211-32	2		100	55.6	25	22.2	33.4	10		3/8-24	7.4			1.08
SUC211-33	2-1/16		100	55.6	25	22.2	33.4	10		3/8-24	7.4			1.08
SUC211-34	2-1/8		100	55.6	25	22.2	33.4	10		3/8-24	7.4			1.08
SUC211-35	2-3/16		100	55.6	25	22.2	33.4	10		3/8-24	7.4			1.08
SUC212		60	110	65.1	27	25.4	39.7	10	M10x1.25		7.6	47.68	33430	1.51
SUC212-36	2-1/4		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.51
SUC212-37	2-5/16		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.51
SUC212-38	2-3/8		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.51
SUC212-39	2-7/16		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.5

* Suffix Descriptions:

L3	→	Bearing with a triple lip seals	→	SUC201L3
R3	→	Bearing with a triple lip seals	→	SUC201R3
F	→	Bearing with F type seals	→	SUC201F
G	→	Bearing is re-lubricatable	→	SUC201G
