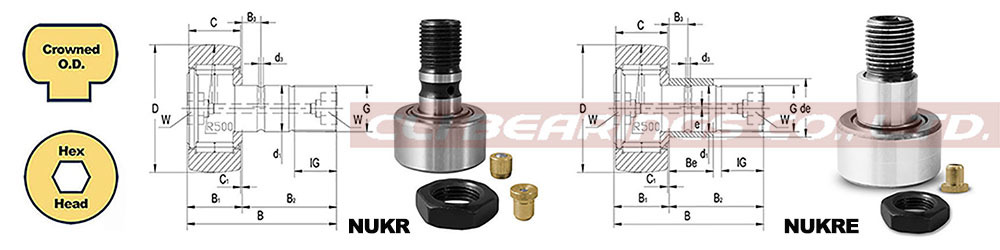

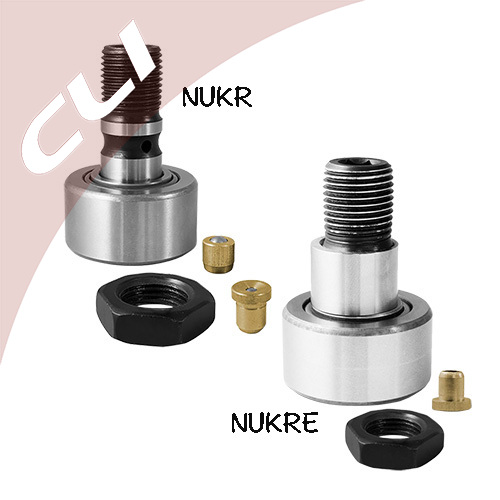

| Stud track rollers NUKR / NUKRE cam followers ( Metric Size ) |
 |
|
| Part Number |
Dimension (mm) |
Load Rating (N) |
Limiting Speed (RPM) |
| Witout Eccentric Collar |
With Eccentric Collar |
D |
d1 |
B |
B1
max |
B2 |
B3 |
C |
C1 |
d3 |
G |
lG |
W |
de |
Be |
e |
Dynamic |
Static |
| NUKR35 |
-- |
35 |
16 |
52 |
20 |
33 |
7.8 |
18 |
0.8 |
3 |
M 16X1.5 |
17 |
8 |
-- |
-- |
-- |
15300 |
18700 |
6500 |
| -- |

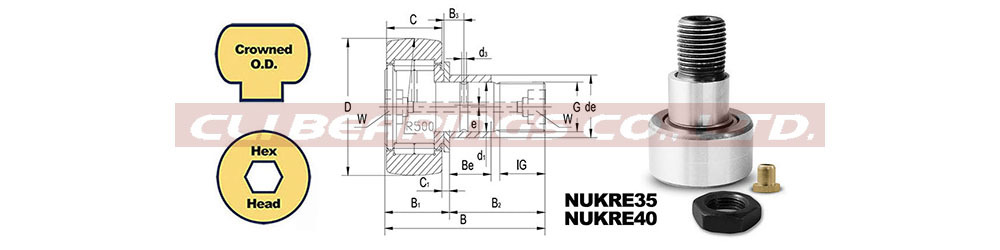

NUKRE35 |
35 |
16 |
52 |
23 |
30 |
-- |
18 |
3.8 |
-- |
M 16X1.5 |
17 |
8 |
20 |
12 |
1 |
15300 |
18700 |
6500 |
| NUKR40 |
-- |
40 |
18 |
58 |
22 |
37 |
8 |
20 |
0.8 |
3 |
M 18X1.5 |
19 |
8 |
-- |
-- |
-- |
18700 |
24900 |
5500 |
| -- |
NUKRE40 |
40 |
18 |
58 |
25 |
34 |
-- |
20 |
3.8 |
-- |
M 18X1.5 |
19 |
8 |
22 |
14 |
1 |
18700 |
24900 |
5500 |
| NUKR47 |
NUKRE47 |
47 |
20 |
66 |
26 |
41 |
9 |
24 |
0.8 |
4 |
M 20X1.5 |
21 |
10 |
24 |
18 |
1 |
28500 |
37500 |
4200 |
| NUKR52 |
NUKRE52 |
52 |
20 |
66 |
26 |
41 |
9 |
24 |
0.8 |
4 |
M 20X1.5 |
21 |
10 |
24 |
18 |
1 |
29000 |
40500 |
4200 |
| NUKR62 |
NUKRE62 |
62 |
24 |
80 |
31 |
50 |
11 |
28 |
1.3 |
4 |
M 24X1.5 |
25 |
14 |
28 |
22 |
1 |
40000 |
55000 |
2600 |
| NUKR72 |
NUKRE72 |
72 |
24 |
80 |
31 |
50 |
11 |
28 |
1.3 |
4 |
M 24X1.5 |
25 |
14 |
28 |
22 |
1 |
45000 |
65000 |
2600 |
| NUKR80 |
NUKRE80 |
80 |
30 |
100 |
37 |
63 |
15 |
35 |
1 |
4 |
M 30X1.5 |
32 |
14 |
35 |
29 |
1.5 |
69000 |
104000 |
1800 |
| NUKR90 |
NUKRE90 |
90 |
30 |
100 |
37 |
63 |
15 |
35 |
1 |
4 |
M 30X1.5 |
32 |
14 |
35 |
29 |
1.5 |
78000 |
123000 |
1800 |
 |
|
