Roller Bearings-Cam Follower Bearings / Stud Track Rollers / Yoke Rollers-Standard Stud CF / CF-S, CF-B / CF-SB, CCF-S / CCF-SB cam followers with or without seals, cylindrical or crowned OD, black oxide finished chrome steel, INCH size

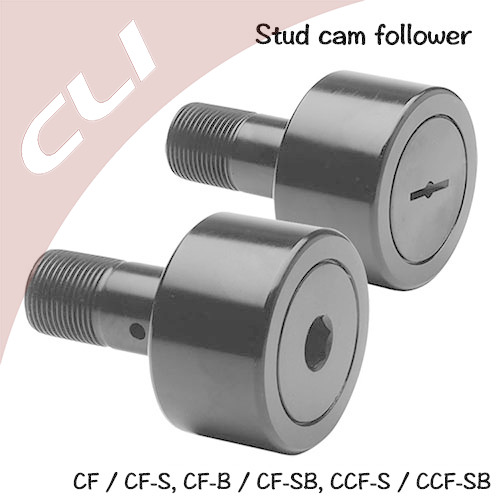

Original stud cam follower standard stud cf cf s cf b cf sb ccf s ccf sb 2 on web
Product Picture
Standard Stud Cam follower CF / CF-S with Cylindrical OD ( inch size )
CLI Part Number ROLLER DIA. ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
Without Seals With Seals RD W SD SL TL THR HC HD F Static Dynamic
CF-1/2-N CF-1/2-N-S 0.5 0.344 0.19 1/2 1/4 10-32 - - 1/8* 720 620
CF-1/2 CF-1/2-S 0.5 0.375 0.19 5/8 1/4 10-32 - - 1/8* 790 680
CF-9/16 CF-9/16-S 0.5625 0.375 0.19 5/8 1/4 10-32 - - 1/8* 790 680
CF-5/8-N CF-5/8-N-S 0.625 0.406 0.25 5/8 5/16 1/4-28 - - 1/8* 1085 930
CF-5/8 CF-5/8-S 0.625 0.4375 0.25 3/4 5/16 1/4-28 - - 1/8* 1215 955
CF-11/16 CF-11/16-S 0.6875 0.4375 0.25 3/4 5/16 1/4-28 - - 1/8* 1215 955
CF-3/4 CF-3/4-S 0.75 0.5 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CF-7/8 CF-7/8-S 0.875 0.5 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CF-1 CF-1-S 1 0.625 0.4375 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CF -1 1/8 CF -1 1/8 -S 1.125 0.625 0.4375 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CF  1 1/4 CF  1 1/4-S 1.25 0.75 0.5 1   1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CF-1 3/8 CF-1 3/8-S 1.375 0.75 0.5 1 1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CF- 1 1/2 CF- 1 1/2-S 1.5 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CF-1 5/8 CF-1 5/8-S 1.625 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CF-1 3/4 CF-1 3/4-S 1.75 1 0.75 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CF- 17/8 CF- 17/8-S 1.875 1 0.75 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CF-2 CF-2-S 2 1.25 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CF- 2 1/4 CF- 2 1/4-S 2.25 1.25 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CF-2 1/2 CF-2 1/2-S 2.5 1.5 1 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CF-2 3/4 CF-2 3/4-S 2.75 1.5 1 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CF-3. CF-3.-S 3 1.75 1.25 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 24910 15720
CF-3 1/4 CF-3 1/4-S 3.25 1.75 1.25 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 24910 15720
CF-3 1/2 CF-3 1/2-S 3.5 2 1.375 2 3/4 1 3/8 1 3/8-12 11/16 1/8 1/4 31625 22800
CF-4 CF-4-S 4 2.25 1.5 3 1/2 1 1/2 1 1/2-12 3/4 1/8 1/4 44770 29985
　 CF-5-S 5 2.75 2 5   1/16 2 9/16 2-12 7/8 3/16 1/4   N.P.T 67950 46575
　 CF-6-S 6 3.25 2.5 6 3 2 1/2-12 1 3/16 1/4   N.P.T 80450 60000
　 CF-7-S 7 3.75 3 7 11/16 4 1/8 3-12 1 1/4 3/16 1/4   N.P.T 106930 75380
　 CF-8-S 8 4.25 ** 3.25 8 1/2 4 1/4 3 1/4-4 - - 1/4   N.P.T  144100 92200
　 CF-9-S 9 4.75 ** 3.75 9 1/2 4 3/4 3 1/2-4 - - 1/4   N.P.T  183430 113260
　 CF-10-S 10 5.25 ** 4.25 10 4 3/4 3 1/2-4 - - 1/4   N.P.T  215565 131545

Standard Stud Cam Followers CF-B / CF-SB with Hex Hole ( inch size )
CLI Part Number ROLLER DIA. ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
Without Seals With Seals RD W SD SL TL THR HC HD F Static Dynamic
CF-1/2-N-B CF-1/2-N-SB 0.500 0.344 0.190 1/2 1/4 10-32 - - - 720 620
CF-1/2-B CF-1/2-SB 0.500 0.375 0.190 5/8 1/4 10-32 - - - 790 680
CF--9/16-B CF--9/16-SB 0.563 0.375 0.190 5/8 1/4 10-32 - - - 790 680
CF-5/8-N-B CF-5/8-N-SB 0.625 0.406 0.250 5/8 5/16 1/4-28 - - - 1085 930
CF-5/8-B CF-5/8-SB 0.625 0.438 0.250 3/4 5/16 1/4-28 - - - 1215 955
CF-11/16-B CF-11/16-SB 0.688 0.438 0.250 3/4 5/16 1/4-28 - - - 1215 955
CF-3/4-B CF-3/4-SB 0.750 0.500 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CF-7/8-B CF-7/8-SB 0.875 0.500 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CF-1-B CF-1-SB 1.000 0.625 0.438 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CF-1 1/8-B CF-1 1/8-SB 1.125 0.625 0.438 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CF-1 1/4-B CF-1 1/4-SB 1.250 0.750 0.500 1 1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CF-1 3/8-B CF-1 3/8-SB 1.375 0.750 0.500 1 1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CF-1 1/2-B CF-1 1/2-SB 1.500 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CF-1 5/8-B CF-1 5/8-SB 1.625 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CF-1 3/4-B CF-1 3/4-SB 1.750 1.000 0.750 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CF-1 7/8-B CF-1 7/8-SB 1.875 1.000 0.750 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CF-2-B CF-2-SB 2.000 1.250 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CF-2 1/4-B CF-2 1/4-SB 2.250 1.250 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CF-2 1/2-B CF-2 1/2-SB 2.500 1.500 1.000 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CF-2 3/4-B CF-2 3/4-SB 2.750 1.500 1.000 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CF-3-B CF-3-SB 3.000 1.750 1.250 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 (1) 24910 15720
CF-3 1/4-B CF-3 1/4-SB 3.250 1.750 1.250 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 (1) 24910 15720
CF-3 1/2-B CF-3 ½-SB 3.500 2.000 1.375 2 3/4 1 3/8 1 3/8-12 11/16 1/8 1/4 (1) 31625 22800
CF-4-B CF-4-SB 4.000 2.250 1.500 3 1/2 1 1/2 1 1/2-12 3/4 1/8 1/4 (1) 44770 29985

Standard Stud Cam follower CCF-S with Crowned OD ( inch size )
CLI Part Number ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS FINE THR'DS. OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
Witth Seals RD W SD SL TL HC HD F Static Dynamic
CCF-1/2-N-S 0.500 0.344 0.190 1/2 1/4 10-32 - - 1/8* 720 620
CCF-1/2-S 0.500 0.375 0.190 5/8 1/4 10-32 - - 1/8* 790 680
CCF-9/16-S 0.5625 0.375 0.190 5/8 1/4 10-32 - - 1/8* 790 680
CCF-5/8-N-S 0.625 0.406 0.250 5/8 5/16 1/4-28 - - 1/8* 1085 930
CCF-5/8-S 0.625 0.4375 0.250 3/4 5/16 1/4-28 - - 1/8* 1215 955
CCF-11/16-S 0.6875 0.4375 0.250 3/4 5/16 1/4-28 - - 1/8* 1215 955
CCF-3/4-S 0.750 0.500 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CCF-7/8-S 0.875 0.500 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CCF-1-S 1.000 0.625 0.4375 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CCF-1 1/8-S 1.125 0.625 0.4375 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CCF-1 1/4-S 1.250 0.750 0.500 1 1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CCF-1 3/8-S 1.375 0.750 0.500 1 1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CCF-1 1/2-S 1.500 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CCF-1 5/8-S 1.625 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CCF-1 3/4-S 1.750 1.000 0.750 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CCF-1 7/8-S 1.875 1.000 0.750 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CCF-2-S 2.000 1.250 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CCF-2 1/4-S 2.250 1.250 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CCF-2 1/2-S 2.500 1.500 1.000 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CCF-2 3/4-S 2.750 1.500 1.000 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CCF-3-S 3.000 1.750 1.250 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 24910 15720
CCF-3 1/4-S 3.250 1.750 1.250 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 24910 15720
CCF-3 1/2-S 3.500 2.000 1.375 2 3/4 1 3/8 1 3/8-12 11/16 1/8 1/4 31625 22800
CCF-4-S 4.000 2.250 1.500 3 1/2 1 1/2 1 1/2-12 3/4 1/8 1/4 44770 29985
†CCF-5-S 5.000 2.750 2.000 5 1/16 2 9/16 2-12 7/8 3/16 1/4 N.P.T. 67950 46575
†CCF-6-S 6.000 3.250 2.500 6 3 2 1/2-12 1 3/16 1/4 N.P.T. 80450 60000
†CCF-7-S 7.000 3.750 3.000 7 11/16 4 1/8 3-12 1 1/4 3/16 1/4 N.P.T. 106930 75380
†CCF-8-S 8.000 4.250 3.250 8 1/2 4 1/4 3 1/4-4 - - 1/4 N.P.T. 144100 92200
†CCF-9-S 9.000 4.750 3.750 9 1/2 4 3/4 3 1/2-4 - - 1/4 N.P.T. 183430 113260
†CCF-10-S 10.000 5.250 4.250 10 4 3/4 3 1/2-4 - - 1/4 N.P.T. 215565 131545

Standard Stud Cam follower CCF-SB with Crowned OD & Hex Hole ( inch size )
CLI Part Number ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS FINE THR'DS. OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
Witth Seals RD W SD SL TL HC HD F Static Dynamic
CCF-1/2-N-SB 0.500 0.344 0.190 1/2 1/4 10-32 - - - 720 620
CCF-1/2-SB 0.500 0.375 0.190 5/8 1/4 10-32 - - - 790 680
CCF-9/16-SB 0.5625 0.375 0.190 5/8 1/4 10-32 - - - 790 680
CCF-5/8-N-SB 0.625 0.406 0.250 5/8 5/16 1/4-28 - - - 1085 930
CCF-5/8-SB 0.625 0.4375 0.250 3/4 5/16 1/4-28 - - - 1215 955
CCF-11/16-SB 0.6875 0.4375 0.250 3/4 5/16 1/4-28 - - - 1215 955
CCF-3/4-SB 0.750 0.500 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CCF-7/8-SB 0.875 0.500 0.375 7/8 3/8 3/8-24 1/4 3/32 3/16 2065 1660
CCF-1-SB 1.000 0.625 0.4375 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CCF-1 1/8-SB 1.125 0.625 0.4375 1 1/2 7/16-20 1/4 3/32 3/16 3060 2225
CCF-1 1/4-SB 1.250 0.750 0.500 1 1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CCF-1 3/8-SB 1.375 0.750 0.500 1 1/4 5/8 1/2-20 5/16 3/32 3/16 4250 3930
CCF-1 1/2-SB 1.500 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CCF-1 5/8-SB 1.625 0.875 0.625 1 1/2 3/4 5/8-18 3/8 3/32 3/16 5640 4840
CCF-1 3/4-SB 1.750 1.000 0.750 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CCF-1 7/8-SB 1.875 1.000 0.750 1 3/4 7/8 3/4-16 7/16 3/32 3/16 7920 6385
CCF-2-SB 2.000 1.250 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CCF-2 1/4-SB 2.250 1.250 0.875 2 1 7/8-14 1/2 1/8 3/16 10570 8090
CCF-2 1/2-SB 2.500 1.500 1.000 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CCF-2 3/4-SB 2.750 1.500 1.000 2 1/4 1 1/8 1-14 9/16 1/8 3/16 16450 11720
CCF-3-SB 3.000 1.750 1.250 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 24910 15720
CCF-3 1/4-SB 3.250 1.750 1.250 2 1/2 1 1/4 1 1/4-12 5/8 1/8 1/4 24910 15720
CCF-3 1/2-SB 3.500 2.000 1.375 2 3/4 1 3/8 1 3/8-12 11/16 1/8 1/4 31625 22800
CCF-4-SB 4.000 2.250 1.500 3 1/2 1 1/2 1 1/2-12 3/4 1/8 1/4 44770 29985
