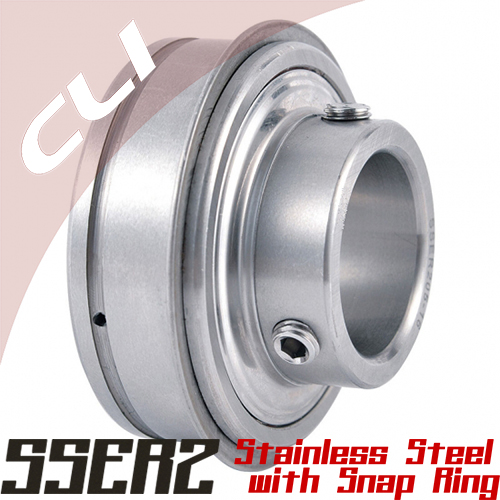

SSER
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Cylindrical Outer Ring & Snap Ring, Setscrew Locking,
Metric Sizes & Inch Sizes
|
|
SSER2 type ball bearing is SER2 type bearing made in stainless steel SUS440C or SUS304.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
SSER
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Cylindrical Outer Ring & Snap Ring, Setscrew Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |
CLI
Bearing No. |
Shaft Dia |

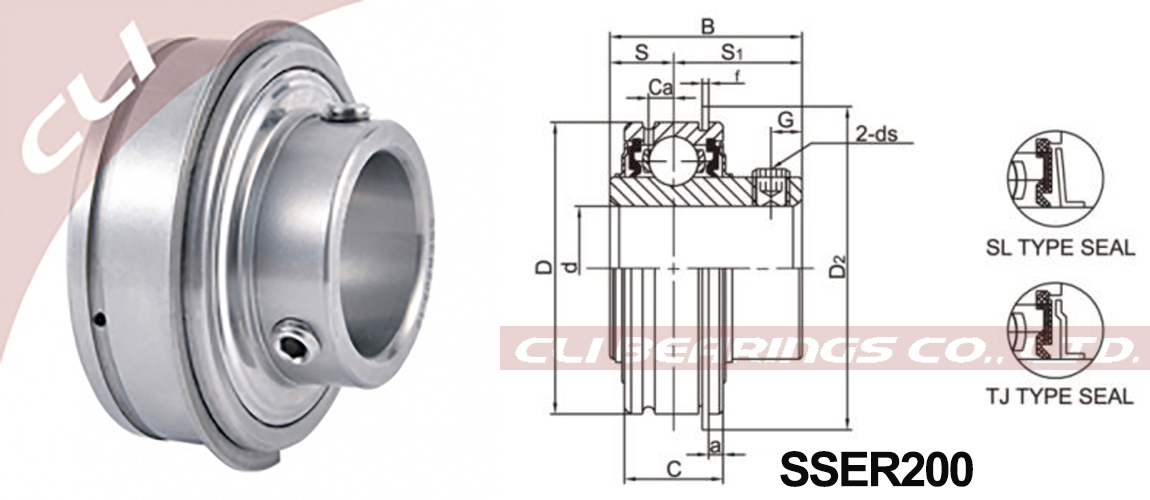

Dimensions
(mm) |
Basic Load Rating
( KN )
|
Weight
(kg) |
| d |
D |
B |
C |
S |
S1 |
a |
r |
D2 (Max.) |
G |
ds |
Ca |
Dynamic Cr |
Static Cor |
| (in) |
(mm) |
(mm) |
(in.UNF) |
| SSER201 |
|
12 |
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
M6X0.75 |
|
3.95 |
12.8 |
6.6 |
0.27 |
| SSER201-8 |
1/2 |
|
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
|
1/4-28 |
3.95 |
0.27 |
| SSER202 |
|
15 |
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
M6X0.75 |
|
3.95 |
12.8 |
6.6 |
0.25 |
| SSER202-9 |
9/16 |
|
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
|
1/4-28 |
3.95 |
0.25 |
| SSER202-10 |
5/8 |
|
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
|
1/4-28 |
3.95 |
0.25 |
| SSER203 |
|
17 |
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
M6X0.75 |
|
3.95 |
12.8 |
6.6 |
0.23 |
| SSER203-11 |
11/16 |
|
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
|
1/4-28 |
3.95 |
0.23 |
| SSER204 |
|
20 |
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
M6X0.75 |
|
3.95 |
12.8 |
6.6 |
0.22 |
| SSER204-12 |
3/4 |
|
47 |
31 |
15.9 |
11.5 |
19.5 |
2.46 |
1.07 |
52.7 |
5 |
|
1/4-28 |
3.95 |
0.22 |
| SSER205 |
|
25 |
52 |
34.9 |
19.1 |
13.1 |
21.8 |
2.46 |
1.07 |
57.9 |
5 |
M6X0.75 |
|
4.35 |
14.0 |
7.8 |
0.28 |
| SSER205-13 |
13/16 |
|
52 |
34.9 |
19.1 |
13.1 |
21.8 |
2.46 |
1.07 |
57.9 |
5 |
|
1/4-28 |
4.35 |
0.28 |
| SSER205-14 |
7/8 |
|
52 |
34.9 |
19.1 |
13.1 |
21.8 |
2.46 |
1.07 |
57.9 |
5 |
|
1/4-28 |
4.35 |
0.28 |
| SSER205-15 |
15/16 |
|
52 |
34.9 |
19.1 |
13.1 |
21.8 |
2.46 |
1.07 |
57.9 |
5 |
|
1/4-28 |
4.35 |
0.28 |
| SSER205-16 |
1 |
|
52 |
34.9 |
19.1 |
13.1 |
21.8 |
2.46 |
1.07 |
57.9 |
5 |
|
1/4-28 |
4.35 |
0.28 |
| SSER206 |
|
30 |
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5 |
M6X0.75 |
|
4.35 |
19.5 |
11.2 |
0.38 |
| SSER206-17 |
1-1/16 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5 |
|
1/4-28 |
4.35 |
0.38 |
| SSER206-18 |
1-1/8 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5 |
|
1/4-28 |
4.35 |
0.38 |
| SSER206-19 |
1-3/16 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5 |
|
1/4-28 |
4.35 |
0.38 |
| SSER206-20 |
1-1/4 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5 |
|
1/4-28 |
4.35 |
0.38 |
| SSER207 |
|
35 |
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.5 |
M8X1 |
|
6.3 |
25.7 |
15.2 |
0.56 |
| SSER207-20 |
1-1/4 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.5 |
|
5/16-24 |
6.3 |
0.56 |
| SSER207-21 |
1-5/16 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.5 |
|
5/16-24 |
6.3 |
0.56 |
| SSER207-22 |
1-3/8 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.5 |
|
5/16-24 |
6.3 |
0.56 |
| SSER207-23 |
1-7/16 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.5 |
|
5/16-24 |
6.3 |
0.56 |
| SSER208 |
|
40 |
80 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
86.6 |
8 |
M8X1 |
|
7.5 |
29.6 |
18.2 |
0.87 |
| SSER208-24 |
1-1/2 |
|
80 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
86.6 |
8 |
|
5/16-24 |
7.5 |
0.87 |
| SSER208-25 |
1-9/16 |
|
80 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
86.6 |
8 |
|
5/16-24 |
7.5 |
0.87 |
| SSER209 |
|
45 |
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
M8X1 |
|
7.5 |
31.8 |
20.8 |
0.95 |
| SSER209-26 |
1-5/8 |
|
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
|
5/16-24 |
7.5 |
0.95 |
| SSER209-27 |
1-11/16 |
|
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
|
5/16-24 |
7.5 |
0.95 |
| SSER209-28 |
1-3/4 |
|
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
|
5/16-24 |
7.5 |
0.95 |
| SSER210 |
|
50 |
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
M10X1.25 |
|
6.8 |
35.1 |
23.2 |
1.03 |
| SSER210-30 |
1-7/8 |
|
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
|
3/8-24 |
6.8 |
1.03 |
| SSER210-31 |
1-15/16 |
|
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
|
3/8-24 |
6.8 |
1.03 |
| SSER210-32 |
2 |
|
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
|
3/8-24 |
6.8 |
1.03 |
| SSER211 |
|
55 |
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
M10X1.25 |
|
7.6 |
43.5 |
29.2 |
1.21 |
| SSER211-32 |
2 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SSER211-33 |
2-1/16 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SSER211-34 |
2-1/8 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SSER211-35 |
2-3/16 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SSER212 |
|
60 |
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
M10X1.25 |
|
8.4 |
52.5 |
32.8 |
1.68 |
| SSER212-36 |
2-1/4 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
| SSER212-37 |
2-5/16 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
| SSER212-38 |
2-3/8 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
| SSER212-39 |
2-7/16 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
|
| |
| |
| |
