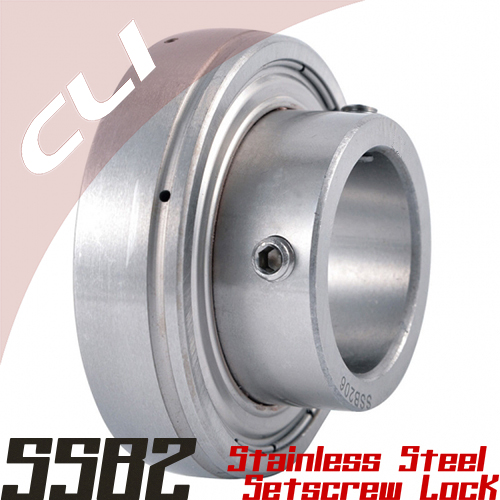

SSB2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty, Narrow Inner Ring, Setscrew Locking,
Metric Sizes & Inch Sizes
|
|
SSB2 type ball bearing is SB2 type bearing made in stainless steel SUS440C or SUS304.
SSB typoe bearing with suffix "G" means this SB bearing is with lubrication groove and holes on outer rings.
SSB typoe bearing with suffix "N" means this SB bearing is non-lubrication type, and without lubrication groove & holes, as well as without anti-rotation pin and holes.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
SSB2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty, Narrow Inner Ring, Setscrew Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 12 inch to 90 inch
|
 |
| |

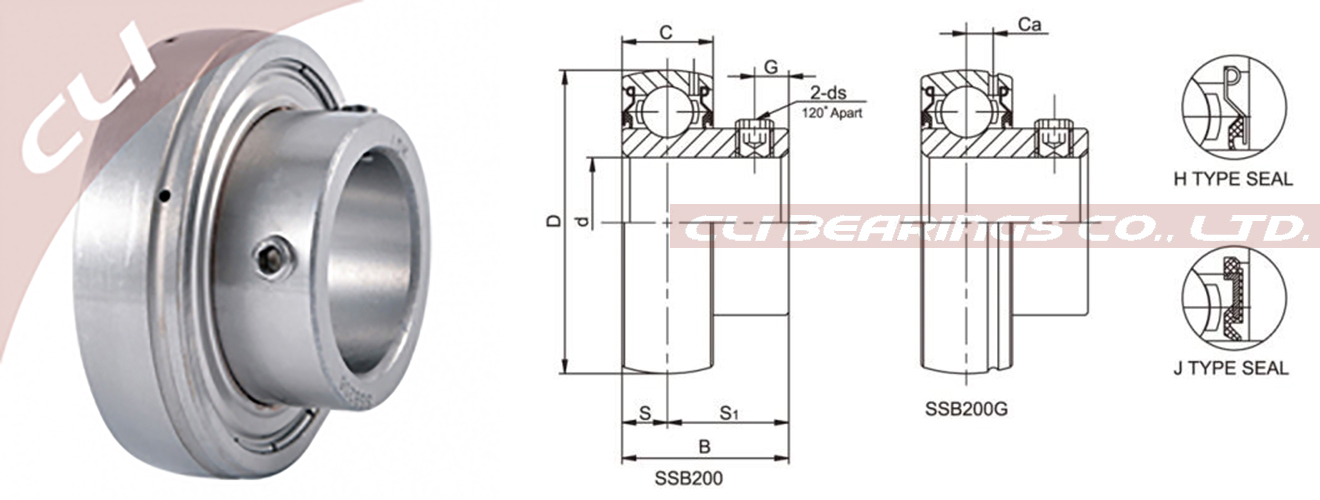

CLI
Bearing No. |
Shaft Dia |
Dimensions
(mm) |
Load rating
( KN )
|
Weight
(kg) |
| d |
D |
B |
C |
S |
S1 |
G |
ds |
Ca |
Dynamic Cr |
Static Cor |
| (in) |
(mm) |
(mm) |
(in.UNF) |
| SSB204 |
|
20 |
47 |
25 |
14 |
7 |
18 |
5 |
M6x1 |
|
4 |
12.82 |
6.65 |
0.12 |
| SSB204-12 |
3/4 |
|
47 |
25 |
14 |
7 |
18 |
5 |
|
1/4-28 |
4 |
0.12 |
| SSB205 |
|
25 |
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
M6x1 |
|
4 |
14.03 |
8.05 |
0.18 |
| SSB205-13 |
13/16 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4 |
0.18 |
| SSB205-14 |
7/8 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4 |
0.18 |
| SSB205-15 |
15/16 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4 |
0.18 |
| SSB205-16 |
1 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4 |
0.18 |
| SSB206 |
|
30 |
62 |
30 |
16 |
8 |
22 |
5.9 |
M6x1 |
|
4.9 |
19.47 |
11.43 |
0.26 |
| SSB206-17 |
1-1/16 |
|
62 |
30 |
16 |
8 |
22 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SSB206-18 |
1-1/8 |
|
62 |
30 |
16 |
8 |
22 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SSB206-19 |
1-3/16 |
|
62 |
30 |
16 |
8 |
22 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SSB206-20 |
1-1/4 |
|
62 |
30 |
16 |
8 |
22 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SSB207 |
|
35 |
72 |
32 |
17 |
8.5 |
23.5 |
8 |
M8x1 |
|
5.4 |
25.69 |
15.55 |
0.43 |
| SSB207-20 |
1-1/4 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8 |
|
5/16-24 |
5.4 |
0.43 |
| SSB207-21 |
1-5/16 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8 |
|
5/16-24 |
5.4 |
0.43 |
| SSB207-22 |
1-3/8 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8 |
|
5/16-24 |
5.4 |
0.43 |
| SSB207-23 |
1-7/16 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8 |
|
5/16-24 |
5.4 |
0.43 |
| SSB208 |
|
40 |
80 |
34 |
18 |
9 |
25 |
8 |
M8x1 |
|
5.8 |
29.51 |
18.14 |
0.60 |
| SSB208-24 |
1-1/2 |
|
80 |
34 |
18 |
9 |
25 |
8 |
|
5/16-24 |
5.8 |
0.60 |
| SSB208-25 |
1-9/16 |
|
80 |
34 |
18 |
9 |
25 |
8 |
|
5/16-24 |
5.8 |
0.60 |
| SSB209 |
|
45 |
85 |
36 |
19 |
9.5 |
26.5 |
8 |
M8x1 |
|
6.1 |
31.85 |
20.8 |
0.8 |
| SSB209-26 |
1-5/8 |
|
85 |
36 |
19 |
9.5 |
26.5 |
8 |
|
5/16-24 |
6.1 |
0.8 |
| SSB209-27 |
1-11/16 |
|
85 |
36 |
19 |
9.5 |
26.5 |
8 |
|
5/16-24 |
6.1 |
0.8 |
| SSB209-28 |
1-3/4 |
|
85 |
36 |
19 |
9.5 |
26.5 |
8 |
|
5/16-24 |
6.1 |
0.8 |
| SSB210 |
|
50 |
90 |
38 |
20 |
10 |
28 |
10 |
M10X1.25 |
|
6.5 |
34.99 |
23.7 |
0.83 |
| SSB210-30 |
1-7/8 |
|
90 |
38 |
20 |
10 |
28 |
10 |
|
3/8-24 |
6.5 |
0.83 |
| SSB210-31 |
1-15/16 |
|
90 |
38 |
20 |
10 |
28 |
10 |
|
3/8-24 |
6.5 |
0.83 |
| SSB210-32 |
2 |
|
90 |
38 |
20 |
10 |
28 |
10 |
|
3/8-24 |
6.5 |
0.83 |
| SSB211 |
|
55 |
100 |
40 |
21 |
10.5 |
29.5 |
10 |
M10X1.25 |
|
7 |
43.34 |
29.39 |
1.12 |
| SSB211-32 |
2 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10 |
|
3/8-24 |
7 |
1.12 |
| SSB211-33 |
2-1/16 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10 |
|
3/8-24 |
7 |
1.12 |
| SSB211-34 |
2-1/8 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10 |
|
3/8-24 |
7 |
1.12 |
| SSB211-35 |
2-3/16 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10 |
|
3/8-24 |
7 |
1.12 |
| SSB212 |
|
60 |
110 |
42 |
22 |
11 |
31 |
10 |
M10X1.25 |
|
7.3 |
47.68 |
33.43 |
1.55 |
| SSB212-36 |
2-1/4 |
|
110 |
42 |
22 |
11 |
31 |
10 |
|
3/8-24 |
7.3 |
1.55 |
| SSB212-37 |
2-5/16 |
|
110 |
42 |
22 |
11 |
31 |
10 |
|
3/8-24 |
7.3 |
1.55 |
| SSB212-38 |
2-3/8 |
|
110 |
42 |
22 |
11 |
31 |
10 |
|
3/8-24 |
7.3 |
1.55 |
| SSB212-39 |
2-7/16 |
|
110 |
42 |
22 |
11 |
31 |
10 |
|
3/8-24 |
7.3 |
1.55 |
|
| |
|
* Suffix Descriptions:
| G |
→ |
Bearing is re-lubricatable. Bearing Lubrication groove and holes on outer rings. |
→ |
SSB204G |
| N |
→ |
Non-lubrication type. Bearing has no lubrication groove, lubrication holes, anti-rotation pin and holes. |
→ |
SSB204N |
|
| |
