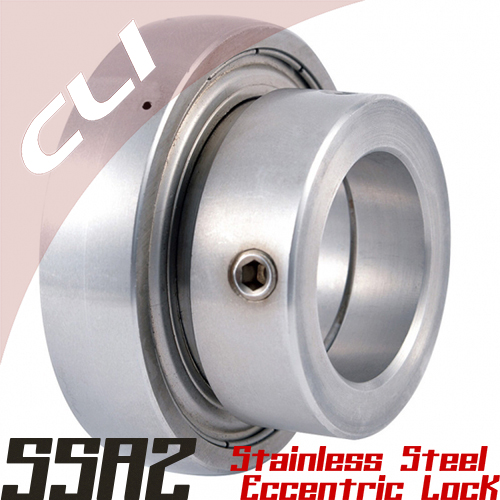

SSA2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Narrow Inner Ring, Eccentric Locking,
Metric Size & Inch Size
|
|
SSA type ball bearing is SA type bearing made in stainless steel SUS440C or SUS304.
SSA type bearing with suffix "G" means this SSA bearing is with lubrication groove and holes on outer rings.
SSA type bearing with suffix "N" means this SSA bearing is non-lubrication type, and without lubrication groove & holes, as well as without anti-rotation pin and holes.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
SSA2
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Narrow Inner Ring, Eccentric Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |

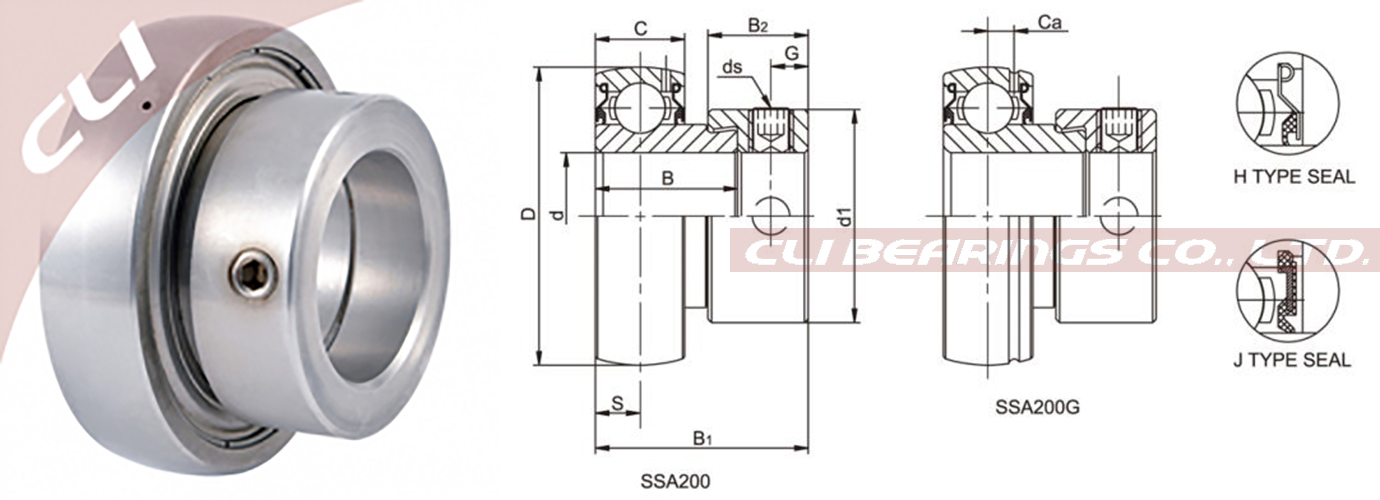

CLI
Bearing No. |
Shaft Dia |
Dimensions
(mm) |
Load ratmg
( KN )
|
Weight (kg) |
| d |
D |
B |
C |
S |
B1 |
B2 |
d1 |
G |
ds |
Ca |
Dynamic |
Static |
| (in) |
(mm) |
|
|
(mm) |
(in.UNF) |
Cr |
Cor |
| SSA204 |
|
20 |
47 |
21.5 |
14 |
7 |
31 |
13.5 |
33.3 |
5 |
M6x1 |
|
4 |
12.82 |
6.65 |
0.21 |
| SSA204-12 |
3/4 |
|
47 |
21.5 |
14 |
7 |
31 |
13.5 |
33.3 |
5 |
|
1/4-28 |
4 |
0.21 |
| SSA205 |
|
25 |
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
M6x1 |
|
4 |
14.03 |
8.05 |
0.25 |
| SSA205-14 |
7/8 |
|
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
|
1/4-28 |
4 |
0.25 |
| SSA205-15 |
15/16 |
|
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
|
1/4-28 |
4 |
0.25 |
| SSA205-16 |
1 |
|
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
|
1/4-28 |
4 |
0.25 |
| SSA206 |
|
30 |
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
M6x1 |
|
4.9 |
19.47 |
11.43 |
0.39 |
| SSA206-17 |
1-1/16 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SSA206-18 |
1-1/8 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SSA206-19 |
1-3/16 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SSA206-20 |
1-1/4 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SSA207 |
|
35 |
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
M8x1 |
|
5.4 |
25.69 |
15.55 |
0.6 |
| SSA207-20 |
1-1/4 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.4 |
0.6 |
| SSA207-21 |
1-5/16 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.4 |
0.6 |
| SSA207-22 |
1-3/8 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.4 |
0.6 |
| SSA207-23 |
1-7/16 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.4 |
0.6 |
| SSA208 |
|
40 |
80 |
30.2 |
18 |
9 |
43.7 |
18.3 |
60.3 |
6.5 |
M8x1 |
|
5.8 |
29.51 |
18.14 |
0.77 |
| SSA208-24 |
1-1/2 |
|
80 |
30.2 |
18 |
9 |
43.7 |
18.3 |
60.3 |
6.5 |
|
5/16-24 |
5.8 |
0.77 |
| SSA208-25 |
1-9/16 |
|
80 |
30.2 |
18 |
9 |
43.7 |
18.3 |
60.3 |
6.5 |
|
5/16-24 |
5.8 |
0.77 |
| SSA209 |
|
45 |
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
M8x1 |
|
6.1 |
31.85 |
20.8 |
0.84 |
| SSA209-26 |
1-5/8 |
|
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
|
5/16-24 |
6.1 |
0.84 |
| SSA209-27 |
1-11/16 |
|
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
|
5/16-24 |
6.1 |
0.84 |
| SSA209-28 |
1-3/4 |
|
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
|
5/16-24 |
6.1 |
0.84 |
| SSA210 |
|
50 |
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
M8x1 |
|
6.5 |
34.99 |
23.7 |
1.02 |
| SSA210-30 |
1-7/8 |
|
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
|
5/16-24 |
6.5 |
1.02 |
| SSA210-31 |
1-15/16 |
|
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
|
5/16-24 |
6.5 |
1.02 |
| SSA210-32 |
2 |
|
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
|
5/16-24 |
6.5 |
1.02 |
| SSA211 |
|
55 |
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
M10X1.25 |
|
7 |
43.34 |
29.39 |
1.37 |
| SSA211-32 |
2 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7 |
1.37 |
| SSA211-33 |
2-1/16 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7 |
1.37 |
| SSA211-34 |
2-1/8 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7 |
1.37 |
| SSA211-35 |
2-3/16 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7 |
1.37 |
| SSA212 |
|
60 |
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
M10x1.25 |
|
7.3 |
47.68 |
33.43 |
1.85 |
| SSA212-36 |
2-1/4 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.3 |
1.85 |
| SSA212-37 |
2-5/16 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.3 |
1.85 |
| SSA212-38 |
2-3/8 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.3 |
1.85 |
| SSA212-39 |
2-7/16 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.3 |
1.85 |
|
| |
|
* Suffix Descriptions:
| G |
→ |
Bearing is re-lubricatable. Bearing Lubrication groove and holes on outer rings. |
→ |
SSA204G |
| N |
→ |
Non-lubrication type. Bearing has no lubrication groove, lubrication holes, anti-rotation pin and holes. |
→ |
SSA204N |
|
| |
