SNA2 | SNA2...L3 | Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty, Wider Inner Ring, Eccentric Locking, Metric Size & Inch Size

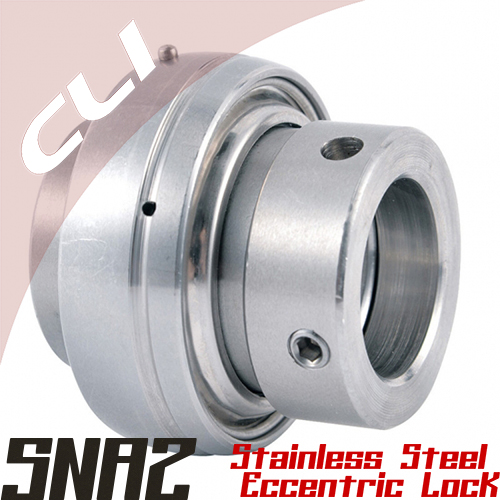

Product Picture

SNA2 / SNA2...L3
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Wider Inner Ring, Eccentric Locking,
Metric Size & Inch Size

SNA2 type ball bearing is NA2 type bearing made in stainless steel SUS440C or SUS304.

SNA2 typoe bearing with suffix "G" means this SNA2 series bearing is with lubrication groove and holes on outer rings.

The SNA2 ball bearing insert can be ordered with a triple lip seal by using a suffix L3 or R3 as designation, eg: SNA204L3 or SNA204R3.
"L3" type seal consists of a metal cap and synthetic rubber seal, which are baked together to form a single seal. Seal lips have enough tightening allowance. In addition, the lip layers are of triple construction and outside matters, such as dust, water, etc., are shut out. This sealing system shows its outstanding function under bad conditions.

F type seals can be used in SNA204 bearings, eg: SNA204F or SNA204F.
"F" type seal encloses a synthetic rubber washer between two metal shields. Due to the three pieces design with protective ourter shroud, the sealing is excellent.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

SNA2 / SNA2...L3
Stainless Steel Bearing Inserts, SUS440C/SUS304, Standard Duty,
Wider Inner Ring, Eccentric Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 12 inch to 90 inch

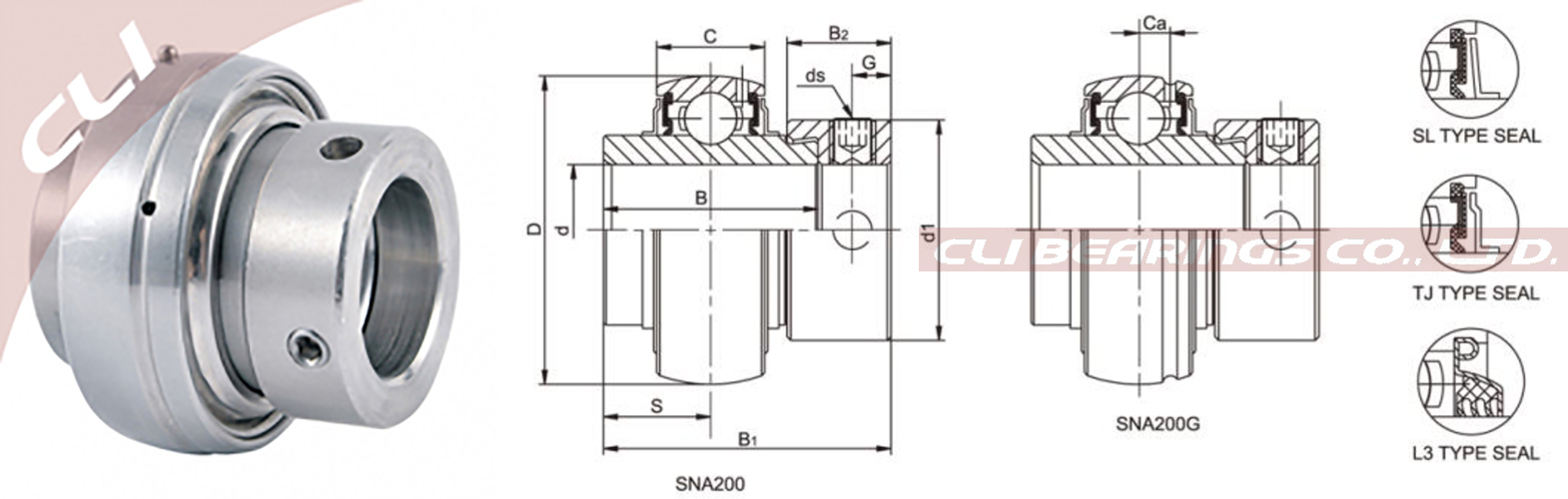

CLI Bearing No.	Shaft Dia		Dimensions (mm)											Load rating ( KN )		Weight (kg)
	d		D	B	C	S	B1	B2	d1	G	ds		Ca	Dynamic Cr	Static Cor
	(in)	(mm)	D	B	C	S	B1	B2	d1	G	(mm)	(in.UNF)	Ca	Dynamic Cr	Static Cor
SNA204		20	47	34.2	17	17.1	43.7	13.5	33.3	5	M6x1		4.3	12.82	6.65	0.21
SNA204-12	3/4		47	34.2	17	17.1	43.7	13.5	33.3	5		1/4-28	4.3	12.82	6.65	0.21
SNA205		25	52	34.9	17	17.5	44.4	13.5	38.1	5	M6x1		4.2	14.03	8.05	0.25
SNA205-14	7/8		52	34.9	17	17.5	44.4	13.5	38.1	5		1/4-28	4.2			0.25
SNA205-15	15/16		52	34.9	17	17.5	44.4	13.5	38.1	5		1/4-28	4.2			0.25
SNA205-16	1		52	34.9	17	17.5	44.4	13.5	38.1	5		1/4-28	4.2			0.25
SNA206		30	62	36.5	19	18.3	48.4	15.9	44.5	6	M6x1		5.3	19.47	11.43	0.39
SNA206-17	1-1/16		62	36.5	19	18.3	48.4	15.9	44.5	6		1/4-28	5.3			0.39
SNA206-18	1-1/8		62	36.5	19	18.3	48.4	15.9	44.5	6		1/4-28	5.3			0.39
SNA206-19	1-3/16		62	36.5	19	18.3	48.4	15.9	44.5	6		1/4-28	5.3			0.39
SNA206-20	1-1/4		62	36.5	19	18.3	48.4	15.9	44.5	6		1/4-28	5.3			0.39
SNA207		35	72	37.6	20	18.8	51.1	17.5	55.6	6.5	M8x1		5.8	25.69	15.55	0.6
SNA207-20	1-1/4		72	37.6	20	18.8	51.1	17.5	55.6	6.5		5/16-24	5.8			0.6
SNA207-21	1-5/16		72	37.6	20	18.8	51.1	17.5	55.6	6.5		5/16-24	5.8			0.6
SNA207-22	1-3/8		72	37.6	20	18.8	51.1	17.5	55.6	6.5		5/16-24	5.8			0.6
SNA207-23	1-7/16		72	37.6	20	18.8	51.1	17.5	55.6	6.5		5/16-24	5.8			0.6
SNA208		40	80	42.8	21	21.4	56.3	18.3	60.3	6.5	M8x1		6.2	29.51	18.14	0.77
SNA208-24	1-1/2		80	42.8	21	21.4	56.3	18.3	60.3	6.5		5/16-24	6.2			0.77
SNA208-25	1-9/16		80	42.8	21	21.4	56.3	18.3	60.3	6.5		5/16-24	6.2			0.77
SNA209		45	85	42.8	22	21.4	56.3	18.3	63.5	6.5	M8x1		6.5	31.85	20.8	0.84
SNA209-26	1-5/8		85	42.8	22	21.4	56.3	18.3	63.5	6.5		5/16-24	6.5			0.84
SNA209-27	1-11/16		85	42.8	22	21.4	56.3	18.3	63.5	6.5		5/16-24	6.5			0.84
SNA209-28	1-3/4		85	42.8	22	21.4	56.3	18.3	63.5	6.5		5/16-24	6.5			0.84
SNA210		50	90	49.2	24	24.6	62.7	18.3	69.9	6.5	M8x1		7	34.99	23.7	1.02
SNA210-30	1-7/8		90	49.2	24	24.6	62.7	18.3	69.9	6.5		5/16-24	7			1.02
SNA210-31	1-15/16		90	49.2	24	24.6	62.7	18.3	69.9	6.5		5/16-24	7			1.02
SNA210-32	2		90	49.2	24	24.6	62.7	18.3	69.9	6.5		5/16-24	7			1.02
SNA211		55	100	55.5	25	27.8	71.4	20.7	76.2	8	M10X1.25		7.4	43.34	29.39	1.37
SNA211-32	2		100	55.5	25	27.8	71.4	20.7	76.2	8		3/8-24	7.4			1.37
SNA211-33	2-1/16		100	55.5	25	27.8	71.4	20.7	76.2	8		3/8-24	7.4			1.37
SNA211-34	2-1/8		100	55.5	25	27.8	71.4	20.7	76.2	8		3/8-24	7.4			1.37
SNA211-35	2-3/16		100	55.5	25	27.8	71.4	20.7	76.2	8		3/8-24	7.4			1.37
SNA212		60	110	61.9	27	31	77.8	22.3	84.2	8	M10x1.25		7.6	47.68	33.43	1.85
SNA212-36	2-1/4		110	61.9	27	31	77.8	22.3	84.2	8		3/8-24	7.6			1.85
SNA212-37	2-5/16		110	61.9	27	31	77.8	22.3	84.2	8		3/8-24	7.6			1.85
SNA212-38	2-3/8		110	61.9	27	31	77.8	22.3	84.2	8		3/8-24	7.6			1.85
SNA212-39	2-7/16		110	61.9	27	31	77.8	22.3	84.2	8		3/8-24	7.6			1.85

* Suffix Descriptions:

L3	→	Bearing with a triple lip seals	→	SNA204L3
R3	→	Bearing with a triple lip seals	→	SNA204R3
F	→	Bearing with F type seals	→	SNA204F
G	→	Bearing is re-lubricatable	→	SNA204G
