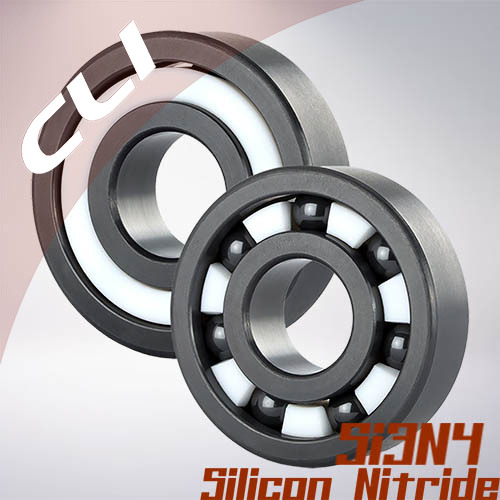

Silicon Nitride Si3N4 Ceramic Ball Bearings,
PTFE cage, OPEN type or closured with PTFE / PEEK covers, ROHS compliant
|
|
• These Si3N4 silicon nitride ceramic bearings are available without a cage (full complement) or with cages made from PEEK or PTFE. Full ceramic bearings are non-magnetic, non-conductive and extremely corrosion resistant although not suitable for shock/impact loads.
The full complement types (no cage) can be used up to 800°C while PEEK cages are only rated to 250°C. PTFE cages can handle cryogenic temperatures.

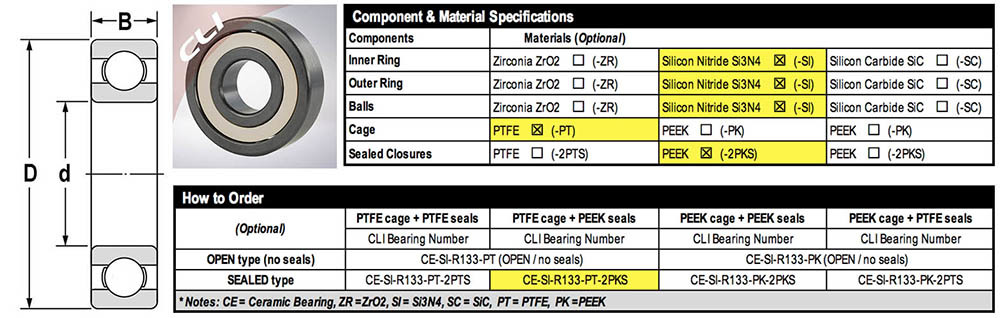

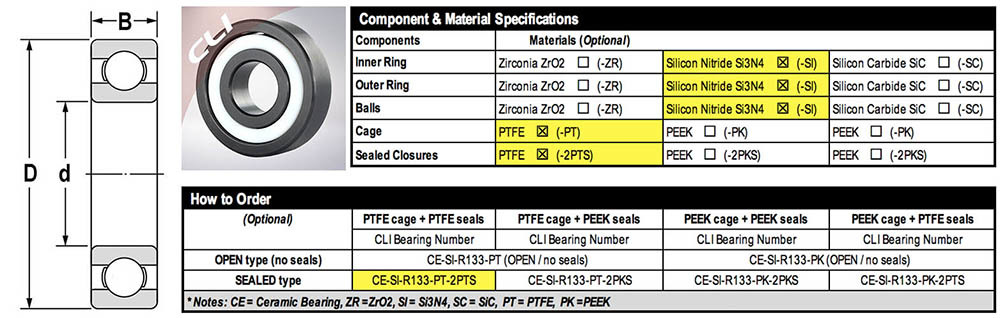

• Sealed type Si3N4 silicon nitride ceramic bearings can be closured by PEFE or PEEK covers to protect the inside rolling races and rolling elements.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |

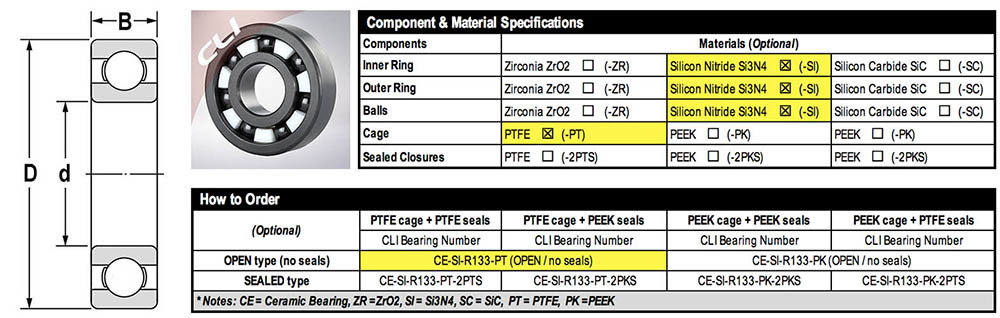

PTFE cage, OPEN type
Silicon Nitride Si3N4 Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm
|
 |
| CLI Bearing No. |
Details |
Cage |
Seal |
Bearing Dimension |
Dynamic |
Static |
Max |
| Bore Dia |
Outer Dia |
Width |
radial |
radial |
Speed |
| Type |
Type |
(d) |
(D) |
(B) |
(Newtons) |
(Newtons) |
(X1000 RPM) |
| CE-SI-R133-PT |
Details |
PTFE |
OPEN |
0.0938" | 2.381 mm |
0.1875" | 4.763 mm |
0.0625" | 1.588 mm |
40.0425 |
12.235 |
66.5 |
| CE-SI-R1-5-PT |
Details |
PTFE |
OPEN |
0.0938" | 2.381 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
117.905 |
35.5925 |
49.7 |
| CE-SI-R144-PT |
Details |
PTFE |
OPEN |
0.125" | 3.175 mm |
0.25" | 6.35 mm |
0.0937" | 2.38 mm |
60.065 |
18.91 |
56 |
| CE-SI-R2-5-PT |
Details |
PTFE |
OPEN |
0.125" | 3.175 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
119.015 |
35.5925 |
46.9 |
| CE-SI-R2-6-PT |
Details |
PTFE |
OPEN |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1094" | 2.779 mm |
135.7 |
45.605 |
44.1 |
| CE-SI-R2-PT |
Details |
PTFE |
OPEN |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1562" | 3.967 mm |
134.5875 |
43.38 |
46.9 |
| CE-SI-R2A-PT |
Details |
PTFE |
OPEN |
0.125" | 3.175 mm |
0.5" | 12.7 mm |
0.1719" | 4.366 mm |
135.7 |
45.605 |
44.1 |
| CE-SI-R155-PT |
Details |
PTFE |
OPEN |
0.1563" | 3.969 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
76.7475 |
30.0325 |
44.1 |
| CE-SI-R156-PT |
Details |
PTFE |
OPEN |
0.1875" | 4.763 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
76.7475 |
30.0325 |
44.1 |
| CE-SI-R166-PT |
Details |
PTFE |
OPEN |
0.1875" | 4.763 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
151.2725 |
54.5025 |
42 |
| CE-SI-R3-PT |
Details |
PTFE |
OPEN |
0.1875" | 4.763 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
276.9625 |
97.8825 |
35 |
| CE-SI-R3A-PT |
Details |
PTFE |
OPEN |
0.1875" | 4.763 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
314.78 |
124.5775 |
31.5 |
| CE-SI-1601-PT |
Details |
PTFE |
OPEN |
0.1875" | 4.763 mm |
0.6875" | 17.463 mm |
0.25" | 6.35 mm |
150 |
55 |
4.2 |
| CE-SI-R168-PT |
Details |
PTFE |
OPEN |
0.25" | 6.35 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
78.9725 |
34.4825 |
39.2 |
| CE-SI-R188-PT |
Details |
PTFE |
OPEN |
0.25" | 6.35 mm |
0.5" | 12.7 mm |
0.125" | 3.175 mm |
230.245 |
88.985 |
35 |
| CE-SI-R4-PT |
Details |
PTFE |
OPEN |
0.25" | 6.35 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
314.78 |
124.5775 |
31.5 |
| CE-SI-1602-PT |
Details |
PTFE |
OPEN |
0.25" | 6.35 mm |
0.6875" | 17.463 mm |
0.25" | 6.35 mm |
158.75 |
60 |
4.2 |
| CE-SI-R4A-PT |
Details |
PTFE |
OPEN |
0.25" | 6.35 mm |
0.75" | 19.05 mm |
0.2188" | 5.558 mm |
496.085 |
179.08 |
30.1 |
| CE-SI-R1810-PT |
Details |
PTFE |
OPEN |
0.3125" | 7.938 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
115.68 |
55.615 |
33.6 |
| CE-SI-1603-PT |
Details |
PTFE |
OPEN |
0.3125" | 7.938 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
186.25 |
77.5 |
4.2 |
| CE-SI-1605-PT |
Details |
PTFE |
OPEN |
0.3125" | 7.938 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
186.25 |
78.75 |
4.2 |
| CE-SI-1604-PT |
Details |
PTFE |
OPEN |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
187.5 |
80 |
4.2 |
| CE-SI-R6-PT |
Details |
PTFE |
OPEN |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2188" | 5.558 mm |
708.535 |
284.75 |
26.6 |
| CE-SI-1606-PT |
Details |
PTFE |
OPEN |
0.375" | 9.525 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
187.5 |
80 |
4.2 |
| CE-SI-1614-PT |
Details |
PTFE |
OPEN |
0.375" | 9.525 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
285 |
130 |
4.2 |
| CE-SI-1607-PT |
Details |
PTFE |
OPEN |
0.4375" | 11.113 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
253.75 |
107.5 |
4.2 |
| CE-SI-1615-PT |
Details |
PTFE |
OPEN |
0.4375" | 11.113 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
286.25 |
132.5 |
4.2 |
| CE-SI-1620-PT |
Details |
PTFE |
OPEN |
0.4375" | 11.113 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
422.5 |
200 |
4.2 |
| CE-SI-1616-PT |
Details |
PTFE |
OPEN |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
287.5 |
112.5 |
4.2 |
| CE-SI-R8-PT |
Details |
PTFE |
OPEN |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.25" | 6.35 mm |
287.25 |
127.75 |
22.4 |
| CE-SI-1621-PT |
Details |
PTFE |
OPEN |
0.5" | 12.7 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
425 |
203.75 |
4.2 |
| CE-SI-1622-PT |
Details |
PTFE |
OPEN |
0.5625" | 14.288 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
427.5 |
206.25 |
4.2 |
| CE-SI-1623-PT |
Details |
PTFE |
OPEN |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
430 |
208.75 |
4.2 |
| CE-SI-R10-PT |
Details |
PTFE |
OPEN |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.2812" | 7.142 mm |
396.25 |
183.75 |
17.5 |
| CE-SI-1628-PT |
Details |
PTFE |
OPEN |
0.625" | 15.875 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
525 |
273.75 |
4.2 |
| CE-SI-1633-PT |
Details |
PTFE |
OPEN |
0.625" | 15.875 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
525 |
280 |
4.2 |
| CE-SI-1630-PT |
Details |
PTFE |
OPEN |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
527.5 |
278.75 |
4.2 |
| CE-SI-R12-PT |
Details |
PTFE |
OPEN |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.3125" | 7.938 mm |
619.25 |
294.25 |
14.7 |
| CE-SI-1635-PT |
Details |
PTFE |
OPEN |
0.75" | 19.05 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
528.75 |
285 |
4.2 |
| CE-SI-1638-PT |
Details |
PTFE |
OPEN |
0.75" | 19.05 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
567.5 |
322.5 |
4.2 |
| CE-SI-R14-PT |
Details |
PTFE |
OPEN |
0.875" | 22.225 mm |
1.875" | 47.625 mm |
0.375" | 9.525 mm |
664.5 |
326.75 |
8.4 |
| CE-SI-1640-PT |
Details |
PTFE |
OPEN |
0.875" | 22.225 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
566.25 |
328.75 |
4.2 |
| CE-SI-1641-PT |
Details |
PTFE |
OPEN |
1" | 25.4 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
565 |
336.25 |
4.2 |
| CE-SI-R16-PT |
Details |
PTFE |
OPEN |
1" | 25.4 mm |
2" | 50.8 mm |
0.375" | 9.525 mm |
663 |
326.75 |
7.7 |
| CE-SI-R18-PT |
Details |
PTFE |
OPEN |
1.125" | 28.575 mm |
2.125" | 53.975 mm |
0.375" | 9.525 mm |
873 |
454.25 |
7 |
| CE-SI-1652-PT |
Details |
PTFE |
OPEN |
1.125" | 28.575 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
900.75 |
570 |
4.2 |
| CE-SI-R20-PT |
Details |
PTFE |
OPEN |
1.25" | 31.75 mm |
2.25" | 57.15 mm |
0.375" | 9.525 mm |
923.75 |
496.5 |
6.3 |
| CE-SI-1654-PT |
Details |
PTFE |
OPEN |
1.25" | 31.75 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
900 |
575 |
4.2 |
| CE-SI-1657-PT |
Details |
PTFE |
OPEN |
1.25" | 31.75 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
1100 |
625 |
4.2 |
| CE-SI-1658-PT |
Details |
PTFE |
OPEN |
1.3125" | 33.338 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
1092.5 |
650 |
4.2 |
| CE-SI-R22-PT |
Details |
PTFE |
OPEN |
1.375" | 34.925 mm |
2.5" | 63.5 mm |
0.4375" | 11.113 mm |
1016.75 |
561.75 |
5.6 |
| CE-SI-R24-PT |
Details |
PTFE |
OPEN |
1.5" | 38.1 mm |
2.625" | 66.675 mm |
0.4375" | 11.113 mm |
1106.5 |
611.5 |
4.2 |
| CE-SI-682-PT |
Details |
PTFE |
OPEN |
2 mm |
5mm |
1.5mm |
36 |
10 |
70 |
| CE-SI-MR52-PT |
Details |
PTFE |
OPEN |
2 mm |
5mm |
2mm |
36 |
10 |
70 |
| CE-SI-692-PT |
Details |
PTFE |
OPEN |
2 mm |
6mm |
2.3mm |
70.25 |
19.75 |
63 |
| CE-SI-MR62-PT |
Details |
PTFE |
OPEN |
2mm |
6mm |
2.5mm |
70.25 |
19.75 |
63 |
| CE-SI-602-PT |
Details |
PTFE |
OPEN |
2 mm |
7mm |
2.8mm |
82 |
25.75 |
49.7 |
| CE-SI-MR72-PT |
Details |
PTFE |
OPEN |
2 mm |
7mm |
2.5mm |
82 |
25.75 |
52.5 |
| CE-SI-682x-PT |
Details |
PTFE |
OPEN |
2.5 mm |
6mm |
1.8mm |
44.5 |
14.75 |
56 |
| CE-SI-692x-PT |
Details |
PTFE |
OPEN |
2.5mm |
7mm |
2.5mm |
82 |
25.75 |
52.5 |
| CE-SI-602x-PT |
Details |
PTFE |
OPEN |
2.5 mm |
8mm |
2.8mm |
117.25 |
35.5 |
49.7 |
| CE-SI-MR82x-PT |
Details |
PTFE |
OPEN |
2.5mm |
8mm |
2.5mm |
118.5 |
36 |
46.9 |
| CE-SI-MR63-PT |
Details |
PTFE |
OPEN |
3mm |
6mm |
2mm |
44.5 |
14.75 |
56 |
| CE-SI-683-PT |
Details |
PTFE |
OPEN |
3mm |
7mm |
2mm |
66 |
22.5 |
52.5 |
| CE-SI-693-PT |
Details |
PTFE |
OPEN |
3mm |
8mm |
3mm |
118.5 |
36 |
46.9 |
| CE-SI-MR83-PT |
Details |
PTFE |
OPEN |
3mm |
8mm |
2.5mm |
84 |
28.25 |
46.9 |
| CE-SI-603-PT |
Details |
PTFE |
OPEN |
3 mm |
9mm |
3mm |
57.5 |
37.75 |
46.9 |
| CE-SI-MR93-PT |
Details |
PTFE |
OPEN |
3mm |
9mm |
2.5mm |
121.25 |
37.75 |
46.9 |
| CE-SI-623-PT |
Details |
PTFE |
OPEN |
3mm |
10mm |
4mm |
134 |
43.75 |
42 |
| CE-SI-633-PT |
Details |
PTFE |
OPEN |
3 mm |
13mm |
5mm |
276.5 |
97.5 |
33.6 |
| CE-SI-MR74-PT |
Details |
PTFE |
OPEN |
4mm |
7mm |
2mm |
66 |
23 |
46.9 |
| CE-SI-MR84-PT |
Details |
PTFE |
OPEN |
4mm |
8mm |
2mm |
84 |
28.25 |
46.9 |
| CE-SI-684-PT |
Details |
PTFE |
OPEN |
4mm |
9mm |
2.5mm |
136.25 |
45.5 |
44.1 |
| CE-SI-MR104-PT |
Details |
PTFE |
OPEN |
4mm |
10mm |
3mm |
151 |
54.5 |
39.2 |
| CE-SI-694-PT |
Details |
PTFE |
OPEN |
4 mm |
11mm |
4mm |
203.5 |
70 |
39.2 |
| CE-SI-604-PT |
Details |
PTFE |
OPEN |
4 mm |
12mm |
4mm |
203.5 |
70 |
39.2 |
| CE-SI-624-PT |
Details |
PTFE |
OPEN |
4mm |
13mm |
5mm |
276.5 |
97.5 |
33.6 |
| CE-SI-634-PT |
Details |
PTFE |
OPEN |
4mm |
16mm |
5mm |
284.75 |
104.5 |
30.1 |
| CE-SI-MR85-PT |
Details |
PTFE |
OPEN |
5mm |
8mm |
2mm |
65.5 |
24 |
44.1 |
| CE-SI-MR95-PT |
Details |
PTFE |
OPEN |
5 mm |
9mm |
2.5mm |
91.5 |
33.75 |
42 |
| CE-SI-MR105-PT |
Details |
PTFE |
OPEN |
5 mm |
10mm |
3mm |
91.5 |
33.75 |
42 |
| CE-SI-685-PT |
Details |
PTFE |
OPEN |
5mm |
11mm |
3mm |
152.25 |
56.5 |
37.1 |
| CE-SI-MR115-PT |
Details |
PTFE |
OPEN |
5mm |
11mm |
4mm |
152.25 |
56.5 |
44.1 |
| CE-SI-695-PT |
Details |
PTFE |
OPEN |
5mm |
13mm |
4mm |
229 |
86.5 |
35 |
| CE-SI-605-PT |
Details |
PTFE |
OPEN |
5mm |
14mm |
5mm |
282.5 |
101.5 |
35 |
| CE-SI-625-PT |
Details |
PTFE |
OPEN |
5mm |
16mm |
5mm |
367.5 |
135 |
30.1 |
| CE-SI-635-PT |
Details |
PTFE |
OPEN |
5mm |
19mm |
6mm |
496.5 |
179.25 |
28 |
| CE-SI-MR106-PT |
Details |
PTFE |
OPEN |
6mm |
10mm |
2.5mm |
105.5 |
43.5 |
37.1 |
| CE-SI-MR126-PT |
Details |
PTFE |
OPEN |
6mm |
12mm |
3mm |
152.25 |
59 |
35 |
| CE-SI-686-PT |
Details |
PTFE |
OPEN |
6mm |
13mm |
3.5mm |
230 |
88.5 |
35 |
| CE-SI-696-PT |
Details |
PTFE |
OPEN |
6mm |
15mm |
5mm |
284.75 |
104.5 |
31.5 |
| CE-SI-606-PT |
Details |
PTFE |
OPEN |
6mm |
17mm |
6mm |
481 |
169.25 |
31.5 |
| CE-SI-626-PT |
Details |
PTFE |
OPEN |
6 mm |
19mm |
6mm |
496.5 |
179.25 |
28 |
| CE-SI-636-PT |
Details |
PTFE |
OPEN |
6mm |
22mm |
7mm |
708.25 |
284.5 |
25.2 |
| CE-SI-MR117-PT |
Details |
PTFE |
OPEN |
7 mm |
11mm |
2.5mm |
96.75 |
40.5 |
35 |
| CE-SI-MR137-PT |
Details |
PTFE |
OPEN |
7mm |
13mm |
3mm |
115 |
55.25 |
33.6 |
| CE-SI-687-PT |
Details |
PTFE |
OPEN |
7mm |
14mm |
3.5mm |
249.25 |
102.5 |
35 |
| CE-SI-697-PT |
Details |
PTFE |
OPEN |
7mm |
17mm |
5mm |
341 |
143.75 |
30.1 |
| CE-SI-607-PT |
Details |
PTFE |
OPEN |
7mm |
19mm |
6mm |
496.5 |
179.25 |
30.1 |
| CE-SI-627-PT |
Details |
PTFE |
OPEN |
7mm |
22mm |
7mm |
698.5 |
275.75 |
25.2 |
| CE-SI-637-PT |
Details |
PTFE |
OPEN |
7 mm |
26mm |
9mm |
969.75 |
396.5 |
23.8 |
| CE-SI-MR128-PT |
Details |
PTFE |
OPEN |
8mm |
12mm |
2.5mm |
115.5 |
54.75 |
33.6 |
| CE-SI-MR148-PT |
Details |
PTFE |
OPEN |
8 mm |
14mm |
3.5mm |
173.75 |
77.25 |
31.5 |
| CE-SI-688-PT |
Details |
PTFE |
OPEN |
8 mm |
16mm |
4mm |
266 |
118.5 |
30.1 |
| CE-SI-698-PT |
Details |
PTFE |
OPEN |
8mm |
19mm |
6mm |
475.5 |
183.5 |
30.1 |
| CE-SI-608-PT |
Details |
PTFE |
OPEN |
8mm |
22mm |
7mm |
699.75 |
275.75 |
772.1 |
| CE-SI-628-PT |
Details |
PTFE |
OPEN |
8mm |
24mm |
8mm |
708.25 |
284.5 |
23.8 |
| CE-SI-638-PT |
Details |
PTFE |
OPEN |
8mm |
28mm |
9mm |
969.75 |
396.5 |
23.8 |
| CE-SI-679-PT |
Details |
PTFE |
OPEN |
9mm |
14mm |
3mm |
195.25 |
93.5 |
29.4 |
| CE-SI-689-PT |
Details |
PTFE |
OPEN |
9mm |
17mm |
4mm |
282 |
133.5 |
30.1 |
| CE-SI-699-PT |
Details |
PTFE |
OPEN |
9mm |
20mm |
6mm |
524.25 |
216.25 |
28 |
| CE-SI-609-PT |
Details |
PTFE |
OPEN |
9mm |
24mm |
7mm |
713.25 |
288.75 |
26.6 |
| CE-SI-629-PT |
Details |
PTFE |
OPEN |
9mm |
26mm |
8mm |
969.75 |
396.5 |
23.8 |
| CE-SI-639-PT |
Details |
PTFE |
OPEN |
9mm |
30mm |
10mm |
990 |
416 |
21 |
| CE-SI-6700-PT |
Details |
PTFE |
OPEN |
10mm |
15mm |
3mm |
214.25 |
108.75 |
11.9 |
| CE-SI-63800-PT |
Details |
PTFE |
OPEN |
10mm |
19mm |
7mm |
430 |
210 |
28 |
| CE-SI-6800-PT |
Details |
PTFE |
OPEN |
10mm |
19mm |
5mm |
430 |
210 |
28 |
| CE-SI-6900-PT |
Details |
PTFE |
OPEN |
10mm |
22mm |
6mm |
675 |
317.5 |
25.9 |
| CE-SI-6000-PT |
Details |
PTFE |
OPEN |
10 mm |
26mm |
8mm |
1137.5 |
487.5 |
25.2 |
| CE-SI-6200-PT |
Details |
PTFE |
OPEN |
10 mm |
30mm |
9mm |
1275 |
600 |
20.3 |
| CE-SI-6300-PT |
Details |
PTFE |
OPEN |
10 mm |
35mm |
11mm |
2025 |
862.5 |
18.9 |
| CE-SI-6701-PT |
Details |
PTFE |
OPEN |
12mm |
18mm |
4mm |
232 |
133 |
10.5 |
| CE-SI-63801-PT |
Details |
PTFE |
OPEN |
12mm |
21mm |
7mm |
480 |
260 |
25.2 |
| CE-SI-6801-PT |
Details |
PTFE |
OPEN |
12mm |
21mm |
5mm |
480 |
260 |
25.2 |
| CE-SI-6901-PT |
Details |
PTFE |
OPEN |
12mm |
24mm |
6mm |
722.5 |
365 |
23.1 |
| CE-SI-6001-PT |
Details |
PTFE |
OPEN |
12 mm |
28mm |
8mm |
1275 |
600 |
22.4 |
| CE-SI-6201-PT |
Details |
PTFE |
OPEN |
12 mm |
32mm |
10mm |
1700 |
762.5 |
18.9 |
| CE-SI-6301-PT |
Details |
PTFE |
OPEN |
12 mm |
37mm |
12mm |
2425 |
1050 |
17.5 |
| CE-SI-6702-PT |
Details |
PTFE |
OPEN |
15mm |
21mm |
4mm |
234.25 |
145.25 |
9.1 |
| CE-SI-63802-PT |
Details |
PTFE |
OPEN |
15mm |
24mm |
7mm |
517.5 |
315 |
21.7 |
| CE-SI-6802-PT |
Details |
PTFE |
OPEN |
15mm |
24mm |
5mm |
517.5 |
315 |
21.7 |
| CE-SI-6902-PT |
Details |
PTFE |
OPEN |
15mm |
28mm |
7mm |
1082.5 |
562.5 |
20.3 |
| CE-SI-6002-PT |
Details |
PTFE |
OPEN |
15 mm |
32mm |
9mm |
1400 |
712.5 |
18.9 |
| CE-SI-6202-PT |
Details |
PTFE |
OPEN |
15 mm |
35mm |
11mm |
1912.5 |
937.5 |
16.8 |
| CE-SI-6302-PT |
Details |
PTFE |
OPEN |
15 mm |
42mm |
13mm |
2850 |
1362.5 |
14 |
| CE-SI-6703-PT |
Details |
PTFE |
OPEN |
17mm |
23mm |
4mm |
249.75 |
164.25 |
7.7 |
| CE-SI-63803-PT |
Details |
PTFE |
OPEN |
17mm |
26mm |
7mm |
557.5 |
365 |
20.3 |
| CE-SI-6803-PT |
Details |
PTFE |
OPEN |
17mm |
26mm |
5mm |
557.5 |
365 |
20.3 |
| CE-SI-6903-PT |
Details |
PTFE |
OPEN |
17mm |
30mm |
7mm |
1147.5 |
640 |
18.2 |
| CE-SI-6003-PT |
Details |
PTFE |
OPEN |
17 mm |
35mm |
10mm |
1500 |
812.5 |
17.5 |
| CE-SI-6203-PT |
Details |
PTFE |
OPEN |
17 mm |
40mm |
12mm |
2387.5 |
1200 |
14.7 |
| CE-SI-6303-PT |
Details |
PTFE |
OPEN |
17 mm |
47mm |
14mm |
3400 |
1662.5 |
12.6 |
| CE-SI-6704-PT |
Details |
PTFE |
OPEN |
20mm |
27mm |
4mm |
252.5 |
180.5 |
7 |
| CE-SI-63804-PT |
Details |
PTFE |
OPEN |
20mm |
32mm |
10mm |
1005 |
615 |
17.5 |
| CE-SI-6804-PT |
Details |
PTFE |
OPEN |
20mm |
32mm |
7mm |
1005 |
615 |
17.5 |
| CE-SI-6904-PT |
Details |
PTFE |
OPEN |
20mm |
37mm |
9mm |
1595 |
920 |
15.4 |
| CE-SI-6004-PT |
Details |
PTFE |
OPEN |
20 mm |
42mm |
12mm |
2350 |
1262.5 |
14.7 |
| CE-SI-6204-PT |
Details |
PTFE |
OPEN |
20 mm |
47mm |
14mm |
3200 |
1662.5 |
11.9 |
| CE-SI-6304-PT |
Details |
PTFE |
OPEN |
20 mm |
52mm |
15mm |
3975 |
1962.5 |
11.9 |
| CE-SI-6705-PT |
Details |
PTFE |
OPEN |
25mm |
32mm |
4mm |
275 |
209.5 |
5.6 |
| CE-SI-63805-PT |
Details |
PTFE |
OPEN |
25mm |
37mm |
10mm |
1075 |
735 |
14.7 |
| CE-SI-6805-PT |
Details |
PTFE |
OPEN |
25mm |
37mm |
7mm |
1075 |
735 |
14.7 |
| CE-SI-6905-PT |
Details |
PTFE |
OPEN |
25mm |
42mm |
9mm |
1752.5 |
1137.5 |
13.3 |
| CE-SI-6005-PT |
Details |
PTFE |
OPEN |
25 mm |
47mm |
12mm |
2525 |
1462.5 |
12.6 |
| CE-SI-6205-PT |
Details |
PTFE |
OPEN |
25 mm |
52mm |
15mm |
3500 |
1962.5 |
10.5 |
| CE-SI-6305-PT |
Details |
PTFE |
OPEN |
25 mm |
62mm |
17mm |
5150 |
2825 |
9.1 |
| CE-SI-6706-PT |
Details |
PTFE |
OPEN |
30mm |
37mm |
4mm |
285 |
236.75 |
4.9 |
| CE-SI-63806-PT |
Details |
PTFE |
OPEN |
30mm |
42mm |
10mm |
1134.5 |
850.5 |
12.6 |
| CE-SI-6806-PT |
Details |
PTFE |
OPEN |
30mm |
42mm |
7mm |
1112.5 |
860 |
12.6 |
| CE-SI-6906-PT |
Details |
PTFE |
OPEN |
30mm |
47mm |
9mm |
1810 |
1252.5 |
11.9 |
| CE-SI-6006-PT |
Details |
PTFE |
OPEN |
30 mm |
55mm |
13mm |
3300 |
2062.5 |
10.5 |
| CE-SI-6206-PT |
Details |
PTFE |
OPEN |
30 mm |
62mm |
16mm |
4875 |
2825 |
9.1 |
| CE-SI-6306-PT |
Details |
PTFE |
OPEN |
30 mm |
72mm |
19mm |
6675 |
3750 |
8.4 |
| CE-SI-6707-PT |
Details |
PTFE |
OPEN |
35mm |
44mm |
5mm |
465 |
407.5 |
4.2 |
| CE-SI-6807-PT |
Details |
PTFE |
OPEN |
35mm |
47mm |
7mm |
1185 |
955 |
11.2 |
| CE-SI-6907-PT |
Details |
PTFE |
OPEN |
35mm |
55mm |
10mm |
2725 |
1937.5 |
9.8 |
| CE-SI-6007-PT |
Details |
PTFE |
OPEN |
35 mm |
62mm |
14mm |
3975 |
2575 |
9.1 |
| CE-SI-6207-PT |
Details |
PTFE |
OPEN |
35 mm |
72mm |
17mm |
6425 |
3850 |
7.7 |
| CE-SI-6307-PT |
Details |
PTFE |
OPEN |
35 mm |
80mm |
21mm |
8350 |
4825 |
7 |
| CE-SI-6708-PT |
Details |
PTFE |
OPEN |
40mm |
50mm |
6mm |
627.5 |
557.5 |
3.5 |
| CE-SI-6808-PT |
Details |
PTFE |
OPEN |
40mm |
52mm |
7mm |
1232.5 |
1045 |
9.8 |
| CE-SI-6908-PT |
Details |
PTFE |
OPEN |
40mm |
62mm |
12mm |
3425 |
2480 |
9.1 |
| CE-SI-6008-PT |
Details |
PTFE |
OPEN |
40 mm |
68mm |
15mm |
4175 |
2875 |
8.4 |
| CE-SI-6208-PT |
Details |
PTFE |
OPEN |
40 mm |
80mm |
18mm |
7275 |
4450 |
7 |
| CE-SI-6308-PT |
Details |
PTFE |
OPEN |
40 mm |
90mm |
23mm |
10175 |
6000 |
6.3 |
| CE-SI-6709-PT |
Details |
PTFE |
OPEN |
45mm |
55mm |
6mm |
642.5 |
600 |
3.22 |
| CE-SI-6809-PT |
Details |
PTFE |
OPEN |
45mm |
58mm |
7mm |
1552.5 |
1345 |
9.1 |
| CE-SI-6909-PT |
Details |
PTFE |
OPEN |
45mm |
68mm |
12mm |
3525 |
2725 |
7.7 |
| CE-SI-6009-PT |
Details |
PTFE |
OPEN |
45 mm |
75mm |
16mm |
5250 |
3775 |
7.7 |
| CE-SI-6209-PT |
Details |
PTFE |
OPEN |
45 mm |
85mm |
19mm |
8175 |
5075 |
6.44 |
| CE-SI-6309-PT |
Details |
PTFE |
OPEN |
45 mm |
100mm |
25mm |
13250 |
8000 |
5.6 |
| CE-SI-6710-PT |
Details |
PTFE |
OPEN |
50mm |
62mm |
6mm |
667.5 |
662.5 |
2.87 |
| CE-SI-6810-PT |
Details |
PTFE |
OPEN |
50mm |
65mm |
7mm |
1542.5 |
1440 |
7.7 |
| CE-SI-6910-PT |
Details |
PTFE |
OPEN |
50mm |
72mm |
12mm |
3625 |
2925 |
7.7 |
| CE-SI-6010-PT |
Details |
PTFE |
OPEN |
50 mm |
80mm |
16mm |
5450 |
4150 |
6.93 |
| CE-SI-6210-PT |
Details |
PTFE |
OPEN |
50 mm |
90mm |
20mm |
8775 |
5825 |
5.95 |
| CE-SI-6310-PT |
Details |
PTFE |
OPEN |
50 mm |
110mm |
27mm |
15500 |
9575 |
5.25 |
| CE-SI-6811-PT |
Details |
PTFE |
OPEN |
55mm |
72mm |
9mm |
2200 |
2020 |
7 |
| CE-SI-6911-PT |
Details |
PTFE |
OPEN |
55mm |
80mm |
13mm |
4150 |
3525 |
6.72 |
| CE-SI-6011-PT |
Details |
PTFE |
OPEN |
55 mm |
90mm |
18mm |
7075 |
5300 |
6.3 |
| CE-SI-6211-PT |
Details |
PTFE |
OPEN |
55 mm |
100mm |
21mm |
10850 |
7350 |
5.25 |
| CE-SI-6311-PT |
Details |
PTFE |
OPEN |
55 mm |
120mm |
29mm |
17900 |
11250 |
4.69 |
| CE-SI-6812-PT |
Details |
PTFE |
OPEN |
60mm |
78mm |
10mm |
2875 |
2650 |
6.58 |
| CE-SI-6912-PT |
Details |
PTFE |
OPEN |
60mm |
85mm |
13mm |
5050 |
4325 |
6.23 |
| CE-SI-6012-PT |
Details |
PTFE |
OPEN |
60 mm |
95mm |
18mm |
7350 |
5800 |
5.95 |
| CE-SI-6212-PT |
Details |
PTFE |
OPEN |
60 mm |
110mm |
22mm |
13100 |
9050 |
4.97 |
| CE-SI-6312-PT |
Details |
PTFE |
OPEN |
60 mm |
130mm |
31mm |
20475 |
13050 |
4.41 |
| CE-SI-6813-PT |
Details |
PTFE |
OPEN |
65mm |
85mm |
10mm |
2975 |
2875 |
6.02 |
| CE-SI-6913-PT |
Details |
PTFE |
OPEN |
65mm |
90mm |
13mm |
4325 |
4000 |
5.81 |
| CE-SI-6013-PT |
Details |
PTFE |
OPEN |
65 mm |
100mm |
18mm |
7625 |
6300 |
5.6 |
| CE-SI-6213-PT |
Details |
PTFE |
OPEN |
65 mm |
120mm |
23mm |
14300 |
10025 |
4.41 |
| CE-SI-6313-PT |
Details |
PTFE |
OPEN |
65 mm |
140mm |
33mm |
23175 |
14975 |
4.2 |
| CE-SI-6814-PT |
Details |
PTFE |
OPEN |
70mm |
90mm |
10mm |
2900 |
2950 |
5.67 |
| CE-SI-6914-PT |
Details |
PTFE |
OPEN |
70mm |
100mm |
16mm |
5925 |
5275 |
5.32 |
| CE-SI-6014-PT |
Details |
PTFE |
OPEN |
70 mm |
110mm |
20mm |
9525 |
7725 |
4.97 |
| CE-SI-6214-PT |
Details |
PTFE |
OPEN |
70 mm |
125mm |
24mm |
15550 |
11025 |
4.41 |
| CE-SI-6314-PT |
Details |
PTFE |
OPEN |
70 mm |
150mm |
35mm |
26000 |
17050 |
3.71 |
| CE-SI-6815-PT |
Details |
PTFE |
OPEN |
75mm |
95mm |
10mm |
3075 |
3200 |
5.32 |
| CE-SI-6915-PT |
Details |
PTFE |
OPEN |
75mm |
105mm |
16mm |
6000 |
5650 |
4.97 |
| CE-SI-6015-PT |
Details |
PTFE |
OPEN |
75 mm |
115mm |
20mm |
9900 |
8375 |
4.69 |
| CE-SI-6215-PT |
Details |
PTFE |
OPEN |
75 mm |
130mm |
25mm |
16850 |
12075 |
3.92 |
| CE-SI-6315-PT |
Details |
PTFE |
OPEN |
75 mm |
160mm |
37mm |
28250 |
19300 |
3.5 |
| CE-SI-6816-PT |
Details |
PTFE |
OPEN |
80mm |
100mm |
10mm |
3150 |
3325 |
4.97 |
| CE-SI-6916-PT |
Details |
PTFE |
OPEN |
80mm |
110mm |
16mm |
6200 |
5975 |
4.69 |
| CE-SI-6016-PT |
Details |
PTFE |
OPEN |
80 mm |
125mm |
22mm |
11900 |
9950 |
4.41 |
| CE-SI-6216-PT |
Details |
PTFE |
OPEN |
80 mm |
140mm |
26mm |
18175 |
13250 |
3.71 |
| CE-SI-6316-PT |
Details |
PTFE |
OPEN |
80 mm |
170mm |
39mm |
30750 |
21675 |
3.36 |
| CE-SI-6817-PT |
Details |
PTFE |
OPEN |
85mm |
110mm |
13mm |
4675 |
4750 |
4.62 |
| CE-SI-6917-PT |
Details |
PTFE |
OPEN |
85mm |
120mm |
18mm |
7975 |
7400 |
4.34 |
| CE-SI-6017-PT |
Details |
PTFE |
OPEN |
85 mm |
130mm |
22mm |
12375 |
10775 |
4.2 |
| CE-SI-6217-PT |
Details |
PTFE |
OPEN |
85 mm |
150mm |
28mm |
21000 |
15475 |
3.5 |
| CE-SI-6317-PT |
Details |
PTFE |
OPEN |
85 mm |
180mm |
41mm |
33250 |
24200 |
3.15 |
| CE-SI-6818-PT |
Details |
PTFE |
OPEN |
90mm |
115mm |
13mm |
4575 |
4875 |
4.34 |
| CE-SI-6918-PT |
Details |
PTFE |
OPEN |
90mm |
125mm |
18mm |
8100 |
7900 |
4.13 |
| CE-SI-6018-PT |
Details |
PTFE |
OPEN |
90 mm |
140mm |
24mm |
14550 |
12425 |
3.92 |
| CE-SI-6218-PT |
Details |
PTFE |
OPEN |
90 mm |
160mm |
30mm |
24025 |
17875 |
3.36 |
| CE-SI-6318-PT |
Details |
PTFE |
OPEN |
90 mm |
190mm |
43mm |
35750 |
26750 |
3.01 |
| CE-SI-6819-PT |
Details |
PTFE |
OPEN |
95mm |
120mm |
13mm |
4700 |
5075 |
4.13 |
| CE-SI-6019-PT |
Details |
PTFE |
OPEN |
95 mm |
145mm |
24mm |
15100 |
13475 |
3.71 |
| CE-SI-6219-PT |
Details |
PTFE |
OPEN |
95 mm |
170mm |
32mm |
27250 |
20475 |
3.15 |
| CE-SI-6319-PT |
Details |
PTFE |
OPEN |
95 mm |
200mm |
45mm |
38250 |
29750 |
3.71 |
| CE-SI-6020-PT |
Details |
PTFE |
OPEN |
100 mm |
150mm |
24mm |
15050 |
13550 |
3.71 |
| CE-SI-6220-PT |
Details |
PEEK |
OPEN |
100 mm |
150mm |
24mm |
18060 |
16260 |
3.18 |
| CE-SI-6320-PT |
Details |
PTFE |
OPEN |
100 mm |
215mm |
47mm |
43250 |
35250 |
2.38 |
| CE-SI-6021-PT |
Details |
PTFE |
OPEN |
105 mm |
160mm |
26mm |
18075 |
16450 |
3.36 |
| CE-SI-6221-PT |
Details |
PTFE |
OPEN |
105 mm |
190mm |
36mm |
33250 |
26250 |
2.8 |
| CE-SI-6321-PT |
Details |
PTFE |
OPEN |
105 mm |
225mm |
49mm |
46000 |
38250 |
2.24 |
|
| |
| BEARING LIST & BEARING DETAILS |
PTFE cage, PTFE SEALED type
Silicon Nitride Si3N4 Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm
|
 |
| CLI Bearing No. |
Details |
Cage |
Seal |
Bearing Dimension |
Dynamic |
Static |
Max |
| Bore Dia |
Outer Dia |
Width |
radial |
radial |
Speed |
| Type |
Type |
(d) |
(D) |
(B) |
(Newtons) |
(Newtons) |
(X1000 RPM) |
| CE-SI-R133-PT-2PTS |
Details |
PTFE |
PTFE |
0.0938" | 2.381 mm |
0.1875" | 4.763 mm |
0.0937" | 2.38 mm |
31.145 |
11.1225 |
66.5 |
| CE-SI-R1-5-PT-2PTS |
Details |
PTFE |
PTFE |
0.0938" | 2.381 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
117.905 |
35.5925 |
49.7 |
| CE-SI-R144-PT-2PTS |
Details |
PTFE |
PTFE |
0.125" | 3.175 mm |
0.25" | 6.35 mm |
0.1094" | 2.779 mm |
60.065 |
18.91 |
56 |
| CE-SI-R2-5-PT-2PTS |
Details |
PTFE |
PTFE |
0.125" | 3.175 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
119.015 |
35.5925 |
46.9 |
| CE-SI-R2-6-PT-2PTS |
Details |
PTFE |
PTFE |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1406" | 3.571 mm |
135.7 |
45.605 |
44.1 |
| CE-SI-R2-PT-2PTS |
Details |
PTFE |
PTFE |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1562" | 3.967 mm |
134.5875 |
43.38 |
46.9 |
| CE-SI-R2A-PT-2PTS |
Details |
PTFE |
PTFE |
0.125" | 3.175 mm |
0.5" | 12.7 mm |
0.1719" | 4.366 mm |
135.7 |
45.605 |
44.1 |
| CE-SI-R155-PT-2PTS |
Details |
PTFE |
PTFE |
0.1563" | 3.969 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
76.7475 |
30.0325 |
44.1 |
| CE-SI-R156-PT-2PTS |
Details |
PTFE |
PTFE |
0.1875" | 4.763 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
76.7475 |
30.0325 |
44.1 |
| CE-SI-R166-PT-2PTS |
Details |
PTFE |
PTFE |
0.1875" | 4.763 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
151.2725 |
54.5025 |
42 |
| CE-SI-R3-PT-2PTS |
Details |
PTFE |
PTFE |
0.1875" | 4.763 mm |
0.5" | 12.7 mm |
0.196" | 4.978 mm |
276.9625 |
97.8825 |
37.1 |
| CE-SI-R3A-PT-2PTS |
Details |
PTFE |
PTFE |
0.1875" | 4.763 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
314.78 |
124.5775 |
31.5 |
| CE-SI-1601-PT-2PTS |
Details |
PTFE |
PTFE |
0.1875" | 4.763 mm |
0.6875" | 17.463 mm |
0.3125" | 7.938 mm |
150 |
55 |
4.2 |
| CE-SI-R168-PT-2PTS |
Details |
PTFE |
PTFE |
0.25" | 6.35 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
78.9725 |
34.4825 |
39.2 |
| CE-SI-R188-PT-2PTS |
Details |
PTFE |
PTFE |
0.25" | 6.35 mm |
0.5" | 12.7 mm |
0.1875" | 4.763 mm |
230.245 |
88.985 |
35 |
| CE-SI-R4-PT-2PTS |
Details |
PTFE |
PTFE |
0.25" | 6.35 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
314.78 |
124.5775 |
31.5 |
| CE-SI-1602-PT-2PTS |
Details |
PTFE |
PTFE |
0.25" | 6.35 mm |
0.6875" | 17.463 mm |
0.3125" | 7.938 mm |
158.75 |
60 |
4.2 |
| CE-SI-R4A-PT-2PTS |
Details |
PTFE |
PTFE |
0.25" | 6.35 mm |
0.75" | 19.05 mm |
0.2812" | 7.142 mm |
496.085 |
179.08 |
30.1 |
| CE-SI-R1810-PT-2PTS |
Details |
PTFE |
PTFE |
0.3125" | 7.938 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
115.68 |
55.615 |
33.6 |
| CE-SI-1603-PT-2PTS |
Details |
PTFE |
PTFE |
0.3125" | 7.938 mm |
0.875" | 22.225 mm |
0.3438" | 8.733 mm |
186.25 |
77.5 |
4.2 |
| CE-SI-1605-PT-2PTS |
Details |
PTFE |
PTFE |
0.3125" | 7.938 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
186.25 |
78.75 |
4.2 |
| CE-SI-1604-PT-2PTS |
Details |
PTFE |
PTFE |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.3438" | 8.733 mm |
187.5 |
80 |
4.2 |
| CE-SI-R6-PT-2PTS |
Details |
PTFE |
PTFE |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
708.535 |
284.75 |
26.6 |
| CE-SI-1606-PT-2PTS |
Details |
PTFE |
PTFE |
0.375" | 9.525 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
187.5 |
80 |
4.2 |
| CE-SI-1614-PT-2PTS |
Details |
PTFE |
PTFE |
0.375" | 9.525 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
285 |
130 |
4.2 |
| CE-SI-1607-PT-2PTS |
Details |
PTFE |
PTFE |
0.4375" | 11.113 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
253.75 |
107.5 |
4.2 |
| CE-SI-1615-PT-2PTS |
Details |
PTFE |
PTFE |
0.4375" | 11.113 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
286.25 |
132.5 |
4.2 |
| CE-SI-1620-PT-2PTS |
Details |
PTFE |
PTFE |
0.4375" | 11.113 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
422.5 |
200 |
4.2 |
| CE-SI-1616-PT-2PTS |
Details |
PTFE |
PTFE |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
287.5 |
112.5 |
4.2 |
| CE-SI-R8-PT-2PTS |
Details |
PTFE |
PTFE |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.3125" | 7.938 mm |
287.25 |
127.75 |
22.4 |
| CE-SI-1621-PT-2PTS |
Details |
PTFE |
PTFE |
0.5" | 12.7 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
425 |
203.75 |
4.2 |
| CE-SI-1622-PT-2PTS |
Details |
PTFE |
PTFE |
0.5625" | 14.288 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
427.5 |
206.25 |
4.2 |
| CE-SI-1623-PT-2PTS |
Details |
PTFE |
PTFE |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
430 |
208.75 |
4.2 |
| CE-SI-R10-PT-2PTS |
Details |
PTFE |
PTFE |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.3438" | 8.733 mm |
396.25 |
183.75 |
17.5 |
| CE-SI-1628-PT-2PTS |
Details |
PTFE |
PTFE |
0.625" | 15.875 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
525 |
273.75 |
4.2 |
| CE-SI-1633-PT-2PTS |
Details |
PTFE |
PTFE |
0.625" | 15.875 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
525 |
280 |
4.2 |
| CE-SI-1630-PT-2PTS |
Details |
PTFE |
PTFE |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
527.5 |
278.75 |
4.2 |
| CE-SI-R12-PT-2PTS |
Details |
PTFE |
PTFE |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.4375" | 11.113 mm |
619.25 |
294.25 |
14.7 |
| CE-SI-1635-PT-2PTS |
Details |
PTFE |
PTFE |
0.75" | 19.05 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
528.75 |
285 |
4.2 |
| CE-SI-1638-PT-2PTS |
Details |
PTFE |
PTFE |
0.75" | 19.05 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
567.5 |
322.5 |
4.2 |
| CE-SI-R14-PT-2PTS |
Details |
PTFE |
PTFE |
0.875" | 22.225 mm |
1.875" | 47.625 mm |
0.5" | 12.7 mm |
664.5 |
326.75 |
8.4 |
| CE-SI-1640-PT-2PTS |
Details |
PTFE |
PTFE |
0.875" | 22.225 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
566.25 |
328.75 |
4.2 |
| CE-SI-1641-PT-2PTS |
Details |
PTFE |
PTFE |
1" | 25.4 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
565 |
336.25 |
4.2 |
| CE-SI-R16-PT-2PTS |
Details |
PTFE |
PTFE |
1" | 25.4 mm |
2" | 50.8 mm |
0.5" | 12.7 mm |
663 |
326.75 |
7.7 |
| CE-SI-R18-PT-2PTS |
Details |
PTFE |
PTFE |
1.125" | 28.575 mm |
2.125" | 53.975 mm |
0.5" | 12.7 mm |
873 |
454.25 |
7 |
| CE-SI-1652-PT-2PTS |
Details |
PTFE |
PTFE |
1.125" | 28.575 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
900.75 |
570 |
4.2 |
| CE-SI-R20-PT-2PTS |
Details |
PTFE |
PTFE |
1.25" | 31.75 mm |
2.25" | 57.15 mm |
0.5" | 12.7 mm |
923.75 |
496.5 |
6.3 |
| CE-SI-1654-PT-2PTS |
Details |
PTFE |
PTFE |
1.25" | 31.75 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
900 |
575 |
4.2 |
| CE-SI-1657-PT-2PTS |
Details |
PTFE |
PTFE |
1.25" | 31.75 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
1100 |
625 |
4.2 |
| CE-SI-1658-PT-2PTS |
Details |
PTFE |
PTFE |
1.3125" | 33.338 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
1092.5 |
650 |
4.2 |
| CE-SI-R22-PT-2PTS |
Details |
PTFE |
PTFE |
1.375" | 34.925 mm |
2.5" | 63.5 mm |
0.5625" | 14.288 mm |
1016.75 |
561.75 |
5.6 |
| CE-SI-R24-PT-2PTS |
Details |
PTFE |
PTFE |
1.5" | 38.1 mm |
2.625" | 66.675 mm |
0.5625" | 14.288 mm |
1106.5 |
611.5 |
4.2 |
| CE-SI-682-PT-2PTS |
Details |
PTFE |
PTFE |
2mm |
5mm |
2.3mm |
36 |
10 |
70 |
| CE-SI-MR52-PT-2PTS |
Details |
PTFE |
PTFE |
2 mm |
5mm |
2.5mm |
36 |
10 |
70 |
| CE-SI-692-PT-2PTS |
Details |
PTFE |
PTFE |
2mm |
6mm |
3mm |
70.25 |
19.75 |
63 |
| CE-SI-MR62-PT-2PTS |
Details |
PTFE |
PTFE |
2mm |
6mm |
2.5mm |
70.25 |
19.75 |
63 |
| CE-SI-602-PT-2PTS |
Details |
PTFE |
PTFE |
2 mm |
7mm |
3.5mm |
82 |
25.75 |
49.7 |
| CE-SI-MR72-PT-2PTS |
Details |
PTFE |
PTFE |
2 mm |
7mm |
3mm |
82 |
25.75 |
52.5 |
| CE-SI-682x-PT-2PTS |
Details |
PTFE |
PTFE |
2.5mm |
6mm |
2.6mm |
44.5 |
14.75 |
56 |
| CE-SI-692x-PT-2PTS |
Details |
PTFE |
PTFE |
2.5mm |
7mm |
3.5mm |
82 |
25.75 |
52.5 |
| CE-SI-602x-PT-2PTS |
Details |
PTFE |
PTFE |
2.5mm |
8mm |
4mm |
117.25 |
35.5 |
49.7 |
| CE-SI-MR82x-PT-2PTS |
Details |
PTFE |
PTFE |
2.5mm |
8mm |
2.5mm |
118.5 |
36 |
46.9 |
| CE-SI-MR63-PT-2PTS |
Details |
PTFE |
PTFE |
3mm |
6mm |
2.5mm |
44.5 |
14.75 |
56 |
| CE-SI-683-PT-2PTS |
Details |
PTFE |
PTFE |
3mm |
7mm |
3mm |
66 |
22.5 |
52.5 |
| CE-SI-693-PT-2PTS |
Details |
PTFE |
PTFE |
3mm |
8mm |
4mm |
118.5 |
36 |
46.9 |
| CE-SI-MR83-PT-2PTS |
Details |
PTFE |
PTFE |
3 mm |
8mm |
3mm |
84 |
28.25 |
46.9 |
| CE-SI-603-PT-2PTS |
Details |
PTFE |
PTFE |
3mm |
9mm |
5mm |
57.5 |
37.75 |
46.9 |
| CE-SI-MR93-PT-2PTS |
Details |
PTFE |
PTFE |
3mm |
9mm |
4mm |
121.25 |
37.75 |
46.9 |
| CE-SI-623-PT-2PTS |
Details |
PTFE |
PTFE |
3 mm |
10mm |
4mm |
134 |
43.75 |
42 |
| CE-SI-633-PT-2PTS |
Details |
PTFE |
PTFE |
3 mm |
13mm |
5mm |
276.5 |
97.5 |
33.6 |
| CE-SI-MR74-PT-2PTS |
Details |
PTFE |
PTFE |
4mm |
7mm |
2.5mm |
54.25 |
21.5 |
46.9 |
| CE-SI-MR84-PT-2PTS |
Details |
PTFE |
PTFE |
4 mm |
8mm |
3mm |
84 |
28.25 |
46.9 |
| CE-SI-684-PT-2PTS |
Details |
PTFE |
PTFE |
4mm |
9mm |
4mm |
136.25 |
45.5 |
44.1 |
| CE-SI-MR104-PT-2PTS |
Details |
PTFE |
PTFE |
4 mm |
10mm |
4mm |
151 |
54.5 |
39.2 |
| CE-SI-694-PT-2PTS |
Details |
PTFE |
PTFE |
4mm |
11mm |
4mm |
203.5 |
70 |
39.2 |
| CE-SI-604-PT-2PTS |
Details |
PTFE |
PTFE |
4mm |
12mm |
4mm |
203.5 |
70 |
39.2 |
| CE-SI-624-PT-2PTS |
Details |
PTFE |
PTFE |
4 mm |
13mm |
5mm |
276.5 |
97.5 |
33.6 |
| CE-SI-634-PT-2PTS |
Details |
PTFE |
PTFE |
4 mm |
16mm |
5mm |
284.75 |
104.5 |
30.1 |
| CE-SI-MR85-PT-2PTS |
Details |
PTFE |
PTFE |
5mm |
8mm |
2.5mm |
46.25 |
18 |
44.1 |
| CE-SI-MR95-PT-2PTS |
Details |
PTFE |
PTFE |
5mm |
9mm |
3mm |
91.5 |
33.75 |
42 |
| CE-SI-MR105-PT-2PTS |
Details |
PTFE |
PTFE |
5mm |
10mm |
4mm |
91.5 |
33.75 |
42 |
| CE-SI-685-PT-2PTS |
Details |
PTFE |
PTFE |
5mm |
11mm |
5mm |
152.25 |
56.5 |
37.1 |
| CE-SI-MR115-PT-2PTS |
Details |
PTFE |
PTFE |
5mm |
11mm |
4mm |
152.25 |
56.5 |
44.1 |
| CE-SI-695-PT-2PTS |
Details |
PTFE |
PTFE |
5mm |
13mm |
4mm |
229 |
86.5 |
35 |
| CE-SI-605-PT-2PTS |
Details |
PTFE |
PTFE |
5mm |
14mm |
5mm |
282.5 |
101.5 |
35 |
| CE-SI-625-PT-2PTS |
Details |
PTFE |
PTFE |
5 mm |
16mm |
5mm |
367.5 |
135 |
30.1 |
| CE-SI-635-PT-2PTS |
Details |
PTFE |
PTFE |
5 mm |
19mm |
6mm |
496.5 |
179.25 |
28 |
| CE-SI-MR106-PT-2PTS |
Details |
PTFE |
PTFE |
6mm |
10mm |
3mm |
105.5 |
43.5 |
37.1 |
| CE-SI-MR126-PT-2PTS |
Details |
PTFE |
PTFE |
6mm |
12mm |
4mm |
152.25 |
59 |
35 |
| CE-SI-686-PT-2PTS |
Details |
PTFE |
PTFE |
6mm |
13mm |
5mm |
230 |
88.5 |
35 |
| CE-SI-696-PT-2PTS |
Details |
PTFE |
PTFE |
6mm |
15mm |
5mm |
284.75 |
104.5 |
31.5 |
| CE-SI-606-PT-2PTS |
Details |
PTFE |
PTFE |
6 mm |
17mm |
6mm |
481 |
169.25 |
31.5 |
| CE-SI-626-PT-2PTS |
Details |
PTFE |
PTFE |
6mm |
19mm |
6mm |
496.5 |
179.25 |
28 |
| CE-SI-636-PT-2PTS |
Details |
PTFE |
PTFE |
6mm |
22mm |
7mm |
708.25 |
284.5 |
25.2 |
| CE-SI-MR117-PT-2PTS |
Details |
PTFE |
PTFE |
7 mm |
11mm |
3mm |
96.75 |
40.5 |
35 |
| CE-SI-MR137-PT-2PTS |
Details |
PTFE |
PTFE |
7mm |
13mm |
4mm |
115 |
55.25 |
33.6 |
| CE-SI-687-PT-2PTS |
Details |
PTFE |
PTFE |
7 mm |
14mm |
5mm |
249.25 |
102.5 |
35 |
| CE-SI-697-PT-2PTS |
Details |
PTFE |
PTFE |
7mm |
17mm |
5mm |
341 |
143.75 |
30.1 |
| CE-SI-607-PT-2PTS |
Details |
PTFE |
PTFE |
7 mm |
19mm |
6mm |
496.5 |
179.25 |
30.1 |
| CE-SI-627-PT-2PTS |
Details |
PTFE |
PTFE |
7 mm |
22mm |
7mm |
698.5 |
275.75 |
25.2 |
| CE-SI-637-PT-2PTS |
Details |
PTFE |
PTFE |
7 mm |
26mm |
9mm |
969.75 |
396.5 |
23.8 |
| CE-SI-MR128-PT-2PTS |
Details |
PTFE |
PTFE |
8mm |
12mm |
3.5mm |
115.5 |
54.75 |
33.6 |
| CE-SI-MR148-PT-2PTS |
Details |
PTFE |
PTFE |
8mm |
14mm |
4mm |
173.75 |
77.25 |
31.5 |
| CE-SI-688-PT-2PTS |
Details |
PTFE |
PTFE |
8 mm |
16mm |
5mm |
266 |
118.5 |
30.1 |
| CE-SI-698-PT-2PTS |
Details |
PTFE |
PTFE |
8mm |
19mm |
6mm |
475.5 |
183.5 |
30.1 |
| CE-SI-608-PT-2PTS |
Details |
PTFE |
PTFE |
8 mm |
22mm |
7mm |
699.75 |
275.75 |
28 |
| CE-SI-628-PT-2PTS |
Details |
PTFE |
PTFE |
8mm |
24mm |
8mm |
708.25 |
284.5 |
23.8 |
| CE-SI-638-PT-2PTS |
Details |
PTFE |
PTFE |
8mm |
28mm |
9mm |
969.75 |
396.5 |
23.8 |
| CE-SI-679-PT-2PTS |
Details |
PTFE |
PTFE |
9mm |
14mm |
4.5mm |
195.25 |
93.5 |
29.4 |
| CE-SI-689-PT-2PTS |
Details |
PTFE |
PTFE |
9mm |
17mm |
5mm |
282 |
133.5 |
30.1 |
| CE-SI-699-PT-2PTS |
Details |
PTFE |
PTFE |
9mm |
20mm |
6mm |
524.25 |
216.25 |
28 |
| CE-SI-609-PT-2PTS |
Details |
PTFE |
PTFE |
9mm |
24mm |
7mm |
713.25 |
288.75 |
26.6 |
| CE-SI-629-PT-2PTS |
Details |
PTFE |
PTFE |
9 mm |
26mm |
8mm |
969.75 |
396.5 |
23.8 |
| CE-SI-639-PT-2PTS |
Details |
PTFE |
PTFE |
9mm |
30mm |
10mm |
990 |
416 |
21 |
| CE-SI-6700-PT-2PTS |
Details |
PTFE |
PTFE |
10mm |
15mm |
4mm |
214.25 |
108.75 |
11.9 |
| CE-SI-63800-PT-2PTS |
Details |
PTFE |
PTFE |
10mm |
19mm |
7mm |
430 |
210 |
28 |
| CE-SI-6800-PT-2PTS |
Details |
PTFE |
PTFE |
10mm |
19mm |
5mm |
430 |
210 |
28 |
| CE-SI-6900-PT-2PTS |
Details |
PTFE |
PTFE |
10mm |
22mm |
6mm |
675 |
317.5 |
25.9 |
| CE-SI-6000-PT-2PTS |
Details |
PTFE |
PTFE |
10 mm |
26mm |
8mm |
1137.5 |
487.5 |
25.2 |
| CE-SI-6200-PT-2PTS |
Details |
PTFE |
PTFE |
10 mm |
30mm |
9mm |
1275 |
600 |
20.3 |
| CE-SI-6300-PT-2PTS |
Details |
PTFE |
PTFE |
10 mm |
35mm |
11mm |
2025 |
862.5 |
18.9 |
| CE-SI-6701-PT-2PTS |
Details |
PTFE |
PTFE |
12mm |
18mm |
4mm |
232 |
133 |
10.5 |
| CE-SI-63801-PT-2PTS |
Details |
PTFE |
PTFE |
12mm |
21mm |
7mm |
480 |
260 |
25.2 |
| CE-SI-6801-PT-2PTS |
Details |
PTFE |
PTFE |
12mm |
21mm |
5mm |
480 |
260 |
25.2 |
| CE-SI-6901-PT-2PTS |
Details |
PTFE |
PTFE |
12mm |
24mm |
6mm |
722.5 |
365 |
23.1 |
| CE-SI-6001-PT-2PTS |
Details |
PTFE |
PTFE |
12 mm |
28mm |
8mm |
1275 |
600 |
22.4 |
| CE-SI-6201-PT-2PTS |
Details |
PTFE |
PTFE |
12 mm |
32mm |
10mm |
1700 |
762.5 |
18.9 |
| CE-SI-6301-PT-2PTS |
Details |
PTFE |
PTFE |
12 mm |
37mm |
12mm |
2425 |
1050 |
17.5 |
| CE-SI-6702-PT-2PTS |
Details |
PTFE |
PTFE |
15mm |
21mm |
4mm |
234.25 |
145.25 |
9.1 |
| CE-SI-63802-PT-2PTS |
Details |
PTFE |
PTFE |
15mm |
24mm |
7mm |
517.5 |
315 |
21.7 |
| CE-SI-6802-PT-2PTS |
Details |
PTFE |
PTFE |
15mm |
24mm |
5mm |
517.5 |
315 |
21.7 |
| CE-SI-6902-PT-2PTS |
Details |
PTFE |
PTFE |
15mm |
28mm |
7mm |
1082.5 |
562.5 |
20.3 |
| CE-SI-6002-PT-2PTS |
Details |
PTFE |
PTFE |
15 mm |
32mm |
9mm |
1400 |
712.5 |
18.9 |
| CE-SI-6202-PT-2PTS |
Details |
PTFE |
PTFE |
15 mm |
35mm |
11mm |
1912.5 |
937.5 |
16.8 |
| CE-SI-6302-PT-2PTS |
Details |
PTFE |
PTFE |
15 mm |
42mm |
13mm |
2850 |
1362.5 |
14 |
| CE-SI-6703-PT-2PTS |
Details |
PTFE |
PTFE |
17mm |
23mm |
4mm |
249.75 |
164.25 |
7.7 |
| CE-SI-63803-PT-2PTS |
Details |
PTFE |
PTFE |
17mm |
26mm |
7mm |
557.5 |
365 |
20.3 |
| CE-SI-6803-PT-2PTS |
Details |
PTFE |
PTFE |
17mm |
26mm |
5mm |
557.5 |
365 |
20.3 |
| CE-SI-6903-PT-2PTS |
Details |
PTFE |
PTFE |
17mm |
30mm |
7mm |
1147.5 |
640 |
18.2 |
| CE-SI-6003-PT-2PTS |
Details |
PTFE |
PTFE |
17 mm |
35mm |
10mm |
1500 |
812.5 |
17.5 |
| CE-SI-6203-PT-2PTS |
Details |
PTFE |
PTFE |
17 mm |
40mm |
12mm |
2387.5 |
1200 |
14.7 |
| CE-SI-6303-PT-2PTS |
Details |
PTFE |
PTFE |
17 mm |
47mm |
14mm |
3400 |
1662.5 |
12.6 |
| CE-SI-6704-PT-2PTS |
Details |
PTFE |
PTFE |
20mm |
27mm |
4mm |
252.5 |
180.5 |
7 |
| CE-SI-63804-PT-2PTS |
Details |
PTFE |
PTFE |
20mm |
32mm |
10mm |
1005 |
615 |
17.5 |
| CE-SI-6804-PT-2PTS |
Details |
PTFE |
PTFE |
20mm |
32mm |
7mm |
1005 |
615 |
17.5 |
| CE-SI-6904-PT-2PTS |
Details |
PTFE |
PTFE |
20mm |
37mm |
9mm |
1595 |
920 |
15.4 |
| CE-SI-6004-PT-2PTS |
Details |
PTFE |
PTFE |
20 mm |
42mm |
12mm |
2350 |
1262.5 |
14.7 |
| CE-SI-6204-PT-2PTS |
Details |
PTFE |
PTFE |
20 mm |
47mm |
14mm |
3200 |
1662.5 |
11.9 |
| CE-SI-6304-PT-2PTS |
Details |
PTFE |
PTFE |
20 mm |
52mm |
15mm |
3975 |
1962.5 |
11.9 |
| CE-SI-6705-PT-2PTS |
Details |
PTFE |
PTFE |
25mm |
32mm |
4mm |
275 |
209.5 |
5.6 |
| CE-SI-63805-PT-2PTS |
Details |
PTFE |
PTFE |
25mm |
37mm |
10mm |
1075 |
735 |
14.7 |
| CE-SI-6805-PT-2PTS |
Details |
PTFE |
PTFE |
25mm |
37mm |
7mm |
1075 |
735 |
14.7 |
| CE-SI-6905-PT-2PTS |
Details |
PTFE |
PTFE |
25mm |
42mm |
9mm |
1752.5 |
1137.5 |
13.3 |
| CE-SI-6005-PT-2PTS |
Details |
PTFE |
PTFE |
25 mm |
47mm |
12mm |
2525 |
1462.5 |
12.6 |
| CE-SI-6205-PT-2PTS |
Details |
PTFE |
PTFE |
25 mm |
52mm |
15mm |
3500 |
1962.5 |
10.5 |
| CE-SI-6305-PT-2PTS |
Details |
PTFE |
PTFE |
25 mm |
62mm |
17mm |
5150 |
2825 |
9.1 |
| CE-SI-6706-PT-2PTS |
Details |
PTFE |
PTFE |
30mm |
37mm |
4mm |
285 |
236.75 |
4.9 |
| CE-SI-63806-PT-2PTS |
Details |
PTFE |
PTFE |
30mm |
42mm |
10mm |
1134.5 |
850.5 |
12.6 |
| CE-SI-6806-PT-2PTS |
Details |
PTFE |
PTFE |
30mm |
42mm |
7mm |
1112.5 |
860 |
12.6 |
| CE-SI-6906-PT-2PTS |
Details |
PTFE |
PTFE |
30mm |
47mm |
9mm |
1810 |
1252.5 |
11.9 |
| CE-SI-6006-PT-2PTS |
Details |
PTFE |
PTFE |
30 mm |
55mm |
13mm |
3300 |
2062.5 |
10.5 |
| CE-SI-6206-PT-2PTS |
Details |
PTFE |
PTFE |
30 mm |
62mm |
16mm |
4875 |
2825 |
9.1 |
| CE-SI-6306-PT-2PTS |
Details |
PTFE |
PTFE |
30 mm |
72mm |
19mm |
6675 |
3750 |
8.4 |
| CE-SI-6707-PT-2PTS |
Details |
PTFE |
PTFE |
35mm |
44mm |
5mm |
465 |
407.5 |
4.2 |
| CE-SI-6807-PT-2PTS |
Details |
PTFE |
PTFE |
35mm |
47mm |
7mm |
1185 |
955 |
11.2 |
| CE-SI-6907-PT-2PTS |
Details |
PTFE |
PTFE |
35mm |
55mm |
10mm |
2725 |
1937.5 |
9.8 |
| CE-SI-6007-PT-2PTS |
Details |
PTFE |
PTFE |
35 mm |
62mm |
14mm |
3975 |
2575 |
9.1 |
| CE-SI-6207-PT-2PTS |
Details |
PTFE |
PTFE |
35 mm |
72mm |
17mm |
6425 |
3850 |
7.7 |
| CE-SI-6307-PT-2PTS |
Details |
PTFE |
PTFE |
35 mm |
80mm |
21mm |
8350 |
4825 |
7 |
| CE-SI-6708-PT-2PTS |
Details |
PTFE |
PTFE |
40mm |
50mm |
6mm |
627.5 |
557.5 |
3.5 |
| CE-SI-6808-PT-2PTS |
Details |
PTFE |
PTFE |
40mm |
52mm |
7mm |
1232.5 |
1045 |
9.8 |
| CE-SI-6908-PT-2PTS |
Details |
PTFE |
PTFE |
40mm |
62mm |
12mm |
3425 |
2480 |
9.1 |
| CE-SI-6008-PT-2PTS |
Details |
PTFE |
PTFE |
40 mm |
68mm |
15mm |
4175 |
2875 |
8.4 |
| CE-SI-6208-PT-2PTS |
Details |
PTFE |
PTFE |
40 mm |
80mm |
18mm |
7275 |
4450 |
7 |
| CE-SI-6308-PT-2PTS |
Details |
PTFE |
PTFE |
40 mm |
90mm |
23mm |
10175 |
6000 |
6.3 |
| CE-SI-6709-PT-2PTS |
Details |
PTFE |
PTFE |
45mm |
55mm |
6mm |
642.5 |
600 |
3.22 |
| CE-SI-6809-PT-2PTS |
Details |
PTFE |
PTFE |
45mm |
58mm |
7mm |
1552.5 |
1345 |
9.1 |
| CE-SI-6909-PT-2PTS |
Details |
PTFE |
PTFE |
45mm |
68mm |
12mm |
3525 |
2725 |
7.7 |
| CE-SI-6009-PT-2PTS |
Details |
PTFE |
PTFE |
45 mm |
75mm |
16mm |
5250 |
3775 |
5.6 |
| CE-SI-6209-PT-2PTS |
Details |
PTFE |
PTFE |
45 mm |
85mm |
19mm |
8175 |
5075 |
6.44 |
| CE-SI-6309-PT-2PTS |
Details |
PTFE |
PTFE |
45 mm |
100mm |
25mm |
13250 |
8000 |
5.6 |
| CE-SI-6710-PT-2PTS |
Details |
PTFE |
PTFE |
50mm |
62mm |
6mm |
667.5 |
662.5 |
2.87 |
| CE-SI-6810-PT-2PTS |
Details |
PTFE |
PTFE |
50mm |
65mm |
7mm |
1542.5 |
1440 |
7.7 |
| CE-SI-6910-PT-2PTS |
Details |
PTFE |
PTFE |
50mm |
72mm |
12mm |
3625 |
2925 |
7.7 |
| CE-SI-6010-PT-2PTS |
Details |
PTFE |
PTFE |
50 mm |
80mm |
16mm |
5450 |
4150 |
6.93 |
| CE-SI-6210-PT-2PTS |
Details |
PTFE |
PTFE |
50 mm |
90mm |
20mm |
8775 |
5825 |
5.25 |
| CE-SI-6310-PT-2PTS |
Details |
PTFE |
PTFE |
50 mm |
110mm |
27mm |
15500 |
9575 |
5.25 |
| CE-SI-6811-PT-2PTS |
Details |
PTFE |
PTFE |
55mm |
72mm |
9mm |
2200 |
2020 |
7 |
| CE-SI-6911-PT-2PTS |
Details |
PTFE |
PTFE |
55mm |
80mm |
13mm |
4150 |
3525 |
6.72 |
| CE-SI-6011-PT-2PTS |
Details |
PTFE |
PTFE |
55 mm |
90mm |
18mm |
7075 |
5300 |
6.3 |
| CE-SI-6211-PT-2PTS |
Details |
PTFE |
PTFE |
55 mm |
100mm |
21mm |
10850 |
7350 |
5.25 |
| CE-SI-6311-PT-2PTS |
Details |
PTFE |
PTFE |
55 mm |
120mm |
29mm |
17900 |
11250 |
4.69 |
| CE-SI-6812-PT-2PTS |
Details |
PTFE |
PTFE |
60mm |
78mm |
10mm |
2875 |
2650 |
6.58 |
| CE-SI-6912-PT-2PTS |
Details |
PTFE |
PTFE |
60mm |
85mm |
13mm |
5050 |
4325 |
6.23 |
| CE-SI-6012-PT-2PTS |
Details |
PTFE |
PTFE |
60 mm |
95mm |
18mm |
7350 |
5800 |
5.95 |
| CE-SI-6212-PT-2PTS |
Details |
PTFE |
PTFE |
60 mm |
110mm |
22mm |
13100 |
9050 |
4.97 |
| CE-SI-6312-PT-2PTS |
Details |
PTFE |
PTFE |
60 mm |
130mm |
31mm |
20475 |
13050 |
4.41 |
| CE-SI-6813-PT-2PTS |
Details |
PTFE |
PTFE |
65mm |
85mm |
10mm |
2975 |
2875 |
6.02 |
| CE-SI-6913-PT-2PTS |
Details |
PTFE |
PTFE |
65mm |
90mm |
13mm |
4325 |
4000 |
5.81 |
| CE-SI-6013-PT-2PTS |
Details |
PTFE |
PTFE |
65 mm |
100mm |
18mm |
7625 |
6300 |
5.6 |
| CE-SI-6213-PT-2PTS |
Details |
PTFE |
PTFE |
65 mm |
120mm |
23mm |
14300 |
10025 |
4.41 |
| CE-SI-6313-PT-2PTS |
Details |
PTFE |
PTFE |
65 mm |
140mm |
33mm |
23175 |
14975 |
4.2 |
| CE-SI-6814-PT-2PTS |
Details |
PTFE |
PTFE |
70mm |
90mm |
10mm |
2900 |
2950 |
5.67 |
| CE-SI-6914-PT-2PTS |
Details |
PTFE |
PTFE |
70mm |
100mm |
16mm |
5925 |
5275 |
5.32 |
| CE-SI-6014-PT-2PTS |
Details |
PTFE |
PTFE |
70 mm |
110mm |
20mm |
9525 |
7725 |
4.97 |
| CE-SI-6214-PT-2PTS |
Details |
PTFE |
PTFE |
70 mm |
125mm |
24mm |
15550 |
11025 |
4.41 |
| CE-SI-6314-PT-2PTS |
Details |
PTFE |
PTFE |
70 mm |
150mm |
35mm |
26000 |
17050 |
3.71 |
| CE-SI-6815-PT-2PTS |
Details |
PTFE |
PTFE |
75mm |
95mm |
10mm |
3075 |
3200 |
5.32 |
| CE-SI-6915-PT-2PTS |
Details |
PTFE |
PTFE |
75mm |
105mm |
16mm |
6000 |
5650 |
4.97 |
| CE-SI-6015-PT-2PTS |
Details |
PTFE |
PTFE |
75 mm |
115mm |
20mm |
9900 |
8375 |
4.69 |
| CE-SI-6215-PT-2PTS |
Details |
PTFE |
PTFE |
75 mm |
130mm |
25mm |
16850 |
12075 |
3.92 |
| CE-SI-6315-PT-2PTS |
Details |
PTFE |
PTFE |
75 mm |
160mm |
37mm |
28250 |
19300 |
3.5 |
| CE-SI-6816-PT-2PTS |
Details |
PTFE |
PTFE |
80mm |
100mm |
10mm |
3150 |
3325 |
4.97 |
| CE-SI-6916-PT-2PTS |
Details |
PTFE |
PTFE |
80mm |
110mm |
16mm |
6200 |
5975 |
4.69 |
| CE-SI-6016-PT-2PTS |
Details |
PTFE |
PTFE |
80 mm |
125mm |
22mm |
11900 |
9950 |
4.41 |
| CE-SI-6216-PT-2PTS |
Details |
PTFE |
PTFE |
80 mm |
140mm |
26mm |
18175 |
13250 |
3.71 |
| CE-SI-6316-PT-2PTS |
Details |
PTFE |
PTFE |
80 mm |
170mm |
39mm |
30750 |
21675 |
3.36 |
| CE-SI-6817-PT-2PTS |
Details |
PTFE |
PTFE |
85mm |
110mm |
13mm |
4675 |
4750 |
4.62 |
| CE-SI-6917-PT-2PTS |
Details |
PTFE |
PTFE |
85mm |
120mm |
18mm |
7975 |
7400 |
4.34 |
| CE-SI-6017-PT-2PTS |
Details |
PTFE |
PTFE |
85 mm |
130mm |
22mm |
12375 |
10775 |
4.2 |
| CE-SI-6217-PT-2PTS |
Details |
PTFE |
PTFE |
85 mm |
150mm |
28mm |
21000 |
15475 |
3.5 |
| CE-SI-6317-PT-2PTS |
Details |
PTFE |
PTFE |
85 mm |
180mm |
41mm |
33250 |
24200 |
3.15 |
| CE-SI-6818-PT-2PTS |
Details |
PTFE |
PTFE |
90mm |
115mm |
13mm |
4575 |
4875 |
4.34 |
| CE-SI-6918-PT-2PTS |
Details |
PTFE |
PTFE |
90mm |
125mm |
18mm |
8200 |
7900 |
4.2 |
| CE-SI-6018-PT-2PTS |
Details |
PTFE |
PTFE |
90 mm |
140mm |
24mm |
14550 |
12425 |
3.92 |
| CE-SI-6218-PT-2PTS |
Details |
PTFE |
PTFE |
90 mm |
160mm |
30mm |
24025 |
17875 |
3.36 |
| CE-SI-6318-PT-2PTS |
Details |
PTFE |
PTFE |
90 mm |
190mm |
43mm |
35750 |
26750 |
3.01 |
| CE-SI-6819-PT-2PTS |
Details |
PTFE |
PTFE |
95mm |
120mm |
13mm |
4700 |
5075 |
4.13 |
| CE-SI-6019-PT-2PTS |
Details |
PTFE |
PTFE |
95 mm |
145mm |
24mm |
15100 |
13475 |
3.71 |
| CE-SI-6219-PT-2PTS |
Details |
PTFE |
PTFE |
95 mm |
170mm |
32mm |
27250 |
20475 |
3.15 |
| CE-SI-6319-PT-2PTS |
Details |
PTFE |
PTFE |
95 mm |
200mm |
45mm |
38250 |
29750 |
3.71 |
| CE-SI-6020-PT-2PTS |
Details |
PTFE |
PTFE |
100 mm |
150mm |
24mm |
15050 |
13550 |
3.71 |
| CE-SI-6220-PT-2PTS |
Details |
PTFE |
PTFE |
100 mm |
180mm |
34mm |
30500 |
23275 |
3.01 |
| CE-SI-6320-PT-2PTS |
Details |
PTFE |
PTFE |
100 mm |
215mm |
47mm |
43250 |
35250 |
2.38 |
| CE-SI-6021-PT-2PTS |
Details |
PTFE |
PTFE |
105 mm |
160mm |
26mm |
18075 |
16450 |
3.36 |
| CE-SI-6221-PT-2PTS |
Details |
PTFE |
PTFE |
105 mm |
190mm |
36mm |
33250 |
26250 |
2.8 |
| CE-SI-6321-PT-2PTS |
Details |
PTFE |
PTFE |
105 mm |
225mm |
49mm |
46000 |
38250 |
2.24 |
|
| |
| BEARING LIST & BEARING DETAILS |
PTFE cage, PEEK SEALED type
Silicon Nitride Si3N4 Ceramic Ball Bearings for shaft sizes from 2.381 mm to 105 mm |
 |
| CLI Bearing No. |
Details |
Cage |
Seal |
Bearing Dimension |
Dynamic |
Static |
Max |
| Bore Dia |
Outer Dia |
Width |
radial |
radial |
Speed |
| Type |
Type |
(d) |
(D) |
(B) |
(Newtons) |
(Newtons) |
(X1000 RPM) |
| CE-SI-R133-PT-2PKS |
Details |
PTFE |
PEEK |
0.0938" | 2.381 mm |
0.1875" | 4.763 mm |
0.0937" | 2.38 mm |
31.145 |
11.1225 |
66.5 |
| CE-SI-R1-5-PT-2PKS |
Details |
PTFE |
PEEK |
0.0938" | 2.381 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
117.905 |
35.5925 |
49.7 |
| CE-SI-R144-PT-2PKS |
Details |
PTFE |
PEEK |
0.125" | 3.175 mm |
0.25" | 6.35 mm |
0.1094" | 2.779 mm |
60.065 |
18.91 |
56 |
| CE-SI-R2-5-PT-2PKS |
Details |
PTFE |
PEEK |
0.125" | 3.175 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
119.015 |
35.5925 |
46.9 |
| CE-SI-R2-6-PT-2PKS |
Details |
PTFE |
PEEK |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1406" | 3.571 mm |
135.7 |
45.605 |
44.1 |
| CE-SI-R2-PT-2PKS |
Details |
PTFE |
PEEK |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1562" | 3.967 mm |
134.5875 |
43.38 |
46.9 |
| CE-SI-R2A-PT-2PKS |
Details |
PTFE |
PEEK |
0.125" | 3.175 mm |
0.5" | 12.7 mm |
0.1719" | 4.366 mm |
135.7 |
45.605 |
44.1 |
| CE-SI-R155-PT-2PKS |
Details |
PTFE |
PEEK |
0.1563" | 3.969 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
76.7475 |
30.0325 |
44.1 |
| CE-SI-R156-PT-2PKS |
Details |
PTFE |
PEEK |
0.1875" | 4.763 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
76.7475 |
30.0325 |
44.1 |
| CE-SI-R166-PT-2PKS |
Details |
PTFE |
PEEK |
0.1875" | 4.763 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
151.2725 |
54.5025 |
42 |
| CE-SI-R3-PT-2PKS |
Details |
PTFE |
PEEK |
0.1875" | 4.763 mm |
0.5" | 12.7 mm |
0.196" | 4.978 mm |
276.9625 |
97.8825 |
37.1 |
| CE-SI-R3A-PT-2PKS |
Details |
PTFE |
PEEK |
0.1875" | 4.763 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
314.78 |
124.5775 |
31.5 |
| CE-SI-1601-PT-2PKS |
Details |
PTFE |
PEEK |
0.1875" | 4.763 mm |
0.6875" | 17.463 mm |
0.3125" | 7.938 mm |
150 |
55 |
4.2 |
| CE-SI-R168-PT-2PKS |
Details |
PTFE |
PEEK |
0.25" | 6.35 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
78.9725 |
34.4825 |
39.2 |
| CE-SI-R188-PT-2PKS |
Details |
PTFE |
PEEK |
0.25" | 6.35 mm |
0.5" | 12.7 mm |
0.1875" | 4.763 mm |
230.245 |
88.985 |
35 |
| CE-SI-R4-PT-2PKS |
Details |
PTFE |
PEEK |
0.25" | 6.35 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
314.78 |
124.5775 |
31.5 |
| CE-SI-1602-PT-2PKS |
Details |
PTFE |
PEEK |
0.25" | 6.35 mm |
0.6875" | 17.463 mm |
0.3125" | 7.938 mm |
158.75 |
60 |
4.2 |
| CE-SI-R4A-PT-2PKS |
Details |
PTFE |
PEEK |
0.25" | 6.35 mm |
0.75" | 19.05 mm |
0.2812" | 7.142 mm |
496.085 |
179.08 |
30.1 |
| CE-SI-R1810-PT-2PKS |
Details |
PTFE |
PEEK |
0.3125" | 7.938 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
115.68 |
55.615 |
33.6 |
| CE-SI-1603-PT-2PKS |
Details |
PTFE |
PEEK |
0.3125" | 7.938 mm |
0.875" | 22.225 mm |
0.3438" | 8.733 mm |
186.25 |
77.5 |
4.2 |
| CE-SI-1605-PT-2PKS |
Details |
PTFE |
PEEK |
0.3125" | 7.938 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
186.25 |
78.75 |
4.2 |
| CE-SI-1604-PT-2PKS |
Details |
PTFE |
PEEK |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.3438" | 8.733 mm |
187.5 |
80 |
4.2 |
| CE-SI-R6-PT-2PKS |
Details |
PTFE |
PEEK |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
708.535 |
284.75 |
26.6 |
| CE-SI-1606-PT-2PKS |
Details |
PTFE |
PEEK |
0.375" | 9.525 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
187.5 |
80 |
4.2 |
| CE-SI-1614-PT-2PKS |
Details |
PTFE |
PEEK |
0.375" | 9.525 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
285 |
130 |
4.2 |
| CE-SI-1607-PT-2PKS |
Details |
PTFE |
PEEK |
0.4375" | 11.113 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
253.75 |
107.5 |
4.2 |
| CE-SI-1615-PT-2PKS |
Details |
PTFE |
PEEK |
0.4375" | 11.113 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
286.25 |
132.5 |
4.2 |
| CE-SI-1620-PT-2PKS |
Details |
PTFE |
PEEK |
0.4375" | 11.113 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
422.5 |
200 |
4.2 |
| CE-SI-1616-PT-2PKS |
Details |
PTFE |
PEEK |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
287.5 |
112.5 |
4.2 |
| CE-SI-R8-PT-2PKS |
Details |
PTFE |
PEEK |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.3125" | 7.938 mm |
287.25 |
127.75 |
22.4 |
| CE-SI-1621-PT-2PKS |
Details |
PTFE |
PEEK |
0.5" | 12.7 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
425 |
203.75 |
4.2 |
| CE-SI-1622-PT-2PKS |
Details |
PTFE |
PEEK |
0.5625" | 14.288 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
427.5 |
206.25 |
4.2 |
| CE-SI-1623-PT-2PKS |
Details |
PTFE |
PEEK |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
430 |
208.75 |
4.2 |
| CE-SI-R10-PT-2PKS |
Details |
PTFE |
PEEK |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.3438" | 8.733 mm |
396.25 |
183.75 |
17.5 |
| CE-SI-1628-PT-2PKS |
Details |
PTFE |
PEEK |
0.625" | 15.875 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
525 |
273.75 |
4.2 |
| CE-SI-1633-PT-2PKS |
Details |
PTFE |
PEEK |
0.625" | 15.875 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
525 |
280 |
4.2 |
| CE-SI-1630-PT-2PKS |
Details |
PTFE |
PEEK |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
527.5 |
278.75 |
4.2 |
| CE-SI-R12-PT-2PKS |
Details |
PTFE |
PEEK |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.4375" | 11.113 mm |
619.25 |
294.25 |
14.7 |
| CE-SI-1635-PT-2PKS |
Details |
PTFE |
PEEK |
0.75" | 19.05 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
528.75 |
285 |
4.2 |
| CE-SI-1638-PT-2PKS |
Details |
PTFE |
PEEK |
0.75" | 19.05 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
567.5 |
322.5 |
4.2 |
| CE-SI-R14-PT-2PKS |
Details |
PTFE |
PEEK |
0.875" | 22.225 mm |
1.875" | 47.625 mm |
0.5" | 12.7 mm |
664.5 |
326.75 |
8.4 |
| CE-SI-1640-PT-2PKS |
Details |
PTFE |
PEEK |
0.875" | 22.225 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
566.25 |
328.75 |
4.2 |
| CE-SI-1641-PT-2PKS |
Details |
PTFE |
PEEK |
1" | 25.4 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
565 |
336.25 |
4.2 |
| CE-SI-R16-PT-2PKS |
Details |
PTFE |
PEEK |
1" | 25.4 mm |
2" | 50.8 mm |
0.5" | 12.7 mm |
663 |
326.75 |
7.7 |
| CE-SI-R18-PT-2PKS |
Details |
PTFE |
PEEK |
1.125" | 28.575 mm |
2.125" | 53.975 mm |
0.5" | 12.7 mm |
873 |
454.25 |
7 |
| CE-SI-1652-PT-2PKS |
Details |
PTFE |
PEEK |
1.125" | 28.575 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
900.75 |
570 |
4.2 |
| CE-SI-R20-PT-2PKS |
Details |
PTFE |
PEEK |
1.25" | 31.75 mm |
2.25" | 57.15 mm |
0.5" | 12.7 mm |
923.75 |
496.5 |
6.3 |
| CE-SI-1654-PT-2PKS |
Details |
PTFE |
PEEK |
1.25" | 31.75 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
900 |
575 |
4.2 |
| CE-SI-1657-PT-2PKS |
Details |
PTFE |
PEEK |
1.25" | 31.75 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
1100 |
625 |
4.2 |
| CE-SI-1658-PT-2PKS |
Details |
PTFE |
PEEK |
1.3125" | 33.338 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
1092.5 |
650 |
4.2 |
| CE-SI-R22-PT-2PKS |
Details |
PTFE |
PEEK |
1.375" | 34.925 mm |
2.5" | 63.5 mm |
0.5625" | 14.288 mm |
1016.75 |
561.75 |
5.6 |
| CE-SI-R24-PT-2PKS |
Details |
PTFE |
PEEK |
1.5" | 38.1 mm |
2.625" | 66.675 mm |
0.5625" | 14.288 mm |
1106.5 |
611.5 |
4.2 |
| CE-SI-682-PT-2PKS |
Details |
PTFE |
PEEK |
2mm |
5mm |
2.3mm |
36 |
10 |
70 |
| CE-SI-MR52-PT-2PKS |
Details |
PTFE |
PEEK |
2 mm |
5mm |
2.5mm |
36 |
10 |
70 |
| CE-SI-692-PT-2PKS |
Details |
PTFE |
PEEK |
2mm |
6mm |
3mm |
70.25 |
19.75 |
63 |
| CE-SI-MR62-PT-2PKS |
Details |
PTFE |
PEEK |
2mm |
6mm |
2.5mm |
70.25 |
19.75 |
63 |
| CE-SI-602-PT-2PKS |
Details |
PTFE |
PEEK |
2 mm |
7mm |
3.5mm |
82 |
25.75 |
49.7 |
| CE-SI-MR72-PT-2PKS |
Details |
PTFE |
PEEK |
2 mm |
7mm |
3mm |
82 |
25.75 |
52.5 |
| CE-SI-682x-PT-2PKS |
Details |
PTFE |
PEEK |
2.5mm |
6mm |
2.6mm |
44.5 |
14.75 |
56 |
| CE-SI-692x-PT-2PKS |
Details |
PTFE |
PEEK |
2.5mm |
7mm |
3.5mm |
82 |
25.75 |
52.5 |
| CE-SI-602x-PT-2PKS |
Details |
PTFE |
PEEK |
2.5mm |
8mm |
4mm |
117.25 |
35.5 |
49.7 |
| CE-SI-MR82x-PT-2PKS |
Details |
PTFE |
PEEK |
2.5mm |
8mm |
2.5mm |
118.5 |
36 |
46.9 |
| CE-SI-MR63-PT-2PKS |
Details |
PTFE |
PEEK |
3mm |
6mm |
2.5mm |
44.5 |
14.75 |
56 |
| CE-SI-683-PT-2PKS |
Details |
PTFE |
PEEK |
3mm |
7mm |
3mm |
66 |
22.5 |
52.5 |
| CE-SI-693-PT-2PKS |
Details |
PTFE |
PEEK |
3mm |
8mm |
4mm |
118.5 |
36 |
46.9 |
| CE-SI-MR83-PT-2PKS |
Details |
PTFE |
PEEK |
3 mm |
8mm |
3mm |
84 |
28.25 |
46.9 |
| CE-SI-603-PT-2PKS |
Details |
PTFE |
PEEK |
3mm |
9mm |
5mm |
57.5 |
37.75 |
46.9 |
| CE-SI-MR93-PT-2PKS |
Details |
PTFE |
PEEK |
3mm |
9mm |
4mm |
121.25 |
37.75 |
46.9 |
| CE-SI-623-PT-2PKS |
Details |
PTFE |
PEEK |
3 mm |
10mm |
4mm |
134 |
43.75 |
42 |
| CE-SI-633-PT-2PKS |
Details |
PTFE |
PEEK |
3 mm |
13mm |
5mm |
276.5 |
97.5 |
33.6 |
| CE-SI-MR74-PT-2PKS |
Details |
PTFE |
PEEK |
4mm |
7mm |
2.5mm |
54.25 |
21.5 |
46.9 |
| CE-SI-MR84-PT-2PKS |
Details |
PTFE |
PEEK |
4 mm |
8mm |
3mm |
84 |
28.25 |
46.9 |
| CE-SI-684-PT-2PKS |
Details |
PTFE |
PEEK |
4mm |
9mm |
4mm |
136.25 |
45.5 |
44.1 |
| CE-SI-MR104-PT-2PKS |
Details |
PTFE |
PEEK |
4 mm |
10mm |
4mm |
151 |
54.5 |
39.2 |
| CE-SI-694-PT-2PKS |
Details |
PTFE |
PEEK |
4mm |
11mm |
4mm |
203.5 |
70 |
39.2 |
| CE-SI-604-PT-2PKS |
Details |
PTFE |
PEEK |
4mm |
12mm |
4mm |
203.5 |
70 |
39.2 |
| CE-SI-624-PT-2PKS |
Details |
PTFE |
PEEK |
4 mm |
13mm |
5mm |
276.5 |
97.5 |
33.6 |
| CE-SI-634-PT-2PKS |
Details |
PTFE |
PEEK |
4 mm |
16mm |
5mm |
284.75 |
104.5 |
30.1 |
| CE-SI-MR85-PT-2PKS |
Details |
PTFE |
PEEK |
5mm |
8mm |
2.5mm |
46.25 |
18 |
44.1 |
| CE-SI-MR95-PT-2PKS |
Details |
PTFE |
PEEK |
5mm |
9mm |
3mm |
91.5 |
33.75 |
42 |
| CE-SI-MR105-PT-2PKS |
Details |
PTFE |
PEEK |
5mm |
10mm |
4mm |
91.5 |
33.75 |
42 |
| CE-SI-685-PT-2PKS |
Details |
PTFE |
PEEK |
5mm |
11mm |
5mm |
152.25 |
56.5 |
37.1 |
| CE-SI-MR115-PT-2PKS |
Details |
PTFE |
PEEK |
5mm |
11mm |
4mm |
152.25 |
56.5 |
44.1 |
| CE-SI-695-PT-2PKS |
Details |
PTFE |
PEEK |
5mm |
13mm |
4mm |
229 |
86.5 |
35 |
| CE-SI-605-PT-2PKS |
Details |
PTFE |
PEEK |
5mm |
14mm |
5mm |
282.5 |
101.5 |
35 |
| CE-SI-625-PT-2PKS |
Details |
PTFE |
PEEK |
5 mm |
16mm |
5mm |
367.5 |
135 |
30.1 |
| CE-SI-635-PT-2PKS |
Details |
PTFE |
PEEK |
5 mm |
19mm |
6mm |
496.5 |
179.25 |
28 |
| CE-SI-MR106-PT-2PKS |
Details |
PTFE |
PEEK |
6mm |
10mm |
3mm |
105.5 |
43.5 |
37.1 |
| CE-SI-MR126-PT-2PKS |
Details |
PTFE |
PEEK |
6mm |
12mm |
4mm |
152.25 |
59 |
35 |
| CE-SI-686-PT-2PKS |
Details |
PTFE |
PEEK |
6mm |
13mm |
5mm |
230 |
88.5 |
35 |
| CE-SI-696-PT-2PKS |
Details |
PTFE |
PEEK |
6mm |
15mm |
5mm |
284.75 |
104.5 |
31.5 |
| CE-SI-606-PT-2PKS |
Details |
PTFE |
PEEK |
6 mm |
17mm |
6mm |
481 |
169.25 |
31.5 |
| CE-SI-626-PT-2PKS |
Details |
PTFE |
PEEK |
6mm |
19mm |
6mm |
496.5 |
179.25 |
28 |
| CE-SI-636-PT-2PKS |
Details |
PTFE |
PEEK |
6mm |
22mm |
7mm |
708.25 |
284.5 |
25.2 |
| CE-SI-MR117-PT-2PKS |
Details |
PTFE |
PEEK |
7 mm |
11mm |
3mm |
96.75 |
40.5 |
35 |
| CE-SI-MR137-PT-2PKS |
Details |
PTFE |
PEEK |
7mm |
13mm |
4mm |
115 |
55.25 |
33.6 |
| CE-SI-687-PT-2PKS |
Details |
PTFE |
PEEK |
7 mm |
14mm |
5mm |
249.25 |
102.5 |
35 |
| CE-SI-697-PT-2PKS |
Details |
PTFE |
PEEK |
7mm |
17mm |
5mm |
341 |
143.75 |
30.1 |
| CE-SI-607-PT-2PKS |
Details |
PTFE |
PEEK |
7 mm |
19mm |
6mm |
496.5 |
179.25 |
30.1 |
| CE-SI-627-PT-2PKS |
Details |
PTFE |
PEEK |
7 mm |
22mm |
7mm |
698.5 |
275.75 |
25.2 |
| CE-SI-637-PT-2PKS |
Details |
PTFE |
PEEK |
7 mm |
26mm |
9mm |
969.75 |
396.5 |
23.8 |
| CE-SI-MR128-PT-2PKS |
Details |
PTFE |
PEEK |
8mm |
12mm |
3.5mm |
115.5 |
54.75 |
33.6 |
| CE-SI-MR148-PT-2PKS |
Details |
PTFE |
PEEK |
8mm |
14mm |
4mm |
173.75 |
77.25 |
31.5 |
| CE-SI-688-PT-2PKS |
Details |
PTFE |
PEEK |
8 mm |
16mm |
5mm |
266 |
118.5 |
30.1 |
| CE-SI-698-PT-2PKS |
Details |
PTFE |
PEEK |
8mm |
19mm |
6mm |
475.5 |
183.5 |
30.1 |
| CE-SI-608-PT-2PKS |
Details |
PTFE |
PEEK |
8 mm |
22mm |
7mm |
699.75 |
275.75 |
28 |
| CE-SI-628-PT-2PKS |
Details |
PTFE |
PEEK |
8mm |
24mm |
8mm |
708.25 |
284.5 |
23.8 |
| CE-SI-638-PT-2PKS |
Details |
PTFE |
PEEK |
8mm |
28mm |
9mm |
969.75 |
396.5 |
23.8 |
| CE-SI-679-PT-2PKS |
Details |
PTFE |
PEEK |
9mm |
14mm |
4.5mm |
195.25 |
93.5 |
29.4 |
| CE-SI-689-PT-2PKS |
Details |
PTFE |
PEEK |
9mm |
17mm |
5mm |
282 |
133.5 |
30.1 |
| CE-SI-699-PT-2PKS |
Details |
PTFE |
PEEK |
9mm |
20mm |
6mm |
524.25 |
216.25 |
28 |
| CE-SI-609-PT-2PKS |
Details |
PTFE |
PEEK |
9mm |
24mm |
7mm |
713.25 |
288.75 |
26.6 |
| CE-SI-629-PT-2PKS |
Details |
PTFE |
PEEK |
9 mm |
26mm |
8mm |
969.75 |
396.5 |
23.8 |
| CE-SI-639-PT-2PKS |
Details |
PTFE |
PEEK |
9mm |
30mm |
10mm |
990 |
416 |
21 |
| CE-SI-6700-PT-2PKS |
Details |
PTFE |
PEEK |
10mm |
15mm |
4mm |
214.25 |
108.75 |
11.9 |
| CE-SI-63800-PT-2PKS |
Details |
PTFE |
PEEK |
10mm |
19mm |
7mm |
430 |
210 |
28 |
| CE-SI-6800-PT-2PKS |
Details |
PTFE |
PEEK |
10mm |
19mm |
5mm |
430 |
210 |
28 |
| CE-SI-6900-PT-2PKS |
Details |
PTFE |
PEEK |
10mm |
22mm |
6mm |
675 |
317.5 |
25.9 |
| CE-SI-6000-PT-2PKS |
Details |
PTFE |
PEEK |
10 mm |
26mm |
8mm |
1137.5 |
487.5 |
25.2 |
| CE-SI-6200-PT-2PKS |
Details |
PTFE |
PEEK |
10 mm |
30mm |
9mm |
1275 |
600 |
20.3 |
| CE-SI-6300-PT-2PKS |
Details |
PTFE |
PEEK |
10 mm |
35mm |
11mm |
2025 |
862.5 |
18.9 |
| CE-SI-6701-PT-2PKS |
Details |
PTFE |
PEEK |
12mm |
18mm |
4mm |
232 |
133 |
10.5 |
| CE-SI-63801-PT-2PKS |
Details |
PTFE |
PEEK |
12mm |
21mm |
7mm |
480 |
260 |
25.2 |
| CE-SI-6801-PT-2PKS |
Details |
PTFE |
PEEK |
12mm |
21mm |
5mm |
480 |
260 |
25.2 |
| CE-SI-6901-PT-2PKS |
Details |
PTFE |
PEEK |
12mm |
24mm |
6mm |
722.5 |
365 |
23.1 |
| CE-SI-6001-PT-2PKS |
Details |
PTFE |
PEEK |
12 mm |
28mm |
8mm |
1275 |
600 |
22.4 |
| CE-SI-6201-PT-2PKS |
Details |
PTFE |
PEEK |
12 mm |
32mm |
10mm |
1700 |
762.5 |
18.9 |
| CE-SI-6301-PT-2PKS |
Details |
PTFE |
PEEK |
12 mm |
37mm |
12mm |
2425 |
1050 |
17.5 |
| CE-SI-6702-PT-2PKS |
Details |
PTFE |
PEEK |
15mm |
21mm |
4mm |
234.25 |
145.25 |
9.1 |
| CE-SI-63802-PT-2PKS |
Details |
PTFE |
PEEK |
15mm |
24mm |
7mm |
517.5 |
315 |
21.7 |
| CE-SI-6802-PT-2PKS |
Details |
PTFE |
PEEK |
15mm |
24mm |
5mm |
517.5 |
315 |
21.7 |
| CE-SI-6902-PT-2PKS |
Details |
PTFE |
PEEK |
15mm |
28mm |
7mm |
1082.5 |
562.5 |
20.3 |
| CE-SI-6002-PT-2PKS |
Details |
PTFE |
PEEK |
15 mm |
32mm |
9mm |
1400 |
712.5 |
18.9 |
| CE-SI-6202-PT-2PKS |
Details |
PTFE |
PEEK |
15 mm |
35mm |
11mm |
1912.5 |
937.5 |
16.8 |
| CE-SI-6302-PT-2PKS |
Details |
PTFE |
PEEK |
15 mm |
42mm |
13mm |
2850 |
1362.5 |
14 |
| CE-SI-6703-PT-2PKS |
Details |
PTFE |
PEEK |
17mm |
23mm |
4mm |
249.75 |
164.25 |
7.7 |
| CE-SI-63803-PT-2PKS |
Details |
PTFE |
PEEK |
17mm |
26mm |
7mm |
557.5 |
365 |
20.3 |
| CE-SI-6803-PT-2PKS |
Details |
PTFE |
PEEK |
17mm |
26mm |
5mm |
557.5 |
365 |
20.3 |
| CE-SI-6903-PT-2PKS |
Details |
PTFE |
PEEK |
17mm |
30mm |
7mm |
1147.5 |
640 |
18.2 |
| CE-SI-6003-PT-2PKS |
Details |
PTFE |
PEEK |
17 mm |
35mm |
10mm |
1500 |
812.5 |
17.5 |
| CE-SI-6203-PT-2PKS |
Details |
PTFE |
PEEK |
17 mm |
40mm |
12mm |
2387.5 |
1200 |
14.7 |
| CE-SI-6303-PT-2PKS |
Details |
PTFE |
PEEK |
17 mm |
47mm |
14mm |
3400 |
1662.5 |
12.6 |
| CE-SI-6704-PT-2PKS |
Details |
PTFE |
PEEK |
20mm |
27mm |
4mm |
252.5 |
180.5 |
7 |
| CE-SI-63804-PT-2PKS |
Details |
PTFE |
PEEK |
20mm |
32mm |
10mm |
1005 |
615 |
17.5 |
| CE-SI-6804-PT-2PKS |
Details |
PTFE |
PEEK |
20mm |
32mm |
7mm |
1005 |
615 |
17.5 |
| CE-SI-6904-PT-2PKS |
Details |
PTFE |
PEEK |
20mm |
37mm |
9mm |
1595 |
920 |
15.4 |
| CE-SI-6004-PT-2PKS |
Details |
PTFE |
PEEK |
20 mm |
42mm |
12mm |
2350 |
1262.5 |
14.7 |
| CE-SI-6204-PT-2PKS |
Details |
PTFE |
PEEK |
20 mm |
47mm |
14mm |
3200 |
1662.5 |
11.9 |
| CE-SI-6304-PT-2PKS |
Details |
PTFE |
PEEK |
20 mm |
52mm |
15mm |
3975 |
1962.5 |
11.9 |
| CE-SI-6705-PT-2PKS |
Details |
PTFE |
PEEK |
25mm |
32mm |
4mm |
275 |
209.5 |
5.6 |
| CE-SI-63805-PT-2PKS |
Details |
PTFE |
PEEK |
25mm |
37mm |
10mm |
1075 |
735 |
14.7 |
| CE-SI-6805-PT-2PKS |
Details |
PTFE |
PEEK |
25mm |
37mm |
7mm |
1075 |
735 |
14.7 |
| CE-SI-6905-PT-2PKS |
Details |
PTFE |
PEEK |
25mm |
42mm |
9mm |
1752.5 |
1137.5 |
13.3 |
| CE-SI-6005-PT-2PKS |
Details |
PTFE |
PEEK |
25 mm |
47mm |
12mm |
2525 |
1462.5 |
12.6 |
| CE-SI-6205-PT-2PKS |
Details |
PTFE |
PEEK |
25 mm |
52mm |
15mm |
3500 |
1962.5 |
10.5 |
| CE-SI-6305-PT-2PKS |
Details |
PTFE |
PEEK |
25 mm |
62mm |
17mm |
5150 |
2825 |
9.1 |
| CE-SI-6706-PT-2PKS |
Details |
PTFE |
PEEK |
30mm |
37mm |
4mm |
285 |
236.75 |
4.9 |
| CE-SI-63806-PT-2PKS |
Details |
PTFE |
PEEK |
30mm |
42mm |
10mm |
1134.5 |
850.5 |
12.6 |
| CE-SI-6806-PT-2PKS |
Details |
PTFE |
PEEK |
30mm |
42mm |
7mm |
1112.5 |
860 |
12.6 |
| CE-SI-6906-PT-2PKS |
Details |
PTFE |
PEEK |
30mm |
47mm |
9mm |
1810 |
1252.5 |
11.9 |
| CE-SI-6006-PT-2PKS |
Details |
PTFE |
PEEK |
30 mm |
55mm |
13mm |
3300 |
2062.5 |
10.5 |
| CE-SI-6206-PT-2PKS |
Details |
PTFE |
PEEK |
30 mm |
62mm |
16mm |
4875 |
2825 |
9.1 |
| CE-SI-6306-PT-2PKS |
Details |
PTFE |
PEEK |
30 mm |
72mm |
19mm |
6675 |
3750 |
8.4 |
| CE-SI-6707-PT-2PKS |
Details |
PTFE |
PEEK |
35mm |
44mm |
5mm |
465 |
407.5 |
4.2 |
| CE-SI-6807-PT-2PKS |
Details |
PTFE |
PEEK |
35mm |
47mm |
7mm |
1185 |
955 |
11.2 |
| CE-SI-6907-PT-2PKS |
Details |
PTFE |
PEEK |
35mm |
55mm |
10mm |
2725 |
1937.5 |
9.8 |
| CE-SI-6007-PT-2PKS |
Details |
PTFE |
PEEK |
35 mm |
62mm |
14mm |
3975 |
2575 |
9.1 |
| CE-SI-6207-PT-2PKS |
Details |
PTFE |
PEEK |
35 mm |
72mm |
17mm |
6425 |
3850 |
7.7 |
| CE-SI-6307-PT-2PKS |
Details |
PTFE |
PEEK |
35 mm |
80mm |
21mm |
8350 |
4825 |
7 |
| CE-SI-6708-PT-2PKS |
Details |
PTFE |
PEEK |
40mm |
50mm |
6mm |
627.5 |
557.5 |
3.5 |
| CE-SI-6808-PT-2PKS |
Details |
PTFE |
PEEK |
40mm |
52mm |
7mm |
1232.5 |
1045 |
9.8 |
| CE-SI-6908-PT-2PKS |
Details |
PTFE |
PEEK |
40mm |
62mm |
12mm |
3425 |
2480 |
9.1 |
| CE-SI-6008-PT-2PKS |
Details |
PTFE |
PEEK |
40 mm |
68mm |
15mm |
4175 |
2875 |
8.4 |
| CE-SI-6208-PT-2PKS |
Details |
PTFE |
PEEK |
40 mm |
80mm |
18mm |
7275 |
4450 |
7 |
| CE-SI-6308-PT-2PKS |
Details |
PTFE |
PEEK |
40 mm |
90mm |
23mm |
10175 |
6000 |
6.3 |
| CE-SI-6709-PT-2PKS |
Details |
PTFE |
PEEK |
45mm |
55mm |
6mm |
642.5 |
600 |
3.22 |
| CE-SI-6809-PT-2PKS |
Details |
PTFE |
PEEK |
45mm |
58mm |
7mm |
1552.5 |
1345 |
9.1 |
| CE-SI-6909-PT-2PKS |
Details |
PTFE |
PEEK |
45mm |
68mm |
12mm |
3525 |
2725 |
7.7 |
| CE-SI-6009-PT-2PKS |
Details |
PTFE |
PEEK |
45 mm |
75mm |
16mm |
5250 |
3775 |
5.6 |
| CE-SI-6209-PT-2PKS |
Details |
PTFE |
PEEK |
45 mm |
85mm |
19mm |
8175 |
5075 |
6.44 |
| CE-SI-6309-PT-2PKS |
Details |
PTFE |
PEEK |
45 mm |
100mm |
25mm |
13250 |
8000 |
5.6 |
| CE-SI-6710-PT-2PKS |
Details |
PTFE |
PEEK |
50mm |
62mm |
6mm |
667.5 |
662.5 |
2.87 |
| CE-SI-6810-PT-2PKS |
Details |
PTFE |
PEEK |
50mm |
65mm |
7mm |
1542.5 |
1440 |
7.7 |
| CE-SI-6910-PT-2PKS |
Details |
PTFE |
PEEK |
50mm |
72mm |
12mm |
3625 |
2925 |
7.7 |
| CE-SI-6010-PT-2PKS |
Details |
PTFE |
PEEK |
50 mm |
80mm |
16mm |
5450 |
4150 |
6.93 |
| CE-SI-6210-PT-2PKS |
Details |
PTFE |
PEEK |
50 mm |
90mm |
20mm |
8775 |
5825 |
5.25 |
| CE-SI-6310-PT-2PKS |
Details |
PTFE |
PEEK |
50 mm |
110mm |
27mm |
15500 |
9575 |
5.25 |
| CE-SI-6811-PT-2PKS |
Details |
PTFE |
PEEK |
55mm |
72mm |
9mm |
2200 |
2020 |
7 |
| CE-SI-6911-PT-2PKS |
Details |
PTFE |
PEEK |
55mm |
80mm |
13mm |
4150 |
3525 |
6.72 |
| CE-SI-6011-PT-2PKS |
Details |
PTFE |
PEEK |
55 mm |
90mm |
18mm |
7075 |
5300 |
6.3 |
| CE-SI-6211-PT-2PKS |
Details |
PTFE |
PEEK |
55 mm |
100mm |
21mm |
10850 |
7350 |
5.25 |
| CE-SI-6311-PT-2PKS |
Details |
PTFE |
PEEK |
55 mm |
120mm |
29mm |
17900 |
11250 |
4.69 |
| CE-SI-6812-PT-2PKS |
Details |
PTFE |
PEEK |
60mm |
78mm |
10mm |
2875 |
2650 |
6.58 |
| CE-SI-6912-PT-2PKS |
Details |
PTFE |
PEEK |
60mm |
85mm |
13mm |
5050 |
4325 |
6.23 |
| CE-SI-6012-PT-2PKS |
Details |
PTFE |
PEEK |
60 mm |
95mm |
18mm |
7350 |
5800 |
5.95 |
| CE-SI-6212-PT-2PKS |
Details |
PTFE |
PEEK |
60 mm |
110mm |
22mm |
13100 |
9050 |
4.97 |
| CE-SI-6312-PT-2PKS |
Details |
PTFE |
PEEK |
60 mm |
130mm |
31mm |
20475 |
13050 |
4.41 |
| CE-SI-6813-PT-2PKS |
Details |
PTFE |
PEEK |
65mm |
85mm |
10mm |
2975 |
2875 |
6.02 |
| CE-SI-6913-PT-2PKS |
Details |
PTFE |
PEEK |
65mm |
90mm |
13mm |
4325 |
4000 |
5.81 |
| CE-SI-6013-PT-2PKS |
Details |
PTFE |
PEEK |
65 mm |
100mm |
18mm |
7625 |
6300 |
5.6 |
| CE-SI-6213-PT-2PKS |
Details |
PTFE |
PEEK |
65 mm |
120mm |
23mm |
14300 |
10025 |
4.41 |
| CE-SI-6313-PT-2PKS |
Details |
PTFE |
PEEK |
65 mm |
140mm |
33mm |
23175 |
14975 |
4.2 |
| CE-SI-6814-PT-2PKS |
Details |
PTFE |
PEEK |
70mm |
90mm |
10mm |
2900 |
2950 |
5.67 |
| CE-SI-6914-PT-2PKS |
Details |
PTFE |
PEEK |
70mm |
100mm |
16mm |
5925 |
5275 |
5.32 |
| CE-SI-6014-PT-2PKS |
Details |
PTFE |
PEEK |
70 mm |
110mm |
20mm |
9525 |
7725 |
4.97 |
| CE-SI-6214-PT-2PKS |
Details |
PTFE |
PEEK |
70 mm |
125mm |
24mm |
15550 |
11025 |
4.41 |
| CE-SI-6314-PT-2PKS |
Details |
PTFE |
PEEK |
70 mm |
150mm |
35mm |
26000 |
17050 |
3.71 |
| CE-SI-6815-PT-2PKS |
Details |
PTFE |
PEEK |
75mm |
95mm |
10mm |
3075 |
3200 |
5.32 |
| CE-SI-6915-PT-2PKS |
Details |
PTFE |
PEEK |
75mm |
105mm |
16mm |
6000 |
5650 |
4.97 |
| CE-SI-6015-PT-2PKS |
Details |
PTFE |
PEEK |
75 mm |
115mm |
20mm |
9900 |
8375 |
4.69 |
| CE-SI-6215-PT-2PKS |
Details |
PTFE |
PEEK |
75 mm |
130mm |
25mm |
16850 |
12075 |
3.92 |
| CE-SI-6315-PT-2PKS |
Details |
PTFE |
PEEK |
75 mm |
160mm |
37mm |
28250 |
19300 |
3.5 |
| CE-SI-6816-PT-2PKS |
Details |
PTFE |
PEEK |
80mm |
100mm |
10mm |
3150 |
3325 |
4.97 |
| CE-SI-6916-PT-2PKS |
Details |
PTFE |
PEEK |
80mm |
110mm |
16mm |
6200 |
5975 |
4.69 |
| CE-SI-6016-PT-2PKS |
Details |
PTFE |
PEEK |
80 mm |
125mm |
22mm |
11900 |
9950 |
4.41 |
| CE-SI-6216-PT-2PKS |
Details |
PTFE |
PEEK |
80 mm |
140mm |
26mm |
18175 |
13250 |
3.71 |
| CE-SI-6316-PT-2PKS |
Details |
PTFE |
PEEK |
80 mm |
170mm |
39mm |
30750 |
21675 |
3.36 |
| CE-SI-6817-PT-2PKS |
Details |
PTFE |
PEEK |
85mm |
110mm |
13mm |
4675 |
4750 |
4.62 |
| CE-SI-6917-PT-2PKS |
Details |
PTFE |
PEEK |
85mm |
120mm |
18mm |
7975 |
7400 |
4.34 |
| CE-SI-6017-PT-2PKS |
Details |
PTFE |
PEEK |
85 mm |
130mm |
22mm |
12375 |
10775 |
4.2 |
| CE-SI-6217-PT-2PKS |
Details |
PTFE |
PEEK |
85 mm |
150mm |
28mm |
21000 |
15475 |
3.5 |
| CE-SI-6317-PT-2PKS |
Details |
PTFE |
PEEK |
85 mm |
180mm |
41mm |
33250 |
24200 |
3.15 |
| CE-SI-6818-PT-2PKS |
Details |
PTFE |
PEEK |
90mm |
115mm |
13mm |
4575 |
4875 |
4.34 |
| CE-SI-6918-PT-2PKS |
Details |
PTFE |
PEEK |
90mm |
125mm |
18mm |
8200 |
7900 |
4.2 |
| CE-SI-6018-PT-2PKS |
Details |
PTFE |
PEEK |
90 mm |
140mm |
24mm |
14550 |
12425 |
3.92 |
| CE-SI-6218-PT-2PKS |
Details |
PTFE |
PEEK |
90 mm |
160mm |
30mm |
24025 |
17875 |
3.36 |
| CE-SI-6318-PT-2PKS |
Details |
PTFE |
PEEK |
90 mm |
190mm |
43mm |
35750 |
26750 |
3.01 |
| CE-SI-6819-PT-2PKS |
Details |
PTFE |
PEEK |
95mm |
120mm |
13mm |
4700 |
5075 |
4.13 |
| CE-SI-6019-PT-2PKS |
Details |
PTFE |
PEEK |
95 mm |
145mm |
24mm |
15100 |
13475 |
3.71 |
| CE-SI-6219-PT-2PKS |
Details |
PTFE |
PEEK |
95 mm |
170mm |
32mm |
27250 |
20475 |
3.15 |
| CE-SI-6319-PT-2PKS |
Details |
PTFE |
PEEK |
95 mm |
200mm |
45mm |
38250 |
29750 |
3.71 |
| CE-SI-6020-PT-2PKS |
Details |
PTFE |
PEEK |
100 mm |
150mm |
24mm |
15050 |
13550 |
3.71 |
| CE-SI-6220-PT-2PKS |
Details |
PTFE |
PEEK |
100 mm |
180mm |
34mm |
30500 |
23275 |
3.01 |
| CE-SI-6320-PT-2PKS |
Details |
PTFE |
PEEK |
100 mm |
215mm |
47mm |
43250 |
35250 |
2.38 |
| CE-SI-6021-PT-2PKS |
Details |
PTFE |
PEEK |
105 mm |
160mm |
26mm |
18075 |
16450 |
3.36 |
| CE-SI-6221-PT-2PKS |
Details |
PTFE |
PEEK |
105 mm |
190mm |
36mm |
33250 |
26250 |
2.8 |
| CE-SI-6321-PT-2PKS |
Details |
PTFE |
PEEK |
105 mm |
225mm |
49mm |
46000 |
38250 |
2.24 |
|
| |
