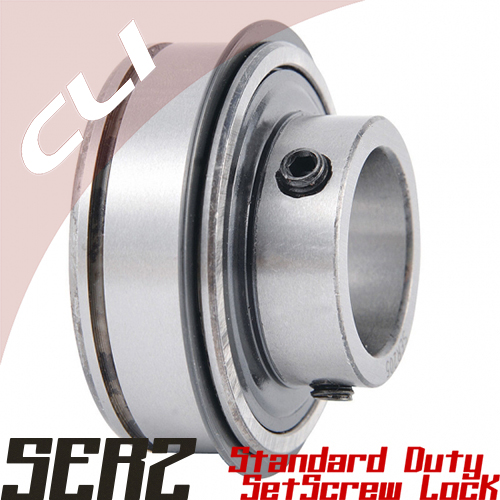

SER2
Chrome Steel Bearing Insert, Standard duty,
Cylindrical Outer Ring & Snap Ring, Setscrew Locking,
Metric Sizes & Inch Sizes
|
|
SER2 type ball bearing is prepared by providing the snap ring and lubrication groove at the outer diameter surface of CUC type. The positioning arrangement with the bearing unit can be achieved easily and the construction of the housing can be also simplified.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
SER2
Chrome Steel Bearing Insert, Standard duty, Cylindrical Outer Ring & Snap Ring, Setscrew Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |

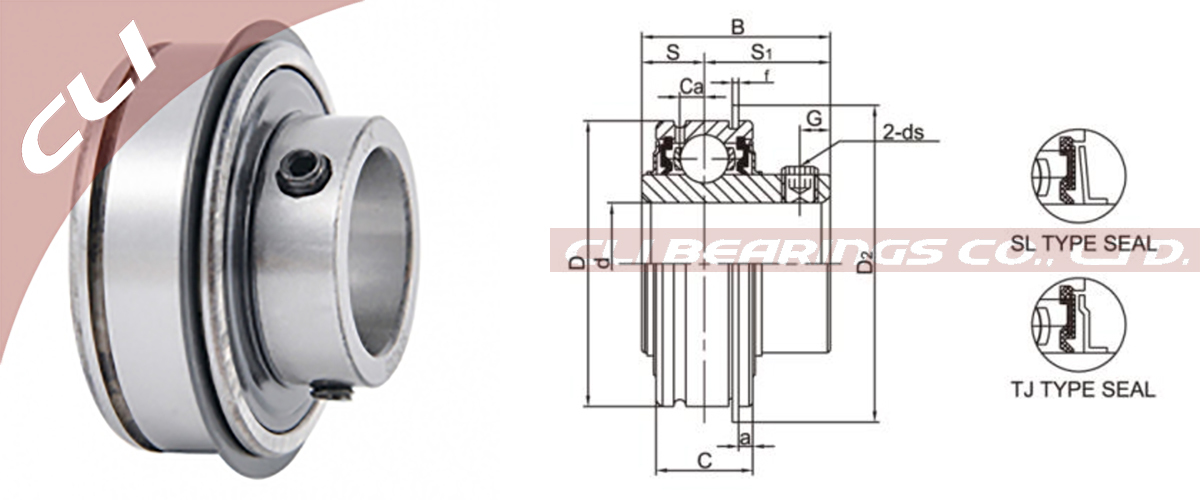

CLI
Bearing No. |
Shaft Dia |
Dimensions (mm) |
Basic Load Rating
( KN )
|
Weight
(kg) |
| d |
D |
B |
C |
S |
S1 |
a |
r |
D2 (Max.) |
G |
ds |
Ca |
Dynamic Cr |
Static Cor |
| (in) |
(mm) |
(mm) |
(in.UNF) |
| SER201 |
|
12 |
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
M6X1 |
|
4.05 |
9.55 |
4.78 |
0.27 |
| SER201-8 |
1/2 |
|
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
|
1/4-28 |
4.05 |
0.27 |
| SER202 |
|
15 |
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
M6X1 |
|
4.05 |
9.55 |
4.78 |
0.25 |
| SER202-9 |
9/16 |
|
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
|
1/4-28 |
4.05 |
0.25 |
| SER202-10 |
5/8 |
|
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
|
1/4-28 |
4.05 |
0.25 |
| SER203 |
|
17 |
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
M6X1 |
|
4.05 |
9.55 |
4.78 |
0.23 |
| SER203-11 |
11/16 |
|
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
|
1/4-28 |
4.05 |
0.23 |
| SER204 |
|
20 |
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
M6X1 |
|
4.05 |
12.82 |
6.65 |
0.22 |
| SER204-12 |
3/4 |
|
47 |
31 |
15.9 |
10.3 |
20.7 |
2.38 |
1.07 |
52.7 |
5 |
|
1/4-28 |
4.05 |
0.22 |
| SER205 |
|
25 |
52 |
34.9 |
19 |
13.1 |
21.8 |
2.38 |
1.07 |
57.9 |
5.3 |
M6X1 |
|
5.5 |
14.03 |
8.05 |
0.28 |
| SER205-13 |
13/16 |
|
52 |
34.9 |
19 |
13.1 |
21.8 |
2.38 |
1.07 |
57.9 |
5.3 |
|
1/4-28 |
5.5 |
0.28 |
| SER205-14 |
7/8 |
|
52 |
34.9 |
19 |
13.1 |
21.8 |
2.38 |
1.07 |
57.9 |
5.3 |
|
1/4-28 |
5.5 |
0.28 |
| SER205-15 |
15/16 |
|
52 |
34.9 |
19 |
13.1 |
21.8 |
2.38 |
1.07 |
57.9 |
5.3 |
|
1/4-28 |
5.5 |
0.28 |
| SER205-16 |
1 |
|
52 |
34.9 |
19 |
13.1 |
21.8 |
2.38 |
1.07 |
57.9 |
5.3 |
|
1/4-28 |
5.5 |
0.28 |
| SER206 |
|
30 |
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5.5 |
M6X1 |
|
5.5 |
19.47 |
11.43 |
0.38 |
| SER206-17 |
1-1/16 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5.5 |
|
1/4-28 |
5.5 |
0.38 |
| SER206-18 |
1-1/8 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5.5 |
|
1/4-28 |
5.5 |
0.38 |
| SER206-19 |
1-3/16 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5.5 |
|
1/4-28 |
5.5 |
0.38 |
| SER206-20 |
1-1/4 |
|
62 |
38.1 |
22.2 |
15.9 |
22.2 |
3.18 |
1.65 |
67.7 |
5.5 |
|
1/4-28 |
5.5 |
0.38 |
| SER207 |
|
35 |
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.4 |
M8X1 |
|
6.3 |
25.69 |
15.55 |
0.56 |
| SER207-20 |
1-1/4 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.4 |
|
5/16-24 |
6.3 |
0.56 |
| SER207-21 |
1-5/16 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.4 |
|
5/16-24 |
6.3 |
0.56 |
| SER207-22 |
1-3/8 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.4 |
|
5/16-24 |
6.3 |
0.56 |
| SER207-23 |
1-7/16 |
|
72 |
42.9 |
23.8 |
17.5 |
25.4 |
3.18 |
1.65 |
78.6 |
6.4 |
|
5/16-24 |
6.3 |
0.56 |
| SER208 |
|
40 |
80 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
86.6 |
8 |
M8X1 |
|
7.5 |
29.51 |
18.14 |
0.87 |
| SER208-24 |
1-1/2 |
|
80 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
86.6 |
8 |
|
5/16-24 |
7.5 |
0.87 |
| SER208-25 |
1-9/16 |
|
80 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
86.6 |
8 |
|
5/16-24 |
7.5 |
0.87 |
| SER209 |
|
45 |
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
M8X1 |
|
7.5 |
31.85 |
20.8 |
0.95 |
| SER209-26 |
1-5/8 |
|
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
|
5/16-24 |
7.5 |
0.95 |
| SER209-27 |
1-11/16 |
|
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
|
5/16-24 |
7.5 |
0.95 |
| SER209-28 |
1-3/4 |
|
85 |
49.2 |
27.8 |
19 |
30.2 |
3.18 |
1.65 |
91.6 |
8 |
|
5/16-24 |
7.5 |
0.95 |
| SER210 |
|
50 |
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
M10X1.25 |
|
6.8 |
34.99 |
23.7 |
1.03 |
| SER210-30 |
1-7/8 |
|
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
|
3/8-24 |
6.8 |
1.03 |
| SER210-31 |
1-15/16 |
|
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
|
3/8-24 |
6.8 |
1.03 |
| SER210-32 |
2 |
|
90 |
51.6 |
28.6 |
19 |
32.6 |
3.18 |
2.41 |
96.5 |
10 |
|
3/8-24 |
6.8 |
1.03 |
| SER211 |
|
55 |
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
M10X1.25 |
|
7.6 |
43.34 |
29.39 |
1.21 |
| SER211-32 |
2 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SER211-33 |
2-1/16 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SER211-34 |
2-1/8 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SER211-35 |
2-3/16 |
|
100 |
55.6 |
30.2 |
22.2 |
33.4 |
3.18 |
2.41 |
106.5 |
10 |
|
3/8-24 |
7.6 |
1.21 |
| SER212 |
|
60 |
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
M10X1.25 |
|
8.4 |
47.68 |
33.43 |
1.68 |
| SER212-36 |
2-1/4 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
| SER212-37 |
2-5/16 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
| SER212-38 |
2-3/8 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
| SER212-39 |
2-7/16 |
|
110 |
65.1 |
31.8 |
25.4 |
39.7 |
3.18 |
2.41 |
116.6 |
10 |
|
3/8-24 |
8.4 |
1.68 |
|
| |
| |
| |
