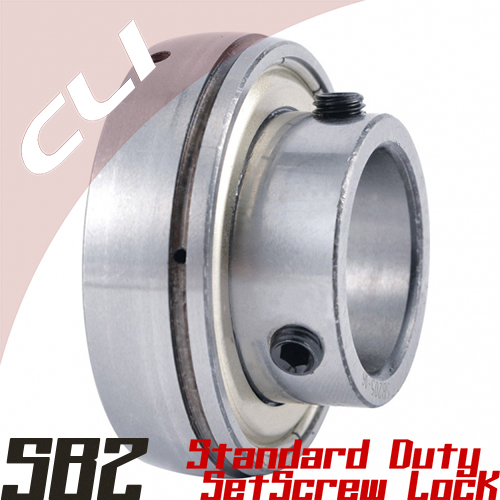

SB2 / CSB2
Chrome Steel Bearing Insert, Standard Duty, Narrow Inner Ring, Setscrew Locking,
Metric Sizes & Inch Sizes
|
|
SB2 type ball bearingis the smaller type of UC2 type bearing. It can be used in combination with any light duty housing. Though it is small in size, it has as high load bearing capacity as that of UC200 type bearing and the long service life.
SB typoe bearing with suffix "G" means this SB bearing is with lubrication groove and holes on outer rings.
SB typoe bearing with suffix "N" means this SB bearing is non-lubrication type, and without lubrication groove & holes, as well as without anti-rotation pin and holes.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |

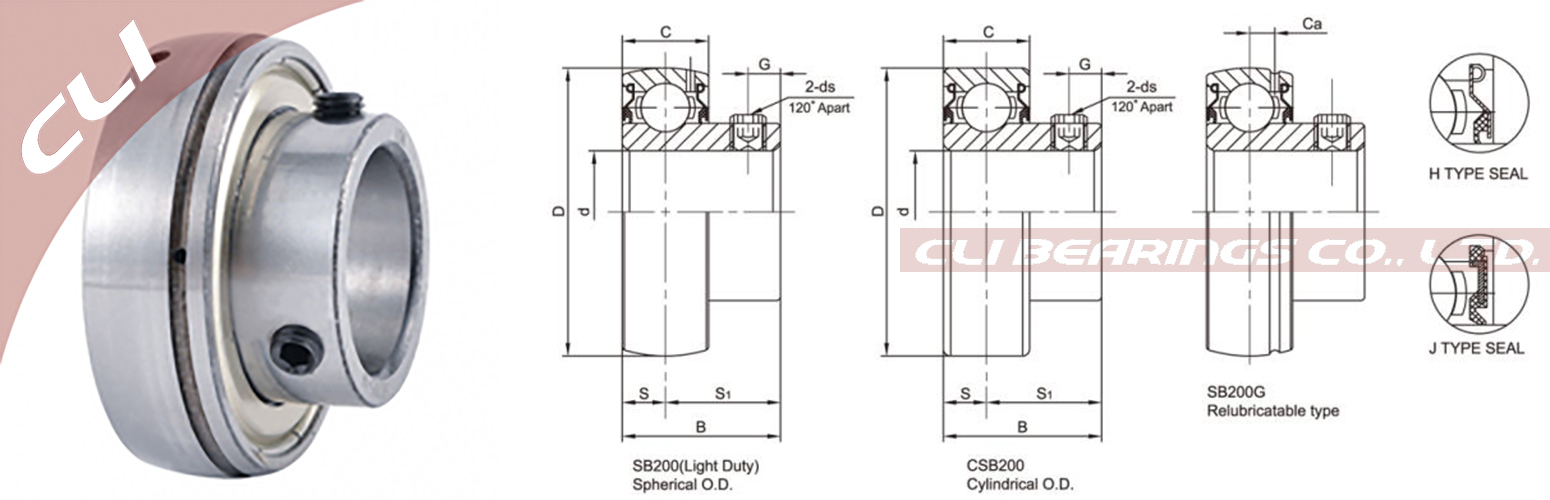

SB2 / CSB2
Chrome Steel Bearing Insert, Standard Duty, Narrow Inner Ring, Setscrew Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |
CLI
Bearing No. |
Shaft Dia |
Dimensions(mm) |
Basic load ratings ( KN ) |
Weight (kg) |
| d |
D |
B |
C |
S |
S1 |
G |
ds |
Ca |
Dynamic Cr |
Static Cor |
| (in) |
(mm) |
(mm) |
(in.UNF) |
| SB201 |
|
12 |
40 |
22 |
12 |
6.0 |
16.0 |
4.9 |
M5x0.8 |
|
3.5 |
9.55 |
4.78 |
0.09 |
| SB201-8 |
1/2 |
|
40 |
22 |
12 |
6.0 |
16.0 |
4.9 |
|
10-32 |
3.5 |
0.09 |
| SB202 |
|
15 |
40 |
22 |
12 |
6.0 |
16.0 |
4.9 |
M5x0.8 |
|
3.5 |
9.55 |
4.78 |
0.08 |
| SB202-9 |
9/16 |
|
40 |
22 |
12 |
6.0 |
16.0 |
4.9 |
|
10-32 |
3.5 |
0.08 |
| SB202-10 |
5/8 |
|
40 |
22 |
12 |
6.0 |
16.0 |
4.9 |
|
10-32 |
3.5 |
0.08 |
| SB203 |
|
17 |
40 |
22 |
12 |
6.0 |
16.0 |
4.9 |
M5X0.8 |
|
3.5 |
9.55 |
4.78 |
0.07 |
| SB203-11 |
11/16 |
|
40 |
22 |
12 |
6.0 |
16.0 |
4.9 |
|
10-32 |
3.5 |
0.07 |
| SB204 |
|
20 |
47 |
25 |
14 |
7.0 |
18.0 |
5.0 |
M6x1 |
|
4 |
12.82 |
6.65 |
0.12 |
| SB204-12 |
3/4 |
|
47 |
25 |
14 |
7.0 |
18.0 |
5.0 |
|
1/4-28 |
4 |
0.12 |
| SB205 |
|
25 |
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
M6x1 |
|
4.3 |
14.03 |
8.05 |
0.18 |
| SB205-13 |
13/16 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4.3 |
0.18 |
| SB205-14 |
7/8 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4.3 |
0.18 |
| SB205-15 |
15/16 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4.3 |
0.18 |
| SB205-16 |
1 |
|
52 |
27 |
15 |
7.5 |
19.5 |
5.5 |
|
1/4-28 |
4.3 |
0.18 |
| SB206 |
|
30 |
62 |
30 |
16 |
8.0 |
22.0 |
5.9 |
M6x1 |
|
4.9 |
19.47 |
11.43 |
0.26 |
| SB206-17 |
1-1/16 |
|
62 |
30 |
16 |
8.0 |
22.0 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SB206-18 |
1-1/8 |
|
62 |
30 |
16 |
8.0 |
22.0 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SB206-19 |
1-3/16 |
|
62 |
30 |
16 |
8.0 |
22.0 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SB206-20 |
1-1/4 |
|
62 |
30 |
16 |
8.0 |
22.0 |
5.9 |
|
1/4-28 |
4.9 |
0.26 |
| SB207 |
|
35 |
72 |
32 |
17 |
8.5 |
23.5 |
8.0 |
M8x1 |
|
5.5 |
25.69 |
15.55 |
0.43 |
| SB207-20 |
1-1/4 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8.0 |
|
5/16-24 |
5.5 |
0.43 |
| SB207-21 |
1-5/16 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8.0 |
|
5/16-24 |
5.5 |
0.43 |
| SB207-22 |
1-3/8 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8.0 |
|
5/16-24 |
5.5 |
0.43 |
| SB207-23 |
1-7/16 |
|
72 |
32 |
17 |
8.5 |
23.5 |
8.0 |
|
5/16-24 |
5.5 |
0.43 |
| SB208 |
|
40 |
80 |
34 |
18 |
9 |
25.0 |
8.0 |
M8x1 |
|
6.0 |
29.51 |
18.14 |
0.60 |
| SB208-24 |
1-1/2 |
|
80 |
34 |
18 |
9 |
25.0 |
8.0 |
|
5/16-24 |
6.0 |
0.60 |
| SB208-25 |
1-9/16 |
|
80 |
34 |
18 |
9 |
25.0 |
8.0 |
|
5/16-24 |
6.0 |
0.60 |
| SB209 |
|
45 |
85 |
36 |
19 |
9.5 |
26.5 |
8.0 |
M8x1 |
|
6.1 |
31.85 |
20.8 |
0.80 |
| SB209-26 |
1-5/8 |
|
85 |
36 |
19 |
9.5 |
26.5 |
8.0 |
|
5/16-24 |
6.1 |
0.80 |
| SB209-27 |
1-11/16 |
|
85 |
36 |
19 |
9.5 |
26.5 |
8.0 |
|
5/16-24 |
6.1 |
0.80 |
| SB209-28 |
1-3/4 |
|
85 |
36 |
19 |
9.5 |
26.5 |
8.0 |
|
5/16-24 |
6.1 |
0.80 |
| SB210 |
|
50 |
90 |
38 |
20 |
10 |
28 |
10.0 |
M10X1.25 |
|
6.6 |
34.99 |
23.7 |
0.83 |
| SB210-30 |
1-7/8 |
|
90 |
38 |
20 |
10 |
28 |
10.0 |
|
3/8-24 |
6.6 |
0.83 |
| SB210-31 |
1-15/16 |
|
90 |
38 |
20 |
10 |
28 |
10.0 |
|
3/8-24 |
6.6 |
0.83 |
| SB210-32 |
2 |
|
90 |
38 |
20 |
10 |
28 |
10.0 |
|
3/8-24 |
6.6 |
0.83 |
| SB211 |
|
55 |
100 |
40 |
21 |
10.5 |
29.5 |
10.0 |
M10X1.25 |
|
7.2 |
43.34 |
29.39 |
1.12 |
| SB211-32 |
2 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10.0 |
|
3/8-24 |
7.2 |
1.12 |
| SB211-33 |
2-1/16 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10.0 |
|
3/8-24 |
7.2 |
1.12 |
| SB211-34 |
2-1/8 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10.0 |
|
3/8-24 |
7.2 |
1.12 |
| SB211-35 |
2-3/16 |
|
100 |
40 |
21 |
10.5 |
29.5 |
10.0 |
|
3/8-24 |
7.2 |
1.12 |
| SB212 |
|
60 |
110 |
42 |
22 |
11 |
31 |
10.0 |
M10X1.25 |
|
7.5 |
47.68 |
33.43 |
1.55 |
| SB212-36 |
2-1/4 |
|
110 |
42 |
22 |
11 |
31 |
10.0 |
|
3/8-24 |
7.5 |
1.55 |
| SB212-37 |
2-5/16 |
|
110 |
42 |
22 |
11 |
31 |
10.0 |
|
3/8-24 |
7.5 |
1.55 |
| SB212-38 |
2-3/8 |
|
110 |
42 |
22 |
11 |
31 |
10.0 |
|
3/8-24 |
7.5 |
1.55 |
| SB212-39 |
2-7/16 |
|
110 |
42 |
22 |
11 |
31 |
10.0 |
|
3/8-24 |
7.5 |
1.55 |
|
| |
|
* Suffix Descriptions:
| G |
→ |
Bearing is re-lubricatable. Bearing Lubrication groove and holes on outer rings. |
→ |
SB201G |
| N |
→ |
Non-lubrication type. Bearing has no lubrication groove, lubrication holes, anti-rotation pin and holes. |
→ |
SB201N |
* Prefix Descriptions:
| C |
→ |
Bearing with Cylindrical Outer Ring |
→ |
CSB201 |
| S |
→ |
Bearing with Stainless Steel SUS440C / SUS304 |
→ |
SSB201 |
|
| |
