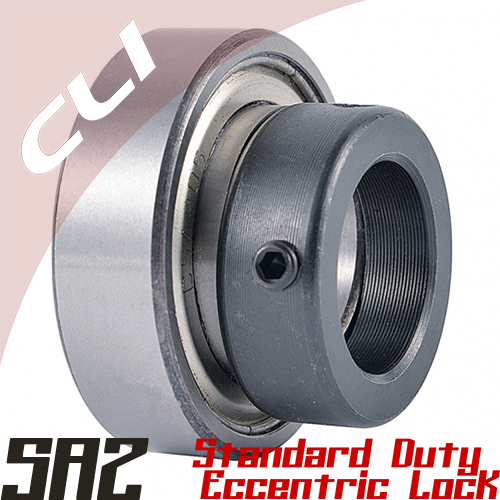

SA2 / CSA2
Chrome Steel Bearing Insert, Standard Duty, Narrow Inner Ring, Eccentric Locking,
Metric Sizes & Inch Sizes
|
|

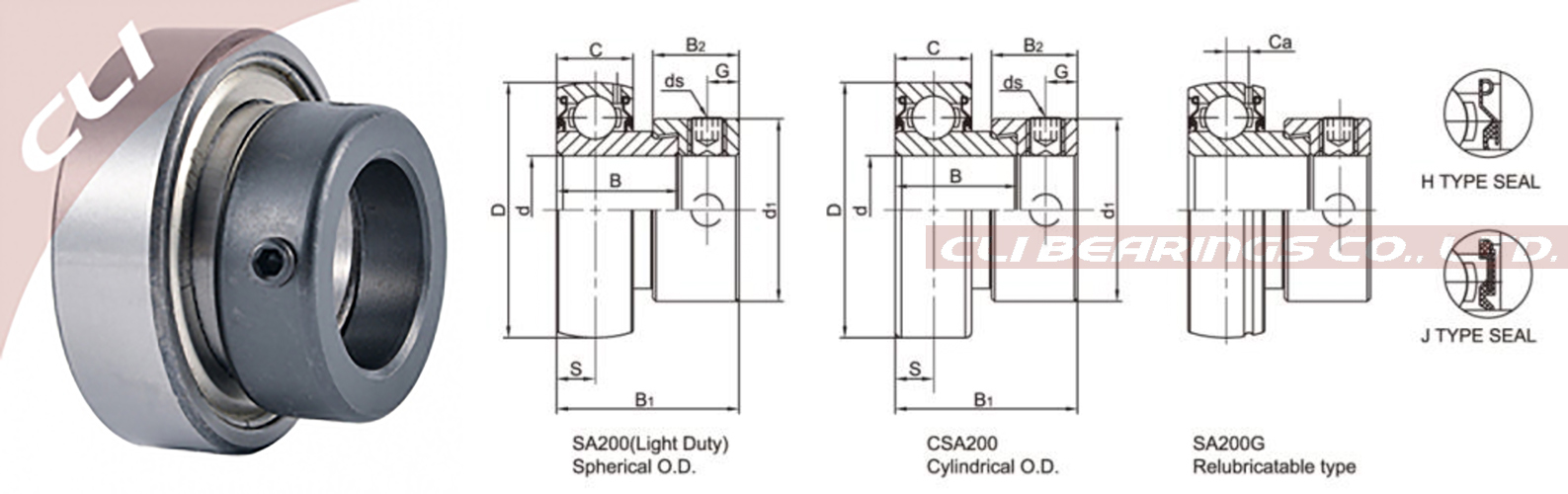

SA2 and CSA2 type ball bearing is sealed on both sides with newly developed J and H type seals and it has an accentric locking collar on the outside of the inner ring. It can be used for assembling use with any type of the housing for light duty.
SA2 and CSA2 type bearing with suffix "G" means this SB bearing is with lubrication groove and holes on outer rings.
SA2 and CSA2 type bearing with suffix "N" means this SB bearing is non-lubrication type, and without lubrication groove & holes, as well as without anti-rotation pin and holes.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
SA2 / CSA2
Chrome Steel Bearing Insert, Standard Duty, Narrow Inner Ring, Eccentric Locking,
for shaft metric sizes from 12 mm to 90 mm
for shaft inch sizes from 1/2 inch to 3-1/2 inch
|
 |
| |
CLI
Bearing No. |
Shaft Dia |
Dimensions
(mm) |
Basic load ratings
( KN )
|
Weight
(kg)
|
| d |
D |
B |
C |
S |
B1 |
B2 |
d1 |
G |
ds |
Ca |
Dynamic Cr |
Static Cor |
| (in) |
(mm) |
(mm) |
(in.UNF) |
| SA201 |
|
12 |
40 |
19.1 |
12 |
6 |
28.6 |
13.5 |
28.6 |
5 |
M6x1 |
|
3.5 |
9.55 |
4.78 |
0.2 |
| SA201-8 |
1/2 |
|
40 |
19.1 |
12 |
6 |
28.6 |
13.5 |
28.6 |
5 |
|
1/4-28 |
3.5 |
0.2 |
| SA202 |
|
15 |
40 |
19.1 |
12 |
6 |
28.6 |
13.5 |
28.6 |
5 |
M6x1 |
|
3.5 |
9.55 |
4.78 |
0.2 |
| SA202-9 |
9/16 |
|
40 |
19.1 |
12 |
6 |
28.6 |
13.5 |
28.6 |
5 |
|
1/4-28 |
3.5 |
0.2 |
| SA202-10 |
5/8 |
|
40 |
19.1 |
12 |
6 |
28.6 |
13.5 |
28.6 |
5 |
|
1/4-28 |
3.5 |
0.2 |
| SA203 |
|
17 |
40 |
19.1 |
12 |
6 |
28.6 |
13.5 |
28.6 |
5 |
M6x1 |
|
3.5 |
9.55 |
4.78 |
0.2 |
| SA203-11 |
11/16 |
|
40 |
19.1 |
12 |
6 |
28.6 |
13.5 |
28.6 |
5 |
|
1/4-28 |
3.5 |
0.2 |
| SA204 |
|
20 |
47 |
21.5 |
14 |
7 |
31 |
13.5 |
33.3 |
5 |
M6X1 |
|
4 |
12.82 |
6.65 |
0.21 |
| SA204-12 |
3/4 |
|
47 |
21.5 |
14 |
7 |
31 |
13.5 |
33.3 |
5 |
|
1/4-28 |
4 |
0.21 |
| SA205 |
|
25 |
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
M6X1 |
|
4.3 |
14.03 |
8.05 |
0.25 |
| SA205-14 |
7/8 |
|
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
|
1/4-28 |
4.3 |
0.25 |
| SA205-15 |
15/16 |
|
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
|
1/4-28 |
4.3 |
0.25 |
| SA205-16 |
1 |
|
52 |
22 |
15 |
7.5 |
31.5 |
13.5 |
38.1 |
5 |
|
1/4-28 |
4.3 |
0.25 |
| SA206 |
|
30 |
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
M6X1 |
|
4.9 |
19.47 |
11.43 |
0.39 |
| SA206-17 |
1-1/16 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SA206-18 |
1-1/8 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SA206-19 |
1-3/16 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SA206-20 |
1-1/4 |
|
62 |
23.8 |
16 |
8 |
35.7 |
15.9 |
44.5 |
6 |
|
1/4-28 |
4.9 |
0.39 |
| SA207 |
|
35 |
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
M8X1 |
|
5.5 |
25.69 |
15.55 |
0.6 |
| SA207-20 |
1-1/4 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.5 |
0.6 |
| SA207-21 |
1-5/16 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.5 |
0.6 |
| SA207-22 |
1-3/8 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.5 |
0.6 |
| SA207-23 |
1-7/16 |
|
72 |
25.4 |
17 |
8.5 |
38.9 |
17.5 |
55.6 |
6.5 |
|
5/16-24 |
5.5 |
0.6 |
| SA208 |
|
40 |
80 |
30.2 |
18 |
9 |
43.7 |
18.3 |
60.3 |
6.5 |
M8X1 |
|
6 |
29.51 |
18.14 |
0.77 |
| SA208-24 |
1-1/2 |
|
80 |
30.2 |
18 |
9 |
43.7 |
18.3 |
60.3 |
6.5 |
|
5/16-24 |
6 |
0.77 |
| SA208-25 |
1-9/16 |
|
80 |
30.2 |
18 |
9 |
43.7 |
18.3 |
60.3 |
6.5 |
|
5/16-24 |
6 |
0.77 |
| SA209 |
|
45 |
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
M8X1 |
|
6.1 |
31.85 |
20.8 |
0.84 |
| SA209-26 |
1-5/8 |
|
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
|
5/16-24 |
6.1 |
0.84 |
| SA209-27 |
1-11/16 |
|
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
|
5/16-24 |
6.1 |
0.84 |
| SA209-28 |
1-3/4 |
|
85 |
30.2 |
19 |
9.5 |
43.7 |
18.3 |
63.5 |
6.5 |
|
5/16-24 |
6.1 |
0.84 |
| SA210 |
|
50 |
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
M8X1 |
|
6.6 |
34.99 |
23.7 |
1.02 |
| SA210-30 |
1-7/8 |
|
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
|
5/16-24 |
6.6 |
1.02 |
| SA210-31 |
1-15/16 |
|
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
|
5/16-24 |
6.6 |
1.02 |
| SA210-32 |
2 |
|
90 |
30.2 |
20 |
10 |
43.7 |
18.3 |
69.9 |
6.5 |
|
5/16-24 |
6.6 |
1.02 |
| SA211 |
|
55 |
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
M10X1.25 |
|
7.2 |
43.34 |
29.39 |
1.37 |
| SA211-32 |
2 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7.2 |
1.37 |
| SA211-33 |
2-1/16 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7.2 |
1.37 |
| SA211-34 |
2-1/8 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7.2 |
1.37 |
| SA211-35 |
2-3/16 |
|
100 |
32.5 |
21 |
10.5 |
48.4 |
20.7 |
76.2 |
8 |
|
3/8-24 |
7.2 |
1.37 |
| SA212 |
|
60 |
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
M10X1.25 |
|
7.5 |
47.68 |
33.43 |
1.85 |
| SA212-36 |
2-1/4 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.5 |
1.85 |
| SA212-37 |
2-5/16 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.5 |
1.85 |
| SA212-38 |
2-3/8 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.5 |
1.85 |
| SA212-39 |
2-7/16 |
|
110 |
37.2 |
22 |
11 |
53.1 |
22.3 |
84.2 |
8 |
|
3/8-24 |
7.5 |
1.85 |
|
| |
|
* Suffix Descriptions:
| G |
→ |
Bearing is re-lubricatable. Bearing Lubrication groove and holes on outer rings. |
→ |
SA201G |
| N |
→ |
Non-lubrication type. Bearing has no lubrication groove, lubrication holes, anti-rotation pin and holes. |
→ |
SA201N |
* Prefix Descriptions:
| C - |
→ |
Bearing with Cylindrical Outer Ring |
→ |
CSA201 |
| S - |
→ |
Bearing with Stainless Steel SUS440C / SUS304 |
→ |
SSA201 |
|
| |
| |
