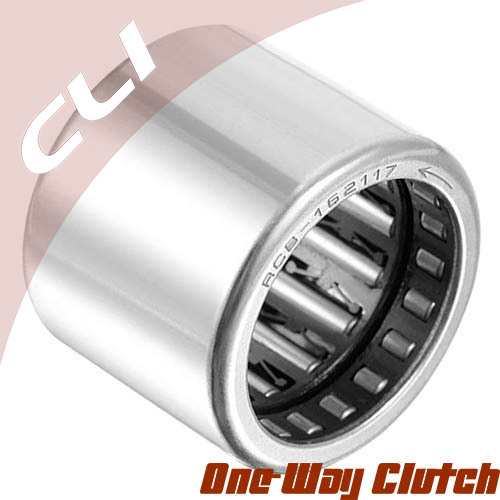

Original 8 picture rcb 402
Product Picture
Original 3 one way clutch rc rc fs rcb rcb fs nw
Download PDF Catalogue

RCB / RCB-FS
One-Way Roller Clutch Bearing,
One-Way Needle-Roller Bearing Clutches,
INCH Sizes




CLI one-way bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads.

CLI miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

RCB / RCB-FS
One Way Roller Clutch Bearings for
shaft sizes from
0.375 inch to 1.000 inch



CLI Bearing No. Dimensions ( FW x D x C ) Torque Shaft Weight
Imperial (inch) (N.m) (RPM) (g)
RCB061014FS 0.3750 x 0.6250 x 0.8750 5.45 18000 12.9
RCB061014 0.3750 x 0.6250 x 0.8750 5.45 18000 12.86
RCB081214 0.5000 x 0.7500 x 0.8750 8.85 17000 16.14
RCB081214FS 0.5000 x 0.7500 x 0.8750 8.85 17000 16.67
RCB101416 0.6250 x 0.8750 x 1.0000 16.8 14000 22.58
RCB101416FS 0.6250 x 0.8750 x 1.0000 16.8 14000 23.24
RCB121616 0.7500 x 1.0000 x 1.0000 23.3 12000 27.11
RCB121616FS 0.7500 x 1.0000 x 1.0000 23.3 12000 25.25
RCB162117FS 1.0000 x 1.3130 x 1.0630 49.6 8700 45
RCB162117 1.0000 x 1.3130 x 1.0630 49.6 8700 41.52

* Note: RCB = Regular Clutch & Bearing Assembly, No Suffix = Integral Plastic Springs, FS = Stainless Steel Springs
