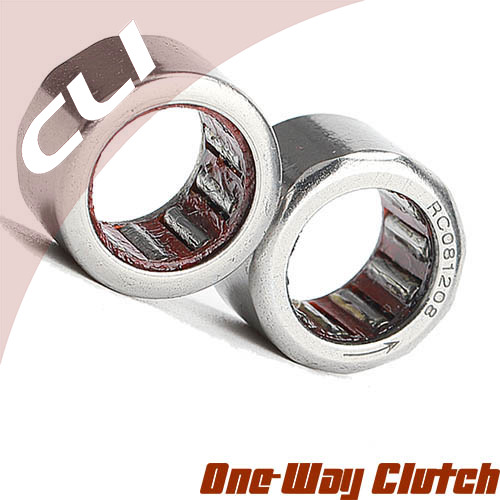

Product Picture

Original 3 one way clutch rc rc fs rcb rcb fs nw

Download PDF Catalogue

RC / RC-FS
One Way Roller Clutch Bearing,
One-Way Needle-Roller Bearing Clutches, INCH Sizes

CLI one-way bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads.

CLI miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

RC / RC-FS One Way Roller Clutch Bearing Bearings for shaft sizes from 0.125 inch to 1.000 inch

CLI Bearing No.	Dimensions ( Fw x D x C )	Torque	Shaft	Weight
CLI Bearing No.	Imperial (inch)	(N.m)	(RPM)	(g)
RC-02	0.1250 x 0.2810 x 0.2500	0.323	34000	1.00
RC-040708	0.2500 x 0.4375 x 0.5000	2.02	20000	3.20
RC-040708-FS	0.2500 x 0.4375 x 0.5000	2.02	2000	3.32
RC-061008	0.3750 x 0.6250 x 0.5000	5.45	18000	7.23
RC-061008-FS	0.3750 x 0.6250 x 0.5000	5.45	18000	7.09
RC-081208	0.5000 x 0.7500 x 0.5000	8.85	17000	9.36
RC-081208-FS	0.5000 x 0.7500 x 0.5000	8.85	17000	9.60
RC-101410	0.6250 x 0.8750 x 0.6250	16.8	14000	13.14
RC-101410-FS	0.6250 x 0.8750 x 0.6250	16.8	14000	14.62
RC-121610	0.7500 x 1.0000 x 0.6250	23.3	12000	15.72
RC-121610-FS	0.7500 x 1.0000 x 0.6250	23.3	12000	16.50
RC-162110	1.0000 x 1.3100 x 0.6250	49.6	8700	25.62
RC-162110-FS	1.0000 x 1.3130 x 0.6250	49.6	8700	26.00

* Note: RC = Regular Clutch, No Suffix = Integral Plastic Springs, FS = Stainless Steel Springs
