Plastic bearings HDPE, working temperature from -50℃ to +90℃ anti-acid bearings & anti-alkali bearings, ROHS compliance

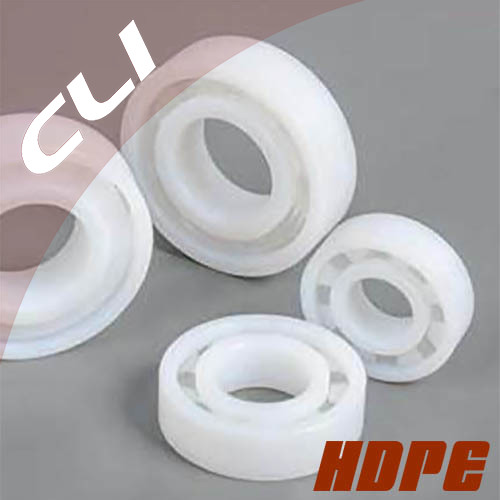

Product Picture

Plastic bearings HDPE, working temperature from -50℃ to +90℃
anti-acid bearings & anti-alkali bearings, ROHS compliance

Introductions
HDPE (High Density Polyethylene) There two Polyolefins offer resistance to almost all acids and bases, detergents and hot water. PE has good insulation properties and is easy to weld. The operating temperature of HDPE is from -50℃ to +90℃.

Advantages		Disadvantages
· Light weight · High toughness (also at low remperature) · High elongation · Very good electrical and dielectric properties · Very low water absorption · Low steam permeability · High chemical resistance · Good protection against stress cracking · Food safe		· Soft surface (low tensile strength) · HF welding not recommended · Difficult to varnish and glue · Not weather resistant

Possible Applications
Drinking water soil pipe way, hot water piping, conveyance container, pump with valve a department, cure to use the tool parts.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

Plastic bearings HDPE, working temperature from -50℃ to +90℃
anti-acid bearings & anti-alkali bearings, shaft sizes from 2.381 mm to 105 mm

Plastic Bearing	Details	Rings	Cage	Seal	Balls	Bearing Dimension
HDPE		Rings	Cage	Seal	Balls	Bore Dia	Outer Dia	Width
CLI Bearing No.		Type	Type	Type	Type	(d)	(D)	(B)
PL-HD-R133	Details	HD	HD	HD	PP / ZR / SI / GS	0.0938" \| 2.381 mm	0.1875" \| 4.763 mm	0.0625" \| 1.588 mm
PL-HD-R1-5	Details	HD	HD	HD	PP / ZR / SI / GS	0.0938" \| 2.381 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
PL-HD-R144	Details	HD	HD	HD	PP / ZR / SI / GS	0.125" \| 3.175 mm	0.25" \| 6.35 mm	0.0937" \| 2.38 mm
PL-HD-R2-5	Details	HD	HD	HD	PP / ZR / SI / GS	0.125" \| 3.175 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
PL-HD-R2-6	Details	HD	HD	HD	PP / ZR / SI / GS	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1094" \| 2.779 mm
PL-HD-R2	Details	HD	HD	HD	PP / ZR / SI / GS	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1562" \| 3.967 mm
PL-HD-R2A	Details	HD	HD	HD	PP / ZR / SI / GS	0.125" \| 3.175 mm	0.5" \| 12.7 mm	0.1719" \| 4.366 mm
PL-HD-R155	Details	HD	HD	HD	PP / ZR / SI / GS	0.1563" \| 3.969 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
PL-HD-R156	Details	HD	HD	HD	PP / ZR / SI / GS	0.1875" \| 4.763 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
PL-HD-R166	Details	HD	HD	HD	PP / ZR / SI / GS	0.1875" \| 4.763 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm
PL-HD-R3	Details	HD	HD	HD	PP / ZR / SI / GS	0.1875" \| 4.763 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm
PL-HD-R3A	Details	HD	HD	HD	PP / ZR / SI / GS	0.1875" \| 4.763 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm
PL-HD-1601	Details	HD	HD	HD	PP / ZR / SI / GS	0.1875" \| 4.763 mm	0.6875" \| 17.463 mm	0.25" \| 6.35 mm
PL-HD-R168	Details	HD	HD	HD	PP / ZR / SI / GS	0.25" \| 6.35 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm
PL-HD-R188	Details	HD	HD	HD	PP / ZR / SI / GS	0.25" \| 6.35 mm	0.5" \| 12.7 mm	0.125" \| 3.175 mm
PL-HD-R4	Details	HD	HD	HD	PP / ZR / SI / GS	0.25" \| 6.35 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm
PL-HD-1602	Details	HD	HD	HD	PP / ZR / SI / GS	0.25" \| 6.35 mm	0.6875" \| 17.463 mm	0.25" \| 6.35 mm
PL-HD-R4A	Details	HD	HD	HD	PP / ZR / SI / GS	0.25" \| 6.35 mm	0.75" \| 19.05 mm	0.2188" \| 5.558 mm
PL-HD-R1810	Details	HD	HD	HD	PP / ZR / SI / GS	0.3125" \| 7.938 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm
PL-HD-1603	Details	HD	HD	HD	PP / ZR / SI / GS	0.3125" \| 7.938 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm
PL-HD-1605	Details	HD	HD	HD	PP / ZR / SI / GS	0.3125" \| 7.938 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm
PL-HD-1604	Details	HD	HD	HD	PP / ZR / SI / GS	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm
PL-HD-R6	Details	HD	HD	HD	PP / ZR / SI / GS	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2188" \| 5.558 mm
PL-HD-1606	Details	HD	HD	HD	PP / ZR / SI / GS	0.375" \| 9.525 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm
PL-HD-1614	Details	HD	HD	HD	PP / ZR / SI / GS	0.375" \| 9.525 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm
PL-HD-1607	Details	HD	HD	HD	PP / ZR / SI / GS	0.4375" \| 11.113 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm
PL-HD-1615	Details	HD	HD	HD	PP / ZR / SI / GS	0.4375" \| 11.113 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm
PL-HD-1620	Details	HD	HD	HD	PP / ZR / SI / GS	0.4375" \| 11.113 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
PL-HD-1616	Details	HD	HD	HD	PP / ZR / SI / GS	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm
PL-HD-R8	Details	HD	HD	HD	PP / ZR / SI / GS	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.25" \| 6.35 mm
PL-HD-1621	Details	HD	HD	HD	PP / ZR / SI / GS	0.5" \| 12.7 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
PL-HD-1622	Details	HD	HD	HD	PP / ZR / SI / GS	0.5625" \| 14.288 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
PL-HD-1623	Details	HD	HD	HD	PP / ZR / SI / GS	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
PL-HD-R10	Details	HD	HD	HD	PP / ZR / SI / GS	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.2812" \| 7.142 mm
PL-HD-1628	Details	HD	HD	HD	PP / ZR / SI / GS	0.625" \| 15.875 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm
PL-HD-1633	Details	HD	HD	HD	PP / ZR / SI / GS	0.625" \| 15.875 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm
PL-HD-1630	Details	HD	HD	HD	PP / ZR / SI / GS	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm
PL-HD-R12	Details	HD	HD	HD	PP / ZR / SI / GS	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.3125" \| 7.938 mm
PL-HD-1635	Details	HD	HD	HD	PP / ZR / SI / GS	0.75" \| 19.05 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm
PL-HD-1638	Details	HD	HD	HD	PP / ZR / SI / GS	0.75" \| 19.05 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm
PL-HD-R14	Details	HD	HD	HD	PP / ZR / SI / GS	0.875" \| 22.225 mm	1.875" \| 47.625 mm	0.375" \| 9.525 mm
PL-HD-1640	Details	HD	HD	HD	PP / ZR / SI / GS	0.875" \| 22.225 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm
PL-HD-1641	Details	HD	HD	HD	PP / ZR / SI / GS	1" \| 25.4 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm
PL-HD-R16	Details	HD	HD	HD	PP / ZR / SI / GS	1" \| 25.4 mm	2" \| 50.8 mm	0.375" \| 9.525 mm
PL-HD-R18	Details	HD	HD	HD	PP / ZR / SI / GS	1.125" \| 28.575 mm	2.125" \| 53.975 mm	0.375" \| 9.525 mm
PL-HD-1652	Details	HD	HD	HD	PP / ZR / SI / GS	1.125" \| 28.575 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm
PL-HD-R20	Details	HD	HD	HD	PP / ZR / SI / GS	1.25" \| 31.75 mm	2.25" \| 57.15 mm	0.375" \| 9.525 mm
PL-HD-1654	Details	HD	HD	HD	PP / ZR / SI / GS	1.25" \| 31.75 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm
PL-HD-1657	Details	HD	HD	HD	PP / ZR / SI / GS	1.25" \| 31.75 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm
PL-HD-1658	Details	HD	HD	HD	PP / ZR / SI / GS	1.3125" \| 33.338 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm
PL-HD-R22	Details	HD	HD	HD	PP / ZR / SI / GS	1.375" \| 34.925 mm	2.5" \| 63.5 mm	0.4375" \| 11.113 mm
PL-HD-R24	Details	HD	HD	HD	PP / ZR / SI / GS	1.5" \| 38.1 mm	2.625" \| 66.675 mm	0.4375" \| 11.113 mm
PL-HD-682	Details	HD	HD	HD	PP / ZR / SI / GS	2 mm	5mm	1.5mm
PL-HD-MR52	Details	HD	HD	HD	PP / ZR / SI / GS	2 mm	5mm	2mm
PL-HD-692	Details	HD	HD	HD	PP / ZR / SI / GS	2 mm	6mm	2.3mm
PL-HD-MR62	Details	HD	HD	HD	PP / ZR / SI / GS	2mm	6mm	2.5mm
PL-HD-602	Details	HD	HD	HD	PP / ZR / SI / GS	2 mm	7mm	2.8mm
PL-HD-MR72	Details	HD	HD	HD	PP / ZR / SI / GS	2 mm	7mm	2.5mm
PL-HD-682x	Details	HD	HD	HD	PP / ZR / SI / GS	2.5 mm	6mm	1.8mm
PL-HD-692x	Details	HD	HD	HD	PP / ZR / SI / GS	2.5mm	7mm	2.5mm
PL-HD-602x	Details	HD	HD	HD	PP / ZR / SI / GS	2.5 mm	8mm	2.8mm
PL-HD-MR82x	Details	HD	HD	HD	PP / ZR / SI / GS	2.5mm	8mm	2.5mm
PL-HD-MR63	Details	HD	HD	HD	PP / ZR / SI / GS	3mm	6mm	2mm
PL-HD-683	Details	HD	HD	HD	PP / ZR / SI / GS	3mm	7mm	2mm
PL-HD-693	Details	HD	HD	HD	PP / ZR / SI / GS	3mm	8mm	3mm
PL-HD-MR83	Details	HD	HD	HD	PP / ZR / SI / GS	3mm	8mm	2.5mm
PL-HD-603	Details	HD	HD	HD	PP / ZR / SI / GS	3 mm	9mm	3mm
PL-HD-MR93	Details	HD	HD	HD	PP / ZR / SI / GS	3mm	9mm	2.5mm
PL-HD-623	Details	HD	HD	HD	PP / ZR / SI / GS	3mm	10mm	4mm
PL-HD-633	Details	HD	HD	HD	PP / ZR / SI / GS	3 mm	13mm	5mm
PL-HD-MR74	Details	HD	HD	HD	PP / ZR / SI / GS	4mm	7mm	2mm
PL-HD-MR84	Details	HD	HD	HD	PP / ZR / SI / GS	4mm	8mm	2mm
PL-HD-684	Details	HD	HD	HD	PP / ZR / SI / GS	4mm	9mm	2.5mm
PL-HD-MR104	Details	HD	HD	HD	PP / ZR / SI / GS	4mm	10mm	3mm
PL-HD-694	Details	HD	HD	HD	PP / ZR / SI / GS	4 mm	11mm	4mm
PL-HD-604	Details	HD	HD	HD	PP / ZR / SI / GS	4 mm	12mm	4mm
PL-HD-624	Details	HD	HD	HD	PP / ZR / SI / GS	4mm	13mm	5mm
PL-HD-634	Details	HD	HD	HD	PP / ZR / SI / GS	4mm	16mm	5mm
PL-HD-MR85	Details	HD	HD	HD	PP / ZR / SI / GS	5mm	8mm	2mm
PL-HD-MR95	Details	HD	HD	HD	PP / ZR / SI / GS	5 mm	9mm	2.5mm
PL-HD-MR105	Details	HD	HD	HD	PP / ZR / SI / GS	5 mm	10mm	3mm
PL-HD-685	Details	HD	HD	HD	PP / ZR / SI / GS	5mm	11mm	3mm
PL-HD-MR115	Details	HD	HD	HD	PP / ZR / SI / GS	5mm	11mm	4mm
PL-HD-695	Details	HD	HD	HD	PP / ZR / SI / GS	5mm	13mm	4mm
PL-HD-605	Details	HD	HD	HD	PP / ZR / SI / GS	5mm	14mm	5mm
PL-HD-625	Details	HD	HD	HD	PP / ZR / SI / GS	5mm	16mm	5mm
PL-HD-635	Details	HD	HD	HD	PP / ZR / SI / GS	5mm	19mm	6mm
PL-HD-MR106	Details	HD	HD	HD	PP / ZR / SI / GS	6mm	10mm	2.5mm
PL-HD-MR126	Details	HD	HD	HD	PP / ZR / SI / GS	6mm	12mm	3mm
PL-HD-686	Details	HD	HD	HD	PP / ZR / SI / GS	6mm	13mm	3.5mm
PL-HD-696	Details	HD	HD	HD	PP / ZR / SI / GS	6mm	15mm	5mm
PL-HD-606	Details	HD	HD	HD	PP / ZR / SI / GS	6mm	17mm	6mm
PL-HD-626	Details	HD	HD	HD	PP / ZR / SI / GS	6 mm	19mm	6mm
PL-HD-636	Details	HD	HD	HD	PP / ZR / SI / GS	6mm	22mm	7mm
PL-HD-MR117	Details	HD	HD	HD	PP / ZR / SI / GS	7 mm	11mm	2.5mm
PL-HD-MR137	Details	HD	HD	HD	PP / ZR / SI / GS	7mm	13mm	3mm
PL-HD-687	Details	HD	HD	HD	PP / ZR / SI / GS	7mm	14mm	3.5mm
PL-HD-697	Details	HD	HD	HD	PP / ZR / SI / GS	7mm	17mm	5mm
PL-HD-607	Details	HD	HD	HD	PP / ZR / SI / GS	7mm	19mm	6mm
PL-HD-627	Details	HD	HD	HD	PP / ZR / SI / GS	7mm	22mm	7mm
PL-HD-637	Details	HD	HD	HD	PP / ZR / SI / GS	7 mm	26mm	9mm
PL-HD-MR128	Details	HD	HD	HD	PP / ZR / SI / GS	8mm	12mm	2.5mm
PL-HD-MR148	Details	HD	HD	HD	PP / ZR / SI / GS	8 mm	14mm	3.5mm
PL-HD-688	Details	HD	HD	HD	PP / ZR / SI / GS	8 mm	16mm	4mm
PL-HD-698	Details	HD	HD	HD	PP / ZR / SI / GS	8mm	19mm	6mm
PL-HD-608	Details	HD	HD	HD	PP / ZR / SI / GS	8mm	22mm	7mm
PL-HD-628	Details	HD	HD	HD	PP / ZR / SI / GS	8mm	24mm	8mm
PL-HD-638	Details	HD	HD	HD	PP / ZR / SI / GS	8mm	28mm	9mm
PL-HD-679	Details	HD	HD	HD	PP / ZR / SI / GS	9mm	14mm	3mm
PL-HD-689	Details	HD	HD	HD	PP / ZR / SI / GS	9mm	17mm	4mm
PL-HD-699	Details	HD	HD	HD	PP / ZR / SI / GS	9mm	20mm	6mm
PL-HD-609	Details	HD	HD	HD	PP / ZR / SI / GS	9mm	24mm	7mm
PL-HD-629	Details	HD	HD	HD	PP / ZR / SI / GS	9mm	26mm	8mm
PL-HD-639	Details	HD	HD	HD	PP / ZR / SI / GS	9mm	30mm	10mm
PL-HD-6700	Details	HD	HD	HD	PP / ZR / SI / GS	10mm	15mm	3mm
PL-HD-63800	Details	HD	HD	HD	PP / ZR / SI / GS	10mm	19mm	7mm
PL-HD-6800	Details	HD	HD	HD	PP / ZR / SI / GS	10mm	19mm	5mm
PL-HD-6900	Details	HD	HD	HD	PP / ZR / SI / GS	10mm	22mm	6mm
PL-HD-6000	Details	HD	HD	HD	PP / ZR / SI / GS	10 mm	26mm	8mm
PL-HD-6200	Details	HD	HD	HD	PP / ZR / SI / GS	10 mm	30mm	9mm
PL-HD-6300	Details	HD	HD	HD	PP / ZR / SI / GS	10 mm	35mm	11mm
PL-HD-6701	Details	HD	HD	HD	PP / ZR / SI / GS	12mm	18mm	4mm
PL-HD-63801	Details	HD	HD	HD	PP / ZR / SI / GS	12mm	21mm	7mm
PL-HD-6801	Details	HD	HD	HD	PP / ZR / SI / GS	12mm	21mm	5mm
PL-HD-6901	Details	HD	HD	HD	PP / ZR / SI / GS	12mm	24mm	6mm
PL-HD-6001	Details	HD	HD	HD	PP / ZR / SI / GS	12 mm	28mm	8mm
PL-HD-6201	Details	HD	HD	HD	PP / ZR / SI / GS	12 mm	32mm	10mm
PL-HD-6301	Details	HD	HD	HD	PP / ZR / SI / GS	12 mm	37mm	12mm
PL-HD-6702	Details	HD	HD	HD	PP / ZR / SI / GS	15mm	21mm	4mm
PL-HD-63802	Details	HD	HD	HD	PP / ZR / SI / GS	15mm	24mm	7mm
PL-HD-6802	Details	HD	HD	HD	PP / ZR / SI / GS	15mm	24mm	5mm
PL-HD-6902	Details	HD	HD	HD	PP / ZR / SI / GS	15mm	28mm	7mm
PL-HD-6002	Details	HD	HD	HD	PP / ZR / SI / GS	15 mm	32mm	9mm
PL-HD-6202	Details	HD	HD	HD	PP / ZR / SI / GS	15 mm	35mm	11mm
PL-HD-6302	Details	HD	HD	HD	PP / ZR / SI / GS	15 mm	42mm	13mm
PL-HD-6703	Details	HD	HD	HD	PP / ZR / SI / GS	17mm	23mm	4mm
PL-HD-63803	Details	HD	HD	HD	PP / ZR / SI / GS	17mm	26mm	7mm
PL-HD-6803	Details	HD	HD	HD	PP / ZR / SI / GS	17mm	26mm	5mm
PL-HD-6903	Details	HD	HD	HD	PP / ZR / SI / GS	17mm	30mm	7mm
PL-HD-6003	Details	HD	HD	HD	PP / ZR / SI / GS	17 mm	35mm	10mm
PL-HD-6203	Details	HD	HD	HD	PP / ZR / SI / GS	17 mm	40mm	12mm
PL-HD-6303	Details	HD	HD	HD	PP / ZR / SI / GS	17 mm	47mm	14mm
PL-HD-6704	Details	HD	HD	HD	PP / ZR / SI / GS	20mm	27mm	4mm
PL-HD-63804	Details	HD	HD	HD	PP / ZR / SI / GS	20mm	32mm	10mm
PL-HD-6804	Details	HD	HD	HD	PP / ZR / SI / GS	20mm	32mm	7mm
PL-HD-6904	Details	HD	HD	HD	PP / ZR / SI / GS	20mm	37mm	9mm
PL-HD-6004	Details	HD	HD	HD	PP / ZR / SI / GS	20 mm	42mm	12mm
PL-HD-6204	Details	HD	HD	HD	PP / ZR / SI / GS	20 mm	47mm	14mm
PL-HD-6304	Details	HD	HD	HD	PP / ZR / SI / GS	20 mm	52mm	15mm
PL-HD-6705	Details	HD	HD	HD	PP / ZR / SI / GS	25mm	32mm	4mm
PL-HD-63805	Details	HD	HD	HD	PP / ZR / SI / GS	25mm	37mm	10mm
PL-HD-6805	Details	HD	HD	HD	PP / ZR / SI / GS	25mm	37mm	7mm
PL-HD-6905	Details	HD	HD	HD	PP / ZR / SI / GS	25mm	42mm	9mm
PL-HD-6005	Details	HD	HD	HD	PP / ZR / SI / GS	25 mm	47mm	12mm
PL-HD-6205	Details	HD	HD	HD	PP / ZR / SI / GS	25 mm	52mm	15mm
PL-HD-6305	Details	HD	HD	HD	PP / ZR / SI / GS	25 mm	62mm	17mm
PL-HD-6706	Details	HD	HD	HD	PP / ZR / SI / GS	30mm	37mm	4mm
PL-HD-63806	Details	HD	HD	HD	PP / ZR / SI / GS	30mm	42mm	10mm
PL-HD-6806	Details	HD	HD	HD	PP / ZR / SI / GS	30mm	42mm	7mm
PL-HD-6906	Details	HD	HD	HD	PP / ZR / SI / GS	30mm	47mm	9mm
PL-HD-6006	Details	HD	HD	HD	PP / ZR / SI / GS	30 mm	55mm	13mm
PL-HD-6206	Details	HD	HD	HD	PP / ZR / SI / GS	30 mm	62mm	16mm
PL-HD-6306	Details	HD	HD	HD	PP / ZR / SI / GS	30 mm	72mm	19mm
PL-HD-6707	Details	HD	HD	HD	PP / ZR / SI / GS	35mm	44mm	5mm
PL-HD-6807	Details	HD	HD	HD	PP / ZR / SI / GS	35mm	47mm	7mm
PL-HD-6907	Details	HD	HD	HD	PP / ZR / SI / GS	35mm	55mm	10mm
PL-HD-6007	Details	HD	HD	HD	PP / ZR / SI / GS	35 mm	62mm	14mm
PL-HD-6207	Details	HD	HD	HD	PP / ZR / SI / GS	35 mm	72mm	17mm
PL-HD-6307	Details	HD	HD	HD	PP / ZR / SI / GS	35 mm	80mm	21mm
PL-HD-6708	Details	HD	HD	HD	PP / ZR / SI / GS	40mm	50mm	6mm
PL-HD-6808	Details	HD	HD	HD	PP / ZR / SI / GS	40mm	52mm	7mm
PL-HD-6908	Details	HD	HD	HD	PP / ZR / SI / GS	40mm	62mm	12mm
PL-HD-6008	Details	HD	HD	HD	PP / ZR / SI / GS	40 mm	68mm	15mm
PL-HD-6208	Details	HD	HD	HD	PP / ZR / SI / GS	40 mm	80mm	18mm
PL-HD-6308	Details	HD	HD	HD	PP / ZR / SI / GS	40 mm	90mm	23mm
PL-HD-6709	Details	HD	HD	HD	PP / ZR / SI / GS	45mm	55mm	6mm
PL-HD-6809	Details	HD	HD	HD	PP / ZR / SI / GS	45mm	58mm	7mm
PL-HD-6909	Details	HD	HD	HD	PP / ZR / SI / GS	45mm	68mm	12mm
PL-HD-6009	Details	HD	HD	HD	PP / ZR / SI / GS	45 mm	75mm	16mm
PL-HD-6209	Details	HD	HD	HD	PP / ZR / SI / GS	45 mm	85mm	19mm
PL-HD-6309	Details	HD	HD	HD	PP / ZR / SI / GS	45 mm	100mm	25mm
PL-HD-6710	Details	HD	HD	HD	PP / ZR / SI / GS	50mm	62mm	6mm
PL-HD-6810	Details	HD	HD	HD	PP / ZR / SI / GS	50mm	65mm	7mm
PL-HD-6910	Details	HD	HD	HD	PP / ZR / SI / GS	50mm	72mm	12mm
PL-HD-6010	Details	HD	HD	HD	PP / ZR / SI / GS	50 mm	80mm	16mm
PL-HD-6210	Details	HD	HD	HD	PP / ZR / SI / GS	50 mm	90mm	20mm
PL-HD-6310	Details	HD	HD	HD	PP / ZR / SI / GS	50 mm	110mm	27mm
PL-HD-6811	Details	HD	HD	HD	PP / ZR / SI / GS	55mm	72mm	9mm
PL-HD-6911	Details	HD	HD	HD	PP / ZR / SI / GS	55mm	80mm	13mm
PL-HD-6011	Details	HD	HD	HD	PP / ZR / SI / GS	55 mm	90mm	18mm
PL-HD-6211	Details	HD	HD	HD	PP / ZR / SI / GS	55 mm	100mm	21mm
PL-HD-6311	Details	HD	HD	HD	PP / ZR / SI / GS	55 mm	120mm	29mm
PL-HD-6812	Details	HD	HD	HD	PP / ZR / SI / GS	60mm	78mm	10mm
PL-HD-6912	Details	HD	HD	HD	PP / ZR / SI / GS	60mm	85mm	13mm
PL-HD-6012	Details	HD	HD	HD	PP / ZR / SI / GS	60 mm	95mm	18mm
PL-HD-6212	Details	HD	HD	HD	PP / ZR / SI / GS	60 mm	110mm	22mm
PL-HD-6312	Details	HD	HD	HD	PP / ZR / SI / GS	60 mm	130mm	31mm
PL-HD-6813	Details	HD	HD	HD	PP / ZR / SI / GS	65mm	85mm	10mm
PL-HD-6913	Details	HD	HD	HD	PP / ZR / SI / GS	65mm	90mm	13mm
PL-HD-6013	Details	HD	HD	HD	PP / ZR / SI / GS	65 mm	100mm	18mm
PL-HD-6213	Details	HD	HD	HD	PP / ZR / SI / GS	65 mm	120mm	23mm
PL-HD-6313	Details	HD	HD	HD	PP / ZR / SI / GS	65 mm	140mm	33mm
PL-HD-6814	Details	HD	HD	HD	PP / ZR / SI / GS	70mm	90mm	10mm
PL-HD-6914	Details	HD	HD	HD	PP / ZR / SI / GS	70mm	100mm	16mm
PL-HD-6014	Details	HD	HD	HD	PP / ZR / SI / GS	70 mm	110mm	20mm
PL-HD-6214	Details	HD	HD	HD	PP / ZR / SI / GS	70 mm	125mm	24mm
PL-HD-6314	Details	HD	HD	HD	PP / ZR / SI / GS	70 mm	150mm	35mm
PL-HD-6815	Details	HD	HD	HD	PP / ZR / SI / GS	75mm	95mm	10mm
PL-HD-6915	Details	HD	HD	HD	PP / ZR / SI / GS	75mm	105mm	16mm
PL-HD-6015	Details	HD	HD	HD	PP / ZR / SI / GS	75 mm	115mm	20mm
PL-HD-6215	Details	HD	HD	HD	PP / ZR / SI / GS	75 mm	130mm	25mm
PL-HD-6315	Details	HD	HD	HD	PP / ZR / SI / GS	75 mm	160mm	37mm
PL-HD-6816	Details	HD	HD	HD	PP / ZR / SI / GS	80mm	100mm	10mm
PL-HD-6916	Details	HD	HD	HD	PP / ZR / SI / GS	80mm	110mm	16mm
PL-HD-6016	Details	HD	HD	HD	PP / ZR / SI / GS	80 mm	125mm	22mm
PL-HD-6216	Details	HD	HD	HD	PP / ZR / SI / GS	80 mm	140mm	26mm
PL-HD-6316	Details	HD	HD	HD	PP / ZR / SI / GS	80 mm	170mm	39mm
PL-HD-6817	Details	HD	HD	HD	PP / ZR / SI / GS	85mm	110mm	13mm
PL-HD-6917	Details	HD	HD	HD	PP / ZR / SI / GS	85mm	120mm	18mm
PL-HD-6017	Details	HD	HD	HD	PP / ZR / SI / GS	85 mm	130mm	22mm
PL-HD-6217	Details	HD	HD	HD	PP / ZR / SI / GS	85 mm	150mm	28mm
PL-HD-6317	Details	HD	HD	HD	PP / ZR / SI / GS	85 mm	180mm	41mm
PL-HD-6818	Details	HD	HD	HD	PP / ZR / SI / GS	90mm	115mm	13mm
PL-HD-6918	Details	HD	HD	HD	PP / ZR / SI / GS	90mm	125mm	18mm
PL-HD-6018	Details	HD	HD	HD	PP / ZR / SI / GS	90 mm	140mm	24mm
PL-HD-6218	Details	HD	HD	HD	PP / ZR / SI / GS	90 mm	160mm	30mm
PL-HD-6318	Details	HD	HD	HD	PP / ZR / SI / GS	90 mm	190mm	43mm
PL-HD-6819	Details	HD	HD	HD	PP / ZR / SI / GS	95mm	120mm	13mm
PL-HD-6019	Details	HD	HD	HD	PP / ZR / SI / GS	95 mm	145mm	24mm
PL-HD-6219	Details	HD	HD	HD	PP / ZR / SI / GS	95 mm	170mm	32mm
PL-HD-6319	Details	HD	HD	HD	PP / ZR / SI / GS	95 mm	200mm	45mm
PL-HD-6020	Details	HD	HD	HD	PP / ZR / SI / GS	100 mm	150mm	24mm
PL-HD-6220	Details	HD	HD	HD	PP / ZR / SI / GS	100 mm	150mm	24mm
PL-HD-6320	Details	HD	HD	HD	PP / ZR / SI / GS	100 mm	215mm	47mm
PL-HD-6021	Details	HD	HD	HD	PP / ZR / SI / GS	105 mm	160mm	26mm
PL-HD-6221	Details	HD	HD	HD	PP / ZR / SI / GS	105 mm	190mm	36mm
PL-HD-6321	Details	HD	HD	HD	PP / ZR / SI / GS	105 mm	225mm	49mm

Ceramic Bearings & Plastic Bearings-Engineering Plastic Bearings-Plastic bearings HDPE, working temperature from -50℃ to +90℃ anti-acid bearings & anti-alkali bearings, ROHS compliance
