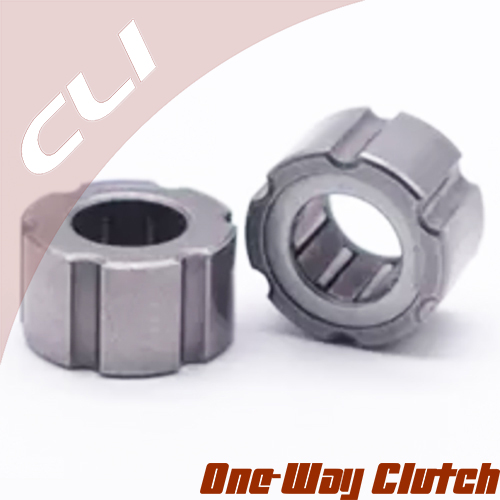

Original 10 picture one way clutch owc gxrz 402
Product Picture
Original 6 one way clutch owc gxlz owc gxrz nw
Download PDF Catalogue

OWC..GXRZ
Miniature One-Way Clutch Bearings with Clockwise Rotation Direction
METRIC Sizes




CLI's OWC series One-Way Clutch is a unidirectional bearing, which rotates freely in one-direction and clutches in the other direction. CLI's miniature clutches are compact fitting the shaft diameter from 3mm, and the most of the model measures only 5.4mm in width.

CLI's clutches are also high-performance in overrunning, back stopping and indexing so that these are widely accepted in the field of office equipment, control equipment and various other paper or bill handling mechanisms.

Two types, R and L, are available. The type "R" clutches in the clockwise direction, whereas the type "L" in the counterclock direction.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



 BEARING LIST & BEARING DETAILS

OWC..GXRZ
Miniature One-Way Clutch Bearings with Clockwise Rotation Direction
METRIC Sizes for shaft sizes from
6 mm to 8 mm

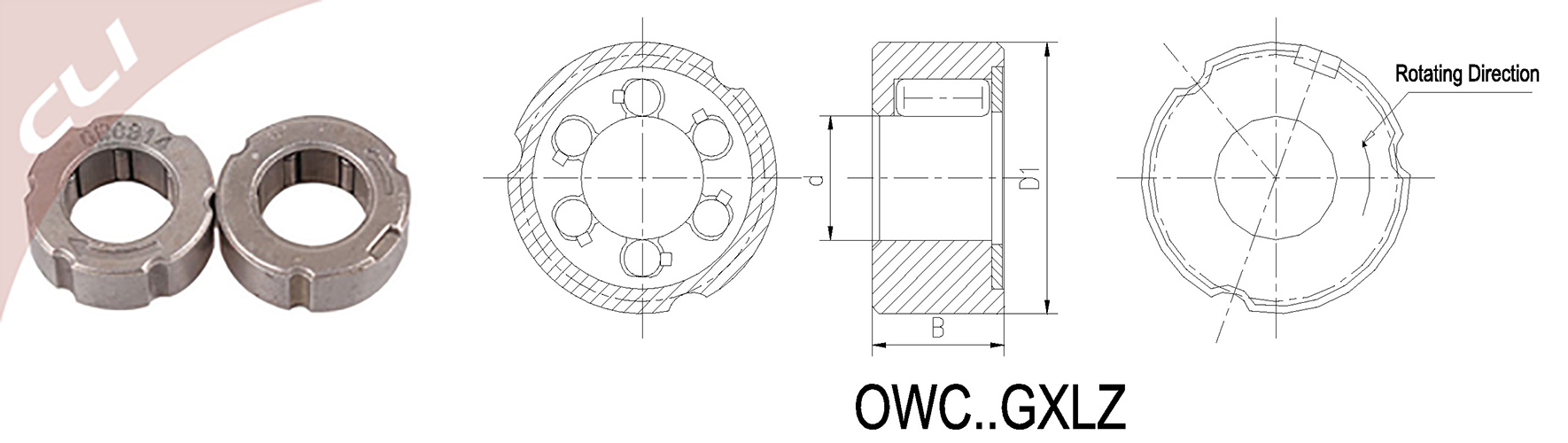

CLI Dimension(mm) Torque Rating
Bearing No.    d D1 B (N.m)
OWC610GXLZ 6 10.2 8 0.54
OWC610GXRZ 6 10.2 8 0.54
OWC812GXLZ 8 12.2 8 0.73
OWC812GXRZ 8 12.2 8 0.73
OWC6128.4GXLZ 6 12 8.4 0.8
OWC6128.4GXRZ 6 12 8.4 0.8
OWC8148.4GXLZ 8 14.3 8.4 1.47
OWC8148.4GXRZ 8 14.3 8.4 1.47
