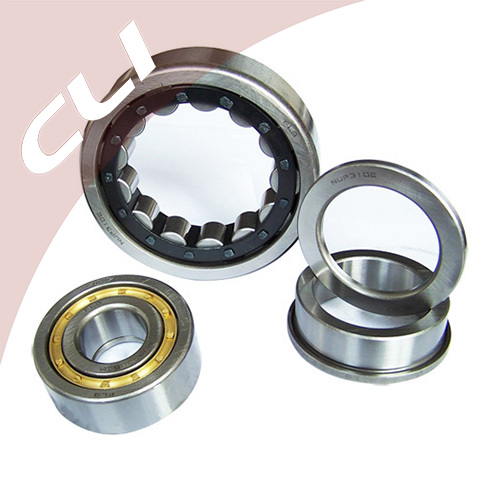

Product Picture

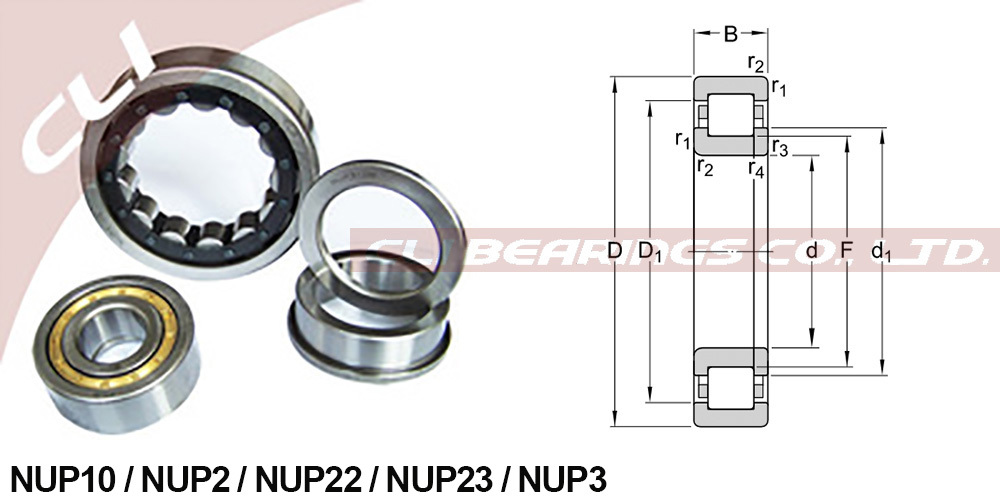

NUP series
(
NUP10NUP2 / NUP22 / NUP23 / NUP3 )
cylindrical roller bearings,
locating bearing, separable, with cage,
CHROME STEEL AISI52100, METRIC sizes




CLI cylindrical roller bearings have cylindrical rolling elements. They are designed for high radial loads and high speeds.
For axial loads they are unsuitable. They have very good floating bearing properties.
These bearings' main dimensions according to DIN 5412-1. Suitable for high radial load-ratings and high speeds. Simplified mounting and dismounting by dismantling. Usually excellent non-locating bearing properties. Those bearings are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -20°C up to +120°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.‚Äč

Below is the list of pupular bearing types we are producing and supplying to our customers:

 * NU - Two solid ribs on outer ring and one inner ring without ribs make possible an axial displacement in both directions.
 * NJ - Two solid ribs on the outer ring and one solid rib on the inner ring make possible a guidance in the axial direction.
 * NF - Two ribs on the inner ring and one rib on the outer ring.
 * NUP - Two solid ribs on the outer ring, a solid rib on the inner ring and a loose rib washer make possible the use as a locating bearing and an axial guidance in both directions.
 * N - Two solid ribs on the inner ring and one outer ring without ribs make possible an axial displacement in both directions.
 * RNU - NU series cylindrical roller bearings without an inner ring.
 * RN
- N series cylindrical roller bearings without an outer ring.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...


BEARING LIST & BEARING DETAILS

NUP10 series
cylindrical roller bearings,
AISI52100 chrome steel for
shaft sizes from
25 mm to 150 mm



CLI
Bearing No.
Boundary dimensions Basic load rating(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B r1,r2 r3,r4 Cr Cor Grease Oil
NUP1005 25 47 12 0.6 0.3 15.1 14.1 16000 19000 0.09
NUP1006 30 55 13 1 0.6 19.7 19.6 14000 16000 0.13
NUP1007 35 62 14 1 0.6 22.6 23.2 12000 15000 0.18
NUP1008 40 68 15 1 0.6 27.3 29 11000 13000 0.22
NUP1009 45 75 16 1 0.6 31 34 9900 12000 0.28
NUP1010 50 80 16 1 0.6 32 36 8900 11000 0.3
NUP1011 55 90 18 1.1 1 37.5 44 8200 9700 0.44
NUP1012 60 95 18 1.1 1 40 48.5 7500 8800 0.47
NUP1013 65 100 18 1.1 1 41 51 7000 8200 0.49
NUP1014 70 110 20 1.1 1 58.5 70.5 6500 7600 0.7
NUP1015 75 115 20 1.1 1 60 74.5 6100 7100 0.74
NUP1016 80 125 22 1.1 1 72.5 90.5 5700 6700 0.98
NUP1017 85 130 22 1.1 1 74.5 95.5 5400 6300 1.03
NUP1018 90 140 24 1.5 1.1 88 114 5100 5900 1.33
NUP1019 95 145 24 1.5 1.1 90.5 120 4800 5600 1.4
NUP1020 100 150 24 1.5 1.1 93 126 4600 5400 1.45
NUP1021 105 160 26 2 1.1 105 142 4300 5100 1.84
NUP1022 110 170 28 2 1.1 131 174 4100 4800 2.33
NUP1024 120 180 28 2 1.1 139 191 3800 4400 2.44
NUP1026 130 200 33 2 1.1 172 238 3400 4000 3.69
NUP1028 140 210 33 2 1.1 176 250 3200 3800 4.05
NUP1030 150 225 35 2.1 1.5 202 294 3000 3500 4.77


NUP2 series
cylindrical roller bearings,
AISI52100 chrome steel for
shaft sizes from
20 mm to 150 mm



CLI
Bearing No.
Boundary dimensions Basic load rating(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B r1,r2 r3,r4 Cr Cor Grease Oil
NUP204E 20 47 14 1 0.6 25.7 22.6 15000 18000 0.12
NUP205E 25 52 15 1 0.6 29.3 27.7 13000 15000 0.15
NUP206E 30 62 16 1 0.6 39 37.5 11000 13000 0.23
NUP207E 35 72 17 1.1 0.6 50.5 50 9500 11000 0.33
NUP208 40 80 18 1.1 1.1 43.5 43 9400 11000 0.38
NUP208E 40 80 18 1.1 1.1 55.5 55.5 8500 10000 0.43
NUP209 45 85 19 1.1 1.1 46 47 8400 9900 0.43
NUP209E 45 85 19 1.1 1.1 63 66.5 7600 9000 0.5
NUP210 50 90 20 1.1 1.1 48 51 7600 9000 0.47
NUP210E 50 90 20 1.1 1.1 66 72 6900 8100 0.54
NUP211 55 100 21 1.5 1.1 58 62.5 6900 8200 0.64
NUP211E 55 100 21 1.5 1.1 82.5 93 6300 7400 0.72
NUP212 60 110 22 1.5 1.5 68.5 75 6400 7600 0.82
NUP212E 60 110 22 1.5 1.5 97.5 107 5800 6800 0.92
NUP213 65 120 23 1.5 1.5 84 94.5 5900 7000 1.02
NUP213E 65 120 23 1.5 1.5 108 119 5400 6300 1.21
NUP214 70 125 24 1.5 1.5 83.5 95 5500 6500 1.12
NUP214E 70 125 24 1.5 1.5 119 137 5000 5900 1.3
NUP215 75 130 25 1.5 1.5 96.5 111 5100 6000 1.23
NUP215E 75 130 25 1.5 1.5 130 156 4700 5500 1.41
NUP216 80 140 26 2 2 106 122 4800 5700 1.5
NUP216E 80 140 26 2 2 139 167 4400 5100 1.67
NUP217 85 150 28 2 2 120 140 4500 5300 1.87
NUP217E 85 150 28 2 2 167 199 4100 4800 2.11
NUP218 90 160 30 2 2 152 178 4300 5000 2.3
NUP218E 90 160 30 2 2 182 217 3900 4600 2.44
NUP219 95 170 32 2.1 2.1 166 195 4000 4700 2.78
NUP219E 95 170 32 2.1 2.1 220 265 3600 4300 3.02
NUP220 100 180 34 2.1 2.1 183 217 3800 4500 3.33
NUP220E 100 180 34 2.1 2.1 249 305 3500 4100 3.66
NUP221 105 190 36 2.1 2.1 201 241 3600 4300 3.95
NUP222 110 200 38 2.1 2.1 240 290 3400 4000 4.63
NUP222E 110 200 38 2.1 2.1 293 365 3100 3700 4.27
NUP224 120 215 40 2.1 2.1 260 320 3200 3700 5.57
NUP224E 120 215 40 2.1 2.1 335 420 2900 3400 5.97
NUP226 130 230 40 3 3 270 340 2900 3400 6.3
NUP226E 130 230 40 3 3 365 455 2600 3100 6.9
NUP228 140 250 42 3 3 310 400 2700 3100 7.88
NUP228E 140 250 42 3 3 395 515 2400 2800 8.73
NUP230 150 270 45 3 3 345 435 2500 2900 9.92
NUP230E 150 270 45 3 3 450 595 2200 2600 11


NUP22 series
cylindrical roller bearings,
AISI52100 chrome steel for
shaft sizes from
20 mm to 150 mm



CLI
Bearing No.
Boundary dimensions Basic load rating(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B r1,r2 r3,r4 Cr Cor Grease Oil
NUP2204E 20 47 18 1 0.6 30.5 28.3 14000 16000 0.16
NUP2205E 25 52 18 1 0.6 35 34.5 11000 13000 0.19
NUP2206E 30 62 20 1 0.6 49 50 9700 11000 0.3
NUP2207E 35 72 23 1.1 0.6 61.5 65.5 8500 10000 0.46
NUP2208 40 80 23 1.1 1.1 58 62 8500 10000 0.49
NUP2208E 40 80 23 1.1 1.1 72.5 77.5 7600 8900 0.55
NUP2209 45 85 23 1.1 1.1 61.5 68 7600 9000 0.53
NUP2209E 45 85 23 1.1 1.1 76 84.5 6800 8000 0.6
NUP2210 50 90 23 1.1 1.1 64 73.5 6900 8100 0.57
NUP2210E 50 90 23 1.1 1.1 79.5 91.5 6200 7300 0.65
NUP2211 55 100 25 1.5 1.1 75.5 87 6300 7400 0.77
NUP2211E 55 100 25 1.5 1.1 97 114 5600 6600 0.97
NUP2212 60 110 28 1.5 1.5 96 116 5800 6800 1.06
NUP2212E 60 110 28 1.5 1.5 131 157 5200 6100 1.21
NUP2213 65 120 31 1.5 1.5 120 149 5400 6300 1.4
NUP2213E 65 120 31 1.5 1.5 149 181 4800 5600 1.6
NUP2214 70 125 31 1.5 1.5 119 151 5000 5900 1.47
NUP2214E 70 125 31 1.5 1.5 156 194 4500 5200 1.7
NUP2215 75 130 31 1.5 1.5 130 162 4700 5500 1.55
NUP2215E 75 130 31 1.5 1.5 162 207 4200 4900 1.79
NUP2216 80 140 33 2 2 147 186 4400 5100 1.93
NUP2216E 80 140 33 2 2 186 243 3900 4600 2.12
NUP2217 85 150 36 2 2 170 218 4100 4800 2.44
NUP2217E 85 150 36 2 2 217 279 3700 4300 2.68
NUP2218 90 160 40 2 2 197 248 3900 4600 3.1
NUP2218E 90 160 40 2 2 242 315 3500 4100 3.33
NUP2219 95 170 43 2.1 2.1 230 298 3600 4300 3.79
NUP2219E 95 170 43 2.1 2.1 286 370 3300 3800 4.14
NUP2220 100 180 46 2.1 2.1 258 340 3500 4100 4.57
NUP2220E 100 180 46 2.1 2.1 335 445 3100 3600 5.01
NUP2222 110 200 53 2.1 2.1 320 415 3100 3700 6.56
NUP2222E 110 200 53 2.1 2.1 385 515 2800 3300 7.4
NUP2224 120 215 58 2.1 2.1 350 460 2900 3400 8.19
NUP2224E 120 215 58 2.1 2.1 450 620 2600 3000 9.18
NUP2226 130 230 64 3 3 380 530 2600 3100 10.2
NUP2226E 130 230 64 3 3 530 735 2300 2700 11.8
NUP2228 140 250 68 3 3 445 635 2400 2800 12.9
NUP2228E 140 250 68 3 3 575 835 2100 2500 15.8
NUP2230 150 270 73 3 3 500 710 2200 2600 16.3
NUP2230E 150 270 73 3 3 660 980 2000 2400 19.7


NUP23 series
cylindrical roller bearings,
AISI52100 chrome steel for
shaft sizes from
20 mm to 150 mm



CLI
Bearing No.
Boundary dimensions Basic load rating(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B r1,r2 r3,r4 Cr Cor Grease Oil
NUP2304E 20 52 21 1.1 0.6 42 39 12000 14000 0.24
NUP2305E 25 62 24 1.1 1.1 57 56 9700 11000 0.39
NUP2306E 30 72 27 1.1 1.1 74.5 77.5 8300 9700 0.58
NUP2307E 35 80 31 1.5 1.1 99 109 7200 8500 0.78
NUP2308 40 90 33 1.5 1.5 82.5 88 7000 8200 0.95
NUP2308E 40 90 33 1.5 1.5 114 122 6400 7500 1.06
NUP2309 45 100 36 1.5 1.5 99 104 6300 7400 1.27
NUP2309E 45 100 36 1.5 1.5 137 153 5700 6800 1.41
NUP2310 50 110 40 2 2 121 131 5700 6700 1.7
NUP2310E 50 110 40 2 2 163 187 5200 6100 1.9
NUP2311 55 120 43 2 2 148 162 5200 6100 2.17
NUP2311E 55 120 43 2 2 201 233 4700 5600 2.37
NUP2312 60 130 46 2.1 2.1 169 188 4800 5700 2.71
NUP2312E 60 130 46 2.1 2.1 222 262 4400 5200 2.96
NUP2313 65 140 48 2.1 2.1 188 212 4400 5200 3.27
NUP2313E 65 140 48 2.1 2.1 248 287 4100 4800 3.48
NUP2314 70 150 51 2.1 2.1 223 262 4100 4800 3.98
NUP2314E 70 150 51 2.1 2.1 274 325 3800 4400 4.25
NUP2315 75 160 55 2.1 2.1 258 300 3800 4500 4.87
NUP2315E 75 160 55 2.1 2.1 330 395 3500 4100 5.25
NUP2316 80 170 58 2.1 2.1 274 330 3600 4200 5.79
NUP2316E 80 170 58 2.1 2.1 355 430 3300 3900 6.25
NUP2317 85 180 60 3 3 315 380 3400 4000 6.7
NUP2317E 85 180 60 3 3 395 485 3100 3700 7.16
NUP2318 90 190 64 3 3 325 395 3200 3800 7.95
NUP2318E 90 190 64 3 3 435 535 2900 3400 8.56
NUP2319 95 200 67 3 3 370 460 3000 3500 9.2
NUP2319E 95 200 67 3 3 460 585 2700 3200 9.8
NUP2320 100 215 73 3 3 410 505 2900 3400 11.7
NUP2320E 100 215 73 3 3 570 715 2600 3100 12.8
NUP2322 110 240 80 3 3 605 790 2600 3100 17.1
NUP2322E 110 240 80 3 3 675 880 2400 2800 19.4
NUP2324 120 260 86 3 3 710 920 2400 2800 21.5
NUP2324E 120 260 86 3 3 795 1030 2200 2500 26.1
NUP2326 130 280 93 4 4 840 1130 2200 2600 26.9
NUP2326E 130 280 93 4 4 920 1230 2000 2300 30.9
NUP2328 140 300 102 4 4 920 1250 2000 2300 33.8
NUP2328E 140 300 102 4 4 1020 1380 1800 2100 38.7
NUP2330 150 320 108 4 4 1020 1400 1900 2200 40.6
NUP2330E 150 320 108 4 4 1160 1600 1700 2000 47.2


NUP3 series
cylindrical roller bearings,
AISI52100 chrome steel for
shaft sizes from
20 mm to 150 mm



CLI
Bearing No.
Boundary dimensions Basic load rating(kN) Limiting speeds Mass
mm Dynamic Static rpm Kg
d D B r1,r2 r3,r4 Cr Cor Grease Oil
NUP304E 20 52 15 1.1 0.6 31.5 26.9 13000 15000 0.18
NUP305E 25 62 17 1.1 1.1 41.5 37.5 11000 13000 0.28
NUP306E 30 72 19 1.1 1.1 53 50 9300 11000 0.4
NUP307E 35 80 21 1.5 1.1 71 71 8100 9600 0.55
NUP308 40 90 23 1.5 1.5 58.5 57 8000 9400 0.66
NUP308E 40 90 23 1.5 1.5 83 81.5 7200 8500 0.75
NUP309 45 100 25 1.5 1.5 74 71 7200 8400 0.88
NUP309E 45 100 25 1.5 1.5 97.5 98.5 6500 7600 1
NUP310 50 110 27 2 2 87 86 6500 7700 1.14
NUP310E 50 110 27 2 2 110 113 5900 6900 1.3
NUP311 55 120 29 2 2 111 111 5900 7000 1.45
NUP311E 55 120 29 2 2 137 143 5300 6300 1.65
NUP312 60 130 31 2.1 2.1 124 126 5500 6500 1.8
NUP312E 60 130 31 2.1 2.1 150 157 4900 5800 2.05
NUP313 65 140 33 2.1 2.1 135 139 5100 6000 2.23
NUP313E 65 140 33 2.1 2.1 181 191 4600 5400 2.54
NUP314 70 150 35 2.1 2.1 158 168 4700 5500 2.71
NUP314E 70 150 35 2.1 2.1 205 222 4200 5000 3.1
NUP315 75 160 37 2.1 2.1 190 205 4400 5200 3.28
NUP315E 75 160 37 2.1 2.1 240 263 4000 4700 3.74
NUP316 80 170 39 2.1 2.1 190 207 4100 4800 3.86
NUP316E 80 170 39 2.1 2.1 256 282 3700 4400 4.22
NUP317 85 180 41 3 3 212 228 3900 4600 4.54
NUP317E 85 180 41 3 3 291 330 3500 4100 4.81
NUP318 90 190 43 3 3 240 265 3700 4300 5.3
NUP318E 90 190 43 3 3 315 355 3300 3900 5.72
NUP319 95 200 45 3 3 259 285 3400 4000 6.13
NUP319E 95 200 45 3 3 335 385 3100 3600 6.62
NUP320 100 215 47 3 3 299 335 3300 3800 7.49
NUP320E 100 215 47 3 3 380 425 2900 3500 8.57
NUP321 105 225 49 3 3 320 360 3100 3700 8.53
NUP322 110 240 50 3 3 360 400 3000 3500 10
NUP322E 110 240 50 3 3 450 525 2700 3100 11.1
NUP324 120 260 55 3 3 450 510 2700 3200 12.8
NUP324E 120 260 55 3 3 530 610 2400 2800 13.9
NUP326 130 280 58 4 4 560 665 2500 2900 17.4
NUP326E 130 280 58 4 4 615 735 2200 2600 19.4
NUP328 140 300 62 4 4 615 745 2300 2700 21.2
NUP328E 140 300 62 4 4 665 795 2100 2400 23.2
NUP330 150 320 65 4 4 665 805 2100 2500 25.3
NUP330E 150 320 65 4 4 760 920 1900 2300 28.4


 Suffix Descriptions:

E - increased capacity roller set, designed for very high load carrying capacity

TVP2 - plastic cage PA66

M1 - 2-piece solid brass cage

MPAX - 1-piece, milled brass cage, guided on the outer ring rib

MPBX - 1-piece, milled brass cage, guided on the inner ring rib

JP3 - sheet steel cage

C3 - radial clearance as C3






Home
