NU series cylindrical roller bearings, non-locating bearing, separable, with cage, CHROME STEEL AISI52100, METRIC sizes

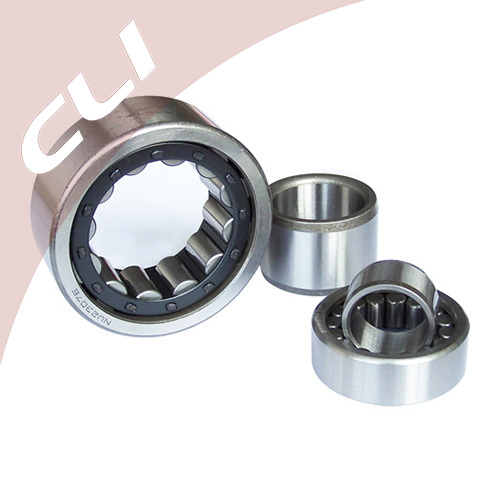

Product Picture

NU series
( NU10 / NU2 / NU22 / NU23 / NU3 )
cylindrical roller bearings, non-locating bearing, separable, with cage,
CHROME STEEL AISI52100, METRIC sizes

CLI cylindrical roller bearings have cylindrical rolling elements. They are designed for high radial loads and high speeds.
For axial loads they are unsuitable. They have very good floating bearing properties.
These bearings' main dimensions according to DIN 5412-1. Suitable for high radial load-ratings and high speeds. Simplified mounting and dismounting by dismantling. Usually excellent non-locating bearing properties. Those bearings are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -20°C up to +120°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

Below is the list of pupular bearing types we are producing and supplying to our customers:

* NU - Two solid ribs on outer ring and one inner ring without ribs make possible an axial displacement in both directions.
* NJ - Two solid ribs on the outer ring and one solid rib on the inner ring make possible a guidance in the axial direction.
* NF - Two ribs on the inner ring and one rib on the outer ring.
* NUP - Two solid ribs on the outer ring, a solid rib on the inner ring and a loose rib washer make possible the use as a locating bearing and an axial guidance in both directions.
* N - Two solid ribs on the inner ring and one outer ring without ribs make possible an axial displacement in both directions.
* RNU - NU series cylindrical roller bearings without an inner ring.
* RN - N series cylindrical roller bearings without an outer ring.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

NU10 series
cylindrical roller bearings, AISI52100 chrome steel
for shaft sizes from 25 mm to 150 mm

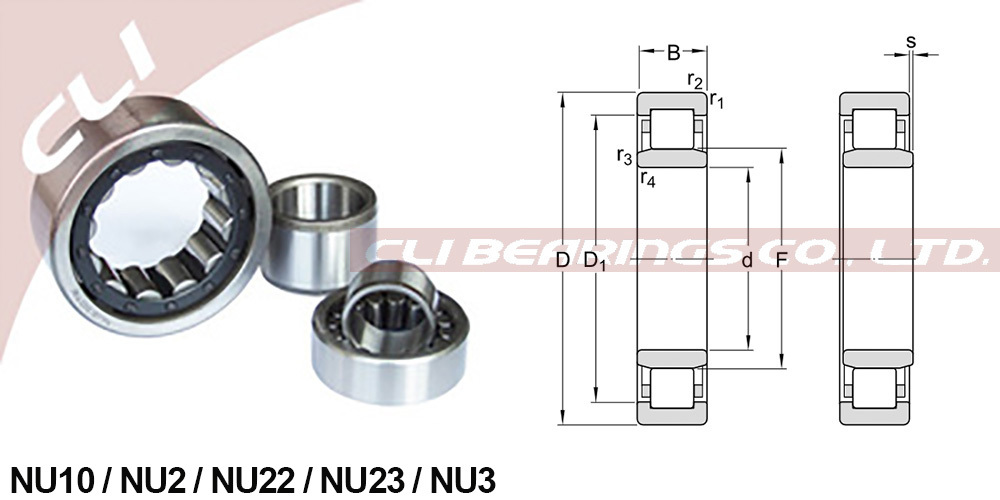

CLI Bearing No.	Boundary dimensions					Basic load rating(kN)		Limiting speeds		Mass
	mm					Dynamic	Static	rpm		Kg
	d	D	B	r1, r2	r3, r4	Cr	Cor	Grease	Oil	≈
NU1005	25	47	12	0.6	0.3	15.1	14.1	16,000	19,000	0.092
NU1006	30	55	13	1	0.6	19.7	19.6	14,000	16,000	0.13
NU1007	35	62	14	1	0.6	22.6	23.2	12,000	15,000	0.179
NU1008	40	68	15	1	0.6	27.3	29	11,000	13,000	0.22
NU1009	45	75	16	1	0.6	31	34	9,900	12,000	0.28
NU1010	50	80	16	1	0.6	32	36	8,900	11,000	0.295
NU1011	55	90	18	1.1	1	37.5	44	8,200	9,700	0.442
NU1012	60	95	18	1.1	1	40	48.5	7,500	8,800	0.474
NU1013	65	100	18	1.1	1	41	51	7,000	8,200	0.485
NU1014	70	110	20	1.1	1	58.5	70.5	6,500	7,600	0.699
NU1015	75	115	20	1.1	1	60	74.5	6,100	7,100	0.738
NU1016	80	125	22	1.1	1	72.5	90.5	5,700	6,700	0.98
NU1017	85	130	22	1.1	1	74.5	95.5	5,400	6,300	1.03
NU1018	90	140	24	1.5	1.1	88	114	5,100	5,900	1.33
NU1019	95	145	24	1.5	1.1	90.5	120	4,800	5,600	1.4
NU1020	100	150	24	1.5	1.1	93	126	4,600	5,400	1.45
NU1021	105	160	26	2	1.1	105	142	4,300	5,100	1.84
NU1022	110	170	28	2	1.1	131	174	4,100	4,800	2.33
NU1024	120	180	28	2	1.1	139	191	3,800	4,400	2.44
NU1026	130	200	33	2	1.1	172	238	3,400	4,000	3.69
NU1028	140	210	33	2	1.1	176	250	3,200	3,800	4.05
NU1030	150	225	35	2.1	1.5	202	294	3,000	3,500	4.77

NU2 series
cylindrical roller bearings, AISI52100 chrome steel
for shaft sizes from 20 mm to 150 mm

CLI Bearing No.	Boundary dimensions					Basic load rating(kN)		Limiting speeds		Mass
	mm					Dynamic	Static	rpm		Kg
	d	D	B	r1, r2	r3, r4	Cr	Cor	Grease	Oil	≈
NU204E	20	47	14	1	0.6	25.7	22.6	15000	18000	0.122
NU205E	25	52	15	1	0.6	29.3	27.7	13000	15000	0.151
NU206E	30	62	16	1	0.6	39	37.5	11000	13000	0.226
NU207E	35	72	17	1.1	0.6	50.5	50	9500	11000	0.327
NU208	40	80	18	1.1	1.1	43.5	43	9400	11000	0.378
NU208E	40	80	18	1.1	1.1	55.5	55.5	8500	10000	0.426
NU209	45	85	19	1.1	1.1	46	47	8400	9900	0.432
NU209E	45	85	19	1.1	1.1	63	66.5	7600	9000	0.495
NU210	50	90	20	1.1	1.1	48	51	7600	9000	0.47
NU210E	50	90	20	1.1	1.1	66	72	6900	8100	0.54
NU211	55	100	21	1.5	1.1	58	62.5	6900	8200	0.638
NU211E	55	100	21	1.5	1.1	82.5	93	6300	7400	0.718
NU212	60	110	22	1.5	1.5	68.5	75	6400	7600	0.818
NU212E	60	110	22	1.5	1.5	97.5	107	5800	6800	0.923
NU213	65	120	23	1.5	1.5	84	94.5	5900	7000	1.02
NU213E	65	120	23	1.5	1.5	108	119	5400	6300	1.21
NU214	70	125	24	1.5	1.5	83.5	95	5500	6500	1.12
NU214E	70	125	24	1.5	1.5	119	137	5000	5900	1.3
NU215	75	130	25	1.5	1.5	96.5	111	5100	6000	1.23
NU215E	75	130	25	1.5	1.5	130	156	4700	5500	1.41
NU216	80	140	26	2	2	106	122	4800	5700	1.5
NU216E	80	140	26	2	2	139	167	4400	5100	1.67
NU217	85	150	28	2	2	120	140	4500	5300	1.87
NU217E	85	150	28	2	2	167	199	4100	4800	2.11
NU218	90	160	30	2	2	152	178	4300	5000	2.3
NU218E	90	160	30	2	2	182	217	3900	4600	2.44
NU219	95	170	32	2.1	2.1	166	195	4000	4700	2.78
NU219E	95	170	32	2.1	2.1	220	265	3600	4300	3.02
NU220	100	180	34	2.1	2.1	183	217	3800	4500	3.33
NU220E	100	180	34	2.1	2.1	249	305	3500	4100	3.66
NU221	105	190	36	2.1	2.1	201	241	3600	4300	3.95
NU222	110	200	38	2.1	2.1	240	290	3400	4000	4.63
NU224	120	215	40	2.1	2.1	260	320	3200	3700	5.57
NU224E	120	215	40	2.1	2.1	335	420	2900	3400	5.97
NU226	130	230	40	3	3	270	340	2900	3400	6.3
NU226E	130	230	40	3	3	365	455	2600	3100	6.9
NU228	140	250	42	3	3	310	400	2700	3100	7.88
NU228E	140	250	42	3	3	395	515	2400	2800	8.73
NU230	150	270	45	3	3	345	435	2500	2900	9.92
NU230E	150	270	45	3	3	450	595	2200	2600	11

NU22 series
cylindrical roller bearings, AISI52100 chrome steel
for shaft sizes from 20 mm to 150 mm

CLI Bearing No.	Boundary dimensions					Basic load rating(kN)		Limiting speeds		Mass
	mm					Dynamic	Static	rpm		Kg
	d	D	B	r1, r2	r3, r4	Cr	Cor	Grease	Oil	≈
NU2204E	20	47	18	1	0.6	30.5	28.3	14000	16000	0.158
NU2205E	25	52	18	1	0.6	35	34.5	11000	13000	0.186
NU2206E	30	62	20	1	0.6	49	50	9700	11000	0.297
NU2207E	35	72	23	1.1	0.6	61.5	65.5	8500	10000	0.455
NU2208	40	80	23	1.1	1.1	58	62	8500	10000	0.49
NU2208E	40	80	23	1.1	1.1	72.5	77.5	7600	8900	0.552
NU2209	45	85	23	1.1	1.1	61.5	68	7600	9000	0.53
NU2209E	45	85	23	1.1	1.1	76	84.5	6800	8000	0.6
NU2210	50	90	23	1.1	1.1	64	73.5	6900	8100	0.571
NU2210E	50	90	23	1.1	1.1	79.5	91.5	6200	7300	0.652
NU2211	55	100	25	1.5	1.1	75.5	87	6300	7400	0.773
NU2211E	55	100	25	1.5	1.1	97	114	5600	6600	0.968
NU2212	60	110	28	1.5	1.5	96	116	5800	6800	1.06
NU2212E	60	110	28	1.5	1.5	131	157	5200	6100	1.21
NU2213	65	120	31	1.5	1.5	120	149	5400	6300	1.4
NU2213E	65	120	31	1.5	1.5	149	181	4800	5600	1.6
NU2214	70	125	31	1.5	1.5	119	151	5000	5900	1.47
NU2214E	70	125	31	1.5	1.5	156	194	4500	5200	1.7
NU2215	75	130	31	1.5	1.5	130	162	4700	5500	1.55
NU2215E	75	130	31	1.5	1.5	162	207	4200	4900	1.79
NU2216	80	140	33	2	2	147	186	4400	5100	1.93
NU2216E	80	140	33	2	2	186	243	3900	4600	2.12
NU2217	85	150	36	2	2	170	218	4100	4800	2.44
NU2217E	85	150	36	2	2	217	279	3700	4300	2.68
NU2218	90	160	40	2	2	197	248	3900	4600	3.1
NU2218E	90	160	40	2	2	242	315	3500	4100	3.33
NU2219	95	170	43	2.1	2.1	230	298	3600	4300	3.79
NU2219E	95	170	43	2.1	2.1	286	370	3300	3800	4.14
NU2220	100	180	46	2.1	2.1	258	340	3500	4100	4.57
NU2220E	100	180	46	2.1	2.1	335	445	3100	3600	5.01
NU2222	110	200	53	2.1	2.1	320	415	3100	3700	6.56
NU2222E	110	200	53	2.1	2.1	385	515	2800	3300	7.4
NU2224	120	215	58	2.1	2.1	350	460	2900	3400	8.19
NU2224E	120	215	58	2.1	2.1	450	620	2600	3000	9.18
NU2226	130	230	64	3	3	380	530	2600	3100	10.2
NU2226E	130	230	64	3	3	530	735	2300	2700	11.8
NU2228	140	250	68	3	3	445	635	2400	2800	12.9
NU2228E	140	250	68	3	3	575	835	2100	2500	15.8
NU2230	150	270	73	3	3	500	710	2200	2600	16.3
NU2230E	150	270	73	3	3	660	980	2000	2400	19.7

NU23 series
cylindrical roller bearings, AISI52100 chrome steel
for shaft sizes from 20 mm to 150 mm

CLI Bearing No.	Boundary dimensions					Basic load rating(kN)		Limiting speeds		Mass
	mm					Dynamic	Static	rpm		Kg
	d	D	B	r1,r2	r3,r4	Cr	Cor	Grease	Oil	≈
NU2304E	20	52	21	1.1	0.6	42	39	12000	14000	0.242
NU2305E	25	62	24	1.1	1.1	57	56	9700	11000	0.386
NU2306E	30	72	27	1.1	1.1	74.5	77.5	8300	9700	0.58
NU2307E	35	80	31	1.5	1.1	99	109	7200	8500	0.78
NU2308	40	90	33	1.5	1.5	82.5	88	7000	8200	0.951
NU2308E	40	90	33	1.5	1.5	114	122	6400	7500	1.06
NU2309	45	100	36	1.5	1.5	99	104	6300	7400	1.27
NU2309E	45	100	36	1.5	1.5	137	153	5700	6800	1.41
NU2310	50	110	40	2	2	121	131	5700	6700	1.7
NU2310E	50	110	40	2	2	163	187	5200	6100	1.9
NU2311	55	120	43	2	2	148	162	5200	6100	2.17
NU2311E	55	120	43	2	2	201	233	4700	5600	2.37
NU2312	60	130	46	2.1	2.1	169	188	4800	5700	2.71
NU2312E	60	130	46	2.1	2.1	222	262	4400	5200	2.96
NU2313	65	140	48	2.1	2.1	188	212	4400	5200	3.27
NU2313E	65	140	48	2.1	2.1	248	287	4100	4800	3.48
NU2314	70	150	51	2.1	2.1	223	262	4100	4800	3.98
NU2314E	70	150	51	2.1	2.1	274	325	3800	4400	4.25
NU2315	75	160	55	2.1	2.1	258	300	3800	4500	4.87
NU2315E	75	160	55	2.1	2.1	330	395	3500	4100	5.25
NU2316	80	170	58	2.1	2.1	274	330	3600	4200	5.79
NU2316E	80	170	58	2.1	2.1	355	430	3300	3900	6.25
NU2317	85	180	60	3	3	315	380	3400	4000	6.7
NU2317E	85	180	60	3	3	395	485	3100	3700	7.16
NU2318	90	190	64	3	3	325	395	3200	3800	7.95
NU2318E	90	190	64	3	3	435	535	2900	3400	8.56
NU2319	95	200	67	3	3	370	460	3000	3500	9.2
NU2319E	95	200	67	3	3	460	585	2700	3200	9.8
NU2320	100	215	73	3	3	410	505	2900	3400	11.7
NU2320E	100	215	73	3	3	570	715	2600	3100	12.8
NU2322	110	240	80	3	3	605	790	2600	3100	17.1
NU2322E	110	240	80	3	3	675	880	2400	2800	19.4
NU2324	120	260	86	3	3	710	920	2400	2800	21.5
NU2324E	120	260	86	3	3	795	1030	2200	2500	26.1
NU2326	130	280	93	4	4	840	1130	2200	2600	26.9
NU2326E	130	280	93	4	4	920	1230	2000	2300	30.9
NU2328	140	300	102	4	4	920	1250	2000	2300	33.8
NU2328E	140	300	102	4	4	1020	1380	1800	2100	38.7
NU2330	150	320	108	4	4	1020	1400	1900	2200	40.6
NU2330E	150	320	108	4	4	1160	1600	1700	2000	47.2

NU3 series
cylindrical roller bearings, AISI52100 chrome steel
for shaft sizes from 20 mm to 150 mm

CLI Bearing No.	Boundary dimensions					Basic load rating(kN)		Limiting speeds		Mass
	mm					Dynamic	Static	rpm		Kg
	d	D	B	r1, r2	r3,r4	Cr	Cor	Grease	Oil	≈
NU304E	20	52	15	1.1	0.6	31.5	26.9	13000	15000	0.176
NU305E	25	62	17	1.1	1.1	41.5	37.5	11000	13000	0.275
NU306E	30	72	19	1.1	1.1	53	50	9300	11000	0.398
NU307E	35	80	21	1.5	1.1	71	71	8100	9600	0.545
NU308	40	90	23	1.5	1.5	58.5	57	8000	9400	0.658
NU308E	40	90	23	1.5	1.5	83	81.5	7200	8500	0.754
NU309	45	100	25	1.5	1.5	74	71	7200	8400	0.877
NU309E	45	100	25	1.5	1.5	97.5	98.5	6500	7600	0.996
NU310	50	110	27	2	2	87	86	6500	7700	1.14
NU310E	50	110	27	2	2	110	113	5900	6900	1.3
NU311	55	120	29	2	2	111	111	5900	7000	1.45
NU311E	55	120	29	2	2	137	143	5300	6300	1.65
NU312	60	130	31	2.1	2.1	124	126	5500	6500	1.8
NU312E	60	130	31	2.1	2.1	150	157	4900	5800	2.05
NU313	65	140	33	2.1	2.1	135	139	5100	6000	2.23
NU313E	65	140	33	2.1	2.1	181	191	4600	5400	2.54
NU314	70	150	35	2.1	2.1	158	168	4700	5500	2.71
NU314E	70	150	35	2.1	2.1	205	222	4200	5000	3.1
NU315	75	160	37	2.1	2.1	190	205	4400	5200	3.28
NU315E	75	160	37	2.1	2.1	240	263	4000	4700	3.74
NU316	80	170	39	2.1	2.1	190	207	4100	4800	3.86
NU316E	80	170	39	2.1	2.1	256	282	3700	4400	4.22
NU317	85	180	41	3	3	212	228	3900	4600	4.54
NU317E	85	180	41	3	3	291	330	3500	4100	4.81
NU318	90	190	43	3	3	240	265	3700	4300	5.3
NU318E	90	190	43	3	3	315	355	3300	3900	5.72
NU319	95	200	45	3	3	259	285	3400	4000	6.13
NU319E	95	200	45	3	3	335	385	3100	3600	6.62
NU320	100	215	47	3	3	299	335	3300	3800	7.49
NU320E	100	215	47	3	3	380	425	2900	3500	8.57
NU321	105	225	49	3	3	320	360	3100	3700	8.53
NU322	110	240	50	3	3	360	400	3000	3500	10
NU322E	110	240	50	3	3	450	525	2700	3100	11.1
NU324	120	260	55	3	3	450	510	2700	3200	12.8
NU324E	120	260	55	3	3	530	610	2400	2800	13.9
NU326	130	280	58	4	4	560	665	2500	2900	17.4
NU326E	130	280	58	4	4	615	735	2200	2600	19.4
NU328	140	300	62	4	4	615	745	2300	2700	21.2
NU328E	140	300	62	4	4	665	795	2100	2400	23.2
NU330	150	320	65	4	4	665	805	2100	2500	25.3
NU330E	150	320	65	4	4	760	920	1900	2300	28.4

* Suffix Descriptions:
E - increased capacity roller set, designed for very high load carrying capacity
TVP2 - plastic cage PA66
M1 - 2-piece solid brass cage
MPAX - 1-piece, milled brass cage, guided on the outer ring rib
MPBX - 1-piece, milled brass cage, guided on the inner ring rib
JP3 - sheet steel cage
C3 - radial clearance as C3

Roller Bearings / Cylindrical roller bearings-NU series cylindrical roller bearings, non-locating bearing, separable, with cage, CHROME STEEL AISI52100, METRIC sizes
