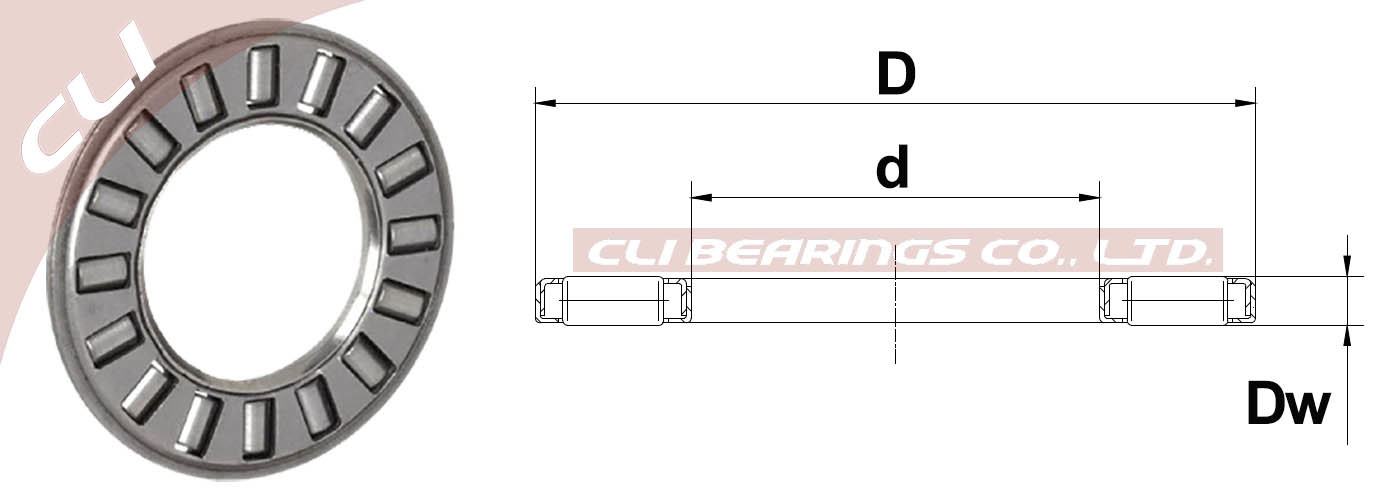

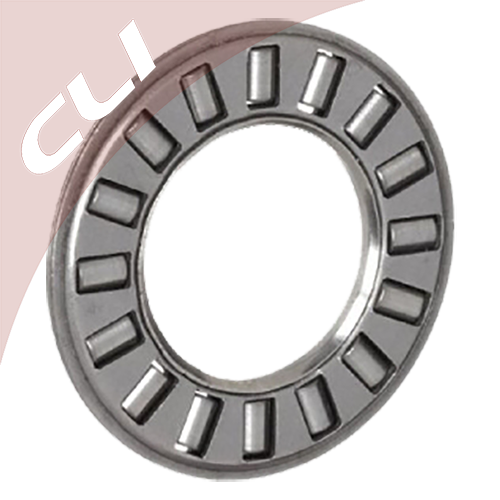

NTA / NTC / TC
Axial needle roller bearings, combination with axial bearing washers TWA,
Single direction, INCH sizes
|
|
CLI axial cylindrical roller bearings are designed to withstand heavy loads in the direction of the shaft. Depending on the bearing design, the load can occur from one or both sides. Axial cylindrical roller bearings are fundamentally different in design from cylindrical roller bearings and consist of roller rings, housing washers, shaft washers and can be dismantled.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |

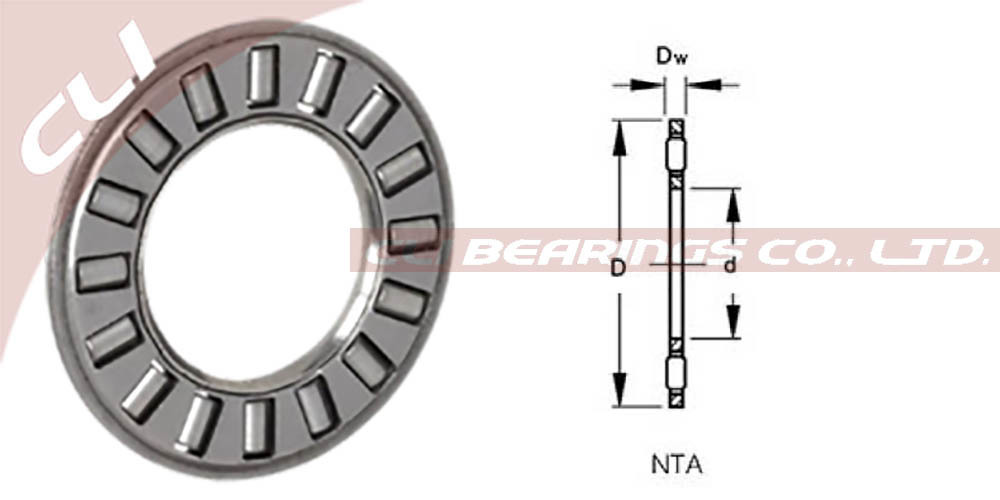

NTA / NTC
Axial needle roller bearings for
shaft sizes from 6.35 mm to 104.78 mm
|
 |
| |
| CLI Bearing NO. |
d |
D |
Dw |
Basic load rating |
Fatigue limit load |
Limiting speeds |
| Inside Diameter |
Outside Diameter |
Bearing Width |
Dynamic |
Static |
CU |
(Oil) |
| [mm] |
[mm] |
[mm] |
C [kN] |
CO [kN] |
[kN] |
|
| NTA-411 |
6.35 |
17.45 |
1.984 |
5.12 |
10.76 |
1.05 |
26000 |
| NTA-512 |
7.92 |
19.05 |
1.984 |
5.83 |
13.17 |
1.3 |
24000 |
| NTA-613 |
9.53 |
20.625 |
1.984 |
6.05 |
14.32 |
1.4 |
22000 |
| NTA-815 |
12.7 |
23.8 |
1.984 |
7.16 |
19.13 |
1.85 |
19000 |
| NTA-916 |
14.275 |
25.4 |
1.9837 |
7.7 |
21.53 |
2.1 |
18000 |
| NTA-1018 |
15.88 |
28.575 |
1.9837 |
9.79 |
30.38 |
2.85 |
15000 |
| NTA-1220 |
19.05 |
31.75 |
1.9837 |
10.9 |
36.48 |
3.4 |
14000 |
| NTA-1423 |
22.23 |
36.5 |
1.984 |
13.43 |
49.82 |
4.65 |
12000 |
| NTC-1427 |
22.23 |
42.85 |
1.984 |
18.46 |
78.29 |
8.05 |
9800 |
| NTA-1625 |
25.4 |
39.675 |
1.984 |
13.83 |
53.82 |
5 |
11000 |
| NTA-1828 |
28.58 |
44.45 |
1.9837 |
16.68 |
71.17 |
7.3 |
9600 |
| NTA-2031 |
31.75 |
49.2 |
1.9837 |
20.15 |
93.41 |
9.55 |
8600 |
| NTA-2233 |
34.93 |
52.375 |
1.9837 |
21.35 |
103.2 |
10.5 |
8000 |
| NTA-2435 |
38.1 |
55.55 |
1.9837 |
23.22 |
117.88 |
12 |
7600 |
| NTA-2840 |
44.45 |
63.5 |
1.984 |
25.31 |
137.45 |
14 |
6800 |
| NTA-3244 |
50.8 |
69.85 |
1.9837 |
24.02 |
132.56 |
13.5 |
6100 |
| NTA-3446 |
53.98 |
73.025 |
1.984 |
24.42 |
137.45 |
14 |
5800 |
| NTA-3648 |
57.15 |
76.2 |
1.984 |
24.78 |
142.34 |
14.6 |
5600 |
| NTA-3650 |
57.15 |
79.375 |
3.175 |
37.68 |
177.04 |
18.6 |
5300 |
| NTA-4052 |
63.5 |
82.55 |
1.9837 |
25.53 |
152.13 |
15.6 |
5100 |
| NTA-4458 |
69.85 |
92.075 |
3.175 |
47.6 |
255.8 |
26.8 |
4600 |
| NTA-4860 |
76.2 |
95.25 |
1.9837 |
26.96 |
172.1 |
17.6 |
4400 |
| NTA-5266 |
82.55 |
104.78 |
3.175 |
51.6 |
294.9 |
30.9 |
4000 |
| NTA-6074 |
95.25 |
117.48 |
3.175 |
56.05 |
344.3 |
35.5 |
3500 |
| NTA-6681 |
104.78 |
128.57 |
3.175 |
63.61 |
414.6 |
41.3 |
3200 |
|
| |
| |

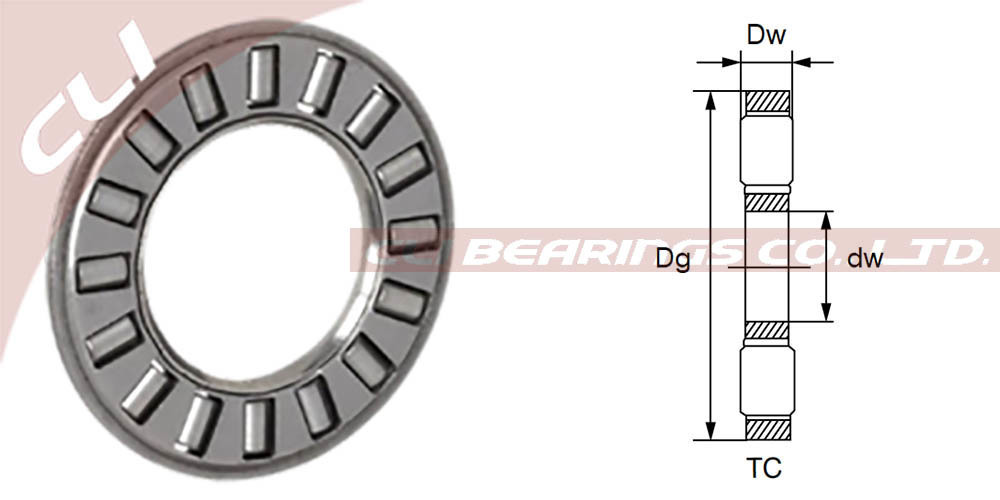

TC
Axial needle roller bearings for
shaft sizes from 1/4 inch to 3-1/4 inch
|
 |
| |
| CLI Bearing No. |
Bore Dia |
Outer Dia |
Thickness
(Dw) |
Dynamic load rating |
Static load rating |
Max Speed |
| (dw) |
(Dg) |
(Newtons) |
(Newtons) |
(RPM) |
| TC411 |
1/4" | 6.35 mm |
0.688" | 17.475 mm |
0.078" | 1.981 mm |
6100 |
13300 |
19200 |
| TC512 |
5/16" | 7.938 mm |
0.75" | 19.05 mm |
0.078" | 1.981 mm |
6900 |
16200 |
18000 |
| TC613 |
3/8" | 9.525 mm |
0.813" | 20.65 mm |
0.078" | 1.981 mm |
7100 |
17700 |
17400 |
| TC815 |
1/2" | 12.7 mm |
0.938" | 23.825 mm |
0.078" | 1.981 mm |
8500 |
23600 |
15800 |
| TC1018 |
5/8" | 15.875 mm |
1.125" | 28.575 mm |
0.078" | 1.981 mm |
9600 |
29500 |
13000 |
| TC1220 |
3/4" | 19.05 mm |
1.25" | 31.75 mm |
0.078" | 1.981 mm |
10700 |
35500 |
11300 |
| TC1423 |
7/8" | 22.225 mm |
1.438" | 36.525 mm |
0.078" | 1.981 mm |
12800 |
46500 |
9800 |
| TC1427 |
7/8" | 22.225 mm |
1.688" | 42.875 mm |
0.078" | 1.981 mm |
19600 |
83000 |
8900 |
| TC1625 |
1" | 25.4 mm |
1.563" | 39.7 mm |
0.078" | 1.981 mm |
13900 |
54000 |
8900 |
| TC1726 |
1 1/16" | 26.988 mm |
1.625" | 41.275 mm |
0.078" | 1.981 mm |
15100 |
61000 |
8400 |
| TC1828 |
1 1/8" | 28.575 mm |
1.75" | 44.45 mm |
0.078" | 1.981 mm |
17100 |
73000 |
7900 |
| TC2031 |
1 1/4" | 31.75 mm |
1.938" | 49.225 mm |
0.078" | 1.981 mm |
19900 |
91000 |
7100 |
| TC2233 |
1 3/8" | 34.925 mm |
2.063" | 52.4 mm |
0.078" | 1.981 mm |
20300 |
96000 |
6600 |
| TC2435 |
1 1/2" | 38.1 mm |
2.188" | 55.575 mm |
0.078" | 1.981 mm |
21500 |
106000 |
6100 |
| TC2840 |
1 3/4" | 44.45 mm |
2.5" | 63.5 mm |
0.078" | 1.981 mm |
24900 |
134000 |
5200 |
| TC3244 |
2" | 50.8 mm |
2.75" | 69.85 mm |
0.078" | 1.981 mm |
25000 |
145000 |
4100 |
| TC3648 |
2 1/4" | 57.15 mm |
3" | 76.2 mm |
0.078" | 1.981 mm |
27000 |
156000 |
4350 |
| TC4052 |
2 1/2" | 63.5 mm |
3.25" | 82.55 mm |
0.078" | 1.981 mm |
27500 |
168000 |
3950 |
| TC4860 |
3" | 76.2 mm |
3.75" | 95.25 mm |
0.078" | 1.981 mm |
29500 |
190000 |
3350 |
| TC5266 |
3 1/4" | 82.55 mm |
4.125" | 104.775 mm |
0.126" | 3.2 mm |
48500 |
270000 |
2600 |
|
| |
| |
