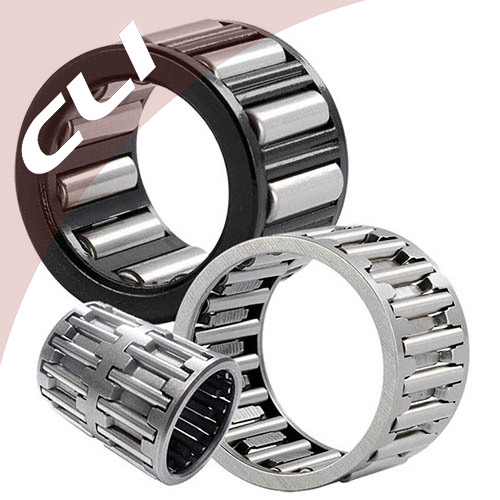

Original 14 picture k k tn k zw
Product Picture
Original 2 radial needle roller and cage assemblies k kk kzk kbk nw
Download PDF Catalogue

Needle roller and cage assemblies
K / K-TN / K-TV / K-ZW,
chrome steel AISI52100, METRIC sizes




CLI needle cage bearings are single or double row units comprising cages and needle rollers. Since their radial section is no greater than the diameter of the needle rollers, needle roller and cage assemblies allow bearing arrangements with a very small radial design envelope to be achieved. They have very high load carrying capacity, are suitable for high speeds and can be easily fitted.

If the raceways are produced to high geometrical accuracy, bearing arrangements with high runout accuracy can be achieved. The radial internal clearance can be influenced by the needle roller sort and by the shaft and housing tolerance. CLI needle roller and cage assemblies require a hardened and ground raceway on the shaft and in the housing.


Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from
3 mm to 265 mm

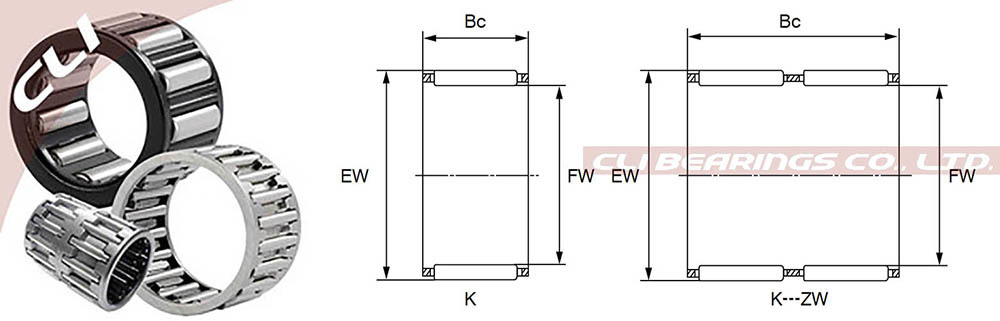

CLI Bearing NO. Boundary dimensions Basic load ratings Fatigue load limit Speed ratings
Fw D C dynamic static Pu Ref speed Limited speed
[mm] [mm] [mm] C [kN] C0 [kN] [kN] [r/min] [r/min]
 K 3x5x7 TN 3 5 7 1.51 1.34 0.134 40000 45000
 K 3x5x9 TN 3 5 9 1.68 1.53 0.153 40000 45000
 K 3x6x7 TN 3 6 7 1.42 1.02 0.104 38000 43000
 K 4x7x7 TN 4 7 7 1.72 1.32 0.137 36000 43000
 K 4x7x10 TN 4 7 10 2.29 1.9 0.204 36000 43000
 K 5x8x8 TN 5 8 8 2.29 2 0.212 36000 40000
 K 5x8x10 TN 5 8 10 2.92 2.7 0.29 36000 40000
 K 6x9x8 TN 6 9 8 2.55 2.36 0.25 34000 38000
 K 6x9x10 TN 6 9 10 3.3 3.2 0.345 34000 38000
 K 7x9x7 TN 7 9 7 1.68 1.83 0.19 34000 38000
 K 7x10x8 TN 7 10 8 2.81 2.75 0.29 32000 36000
 K 7x10x10 TN 7 10 10 3.58 3.75 0.415 32000 36000
 K 8x11x10 TN 8 11 10 3.8 4.25 0.465 32000 36000
 K 8x11x13 TN 8 11 13 5.01 5.85 0.67 32000 36000
 K 8x12x10 TN 8 12 10 4.84 4.75 0.54 30000 34000
 K 9x12x10 TN 9 12 10 4.4 5.2 0.57 30000 34000
 K 9x12x13 TN 9 12 13 5.72 7.2 0.815 30000 34000
 K 10x13x10 TN 10 13 10 4.57 5.7 0.63 28000 32000
 K 10x13x13 TN 10 13 13 5.94 8 0.9 28000 32000
 K 10x13x16 TN 10 13 16 6.82 9.5 1.08 28000 32000
 K 10x14x10 TN 10 14 10 5.61 6.1 0.695 28000 32000
 K 10x14x13 TN 10 14 13 7.21 8.5 0.98 28000 32000
 K 10x16x12 TN 10 16 12 7.65 7.2 0.85 28000 32000
 K 12x15x10 TN 12 15 10 4.73 6.2 0.695 26000 30000
 K 12x15x13 TN 12 15 13 6.16 8.65 0.98 26000 30000
 K 12x16x13 TN 12 16 13 7.65 9.5 1.1 26000 30000
 K 12x17x13 TN 12 17 13 9.13 10.4 1.22 26000 30000
 K 12x18x12 TN 12 18 12 9.52 10 1.18 26000 30000
 K 14x18x10 14 18 10 6.93 8.65 1 24000 28000
 K 14x18x13 14 18 13 7.92 10.2 1.18 24000 28000
 K 14x18x15 TN 14 18 15 9.13 12.5 1.46 24000 28000
 K 14x18x17 14 18 17 10.5 14.6 1.7 24000 28000
 K 14x20x12 14 20 12 9.9 10.6 1.25 24000 28000
 K 15x19x10 15 19 10 7.21 9.3 1.08 24000 28000
 K 15x19x13 15 19 13 8.25 11.2 1.29 24000 28000
 K 15x19x17 15 19 17 10.8 15.6 1.86 24000 28000
 K 15x20x13 15 20 13 9.52 11.6 1.34 24000 26000
 K 15x21x15 15 21 15 13.8 16.3 2 24000 26000
 K 15x21x21 15 21 21 18.7 24.5 3 24000 26000
 K 16x20x10 16 20 10 7.48 10 1.16 24000 26000
 K 16x20x13 16 20 13 8.58 12 1.37 24000 26000
 K 16x20x17 16 20 17 11.2 17 2 24000 26000
 K 16x22x12 16 22 12 11 12.5 1.5 22000 26000
 K 16x22x16 16 22 16 14.2 17.6 2.12 22000 26000
 K 16x22x20 16 22 20 17.6 22.8 2.8 22000 26000
 K 16x24x20 16 24 20 20.5 23.6 2.9 22000 24000
 K 17x21x10 17 21 10 7.81 10.8 1.22 22000 26000
 K 17x21x13 17 21 13 10.1 14.6 1.73 22000 26000
 K 17x21x17 17 21 17 11.7 18.3 2.12 22000 26000
 K 18x22x10 18 22 10 8.09 11.4 1.32 22000 24000
 K 18x22x13 18 22 13 8.8 12.9 1.5 22000 24000
 K 18x22x17 18 22 17 11.7 18.3 2.16 22000 24000
 K 18x24x12 18 24 12 12.1 15 1.8 20000 24000
 K 18x24x13 18 24 13 12.5 15.3 1.86 20000 24000
 K 18x24x20 18 24 20 19.4 27 3.25 20000 24000
 K 18x25x22 18 25 22 22 29 3.55 20000 24000
 K 19x23x13 19 23 13 9.13 13.7 1.6 20000 24000
 K 19x23x17 19 23 17 12.1 19.3 2.28 20000 24000
 K 20x24x10 20 24 10 8.58 12.9 1.46 20000 22000
 K 20x24x13 20 24 13 9.52 14.6 1.66 20000 22000
 K 20x24x17 20 24 17 12.5 20.8 2.4 20000 22000
 K 20x26x12 20 26 12 12.8 16.3 1.96 19000 22000
 K 20x26x13 20 26 13 13.8 18 2.16 19000 22000
 K 20x26x17 20 26 17 18.3 26 3.2 19000 22000
 K 20x26x20 20 26 20 20.1 29 3.6 19000 22000
 K 20x28x16 20 28 16 19 22.4 2.7 18000 20000
 K 20x28x20 20 28 20 22.9 28.5 3.45 18000 20000
 K 20x28x25 20 28 25 29.2 39 4.9 18000 20000
 K 20x30x30 20 30 30 34.1 41.5 5.2 17000 20000
 K 21x25x13 21 25 13 9.68 15.3 1.76 19000 22000
 K 22x26x10 22 26 10 8.8 13.7 1.56 18000 20000
 K 22x26x13 22 26 13 10.1 16.3 1.86 18000 20000
 K 22x26x17 22 26 17 13.2 22.8 2.7 18000 20000
 K 22x28x17 22 28 17 18.3 27 3.25 17000 20000
 K 22x29x16 22 29 16 19.4 25.5 3.05 17000 19000
 K 22x30x15 TN 22 30 15 19 23.6 2.8 17000 19000
 K 22x32x24 22 32 24 31.9 40 4.9 16000 18000
 K 23x35x16 TN 23 35 16 24.2 23.2 2.9 15000 17000
 K 24x28x10 24 28 10 9.35 15 1.73 17000 19000
 K 24x28x13 24 28 13 10.6 18 2.08 17000 19000
 K 24x28x17 24 28 17 14 25.5 3 17000 19000
 K 24x30x17 24 30 17 18.7 27.5 3.4 16000 18000
 K 25x29x10 25 29 10 9.52 15.6 1.8 16000 18000
 K 25x29x13 25 29 13 10.8 18.6 2.16 16000 18000
 K 25x29x17 25 29 17 14.2 26.5 3.1 16000 18000
 K 25x30x17 25 30 17 17.9 30.5 3.6 16000 18000
 K 25x30x20 25 30 20 20.9 36.5 4.4 16000 18000
 K 25x31x17 25 31 17 18.7 28.5 3.45 16000 18000
 K 25x31x21 25 31 21 23.3 38 4.75 16000 18000
 K 25x32x16 25 32 16 19.8 27.5 3.35 15000 17000
 K 25x33x20 25 33 20 27.5 38 4.65 15000 17000
 K 25x33x24 25 33 24 31.9 47.5 5.85 15000 17000
 K 25x35x30 25 35 30 44.6 62 7.8 15000 17000
 K 26x30x13 26 30 13 11.2 19.6 2.28 16000 18000
 K 26x30x17 26 30 17 14.7 27.5 3.25 16000 18000
 K 28x33x13 28 33 13 14.7 24.5 2.85 14000 16000
 K 28x33x17 28 33 17 19 33.5 4.05 14000 16000
 K 28x34x17 28 34 17 20.9 33.5 4.15 14000 16000
 K 28x35x16 28 35 16 20.5 30 3.55 14000 16000
 K 28x35x18 28 35 18 22.9 34.5 4.15 14000 16000
 K 28x40x25 28 40 25 42.9 55 6.95 13000 15000
 K 30x34x13 30 34 13 11.9 22 2.55 14000 15000
 K 30x35x13 30 35 13 15.1 25.5 3 13000 15000
 K 30x35x17 30 35 17 18.7 34 4.05 13000 15000
 K 30x35x27 30 35 27 29.2 60 7.35 13000 15000
 K 30x37x16 30 37 16 22 33.5 4 13000 15000
 K 30x37x18 30 37 18 25.1 39 4.65 13000 15000
 K 30x40x30 30 40 30 46.8 69.5 8.65 12000 14000
 K 32x37x13 32 37 13 14.7 25.5 3 13000 14000
 K 32x37x17 32 37 17 19 35.5 4.25 13000 14000
 K 32x37x27 32 37 27 28.6 60 7.35 13000 14000
 K 32x38x20 32 38 20 25.1 45 5.6 12000 14000
 K 32x39x16 32 39 16 22.9 35.5 4.25 12000 14000
 K 32x39x18 32 39 18 25.5 41.5 5 12000 14000
 K 32x40x25 32 40 25 35.8 58.5 7.2 12000 14000
 K 32x40x42 ZWTN 32 40 42 48.4 83 10.2 12000 14000
 K 32x46x32 32 46 32 62.7 83 10.4 11000 13000
 K 35x40x13 35 40 13 15.4 28 3.25 12000 13000
 K 35x40x17 35 40 17 19.8 39 4.65 12000 13000
 K 35x40x25 35 40 25 28.1 60 7.35 12000 13000
 K 35x40x27 TN 35 40 27 23.8 49 6 12000 13000
 K 35x42x16 35 42 16 23.3 37.5 4.5 11000 13000
 K 35x42x18 35 42 18 26.4 44 5.3 11000 13000
 K 35x42x20 35 42 20 29.2 50 6 11000 13000
 K 35x42x30 35 42 30 37.4 68 8.5 11000 13000
 K 35x45x20 35 45 20 35.2 50 6.2 11000 12000
 K 35x45x30 35 45 30 50.1 80 10 11000 12000
 K 37x42x17 37 42 17 21.6 43 5.2 11000 13000
 K 38x43x17 38 43 17 19.8 39 4.65 11000 12000
 K 38x46x20 38 46 20 34.1 57 6.95 10000 12000
 K 38x46x32 38 46 32 52.3 100 12.5 10000 12000
 K 40x45x13 40 45 13 16.8 32.5 3.8 10000 12000
 K 40x45x17 40 45 17 20.5 41.5 5 10000 12000
 K 40x45x27 40 45 27 31.4 73.5 9 10000 12000
 K 40x47x18 40 47 18 28.6 50 6.1 10000 11000
 K 40x47x20 40 47 20 31.4 57 6.95 10000 11000
 K 40x48x20 40 48 20 34.7 58.5 7.35 10000 11000
 K 42x47x13 42 47 13 17.2 33.5 4 10000 11000
 K 42x47x17 42 47 17 20.9 43 5.2 10000 11000
 K 42x50x20 42 50 20 33.6 57 7.1 9500 11000
 K 43x48x17 43 48 17 20.9 43 5.2 9500 11000
 K 43x48x27 43 48 27 31.9 76.5 9.3 9500 11000
 K 45x50x17 45 50 17 21.6 46.5 5.6 9000 10000
 K 45x50x27 45 50 27 33 81.5 10 9000 10000
 K 45x52x18 45 52 18 30.3 57 6.95 9000 10000
 K 45x53x20 45 53 20 37.4 68 8.3 9000 10000
 K 45x53x21 45 53 21 36.9 67 8.3 9000 10000
 K 45x53x28 45 53 28 49.5 98 12.2 9000 10000
 K 45x59x32 45 59 32 69.3 102 12.9 8500 9500
 K 47x52x17 47 52 17 22.4 49 6 9000 10000
 K 47x52x27 47 52 27 33.6 83 10.2 9000 10000
 K 50x55x13.5 50 55 13.5 17.6 36.5 4.3 8500 9500
 K 50x55x20 50 55 20 25.5 60 7.2 8500 9500
 K 50x55x30 50 55 30 37.4 98 12 8500 9500
 K 50x57x18 50 57 18 31.9 64 7.8 8000 9000
 K 50x58x20 50 58 20 34.1 62 7.65 8000 9000
 K 50x58x25 50 58 25 41.8 81.5 10.2 8000 9000
 K 52x57x12 52 57 12 17.2 36.5 4.3 8000 9000
 K 55x60x20 55 60 20 27 67 8.15 7500 8500
 K 55x60x30 55 60 30 39.6 108 13.4 7500 8500
 K 55x62x18 55 62 18 34.1 71 8.5 7500 8500
 K 55x63x20 55 63 20 38 75 9.15 7500 8500
 K 55x63x25 55 63 25 49.5 104 12.9 7500 8500
 K 55x63x32 55 63 32 59.4 129 16.3 7500 8500
 K 58x65x18 58 65 18 33.6 71 8.65 7000 8000
 K 60x65x20 60 65 20 28.1 72 8.8 7000 8000
 K 60x65x30 60 65 30 41.3 116 14.3 7000 8000
 K 60x66x40 ZW 60 66 40 55 150 18.6 7000 8000
 K 60x68x20 60 68 20 41.8 86.5 10.6 6700 7500
 K 60x68x23 60 68 23 47.3 102 12.5 6700 7500
 K 60x68x25 60 68 25 51.2 112 14 6700 7500
 K 65x70x20 65 70 20 29.2 76.5 9.3 6300 7500
 K 65x70x30 65 70 30 41.8 125 15.3 6300 7500
 K 65x73x23 65 73 23 44 95 11.6 6300 7000
 K 65x73x30 65 73 30 53.9 125 15.6 6300 7000
 K 68x74x20 68 74 20 33.6 83 10.4 6000 7000
 K 68x74x30 68 74 30 44.6 118 15 6000 7000
 K 68x74x35 ZW 68 74 35 46.8 125 15.3 6000 7000
 K 70x76x20 70 76 20 34.1 86.5 10.6 6000 6700
 K 70x76x30 70 76 30 50.1 140 17.6 6000 6700
 K 70x78x30 70 78 30 57.2 137 17 6000 6700
 K 72x80x20 72 80 20 39.6 85 10.6 5600 6300
 K 73x79x20 73 79 20 35.2 90 11.2 5600 6300
 K 75x81x20 75 81 20 35.8 93 11.6 5600 6300
 K 75x81x30 75 81 30 50.1 143 18 5600 6300
 K 75x83x23 75 83 23 47.3 110 13.7 5300 6300
 K 75x83x35 ZW 75 83 35 60.5 146 18 5300 6300
 K 75x83x40 ZW 75 83 40 69.3 176 22 5300 6300
 K 80x86x20 80 86 20 36.9 98 12.2 5300 6000
 K 80x88x30 80 88 30 68.2 176 22 5000 6000
 K 80x88x40 ZW 80 88 40 72.1 193 23.6 5000 6000
 K 80x88x46 ZW 80 88 46 84.2 232 28.5 5000 6000
 K 85x92x20 85 92 20 42.9 108 13.2 4800 5600
 K 90x97x20 90 97 20 42.9 114 13.7 4500 5300
 K 90x98x30 90 98 30 64.4 173 21.6 4500 5300
 K 95x103x30 95 103 30 66 180 22.8 4300 5000
 K 95x103x40 ZW 95 103 40 79.2 228 28.5 4300 5000
 K 100x107x21 100 107 21 45.7 127 15.3 4000 4800
 K 100x108x27 100 108 27 55 143 17.6 4000 4800
 K 105x112x21 105 112 21 45.7 129 15.3 4000 4500
 K 110x117x24 110 117 24 53.9 160 18.6 3800 4300
 K 110x118x30 110 118 30 73.7 220 26.5 3800 4300
 K 115x123x27 115 123 27 60.5 170 20 3600 4000
 K 120x127x24 120 127 24 56.1 176 20.4 3400 4000
 K 125x133x35 125 133 35 82.5 260 30.5 3200 3800
 K 130x137x24 130 137 24 58.3 186 21.2 3200 3600
 K 135x143x35 135 143 35 88 290 33.5 3000 3400
 K 145x153x26 145 153 26 70.4 224 25 2800 3200
 K 150x160x46 150 160 46 140 475 53 2800 3000
 K 155x163x26 155 163 26 72.1 236 25.5 2600 3000
 K 160x170x46 160 170 46 145 510 56 2600 2800
 K 165x173x26 165 173 26 76.5 265 28.5 2400 2800
 K 175x183x32 175 183 32 95.2 355 37.5 2400 2600
 K 185x195x37 185 195 37 123 425 45 2200 2400
 K 240x250x42 240 250 42 157 630 62 1700 1900
 K 265x280x50 265 280 50 242 850 83 1500 1700
