Rolling Roller Bearings-Needle Roller Bearings-Needle roller and cage assemblies C, chrome steel AISI52100, INCH sizes

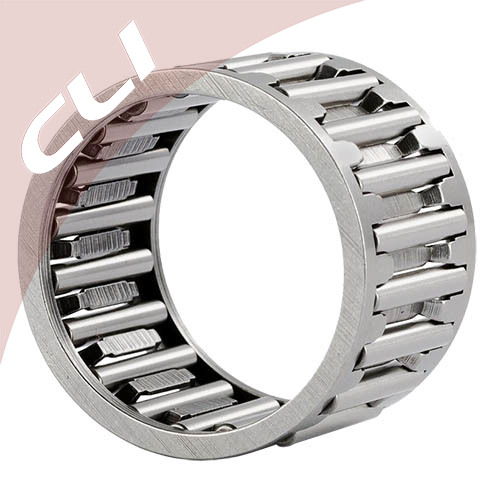

Original 15 picture c
Product Picture


C series
Needle roller and cage assemblies
chrome steel AISI52100,
INCH sizes




CLI needle cage bearings are single or double row units comprising cages and needle rollers. Since their radial section is no greater than the diameter of the needle rollers, needle roller and cage assemblies allow bearing arrangements with a very small radial design envelope to be achieved. They have very high load carrying capacity, are suitable for high speeds and can be easily fitted.

If the raceways are produced to high geometrical accuracy, bearing arrangements with high runout accuracy can be achieved. The radial internal clearance can be influenced by the needle roller sort and by the shaft and housing tolerance. CLI needle roller and cage assemblies require a hardened and ground raceway on the shaft and in the housing.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

C series
AISI52100 chrome steel needle roller and cage assemblies for
shaft sizes from
3/8 inch to 3 inch

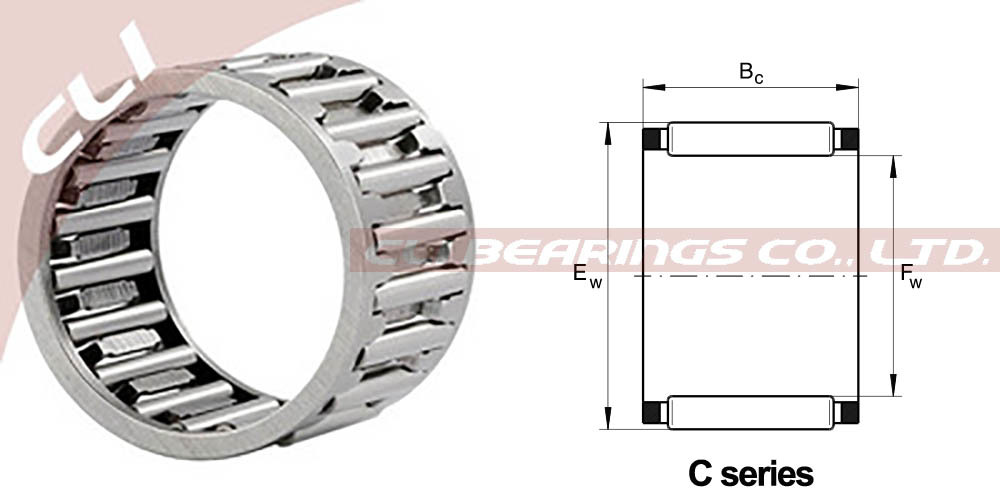

CLI Bearing No. Cage Material Fw Ew Bc
inch mm inch mm inch mm
C060806 Steel 3/8  inch 9,525  mm 0,5  inch 12,7  mm 0,375  inch 9,525  mm
C081008 Steel 1/2  inch 12,7  mm 0,625  inch 15,875  mm 0,5  inch 12,7  mm
C091108 Steel 9/16  inch 14,288  mm 0,688  inch 17,463  mm 0,625  inch 12,7 mm
C091110 Steel 9/16  inch 14,288  mm 0,688  inch 17,463  mm 0,625  inch 15,875  mm
C101208 Steel 5/8  inch 15,875  mm 0,75  inch 19,05  mm 0,5  inch 12,7  mm
C121616 Steel 3/4  inch 19,05  mm 1  inch 25,4  mm 1  inch 25,4  mm
C141816 Steel 7/8  inch 22,225  mm 1,125  inch 28,575  mm 1  inch 25,4  mm
C162112 Steel 1  inch 25,4  mm 1,313  inch 33,338  mm 0,75  inch 19,05  mm
C162116 Steel 1  inch 25,4  mm 1,313  inch 33,338  mm 1  inch 25,4  mm
C182416 Steel 1 1/8  inch 28,575  mm 1,5  inch 38,1  mm 1  inch 25,4  mm
C182420 Steel 1 1/8  inch 28,575  mm 1,5  inch 38,1  mm 1,25  inch 31,75  mm
C202616 Steel 1 1/4  inch 31,75  mm 1,625  inch 41,275  mm 1  inch 25,4  mm
C202812 Steel 1 1/4  inch 31,75  mm 1,75  inch 44,45 mm 0,75  inch 19,05  mm
C222820 Steel 1 3/8 inch 34,925  mm 1,75  inch 44,45  mm 1,25  inch 31,75  mm
C243016 Steel 1 1/2  inch 38,1 mm 1,875  inch 47,625  mm 1  inch 25,4  mm
C243024 Steel 1 1/2 inch 38,1 mm 1,875  inch 47,625  mm 1,5  inch 38,1  mm
C364216 Steel 2 1/4  inch 57,15  mm 2,625 inch 66,675  mm 1  inch 25,4  mm
C404616 Steel 2 1/2  inch 63,5  mm 2,875  inch 73,025  mm 1  inch 25,4  mm
C485424 Steel 3 inch 76,2 mm 3,375 inch 85,726 mm 1,5  inch 38,1  mm
