Rolling Ball Bearings-Miniature Ball Bearings-Miniature Self-Aligning Ball Bearings with CYLINDRICAL bores, CHROME STEEL AISI52100, METRIC sizes

Original miniature 126 126tn 402

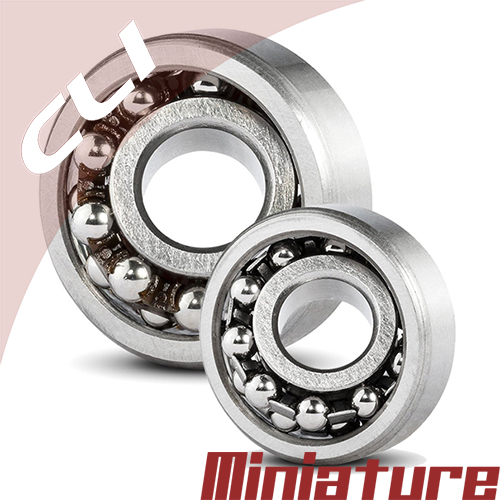

Product Picture

Miniature Self-Aligning Ball Bearings with CYLINDRICAL bores,
CHROME STEEL AISI52100,

METRIC sizes





CLI self-aligning ball bearings have the same basic characteristics as deep groove ball bearings. However, they have two rows of balls. These can be pivoted together with the inner ring by a few degrees. Thus, the bearing can compensate for misalignment and deflections of the shaft.

Main dimensions according to DIN 630. Double row. Usable in case of high radial and low axial load-ratings. Excellent compensation of misalignment. With cylindrical or tapered bore.

CLI self-aligning ball bearings are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -10°C up to +120°C, in case of rubber seals and metal cage temperature-resistant up to circa +100°C in the long run, in case of the use of polyamide cages usable up to circa +70°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI52100 chrome steel
Miniature Self-Aligning Ball Bearings for
shaft sizes from
6 mm to 9 mm



CLI Bearing No. Bore Type ∅  d ∅  D B Seal Type Ring Material Rolling Element Material Cage Material
mm mm mm
126 Cylindrical 6 19 6 OPEN Chrome Steel Chrome Steel Steel
126-TN Cylindrical 6 19 6 OPEN Chrome Steel Chrome Steel Plastic
127 Cylindrical 7 22 7 OPEN Chrome Steel Chrome Steel Steel
108 Cylindrical 8 22 7 OPEN Chrome Steel Chrome Steel Steel
108-TN Cylindrical 8 22 7 OPEN Chrome Steel Chrome Steel Plastic
129 Cylindrical 9 26 8 OPEN Chrome Steel Chrome Steel Steel
