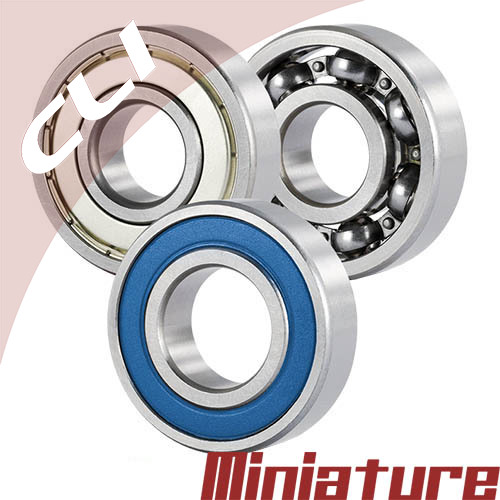

Original miniature bearings plain stainless steel 402
Product Picture

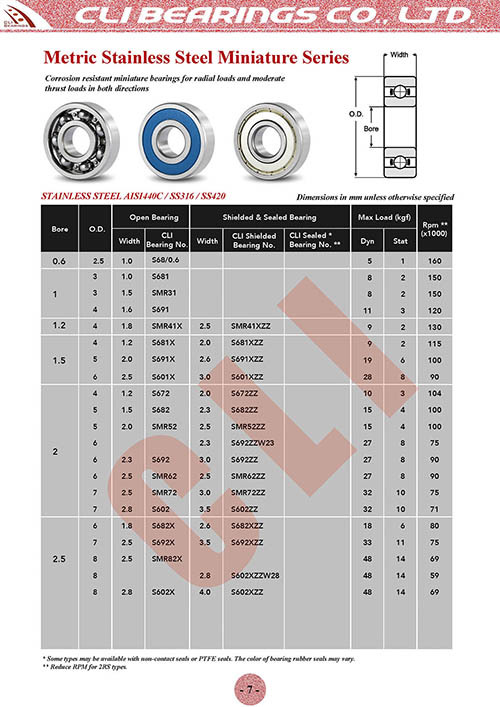

Original 3 miniature ball bearings stainless steel aisi440c nw
Download PDF Catalogue

Miniature ball bearings - STAINLESS STEEL AISI440C
NCH sizes



CLI stainless steel miniature bearings are sometimes referred to as instrument bearings or micro bearings and are used in applications as varied as clocks, wind speed measuring instruments, medical instruments, fishing reels, scanners, encoders and small drones. Stainless steel miniature bearings are also available with a flange on the outer ring.

CLI stainless steel bearings, with a stainless steel retainer and a suitable high temperature lubricant, can be used at temperatures of 250°C constant or up to 300°C intermittent. Above these temperatures, the load capacity of stainless steel is reduced so we recommend full ceramic bearings for use over 300°C.

CLI stainless steel bearings are suitable for use in mildly corrosive environments as the steel is corrosion resistant but it is affected by seawater and stronger acids or alkalis. Our 316 stainless steel bearings, plastic bearings or full ceramic bearings should be used in very corrosive environments. CLI stainless steel bearings do not need preservative oil on the exterior surfaces so they can be used without lubrication (dry).

Most of CLI stainless steel miniature bearings can be supplied open or with AISI-304 stainless steel shields. The smallest sizes are only available open. The larger sizes may be available with rubber or Teflon contact seals or low friction non-contact rubber seals. The open miniature bearings are normally oil lubricated. Shielded or sealed bearings are generally pre-lubricated with grease but shielded bearings can also be supplied with instrument oil for low torque applications or completely dry for very low speed applications where very low rotational resistance is required.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI440C stainless steel miniature bearings
for shaft sizes from
0.04" to 1.00"


STANDARD SIZE OPEN BEARING (No Suffix) SHIELDED BEARING (ZZ) SEALED BEARING (2RS)
BORE O.D. WIDTH CLI BEARING DETAILS WIDTH CLI BEARING DETAILS WIDTH CLI BEARING DETAILS
(inch) (inch) (inch) NO. (inch) NO. (inch) NO.
0.04 0.125 0.0469 SR09 DETAILS
0.0469 0.1562 0.0625 SR0 DETAILS 0.0937 SR0ZZ DETAILS
0.055 0.1875 0.0781 SR1 DETAILS 0.1094 SR1ZZ DETAILS
0.0781 0.25 0.0937 SR1-4 DETAILS 0.1406 SR1-4ZZ DETAILS
0.0937 0.1875 0.0625 SR133 DETAILS 0.0937 SR133ZZ DETAILS
0.3125 0.1094 SR1-5 DETAILS 0.1406 SR1-5ZZ DETAILS
0.125 0.25 0.0937 SR144 DETAILS 0.1094 SR144ZZ DETAILS 0.1094 SR144-TTS DETAILS
0.25       0.0937 SR144ZZW09 DETAILS
0.3125 0.1094 SR2-5 DETAILS 0.1406 SR2-5ZZ DETAILS 0.1406 SR2-5-TTS DETAILS
0.3125       0.1094 SR2-5ZZW10 DETAILS
0.375 0.1094 SR2-6 DETAILS 0.1406 SR2-6ZZ DETAILS 0.1406 SR2-6-TTS DETAILS
0.375       0.1094 SR2-6ZZW10 DETAILS
0.375 0.1562 SR2 DETAILS 0.1562 SR2ZZ DETAILS 0.1562 SR2-2RS DETAILS
0.5 0.1094 SR184 DETAILS 0.1094 SR184ZZ DETAILS
0.5 0.1719 SR2A DETAILS 0.1719 SR2AZZ DETAILS 0.1719 SR2A-2RS DETAILS
0.1562 0.3125 0.1094 SR155 DETAILS 0.125 SR155ZZ DETAILS 0.125 SR155-TTS DETAILS
0.1875 0.3125 0.1094 SR156 DETAILS 0.125 SR156ZZ DETAILS 0.125 SR156-TTS DETAILS
0.375 0.125 SR166 DETAILS 0.125 SR166ZZ DETAILS 0.125 SR166-TTS DETAILS
0.5 0.1562 SR3 DETAILS 0.196 SR3ZZ DETAILS 0.196 SR3-2RS DETAILS
0.5       0.1562 SR3ZZW15 DETAILS 0.1562 SR3-2RSW15 DETAILS
0.25 0.375 0.125 SR168 DETAILS 0.125 SR168ZZ DETAILS 0.125 SR168-TTS DETAILS
0.5 0.125 SR188 DETAILS 0.1875 SR188ZZ DETAILS 0.1875 SR188-TTS DETAILS
0.5       0.125 SR188ZW12 DETAILS
0.625 0.196 SR4 DETAILS 0.196 SR4ZZ DETAILS 0.196 SR4-2RS DETAILS
0.75 0.2188 SR4A DETAILS 0.2812 SR4AZZ DETAILS 0.2812 SR4A-2RS DETAILS
0.3125 0.5 0.1562 SR1810 DETAILS 0.1562 SR1810ZZ DETAILS 0.1562 SR1810-TTS DETAILS
0.625       0.1562 SR1810AZZ DETAILS
0.375 0.625 0.1562 SR1038 DETAILS 0.1562 SR1038ZZ DETAILS 0.1562 SR1038-TTS DETAILS
0.875 0.2188 SR6 DETAILS 0.2812 SR6ZZ DETAILS 0.2812 SR6-2RS DETAILS
0.5 0.75 0.1562 SR1212 DETAILS 0.1562 SR1212ZZ DETAILS 0.1562 SR1212-TTS DETAILS
0.75       0.196 SR1212ZZW19 DETAILS
0.875 0.2188 SR6-1/2 DETAILS 0.2812 SR6ZZ-1/2 DETAILS
1.125 0.25 SR8 DETAILS 0.3125 SR8ZZ DETAILS 0.3125 SR8-2RS DETAILS
0.625 0.875 0.1562 SR1458 DETAILS 0.1562 SR1458ZZ DETAILS 0.1562 SR1458-TTS DETAILS
1.375 0.2812 SR10 DETAILS 0.3438 SR10ZZ DETAILS 0.3438 SR10-2RS DETAILS
0.75 1 0.1562 SR1634 DETAILS 0.1562 SR1634ZZ DETAILS 0.1562 SR1634-TTS DETAILS
1.625 0.3125 SR12 DETAILS 0.4375 SR12ZZ DETAILS 0.4375 SR12-2RS DETAILS
0.875 1.875 0.375 SR14 DETAILS 0.5 SR14ZZ DETAILS 0.5 SR14-2RS DETAILS
1 2 0.375 SR16 DETAILS 0.5 SR16ZZ DETAILS 0.5 SR16-2RS DETAILS
