Metric 320 / 322 / 323 series Tapered Roller Bearings, Separable Cup & Cone, CHROME STEEL AISI52100

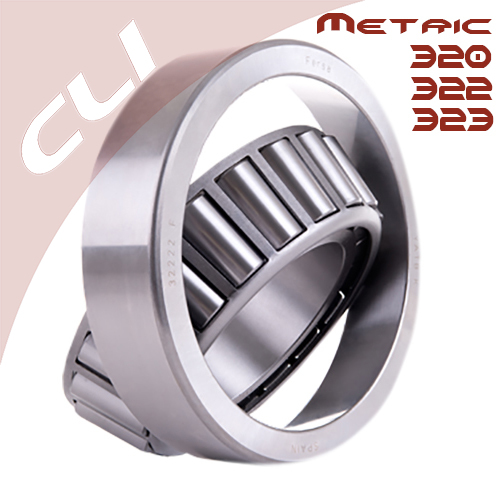

Original tapered roller bearing 320 322 323

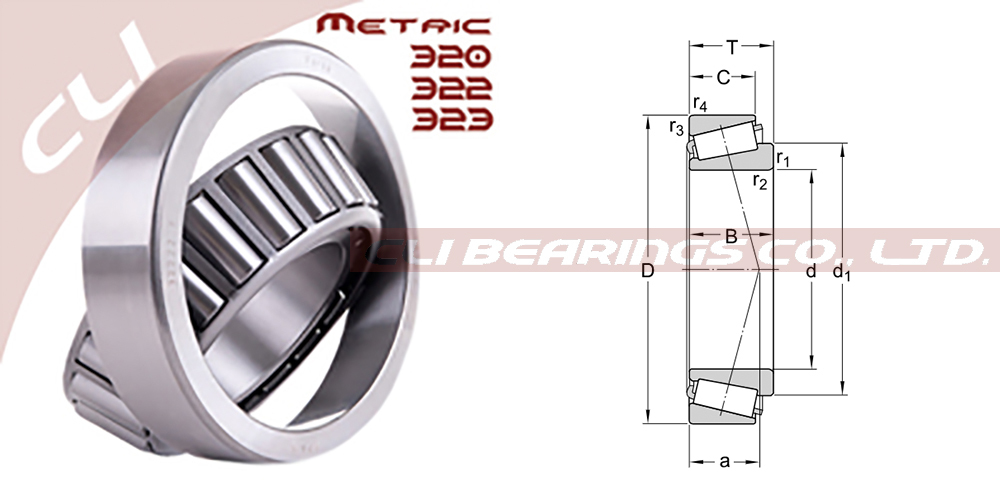

Product Picture

320 / 322 / 323 series
Tapered Roller Bearings, Separable Cup & Cone,
CHROME STEEL AISI52100, METRIC sizes

CLI tapered roller bearings have the rolling elements under the form of frustum of cone. They roll on tapered surface which, if extended, converges towards a single point on the bearing axis.

The rollers are guided tangentially by the cage and axially by the big rib of the inner ring, on which they have contact. As between rollers and raceways there is linear contact, they can take heavy radial loads. They can also take heavy axial or combined loads, depending on the contact angle caused by the tapered elements.

CLI one row tapered roller bearings are of separable design, which means the outer ring/cup and the inner ring/cone with rollers and cage assembly can be separately mounted. The two parts are interchangeable.

CLI tapered roller bearings are manufactured both in standardized (metric and inch sizes) and in non-standardized constructive version.

The metric size bearings have standardized dimensions as listed in ISO 355:1977 and those designated with prefix J conform to American AFBMA 19.1/1987. The inch size bearings, prefix J, are according to American AFBMA 19/1974.

The one row tapered roller bearings can carry only single direction axial loads. Under pure radial loads, an axial force is induced within the bearings so that they cannot be used singly and a second bearing is required.

The one row tapered roller bearings have pressed steel cage as standard. For large size and/or heavy engineering applications, the steel pin-type cage and case hardened carburizing alloy steels can be considered.

The one row tapered roller bearings can also be produced with a rib on the outer cup as a flange to be used when the housing cannot be manufactured with shoulder, but only with a passed through hole so that, in this case, axial location can be provided by the bearing cup.

When the load carrying capacity of a single row is inadequate or where the load has to be located in both directions, CLI BEARINGS produces the single row taper roller bearings as ready-to-mount matched pairs.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

320 series
Tapered Roller Bearings, for
shaft sizes from 20 mm to 240 mm

CLI Bearing No.	Boundary dimensions							Basic load rating(kN)		Limiting speed		Mass
	mm							Dynamic	Static	rpm		Kg
	d	D	T	B	C	R_min	r_min	Cr	Cor	Grease	Oil	≈
32004	20	42	15	15	12	0.6	0.6	27.3	31.5	9700	13000	0.96
32005	25	47	15	15	11.5	0.6	0.6	27	32.5	8000	11000	0.115
32006	30	55	17	17	13	1	1	35.8	44	6700	9000	0.172
32007	35	62	18	18	14	1	1	42.9	54	6000	8000	0.227
32008	40	68	19	19	14.5	1	1	52.8	71	5300	7000	0.77
32009	45	75	20	20	15.5	1	1	58	80	4800	6300	0.329
32010	50	80	20	20	15.5	1	1	60	88	4500	6000	0.365
32011	55	90	23	23	17.5	1.5	1.5	80	116	4000	5300	0.55
32012	60	95	23	23	17.5	1.5	1.5	82	122	3800	5000	0.586
32013	65	100	23	23	17.5	1.5	1.5	84	127	3400	4500	0.627
32014	70	110	25	25	19	1.5	1.5	101	153	3200	4300	0.842
32015	75	115	25	25	19	1.5	1.5	106	163	3000	4000	0.887
32016	80	125	29	29	22	1.5	1.5	138	216	2600	3600	1.27
32017	85	130	29	29	22	1.5	1.5	140	224	2400	3400	1.33
32018	90	140	32	32	24	2	1.5	168	270	2200	3200	1.73
32019	95	145	32	32	24	2	1.5	168	270	2200	3200	1.8
32020	100	150	32	32	24	2	1.5	172	280	2000	3000	1.87
32021	105	160	35	35	26	2.5	2	201	335	1900	2800	2.38
32022	110	170	38	38	29	2.5	2	233	390	1800	2600	3.05
32024	120	180	38	38	29	2.5	2	242	415	1800	2600	3.2
32026	130	200	45	45	34	2.5	2	314	540	1600	2200	4.86
32028	140	210	45	45	34	2.5	2	330	585	1600	2200	5.19
32030	150	225	48	48	36	3	2.5	369	655	1500	2000	6.33
32032	160	240	51	51	38	3	2.5	429	780	1300	1800	7.53
32034	170	260	57	57	43	3	2.5	512	915	1100	1600	10.6
32036	180	280	64	64	48	3	2.5	644	1160	1100	1600	14.5
32038	190	290	64	64	48	3	2.5	660	1200	1000	1500	15
32040	200	310	70	70	53	3	2.5	748	1370	950	1400	19.5
32044	220	340	76	76	57	4	3	897	1660	900	1300	25.5
32048	240	360	76	76	57	4	3	935	1800	850	1200	27.5

322 series
Tapered Roller Bearings, for
shaft sizes from 20 mm to 220 mm

CLI Bearing No.	Boundary dimensions							Basic load rating(kN)		Limiting speed		Mass
	mm							Dynamic	Static	rpm		Kg
	d	D	T	B	C	R_min	r_min	Cr	Cor	Grease	Oil	≈
32204	20	47	19.25	18	15	1	1	36.5	39.5	8000	11000	0.161
32205	25	52	19.25	18	16	1	1	42	47	7500	10000	0.184
32206	30	62	21.25	20	17	1	1	51.8	63.9	6300	8500	0.29
32207	35	72	24.25	23	19	1.5	1.5	70.6	89.7	5300	7000	0.45
32208	40	80	24.75	23	19	1.5	1.5	77	97	4800	6300	0.535
32209	45	85	24.75	23	19	1.5	1.5	80	105	4500	6000	0.584
32210	50	90	24.75	23	19	1.5	1.5	76	97	4300	5600	0.646
32211	55	100	26.76	25	21	2	1.5	108	144	3800	5000	0.86
32212	60	110	29.75	28	24	2	1.5	132	181	3400	4500	1.16
32213	65	120	32.75	31	27	2	1.5	160	224	3000	4000	1.54
32214	70	125	33.25	31	27	2	1.5	168	238	2800	3800	1.63
32215	75	130	33.25	31	27	2	1.5	169	244	2600	3600	1.75
32216	80	140	35.25	33	28	2.5	2	197	280	2400	3400	2.13
32217	85	150	38.5	36	30	2.5	2	226	325	2200	3200	2.69
32218	90	160	42.5	40	34	2.5	2	269	396	2000	3000	3.43
32219	95	170	45.5	43	37	3	2.5	301	450	1900	2800	4.24
32220	100	180	49	46	39	3	2.5	340	513	1800	2600	3.72
32221	105	190	53	50	43	3	2.5	380	581	1800	2600	6.31
32222	110	200	56	53	46	3.5	2	430	668	1700	2400	7.43
32224	120	215	61.5	58	50	3	2.5	475	764	1600	2200	9.26
32226	130	230	67.75	64	54	4	3	549	895	1500	2000	11.5
32228	140	250	71.75	68	58	4	3	640	1060	1400	1900	14.4
32230	150	270	77	73	60	4	3	718	1190	1200	1700	18.2
32232	160	290	84	80	67	4	3	852	1440	1000	1400	21.1
32234	170	310	91	86	71	5	4	1010	1630	1000	1500	28.5
32236	180	320	91	86	71	5	4	998	1720	950	1400	29.8
32238	190	340	97	92	75	5	4	1110	1920	900	1300	36
32240	200	360	104	98	82	5	4	1210	2000	900	1300	42.7
32244	220	400	115	108	90	5	4	1530	2560	800	1100	58.3

323 series
Tapered Roller Bearings, for
shaft sizes from 17 mm to 170 mm

CLI Bearing No.	Boundary dimensions							Basic load rating(kN)		Limiting speed		Mass
	mm							Dynamic	Static	rpm		Kg
	d	D	T	B	C	R_min	r_min	Cr	Cor	Grease	Oil	≈
32303	17	47	20.25	19	16	1	1	35.4	36.6	8000	11000	0.174
32304	20	52	22.25	21	18	1.5	1.5	42.7	46.4	7500	10000	0.231
32305	25	62	25.25	24	20	1.5	1.5	61.7	68.9	6000	8000	0.367
32306	30	72	28.75	27	23	1.5	1.5	81.7	97.6	5300	7000	0.56
32307	35	80	32.75	31	25	2	1.5	99.1	119	4800	6300	0.77
32308	40	90	35.25	33	27	2	1.5	115	149	4000	5300	1.05
32309	45	100	38.25	36	30	2	1.5	145	191	3600	4800	1.4
32310	50	110	42.25	40	33	2.5	2	177	239	3200	4300	1.89
32311	55	120	45.5	43	35	2.5	2	203	274	3000	4000	2.37
32312	60	130	48.5	46	37	3	2.5	226	306	2600	3600	2.9
32313	65	140	51	48	39	3	2.5	259	353	2400	3400	3.51
32314	70	150	54	51	42	3	2.5	298	413	2000	3000	4.35
32315	75	160	58	55	45	3	2.5	346	488	2000	3000	5.34
32316	80	170	61.5	58	48	3	2.5	387	549	1900	2800	6.38
32317	85	180	63.5	60	49	4	3	421	599	1800	2600	7.3
32318	90	190	67.5	64	53	4	3	477	690	1700	2400	8.78
32319	95	200	71.5	67	55	4	3	515	745	1700	2400	10.7
32320	100	215	77.5	73	60	4	3	572	780	1600	2200	3
32321	105	225	81.5	77	63	4	3	646	955	1500	2000	14.5
32322	110	240	84.5	80	65	4	3	722	1070	1400	1900	17.8
32324	120	260	90.5	86	69	4	3	824	1240	1300	1800	21.7
32334	170	360	128	120	100	3.7	1.3	1300	1760	850	1100	59.5
