Rolling Roller Bearings-Tapered roller bearings-Metric 313 series Tapered Roller Bearings, Separable Cup & Cone, CHROME STEEL AISI52100

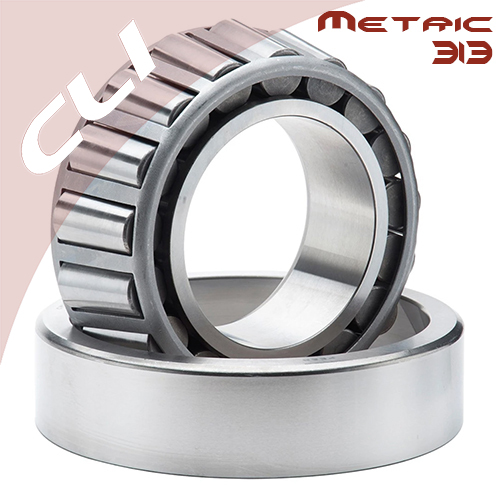

Original tapered roller bearing metric size 313
Product Picture

313 series
Tapered Roller Bearings, Separable Cup & Cone,
CHROME STEEL AISI52100,
METRIC sizes



CLI tapered roller bearings have the rolling elements under the form of frustum of cone. They roll on tapered surface which, if extended, converges towards a single point on the bearing axis.

The rollers are guided tangentially by the cage and axially by the big rib of the inner ring, on which they have contact. As between rollers and raceways there is linear contact, they can take heavy radial loads. They can also take heavy axial or combined loads, depending on the contact angle caused by the tapered elements.

CLI one row tapered roller bearings are of separable design, which means the outer ring/cup and the inner ring/cone with rollers and cage assembly can be separately mounted. The two parts are interchangeable.

CLI tapered roller bearings are manufactured both in standardized (metric and inch sizes) and in non-standardized constructive version.

The metric size bearings have standardized dimensions as listed in ISO 355:1977 and those designated with prefix J conform to American AFBMA 19.1/1987. The inch size bearings, prefix J, are according to American AFBMA 19/1974.

The one row tapered roller bearings can carry only single direction axial loads. Under pure radial loads, an axial force is induced within the bearings so that they cannot be used singly and a second bearing is required.

The one row tapered roller bearings have pressed steel cage as standard. For large size and/or heavy engineering applications, the steel pin-type cage and case hardened carburizing alloy steels can be considered.

The one row tapered roller bearings can also be produced with a rib on the outer cup as a flange to be used when the housing cannot be manufactured with shoulder, but only with a passed through hole so that, in this case, axial location can be provided by the bearing cup.

When the load carrying capacity of a single row is inadequate or where the load has to be located in both directions, CLI BEARINGS produces the single row taper roller bearings as ready-to-mount matched pairs.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

313 series
Tapered Roller Bearings for
shaft sizes from
25 mm to 150 mm



CLI
Bearing No.

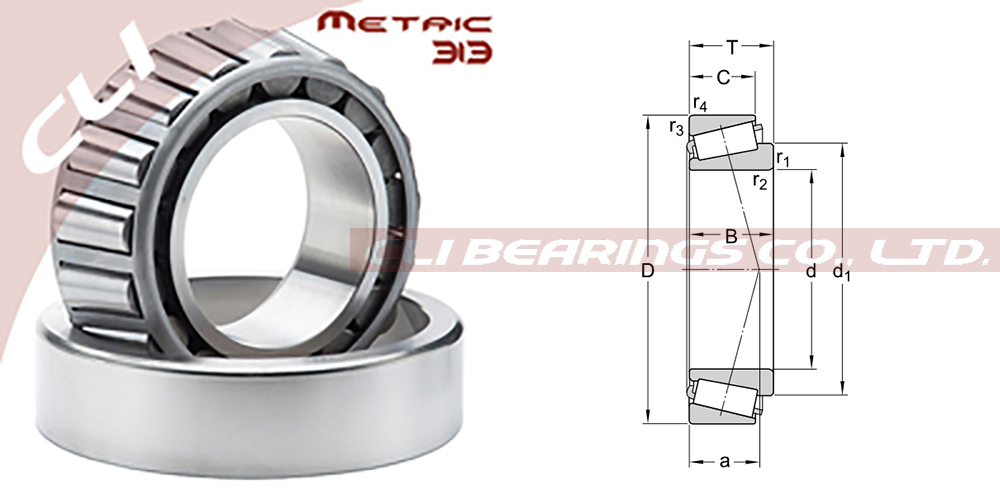

Boundary dimensions Basic load rating(kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D T B C Rmin rmin Cr Cor Grease Oil
31305 25 62 18.25 17 13 1.5 1.5 40.7 46 5600 7500 0.264
31306 30 72 20.75 19 14 1.5 1.5 47.3 50 5000 6700 0.393
31307 35 80 22.75 21 15 2 1.5 61.6 67 4500 6000 0.518
31308 40 90 25.25 23 17 2 1.5 81 96 4000 5300 0.727
31309 45 100 27.25 25 18 2 1.5 91 102 3400 4500 0.947
31310 50 110 29.25 27 19 2.5 2 106 120 3200 4300 1.22
31311 55 120 31.5 29 21 2.5 2 130 158 2800 3800 1.56
31312 60 130 33.5 31 22 3 2.5 145 176 2600 3600 1.91
31313 65 140 36 33 23 3 2.5 165 202 2200 3200 2.39
31314 70 150 38 35 25 3 2.5 218 274 2400 3400 2.95
31315 75 160 40 37 26 3 2.5 209 245 1900 2800 3.39
31316 80 170 42.5 39 27 3 2.5 224 265 1900 2800 4.05
31317 85 180 44.5 41 28 4 3 242 285 1800 2600 4.6
31318 90 190 46.5 43 30 4 3 264 315 1700 2400 5.9
31319 95 200 49.5 45 32 4 3 292 355 1700 2400 6.95
31320 100 215 56.5 51 35 4 3 374 465 1600 2200 8.6
31321 105 225 58 53 36 4 3 402 500 1500 2000 9.65
31322 110 240 63 57 38 4 3 457 585 1400 1900 12
31324 120 260 68 62 42 4 3 539 695 1200 1700 15.5
31326 130 280 72 66 44 5 4 605 780 1100 1600 18.5
31328 140 300 77 70 47 5 4 693 900 1000 1500 24.5
31330 150 320 82 75 50 5 4 781 1020 950 1400 29.5
