Rolling Roller Bearings-Needle Roller Bearings-Inner Rings PI, precision machined, chrome steel AISI52100, INCH sizes

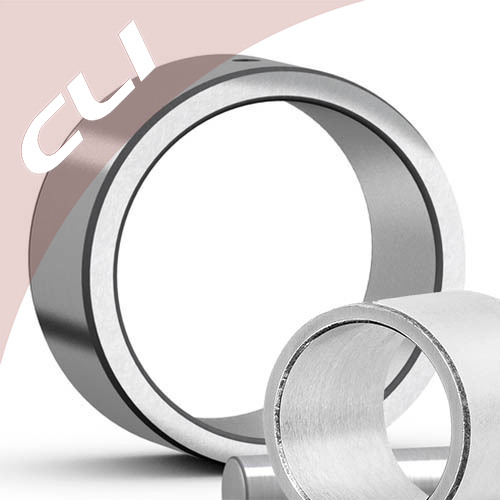

Original 18 picture pi
Product Picture


PI
Inner Rings,
Precision machined, chrome steel AISI52100, INCH sizes




CLI inner rings are made from hardened rolling bearing steel and have precision machined or ground raceways.

They are used where the shaft cannot be used as a raceway with needle roller and cage assemblies, drawn cup needle roller bearings with open ends, drawn cup needle roller bearings with closed end and needle roller bearings.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

PI
AISI52100 chrome steel inner rings for
shaft sizes from
3/8 inch to 3 inch

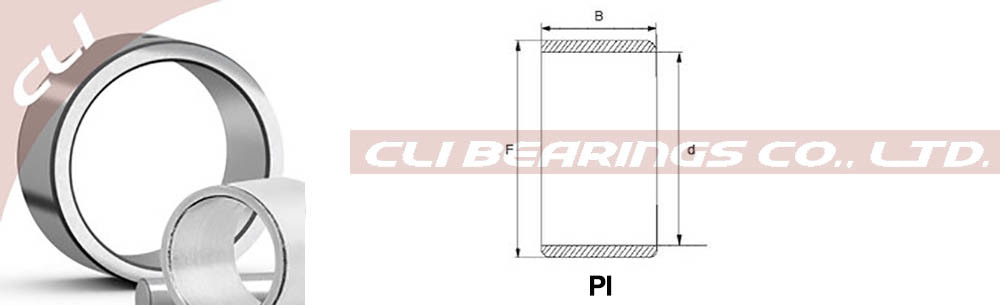

CLI Bearing No. Bore Dia Outer Dia Width
(B)
Weight (g)
(d) (F)
PI060908 3/8" | 9.525 mm 0.5625" | 14.288 mm 0.5" | 12.7 mm 8.5
PI060912 3/8" | 9.525 mm 0.5625" | 14.288 mm 0.75" | 19.05 mm 13.4
PI061012 3/8" | 9.525 mm 0.625" | 15.875 mm 0.75" | 19.05 mm 18
PI081208 1/2" | 12.7 mm 0.75" |19.05 mm 0.5" | 12.7 mm 15
PI081212 1/2" | 12.7 mm 0.75" | 19.05 mm 0.75" | 19.05 mm 22.6
PI081216 1/2" | 12.7 mm 0.75" | 19.05 mm 1" | 25.4 mm 30.1
PI101406 5/8" | 15.875 mm 0.875" | 22.225 mm 0.375" | 9.525 mm 13.6
PI101408 5/8" | 15.875 mm 0.875" | 22.225 mm 0.5" | 12.7 mm 18
PI101412 5/8" | 15.875 mm 0.875" | 22.225 mm 0.75" | 19.05 mm 27.2
PI101416 5/8" | 15.875 mm 0.875" | 22.225 mm 1" | 25.4 mm 36.3
PI121608 3/4" | 19.05 mm 1" | 25.4 mm 0.5" | 12.7 mm 21.1
PI121612 3/4" | 19.05 mm 1" | 25.4 mm 0.75" | 19.05 mm 31.6
PI121616 3/4" | 19.05 mm 1" | 25.4 mm 1" | 25.4 mm 42.1
PI121620 3/4" | 19.05 mm 1" | 25.4 mm 1.25" | 31.75 mm 63.5
PI141812 7/8" | 22.225 mm 1.125" | 28.575 mm 0.75" | 19.05 mm 36.3
PI141816 7/8" | 22.225 mm 1.125" | 28.575 mm 1" | 25.4 mm 49.9
PI141820 7/8" | 22.225 mm 1.125" | 28.575 mm 1.25" | 31.75 mm 59
PI162012 1" | 25.4 mm 1.25" | 31.75 mm 0.75" | 19.05 mm 40.6
PI162016 1" | 25.4 mm 1.25" | 31.75 mm 1" | 25.4 mm 54.1
PI162020 1" | 25.4 mm 1.25" | 31.75 mm 1.25" | 31.75 mm 67.7
PI182212 1 1/8" | 28.575 mm 1.375" | 34.925 mm 0.75" | 19.05 mm 45.1
PI182216 1 1/8" | 28.575 mm 1.375" | 34.925 mm 1" | 25.4 mm 58.9
PI182220 1 1/8" | 28.575 mm 1.375" | 34.925 mm 1.25" | 31.75 mm 77.1
PI202416 1 1/4" | 31.75 mm 1.5" | 38.1 mm 1" | 25.4 mm 66.2
PI202420 1 1/4" | 31.75 mm 1.5" | 38.1 mm 1.25" | 31.75 mm 82.7
PI212616 1 5/16" | 33.338 mm 1.625" | 41.275 mm 1" | 25.4 mm 88.3
PI222620 1 3/8" | 34.925 mm 1.625" | 41.275 mm 1.25" | 31.75 mm 90.7
PI232816 1 7/16" | 36.512 mm 1.75" | 44.45 mm 1" | 25.4 mm 99.8
PI232820 1 7/16" | 36.512 mm 1.75" | 44.45 mm 1.25" | 31.75 mm 122.4
PI232824 1 7/16" | 36.512 mm 1.75" | 44.45 mm 1.5" | 38.1 mm 149.7
PI242816 1 1/2" | 38.1 mm 1.75" | 44.45 mm 1" | 25.4 mm 81.6
PI242820 1 1/2" | 38.1 mm 1.75" | 44.45 mm 1.25" | 31.75 mm 100.1
PI253016 1 9/16" | 39.688 mm 1.875" |47.625 mm 1" | 25.4 mm 104.3
PI273216 1 11/16" | 42.862 mm 2" |50.8 mm 1" | 25.4 mm 108.9
PI273220 1 11/16" | 42.862 mm 2" |50.8 mm 1.25" | 31.75 mm 138.6
PI283624 1 3/4" | 44.45 mm 2.25" |57.15 mm 1.5" | 38.1 mm 288.7
PI324024 2" | 50.8 mm 2.5" |63.5 mm 1.5" | 38.1 mm 328.6
PI445232 2 3/4" | 69.85 mm 3.25" |82.55 mm 2" | 50.8 mm 585
PI485632 3" | 76.2 mm 3.5" |88.9 mm 2" | 50.8 mm 626.9
