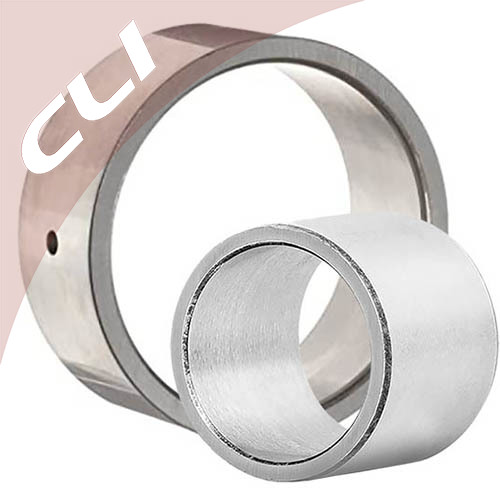

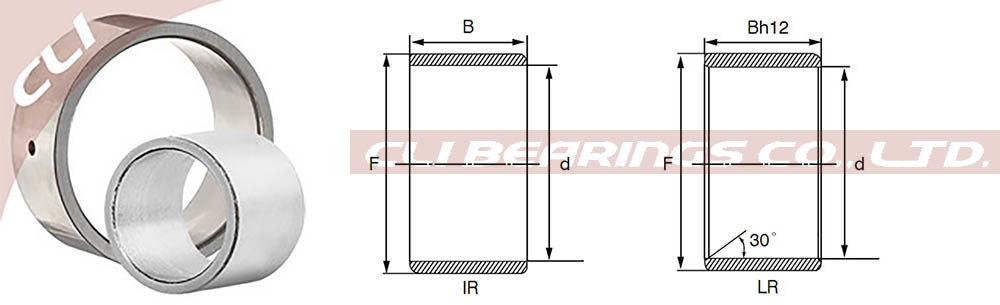

Inner Rings
IR / IR-IS1, precision machined,
Chrome steel AISI52100, METRIC sizes




CLI inner rings are made from hardened rolling bearing steel and have precision machined or ground raceways.

They are used where the shaft cannot be used as a raceway with needle roller and cage assemblies, drawn cup needle roller bearings with open ends, drawn cup needle roller bearings with closed end and needle roller bearings.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

IR
AISI52100 chrome steel inner rings for
shaft sizes from
5 mm to 380 mm



Product Number Bore Dia Outer Dia Width
(B)
Rmin Weight (g)
(d) (F)
IR5X8X12 5 mm 8 mm 12 mm 0.3 mm 2.8
IR5X8X16 5 mm 8 mm 16 mm 0.3 mm 3.7
IR6X9X12 6 mm 9 mm 12 mm 0.3 mm 3
IR6X9X16 6 mm 9 mm 16 mm 0.3 mm 4.3
IR7X10X10.5 7 mm 10 mm 10.5 mm 0.3 mm 3.1
IR7X10X12 7 mm 10 mm 12 mm 0.3 mm 3.6
IR7X10X16 7 mm 10 mm 16 mm 0.3 mm 4.9
IR8X12X10.5 8 mm 12 mm 10.5 mm 0.3 mm 5
IR8X12X12.5 8 mm 12 mm 12.5 mm 0.3 mm 5.9
IR9X12X12 9 mm 12 mm 12 mm 0.3 mm 4.4
IR9X12X16 9 mm 12 mm 16 mm 0.3 mm 6
IR10X13X12.5 10 mm 13 mm 12.5 mm 0.3 mm 5.2
IR10X14X13 10 mm 14 mm 13 mm 0.3 mm 7.4
IR10X14X16 10 mm 14 mm 16 mm 0.3 mm 9.2
IR10X14X20 10 mm 14 mm 20 mm 0.3 mm 11.5
IR12X15X12 12 mm 15 mm 12 mm 0.3 mm 5.7
IR12X15X12.5 12 mm 15 mm 12.5 mm 0.3 mm 6.1
IR12X15X16 12 mm 15 mm 16 mm 0.3 mm 7.6
IR12X15X16.5 12 mm 15 mm 16.5 mm 0.3 mm 8.1
IR12X15X22.5 12 mm 15 mm 22.5 mm 0.3 mm 10.9
IR12X16X13 12 mm 16 mm 13 mm 0.3 mm 8.5
IR12X16X16 12 mm 16 mm 16 mm 0.3 mm 10.7
IR12X16X20 12 mm 16 mm 20 mm 0.3 mm 13.5
IR12X16X22 12 mm 16 mm 22 mm 0.3 mm 14.9
IR14X17X17 14 mm 17 mm 17 mm 0.3 mm 9.5
IR15X18X16 15 mm 18 mm 16 mm 0.3 mm 9.4
IR15X18X16.5 15 mm 18 mm 16.5 mm 0.3 mm 9.8
IR15X19X16 15 mm 19 mm 16 mm 0.3 mm 12.9
IR15X19X20 15 mm 19 mm 20 mm 0.3 mm 16.3
IR15X20X13 15 mm 20 mm 13 mm 0.3 mm 13.5
IR15X20X23 15 mm 20 mm 23 mm 0.3 mm 24.4
IR17X20X16 17 mm 20 mm 16 mm 0.3 mm 10.6
IR17X20X16.5 17 mm 20 mm 16.5 mm 0.3 mm 11.1
IR17X20X20 17 mm 20 mm 20 mm 0.3 mm 13.5
IR17X20X20.5 17 mm 20 mm 20.5 mm 0.3 mm 13.8
IR17X20X30.5 17 mm 20 mm 30.5 mm 0.3 mm 20.6
IR17X21X16 17 mm 21 mm 16 mm 0.3mm 15
IR17X21X20 17 mm 21 mm 20 mm 0.3 mm 18
IR17X22X13 17 mm 22 mm 13 mm 0.3 mm 14.9
IR17X22X16 17 mm 22 mm 16 mm 0.3 mm 18.4
IR17X22X23 17 mm 22 mm 23 mm 0.3 mm 27.1
IR17X24X20 17 mm 24 mm 20 mm 0.6 mm 33.8
IR20X24X16 20 mm 24 mm 16 mm 0.3 mm 15
IR20X24X20 20 mm 24 mm 20 mm 0.3 mm 21.3
IR20X25X17 20 mm 25 mm 17 mm 0.3 mm 25
IR20X25X20 20 mm 25 mm 20 mm 0.3 mm 27.5
IR20X25X20.5 20 mm 25 mm 20.5 mm 0.3 mm 27.4
IR20X25X26.5 20 mm 25 mm 26.5 mm 0.3 mm 38
IR20X25X30 20 mm 25 mm 30 mm 0.3 mm 40.4
IR20X25X38.5 20 mm 25 mm 38.5 mm 0.3 mm 52.5
IR20X28X20 20 mm 28 mm 20 mm 0.6 mm 45.2
IR22X26X16 22 mm 26 mm 16 mm 0.3 mm 18.2
IR22X26X20 22 mm 26 mm 20 mm 0.3 mm 23
IR22X28X17 22 mm 28 mm 17 mm 0.3 mm 29.5
IR22X28X20 22 mm 28 mm 20 mm 0.3 mm 35
IR22X28X20.5 22 mm 28 mm 20.5 mm 0.3 mm 36
IR22X28X30 22 mm 28 mm 30 mm 0.3 mm 54.4
IR25X29X20 25 mm 29 mm 20 mm 0.3 mm 25.9
IR25X29X30 25 mm 29 mm 30 mm 0.3 mm 39.3
IR25X30X17 25 mm 30 mm 17 mm 0.3 mm 27.4
IR25X30X20 25 mm 30 mm 20 mm 0.3 mm 32.8
IR25X30X20.5 25 mm 30 mm 20.5 mm 0.3 mm 33.4
IR25X30X26.5 25 mm 30 mm 26.5 mm 0.3 mm 46
IR25X30X30 25 mm 30 mm 30 mm 0.3 mm 53
IR25X30X32 25 mm 30 mm 32 mm 0.3 mm 56
IR25X30X38.5 25 mm 30 mm 38.5 mm 0.3 mm 64.5
IR25X32X22 25 mm 32 mm 22 mm 0.6 mm 52.5
IR28X32X17 28 mm 32 mm 17 mm 0.3 mm 24.5
IR28X32X20 28 mm 32 mm 20 mm 0.3 mm 28.5
IR28X32X30 28 mm 32 mm 30 mm 0.3 mm 43.5
IR30X35X13 30 mm 35 mm 13 mm 0.3 mm 25
IR30X35X16 30 mm 35 mm 16 mm 0.3 mm 34
IR30X35X17 30 mm 35 mm 17 mm 0.3 mm 36
IR30X35X20 30 mm 35 mm 20 mm 0.3 mm 39
IR30X35X20.5 30 mm 35 mm 20.5 mm 0.3 mm 39.7
IR30X35X26 30 mm 35 mm 26 mm 0.3 mm 50.4
IR30X35X30 30 mm 35 mm 30 mm 0.3 mm 58.5
IR30X37X18 30 mm 37 mm 18 mm 0.6 mm 50
IR30X37X22 30 mm 37 mm 22 mm 0.6 mm 61.6
IR32X37X20 32 mm 37 mm 20 mm 0.3 mm 42
IR32X37X30 32 mm 37 mm 30 mm 0.3 mm 62
IR32X40X20 32 mm 40 mm 20 mm 0.6 mm 68
IR32X40X36 32 mm 40 mm 36 mm 0.6 mm 124
IR33X37X13 33 mm 37 mm 13 mm 0.3 mm 21.9
IR35X40X17 35 mm 40 mm 17 mm 0.3 mm 37.8
IR35X40X20 35 mm 40 mm 20 mm 0.3 mm 44.2
IR35X40X20.5 35 mm 40 mm 20.5 mm 0.3 mm 46.1
IR35X40X30 35 mm 40 mm 30 mm 0.3 mm 67.1
IR35X42X36 35 mm 42 mm 36 mm 0.6 mm 117.2
IR35X43X22 35 mm 43 mm 22 mm 0.6 mm 82
IR38X43X20 38 mm 43 mm 20 mm 0.3 mm 48.1
IR38X43X30 38 mm 43 mm 30 mm 0.3 mm 73.6
IR40X45X17 40 mm 45 mm 17 mm 0.3 mm 42.5
IR40X45X20 40 mm 45 mm 20 mm 0.3 mm 50.8
IR40X45X20.5 40 mm 45 mm 20.5 mm 0.3 mm 51.8
IR40X45X30 40 mm 45 mm 30 mm 0.3 mm 84
IR40X48X22 40 mm 48 mm 22 mm 0.6 mm 91.6
IR40X48X40 40 mm 48 mm 40 mm 0.6 mm 170
IR40X50X22 40 mm 50 mm 22 mm 1 mm 118
IR42X47X20 42 mm 47 mm 20 mm 0.3 mm 52.8
IR42X47X30 42 mm 47 mm 30 mm 0.3 mm 81
IR45X50X25 45 mm 50 mm 25 mm 0.6 mm 70.8
IR45X50X25.5 45 mm 50 mm 25.5 mm 0.3 mm 75.1
IR45X50X35 45 mm 50 mm 35 mm 0.6 mm 101
IR45X52X22 45 mm 52 mm 22 mm 0.6 mm 89
IR45X52X40 45 mm 52 mm 40 mm 0.6 mm 164
IR45X55X22 45 mm 55 mm 22 mm 1 mm 129
IR50X55X25 50 mm 55 mm 25 mm 0.6 mm 78
IR50X55X35 50 mm 55 mm 35 mm 0.6 mm 112
IR50X58X22 50 mm 58 mm 22 mm 0.6 mm 115
IR50X58X40 50 mm 58 mm 40 mm 0.6 mm 208
IR50X60X25 50 mm 60 mm 25 mm 1 mm 162
IR50X60X28 50 mm 60 mm 28 mm 1.1 mm 181
IR55X60X25 55 mm 60 mm 25 mm 0.6 mm 85.5
IR55X60X35 55 mm 60 mm 35 mm 0.6 mm 121
IR55X63X25 55 mm 63 mm 25 mm 1 mm 141
IR55X63X45 55 mm 63 mm 45 mm 1 mm 256
IR55X65X28 55 mm 65 mm 28 mm 1.1 mm 198
IR60X68X25 60 mm 68 mm 25 mm 1 mm 152
IR60X68X35 60 mm 68 mm 35 mm 0.6 mm 213
IR60X68X45 60 mm 68 mm 45 mm 1 mm 276
IR60X70X25 60 mm 70 mm 25 mm 1 mm 195
IR60X70X28 60 mm 70 mm 28 mm 1.1 mm 215
IR65X72X25 65 mm 72 mm 25 mm 1 mm 141
IR65X72X45 65 mm 72 mm 45 mm 1 mm 259
IR65X73X25 65 mm 73 mm 25 mm 1 mm 164
IR65X73X35 65 mm 73 mm 35 mm 1 mm 231
IR65X75X28 65 mm 75 mm 28 mm 1.1 mm 229
IR70X80X25 70 mm 80 mm 25 mm 1 mm 221
IR70X80X30 70 mm 80 mm 30 mm 1 mm 267
IR70X80X35 70 mm 80 mm 35 mm 1 mm 312
IR70X80X54 70 mm 80 mm 54 mm 1 mm 488
IR75X85X25 75 mm 85 mm 25 mm 1 mm 238
IR75X85X30 75 mm 85 mm 30 mm 1 mm 287
IR75X85X35 75 mm 85 mm 35 mm 1 mm 336
IR75X85X54 75 mm 85 mm 54 mm 1 mm 520
IR80X90X25 80 mm 90 mm 25 mm 1 mm 253
IR80X90X30 80 mm 90 mm 30 mm 1 mm 304
IR80X90X35 80 mm 90 mm 35 mm 1 mm 355
IR80X90X54 80 mm 90 mm 54 mm 1 mm 556
IR85X95X26 85 mm 95 mm 26 mm 1 mm 277
IR85X95X36 85 mm 95 mm 36 mm 1 mm 388
IR85X100X35 85 mm 100 mm 35 mm 1.1 mm 582
IR85X100X63 85 mm 100 mm 63 mm 1.1 mm 1054
IR90X100X26 90 mm 100 mm 26 mm 1 mm 294
IR90X100X30 90 mm 100 mm 30 mm 1 mm 340
IR90X100X36 90 mm 100 mm 36 mm 1 mm 406
IR90X105X35 90 mm 105 mm 35 mm 1.1 mm 610
IR90X105X63 90 mm 105 mm 63 mm 1.1 mm 1110
IR95X105X26 95 mm 105 mm 26 mm 1 mm 313
IR95X105X36 95 mm 105 mm 36 mm 1 mm 431
IR95X110X35 95 mm 110 mm 35 mm 1.1 mm 657
IR95X110X63 95 mm 110 mm 63 mm 1.1 mm 1170
IR100X110X30 100 mm 110 mm 30 mm 1.1 mm 350
IR100X110X40 100 mm 110 mm 40 mm 1.1 mm 505
IR100X115X40 100 mm 115 mm 40 mm 1.1 mm 797
IR110X120X30 110 mm 120 mm 30 mm 1 mm 409
IR110X125X40 110 mm 125 mm 40 mm 1.1 mm 840
IR120X130X30 120 mm 130 mm 30 mm 1 mm 442
IR120X135X45 120 mm 135 mm 45 mm 1.1 mm 1044
IR130X145X35 130 mm 145 mm 35 mm 1.1 mm 855
IR130X150X50 130 mm 150 mm 50 mm 1.5 mm 1690
IR140X155X35 140 mm 155 mm 35 mm 1.1 mm 917
IR140X160X50 140 mm 160 mm 50 mm 1.5 mm 1800
IR150X165X40 150 mm 165 mm 40 mm 1.1 mm 1122
IR160X175X40 160 mm 175 mm 40 mm 1.1 mm 1200
IR170X185X45 170 mm 185 mm 45 mm 1.1 mm 1440
IR180X195X45 180 mm 195 mm 45 mm 1.1 mm 1510
IR190X210X50 190 mm 210 mm 50 mm 1.5 mm 2410
IR200X220X50 200 mm 220 mm 50 mm 1.5 mm 2518
IR220X240X50 220 mm 240 mm 50 mm 1.5 mm 2753
IR240X265X60 240 mm 265 mm 60 mm 2 mm 4600
IR260X285X60 260 mm 285 mm 60 mm 2 mm 4980
IR280X305X69 280 mm 305 mm 69 mm 2 mm 6100
IR300X330X80 300 mm 330 mm 80 mm 2.1 mm 9200
IR320X350X80 320 mm 350 mm 80 mm 2.1 mm 9800
IR340X370X80 340 mm 370 mm 80 mm 2.1 mm 10200
IR360X390X80 360 mm 390 mm 80 mm 2.1 mm 10900
IR380X415X100 380 mm 415 mm 100 mm 2.1 mm 16700


IR-IS1
AISI52100 chrome steel inner rings for
shaft sizes from
6 mm to 50 mm



Product Number Bore Dia Outer Dia Width
(B)
Rmin Weight (g)
(d) (F)
IR6X10X10-IS1 6 mm 10 mm 10 mm 0.3 mm 3.7
IR8X12X10-IS1 8 mm 12 mm 10 mm 0.3 mm 4.8
IR10X14X12-IS1 10 mm 14 mm 12 mm 0.3 mm 7.3
IR12X16X12-IS1 12 mm 16 mm 12 mm 0.3 mm 7.9
IR15X20X12-IS1 15 mm 20 mm 12 mm 0.3 mm 12.2
IR20X25X16-IS1 20 mm 25 mm 16 mm 0.3 mm 24
IR25X30X16-IS1 25 mm 30 mm 16 mm 0.3 mm 25.7
IR30X38X20-IS1 30 mm 38 mm 20 mm 0.6 mm 77
IR35X42X20-IS1 35 mm 42 mm 20 mm 0.6 mm 63.9
IR40X50X20-IS1 40 mm 50 mm 20 mm 1 mm 106
IR45X55X20-IS1 45 mm 55 mm 20 mm 1 mm 117
IR50X55X20-IS1 50 mm 55 mm 20 mm 0.6 mm 62.5
IR50X60X20-IS1 50 mm 60 mm 20 mm 1 mm 128
