Imperial Tapered Roller Bearings, Separable Cup & Cone, CHROME STEEL AISI52100, INCH sizes

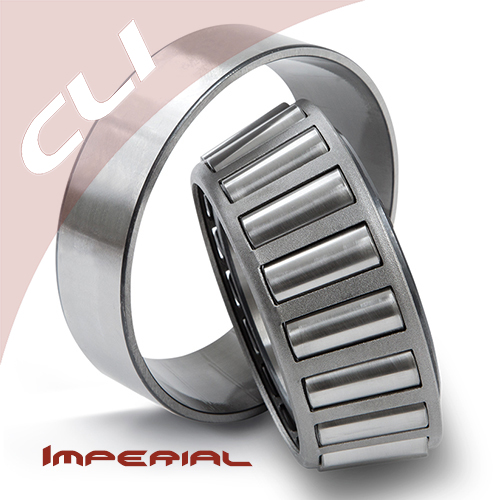

Original tapered roller bearing inch size1

Product Picture

Imperial
Tapered Roller Bearings, Separable Cup & Cone,
CHROME STEEL AISI52100, METRIC sizes

CLI tapered roller bearings have the rolling elements under the form of frustum of cone. They roll on tapered surface which, if extended, converges towards a single point on the bearing axis.

The rollers are guided tangentially by the cage and axially by the big rib of the inner ring, on which they have contact. As between rollers and raceways there is linear contact, they can take heavy radial loads. They can also take heavy axial or combined loads, depending on the contact angle caused by the tapered elements.

CLI one row tapered roller bearings are of separable design, which means the outer ring/cup and the inner ring/cone with rollers and cage assembly can be separately mounted. The two parts are interchangeable.

CLI tapered roller bearings are manufactured both in standardized (metric and inch sizes) and in non-standardized constructive version.

The metric size bearings have standardized dimensions as listed in ISO 355:1977 and those designated with prefix J conform to American AFBMA 19.1/1987. The inch size bearings, prefix J, are according to American AFBMA 19/1974.

The one row tapered roller bearings can carry only single direction axial loads. Under pure radial loads, an axial force is induced within the bearings so that they cannot be used singly and a second bearing is required.

The one row tapered roller bearings have pressed steel cage as standard. For large size and/or heavy engineering applications, the steel pin-type cage and case hardened carburizing alloy steels can be considered.

The one row tapered roller bearings can also be produced with a rib on the outer cup as a flange to be used when the housing cannot be manufactured with shoulder, but only with a passed through hole so that, in this case, axial location can be provided by the bearing cup.

When the load carrying capacity of a single row is inadequate or where the load has to be located in both directions, CLI BEARINGS produces the single row taper roller bearings as ready-to-mount matched pairs.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

Imperial
Tapered Roller Bearings for
shaft sizes from 15.875 mm to 107.950 mm

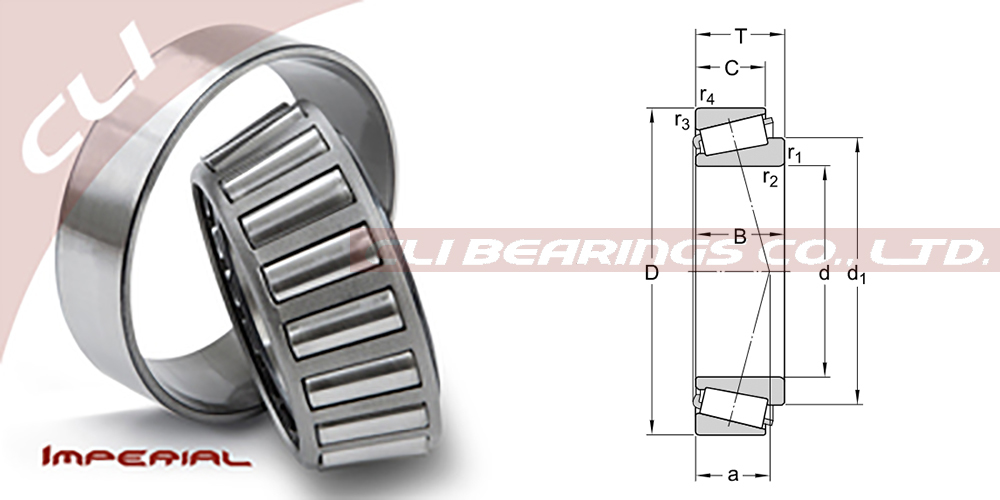

Bearing No.		Boundary dimensions							Basic load ratings (kN)		Limiting speeds		Mass
Bearing No.		(mm)							Dynamic	Static	rpm		Kg
Cone	Cup	d	D	T	B	C	R	r	Cr	Cor	Grease	Oil	≈
11590	11520	15.875	42.862	14.288	14.288	9.525	1.5	1.5	17.60	17.60	8500	12000	0.1
LM11749	LM11710	17.462	39.878	13.843	14.605	10.668	1.3	1.3	21.20	20.80	9000	13000	0.081
LM11949	LM11910	19.050	45.237	15.494	16.637	12.065	1.3	1.3	27.50	27.50	8500	12000	0.12
09067	09195	19.050	49.225	18.034	19.050	14.288	1.3	1.3	39.10	40.00	8000	11000	0.18
09074	09196	19.050	49.225	23.020	21.539	17.462	1.5	1.5	39.10	40.00	8000	11000	0.21
A6075	A6157	19.050	39.992	12.014	11.153	9.525	1.0	1.3	14.9	15.7	9500	13000	0.066
09067	09196	19.050	49.225	21.209	19.050	17.462	1.3	1.5	39.10	40.00	8000	11000	0.2
09074	09195	19.050	49.225	19.845	21.539	14.288	1.5	1.3	39.10	40.00	4300	8000	0.19
09074	09194	19.050	49.225	23.020	21.539	17.462	1.5	3.5	37.5	37.0	8500	11000	0.21
12580	12520	20.638	49.225	19.845	19.845	15.875	1.5	1.5	37.5	39.0	8200	11000
M12649	M12610	21.430	50.005	17.526	18.288	13.970	1.3	1.3	36.90	38.00	8000	11000	0.17
LM12749	LM12710	21.986	45.237	15.494	16.637	12.065	1.3	1.3	27.50	31.00	8000	11000	0.12
LM12749	LM12711	21.986	45.974	15.494	16.637	12.065	1.3	1.3	27.50	31.00	8000	11000	0.12
M12648	M12610	22.225	50.005	17.526	18.288	13.970	1.3	1.3	39.1	40.7	8500	11000	0.17
1280	1220	22.225	57.150	22.225	22.225	17.462	0.8	1.6	52.6	55.7	7600	10000
1755	1729	22.225	56.896	19.368	19.837	15.875	1.3	0.8	46.00	43.1	7600	10000
07093	07196	23.812	50.005	13.495	14.260	9.525	1.5	1.0	26.0	27.9	7600	10000
07097	07196	25.000	50.005	13.495	14.260	9.525	1.5	1.0	26.7	28.8	7900	11000	0.146
07100	07204	25.400	51.994	15.011	14.260	12.700	1.5	1.3	26.7	28.8	7900	11000	0.145
1780	1729	25.400	56.896	19.368	19.837	15.875	0.8	1.3	42.5	46.5	7200	9600
L44643	L44610	25.400	50.292	14.224	14.732	10.668	1.3	1.3	26.00	30.00	7500	10000	0.13
M84548	M84510	25.400	57.150	19.431	19.431	14.732	1.5	1.5	39.60	45.00	6700	9000	0.24
15101	15243	25.400	61.912	19.050	20.638	14.288	0.8	2.0	44.6	50.7	6400	8600	0.28
07100	07196	25.400	50.005	13.495	14.260	9.525	1.5	1.0	26.7	28.8	7900	11000	0.12
15101	15245	25.400	62.000	19.050	20.638	14.288	0.8	1.3	48.40	57.00	6000	8000	0.31
15101	15250X	25.400	63.500	20.638	20.638	15.875	0.8	1.5	48.40	57.00	6000	8000	0.34
L44649	L44610	26.988	50.292	14.224	14.732	10.668	3.5	1.3	26.00	30.00	7500	10000	0.11
1988	1922	28.575	57.150	19.845	19.355	15.875	3.5	1.5	47.30	55.00	6700	9000	0.22
02474	02420	28.575	68.262	22.225	22.225	17.462	0.8	1.5	58.30	69.50	5600	7500	0.42
02872	02820	28.575	73.025	22.225	22.225	17.462	0.8	3.2	55.0	65.7	5500	7400
15112	15245	28.575	62.000	19.050	20.638	14.288	3.5	1.3	48.40	57.00	6000	8000	0.28
L45449	L45410	29.000	50.292	14.224	14.732	10.668	3.5	1.3	26.00	32.50	7000	9500	0.11
15116	15245	30.112	62.000	19.050	20.638	14.288	0.1	1.2	44.6	50.7	6400	8600
M86649	M86610	30.162	64.292	21.433	21.433	16.670	1.5	1.5	49.50	61.00	6000	8000	0.33
M88043	M88010	30.162	68.262	22.225	22.225	17.462	2.3	1.5	55.00	69.50	5600	7500	0.41
02475	02420	31.750	68.262	22.225	22.225	17.462	3.6	1.6	51.0	61.1	6000	8000
14125A	14276	31.750	69.012	19.845	19.583	15.875	3.5	1.3	44.5	55.0	5500	7500	0.35
LM67048	LM67010	31.750	59.131	15.875	16.764	11.811	3.6	1.3	34.70	41.50	6300	8500	0.18
2580	2520	31.750	66.421	25.400	25.357	20.638	0.8	3.3	69.30	81.50	5600	7500	0.4
2580	2523	31.750	69.850	23.812	25.357	19.050	0.8	1.3	69.0	81.5	5700	7600	0.45
14125A	14276	31.750	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58.0	5600	7400	0.35
15123	15245	31.750	62.000	18.161	19.050	14.288	4.0	1.3	48.40	57.00	6000	8000	0.24
15126	15245	31.750	62.000	19.050	20.638	14.288	0.8	1.2	44.6	50.7	6400	8600
HM88542	HM88510	31.750	73.025	29.370	27.783	23.020	1.3	3.3	74.3	101.0	5600	7500	0.62
M88048	M88010	33.338	68.262	22.225	22.225	17.462	0.8	1.5	55.00	69.50	5600	7500	0.38
14130	14276	33.338	69.012	19.845	19.583	15.875	3.5	1.3	53.90	67.00	5600	7500	0.35
14136 A	14276	34.925	69.012	26.982	26.721	15.875	0.8	1.3	53.90	67.00	5600	7500	0.33
25877	25821	34.925	73.025	23.812	24.608	19.050	1.5	0.8	72.10	88.00	5300	7000	0.47
LM48548	LM48510	34.925	65.088	18.034	18.288	13.970	3.6	1.3	47.30	57.00	5600	7500	0.25
HM88649	HM88610	34.925	72.233	25.400	25.400	19.842	2.3	2.3	67.10	90.00	5000	6700	0.5
HM89446	HM89410	34.925	76.200	29.370	28.575	23.020	3.5	3.3	78.10	106.00	4800	6300	0.66
L68149	L68110	34.988	59.131	15.875	16.764	11.938	3.5	1.3	33.00	44.00	6000	8000	0.17
L68149	L68111	34.988	59.974	15.875	16.764	11.938	3.5	1.3	33.00	44.00	6000	8000	0.17
LM78349A	LM78310A	34.988	61.973	16.700	17.000	13.600	1.5	1.5	37.0	48.0	5900	7900	0.21
HM88648	HM88610	35.717	72.233	25.400	25.400	19.842	3.6	2.4	66.9	87.4	5700	6900
25880	25821	36.487	73.025	23.812	24.608	19.050	1.5	0.8	72.10	88.00	5300	7000	0.46
25880	25820	36.487	73.025	23.812	24.608	19.050	1.5	0.8	72.10	88.00	5300	7000	0.45
2794	2720	36.487	76.200	23.812	25.654	19.050	3.5	3.3	74.80	93.00	5000	6700	0.5
HM89448	HM89410	36.512	76.200	29.370	28.575	23.020	0.8	3.3	78.10	106.00	4800	6300	0.64
HM89449	HM89410	36.512	76.200	29.370	28.575	23.020	3.5	3.3	78.10	106.00	4800	6300	0.64
JL69349	JL69310	38.000	63.000	17.000	17.000	13.500	sp	1.3	43.5	58.2	6000	8000	0.2
LM29748	LM29710	38.100	65.088	18.034	18.288	13.970	sp	1.3	42.9	56.5	5800	7800	0.24
LM29749	LM29710	38.100	65.088	18.034	18.288	13.970	2.3	1.3	42.90	57.0	5600	7500	0.24
LM29749	LM29711	38.100	65.088	19.812	18.288	15.748	2.3	1.3	42.9	57.00	5600	7500	0.25
3490	3420	38.100	79.375	29.370	29.771	23.812	3.5	3.3	91.30	110.00	5000	6700	0.67
418	414	38.100	88.500	26.988	29.083	22.225	3.5	1.5	101.00	114.00	4800	6300	0.83
2788	2720	38.100	76.200	23.812	25.654	19.050	3.5	3.3	74.80	93.00	5000	6700	0.5
16150	16282	38.100	72.000	19.000	20.638	14.237	3.5	1.5	49.50	60.00	5300	7000	0.33
HM801346	HM801310	38.100	82.550	29.370	28.575	23.020	0.8	3.3	85.80	118.00	4500	6000	0.78
25572	25520	38.100	82.931	23.812	25.400	19.050	0.8	0.8	77.2	100.0	4800	6300	0.64
LM300849	LM300811	40.988	67.975	17.500	18.000	13.500	3.6	1.5	44.00	58.50	5300	7000	0.24
LM501349	LM501310	41.275	73.431	19.558	19.812	14.732	3.5	0.8	55.00	69.50	4800	6300	0.33
LM501349	LM501314	41.275	73.431	21.430	19.812	16.604	3.5	0.8	55.00	69.50	4800	6300	0.35
LM501349	LM501311	41.275	73.431	23.012	19.812	18.186	3.5	2.3	55.00	69.50	4800	6300	0.37
M802048	M802011	41.275	82.550	26.543	25.654	20.193	3.5	3.3	73.70	91.50	4500	6000	0.62
18590	18520	41.275	73.025	16.667	17.462	12.700	3.5	1.5	46.80	56.00	5000	6700	0.28
11162	11300	41.275	76.200	18.009	17.384	14.288	1.5	1.5	45.70	56.00	5000	6700	0.34
24780	24720	41.275	76.200	22.225	23.020	17.462	3.5	0.8	68.20	86.50	5000	6700	0.43
HM803146	HM803110	41.275	88.900	30.162	29.370	23.020	3.5	3.3	95.20	127.00	4300	5600	0.9
526	522	41.275	101.600	34.925	36.068	26.988	3.5	3.3	151.00	190.00	3800	5000	1.45
3579	3525	42.862	87.312	30.162	30.886	23.812	3.5	3.3	102.00	132.00	4500	6000	0.8
25577	25520	42.875	82.931	23.812	25.400	19.050	3.5	0.8	80.90	106.00	4500	6000	0.57
25577	25523	42.875	82.931	26.988	25.400	22.225	3.5	2.3	80.90	106.00	4500	6000	0.61
25577	25522	42.875	83.058	23.876	25.400	19.114	3.5	2.0	80.90	106.00	4500	6000	0.57
527	522	44.450	101.600	34.925	36.068	26.988	3.5	3.3	151.00	190.00	3800	5000	1.35
535	532 A	44.450	111.125	38.100	36.957	30.162	3.5	3.3	151.00	190.00	3600	4800	1.9
25580	25520	44.450	82.931	23.812	25.400	19.050	3.5	0.8	80.90	106.00	4500	6000	0.57
25580	25523	44.450	82.931	26.988	25.400	22.225	3.5	2.3	80.90	106.00	4500	6000	0.61
25580	25522	44.450	83.058	23.876	25.400	19.114	3.5	2.0	80.90	106.00	4500	6000	0.57
HM803149	HM803110	44.450	88.900	30.162	29.370	23.020	3.5	3.3	95.20	127.00	4300	5600	0.85
17887	17831	45.230	79.985	19.842	20.638	15.080	2.0	1.3	62.0	78.5	4500	6000	0.41
LM603049	LM603011	45.242	77.788	19.842	19.842	15.080	3.5	0.8	53.90	69.50	4800	6300	0.37
LM603049	LM603014	45.242	79.974	19.842	19.842	15.000	3.5	0.8	57.1	73.5	4900	6500
LM603049	LM603012	45.242	77.788	21.430	19.842	16.667	3.5	0.8	57.1	73.5	4900	6500	0.38
LM102949	LM102910	45.242	73.431	19.558	19.812	15.748	3.5	0.8	55.6	78.1	5100	6700	0.3
25590	25520	45.618	82.931	23.812	25.400	19.050	3.5	0.8	80.90	106.00	4500	6000	0.55
25590	25523	45.618	82.931	26.988	25.400	22.225	3.5	2.3	80.90	106.00	4500	6000	0.59
LM503349	LM503310	45.987	74.976	18.000	18.000	14.000	2.3	1.5	50.10	71.00	4800	6300	0.31
M804049	M804010	47.625	88.900	25.400	25.400	19.050	3.5	3.3	87.1	112.0	4400	5900
386 A	382 A	47.625	96.838	21.000	21.946	15.875	0.8	0.8	80.90	102.00	3800	5500	0.73
JLM104948	JLM104910	50.000	82.000	21.501	21.501	17.000	3.0	0.5	71.7	97.9	4500	6000	0.42
LM104949	LM104911	50.800	82.550	21.590	22.225	16.510	3.5	1.3	61.2	84.3	4500	6000	0.42
LM104949	LM104912	50.800	82.931	21.590	22.225	16.510	3.5	1.3	69.5	94.0	4300	5700
368A	362A	50.800	88.900	20.638	22.225	16.513	3.5	1.3	76.50	91.50	4300	5600	0.5
368A	362X	50.800	90.000	25.000	22.225	20.000	3.5	2.0	76.50	91.50	4300	5600	0.58
529	522	50.800	101.600	34.925	36.068	26.988	0.8	3.2	131.0	159.0	4000	5300
529X	522	50.800	101.600	34.925	36.068	26.988	3.5	3.3	151.00	190.00	3800	5000	1.25
3780	3720	50.800	93.264	30.162	30.302	23.812	3.5	3.3	110.00	146.00	4000	5300	0.87
28580	28521	50.800	92.075	24.608	25.400	19.845	3.5	0.8	85.80	118.00	4000	5300	0.72
368A	363	50.800	90.000	20.000	22.225	20.000	3.5	0.8	76.5	90.5	4100	5500
28584	28521	52.388	92.075	24.608	25.400	19.845	3.5	0.8	84.8	119.0	4200	5600	0.67
539	532X	53.975	107.950	36.512	36.957	28.575	3.5	3.3	151.00	190.00	3600	4800	1.5
JLM506849	JLM506810	55.000	90.000	23.000	23.000	18.500	1.6	0.5	81.4	115.0	4200	5500
39581	39520	57.150	112.712	30.162	30.162	23.812	8.0	3.3	142.00	204.00	3200	4300	1.4
387	382A	57.150	96.838	21.000	21.946	15.875	2.3	0.8	80.90	102.00	3800	5000	0.59
387A	382A	57.150	96.838	21.000	21.946	15.875	3.5	0.8	80.90	102.00	3800	5000	0.59
387AS	382A	57.150	96.838	21.000	21.946	15.875	5.0	0.8	80.90	102.00	3800	5000	0.58
387	382S	57.150	96.838	21.000	21.946	15.875	2.3	2.3	80.90	102.00	3800	5000	0.59
387A	382S	57.150	96.838	21.000	21.946	15.875	3.5	2.3	80.90	102.00	3800	5000	0.59
387AS	382S	57.150	96.838	21.000	21.946	15.875	5.0	2.3	80.90	102.00	3800	5000	0.58
462	453X	57.150	104.775	30.162	29.317	24.605	2.3	3.3	109.0	144.0	3700	4900	1.08
28985	28920	60.325	101.600	25.400	25.400	19.845	3.5	3.3	85.80	125.00	3600	4800	0.81
28985	28921	60.325	100.000	25.400	25.400	19.845	3.5	3.3	85.80	125.00	3600	4800	0.77
395	394A	63.500	110.000	22.000	21.996	18.824	3.5	1.3	88.00	118.00	3200	4300	0.84
29585	29520	63.500	107.950	25.400	25.400	19.050	3.5	3.3	89.70	137.00	3200	4300	0.9
559	552A	63.500	123.825	38.100	36.678	30.162	3.5	3.3	172.00	240.00	3000	4000	2
39585	39520	63.500	112.712	30.162	30.162	23.812	3.5	3.3	142.0	204.00	3200	4300	1.25
395S	394A	66.675	110.000	22.000	21.996	18.824	3.5	1.3	88.00	118.00	3200	4300	0.79
HM212049	HM212011	66.675	122.238	38.100	38.354	29.718	3.5	3.5	191.0	249.0	3200	4300	1.85
3984	3920	66.675	112.712	30.162	30.048	23.812	3.5	3.3	123.00	183.00	3200	4300	1.15
39590	39520	66.675	112.712	30.162	30.162	23.812	3.5	3.3	142.00	204.00	3200	4300	1.2
399A	394A	68.262	110.000	22.000	21.996	18.824	2.3	1.3	88.00	118.00	3200	4300	0.76
482	472	69.850	120.000	29.794	29.007	24.237	3.5	2.0	132.00	186.00	3000	4000	1.35
566	563	69.850	127.000	36.512	36.170	28.575	3.5	3.3	176.00	255.00	2800	3800	1.85
484	472	70.000	120.000	29.794	29.007	24.237	2.0	2.0	132.00	186.00	3000	4000	1.3
567A	563	71.438	127.000	36.512	36.170	28.575	3.5	3.3	156.0	226.0	3000	4000
29685	29620	73.025	112.712	25.400	25.400	19.050	3.5	3.3	99.00	156.00	3000	4000	0.89
567	563	73.025	127.000	36.512	36.170	28.575	3.5	3.3	176.00	255.00	2800	3800	1.85
575	572	76.200	139.992	36.512	36.098	28.575	3.5	3.3	187.00	280.00	2400	3400	2.45
581	572	80.962	139.992	36.512	36.098	28.575	3.5	3.3	175.0	262.0	2700	3600
740	742	80.962	150.098	44.450	46.672	36.512	5.2	3.2	264.0	368.0	2500	3400
580	572	82.550	139.992	36.512	36.098	28.575	3.5	3.3	187.00	280.00	2400	3400	2.2
663	653	82.550	146.050	41.275	41.275	31.750	3.5	3.3	220.00	320.00	2200	3200	2.8
27690	27620	83.345	125.412	25.400	25.400	19.845	3.5	1.5	112.00	186.00	2600	3600	1.05
498	493	84.138	136.525	30.162	29.769	22.225	3.5	3.3	145.00	220.00	2400	3400	1.6
749	742	85.026	150.089	44.450	46.672	36.512	3.5	3.3	286.00	405.00	2200	3200	3.3
HM518445	HM518410	88.900	152.400	39.688	39.688	30.162	6.4	3.3	242.00	355.00	2000	3000	2.85
HM218248	HM218210	89.974	146.975	40.000	40.000	32.500	7.0	3.5	229.00	355.00	2200	3200	2.5
42381	42584	96.838	148.430	28.575	28.971	21.433	3.5	3.0	130.00	196.00	2200	3200	1.65
L521949	L521910	107.950	146.050	21.432	21.432	16.670	1.6	1.6	86.4	167.0	2300	3100

CLI Bearing No.	∅ d	∅ D	C	B	T
CLI Bearing No.	mm	mm	mm	mm	mm
A4050 - A4138	12.7	34.988	8.73	10.988	10.998
A4059 - A4138	14.989	34.988	8.73	10.988	10.998
17580R - 17520	15.875	42.862	13.495	16.67	16.67
09062 - 09195	15.875	49.225	14.288	21.539	19.845
LM11749 - LM11710	17.462	39.878	10.668	14.605	13.843
LM11949 - LM11910	19.05	45.237	12.065	16.637	15.494
07079 - 07196	20	50.005	9.525	14.26	13.495
09081 - 09196	20.625	49.225	17.463	21.539	23.02
12580 - 12520	20.638	49.225	15.875	19.845	19.845
LM12749 - LM12711	21.987	45.974	12.065	16.637	15.494
1380 - 1328	22.225	52.388	14.288	20.168	19.368
1380 - 1329	22.225	53.975	14.288	20.168	19.368
1280 - 1220	22.225	57.15	17.462	22.225	22.225
2684 - 2631	22.225	66.421	19.05	25.433	23.812
L44640R - L44610	23.812	50.292	10.668	14.732	14.224
1779 - 1729	23.812	56.896	15.875	19.837	19.368
07098 - 07196	24.981	50.005	9.525	14.26	13.495
17098 - 17244	24.981	62	14.288	16.566	16.002
07097 - 07196	25	50.005	9.525	14.26	13.495
07100 - 07196	25.4	50.005	9.525	14.26	13.495
L44643 - 44610	25.4	50.292	10.668	14.732	14.224
07100 - 07204	25.4	51.994	12.7	14.26	15.011
M84249 - M84210	25.4	59.53	18.288	23.114	23.368
15101 - 15243	25.4	61.912	14.288	20.638	19.05
15100 - 15245	25.4	62	14.288	20.638	19.05
86643 - 86610	25.4	64.292	16.67	21.432	21.432
HM88630 - HM88610	25.4	72.233	19.842	25.4	25.4
L44649 - L44610	26.988	50.292	10.668	14.732	14.224
15580 - 15523	26.988	60.325	15.875	17.462	19.842
15106 - 15245	26.988	62	14.288	20.638	19.05
2688 - 2631	26.988	66.421	19.05	25.433	23.812
15590 - 15520	28.575	57.15	13.495	17.462	17.462
1988R - 1922	28.575	57.15	15.875	19.355	19.845
15112 - 15245	28.575	62	14.288	20.638	19.05
15113 - 15245	28.575	62	14.288	20.638	19.05
86647 - 86610	28.575	64.292	16.67	21.432	21.432
2689 - 2631	28.575	66.421	19.05	25.433	23.812
02474 - 02420	28.575	68.262	17.462	22.225	22.225
41125 - 41286	28.575	72.626	17.462	24.257	24.608
41126 - 41286	28.575	72.626	17.462	24.257	24.608
02872 - 02820	28.575	73.025	17.462	22.225	22.225
L45449 - L45410	29	50.292	10.668	14.732	14.224
2690 - 2631	29.367	66.421	19.05	25.433	23.812
17118 - 17244	29.987	62	14.288	16.566	16.002
15117 - 15245	29.987	62	14.288	20.638	19.05
86649 - 86610	30.162	64.292	16.67	21.432	21.432
M88043 - M88010	30.162	68.262	17.462	22.225	22.225
15118 - 15245	30.213	62	14.288	20.638	19.05
15119 - 15245	30.213	62	14.288	20.638	19.05
15120 - 15245	30.213	62	14.288	20.638	19.05
LM67048 - LM67010	31.75	59.131	11.811	16.764	15.875
LM67048 - LM67010-RS	31.75	59.131	11.811	16.764	15.875
15123 - 15245	31.75	62	14.288	19.05	18.161
15125 - 15245	31.75	62	14.288	20.638	19.05
15126 - 15245	31.75	62	14.288	20.638	19.05
2580 - 2520	31.75	66.421	20.638	25.357	25.4
02475 - 02420	31.75	68.262	17.462	22.225	22.225
02476 - 02420	31.75	68.262	17.462	22.225	22.225
HM88542 - HM88510	31.75	73.025	23.02	27.783	29.37
M88048 - M88010	33.338	68.262	17.462	22.225	22.225
26131 - 26283	33.338	72	15.875	18.923	19
HM89443 - HM89410	33.338	76.2	23.02	28.575	29.37
LM48548 - LM48510	34.925	65.088	13.97	18.288	18.034
14136A - 14276	34.925	69.012	15.875	26.721	26.982
HM88649 - HM88610	34.925	72.233	19.842	25.4	25.4
02877 - 02820	34.925	73.025	17.462	22.225	22.225
02878 - 02820	34.925	73.025	17.462	22.225	22.225
28137 - 28300	34.925	76.2	15.507	20.94	20.638
L68149 - L68111	34.98	59.975	11.938	16.764	15.875
HM88648 - HM88610	35.717	72.233	19.842	25.4	25.4
25880R - 25821	36.487	73.025	19.05	24.608	23.812
26877R - 26822	36.512	79.375	19.05	25.4	23.812
3479 - 3420	36.512	79.375	23.812	29.771	29.37
JL69349 - JL69310	38	63	13.5	17	17
16150 - 16282	38.1	71.996	14.237	20.638	19
16150 - 16283	38.1	72.238	19.05	20.638	23.812
3490 - 3420	38.1	79.375	23.812	29.771	29.37
28150 - 28317	38.1	80.035	15.875	20.94	21.432
25572 - 25520	38.1	82.931	19.05	25.4	23.812
2789R - 2735X	39.688	73.025	19.05	25.654	23.812
3386 - 3320	39.688	80.167	23.812	30.391	29.37
3382 - 3328	39.688	84.138	23.812	30.391	29.37
28158 - 28300	40	76.2	15.507	20.94	20.638
543 - 532X	40	107.95	28.575	36.957	36.512
18590 - 18520	41.275	73.025	12.7	17.462	16.667
LM501349 - LM501310	41.275	73.431	14.732	19.812	19.558
LM501349 - LM501314	41.275	73.431	16.604	19.812	21.43
LM501349 - LM501311	41.275	73.431	18.186	19.812	23.012
11162R - 11300	41.275	76.2	14.288	17.384	18.009
M802048 - M802011	41.275	82.55	20.193	25.654	26.543
3877 - 3821	41.275	85.725	23.812	30.162	30.162
3576R - 3525	41.275	87.312	23.812	30.886	30.162
HM803145 - HM803110	41.275	88.9	23.02	29.37	30.162
HM803146 - HM803110	41.275	88.9	23.02	29.37	30.162
4388 - 4335	41.275	90.488	33.338	40.386	39.688
HM807040 - HM804810	41.275	95.25	23.02	29.37	30.162
526 - 522	41.275	101.6	26.988	36.068	34.925
HM807035 - HM807010	41.275	104.775	28.575	36.512	36.512
12168 - 12303	42.862	76.992	11.908	17.145	17.463
12175 - 12303	44.45	76.992	11.908	17.145	17.463
18685 - 18620	44.45	79.375	13.495	17.462	17.462
25582 - 25520	44.45	82.931	19.05	25.4	23.812
HM803149 - HM803110	44.45	88.9	23.02	29.37	30.162
49175 - 49368	44.45	93.662	25.4	31.75	31.75
46176 - 49368	44.45	93.662	26.195	31.75	31.75
HM804842 - HM804810	44.45	95.25	23.02	29.37	30.162
HM804843 - HM804810	44.45	95.25	23.02	29.37	30.162
535 - 532A	44.45	111.125	30.162	36.957	38.1
LM102949 - LM102910	45.242	73.431	15.748	19.812	19.558
LM603049 - LM603011	45.242	77.788	15.08	19.842	19.842
LM603049 - LM603012	45.242	77.788	16.667	19.842	21.43
M802049 - M804010	47.625	88.9	19.05	25.4	25.4
463 - 453X	47.625	104.775	24.605	29.317	30.162
467 - 453X	47.625	104.775	24.605	29.317	30.162
HM804848 - HM804810	48.412	95.25	23.02	29.37	30.162
HM804849 - HM804810	48.412	95.25	23.02	29.37	30.162
65390 - 65320	49.212	114.3	34.925	44.45	44.45
28579R - 28521	49.987	92.075	19.845	25.4	24.608
JLM104948 - JLM104910	50	82	17	21.501	21.501
JM205149 - JM205110	50	90	23	28	28
JHM807045 - JHM807012	50	105	29	36	37
396 - 394A	50	110	18.824	21.996	22
LM104949 - LM104911	50.8	82.55	16.51	22.225	21.59
18790 - 18720	41.275	85	13.55	17.51	17.462
HM807046 - HM807010	50.8	104.775	28.575	36.512	36.512
387A - 382A	57.15	96.838	15.875	21.946	21
462 - 453X	57.15	104.775	24.605	29.317	30.162
395S - 394A	66.675	110	18.824	21.996	22
3984 - 3920	66.675	112.712	23.812	30.048	30.162
482 - 472	69.85	120	24.237	29.007	29.794
HM218248 - HM218210	89.974	146.975	32.5	40	40

Roller Bearings-Tapered roller bearings-Imperial Tapered Roller Bearings, Separable Cup & Cone, CHROME STEEL AISI52100, INCH sizes
