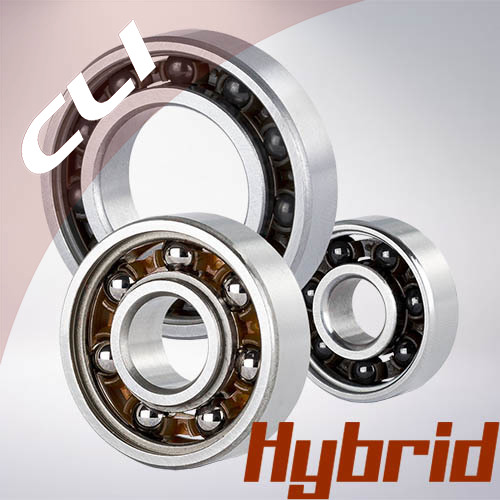

Original chrome steel ceramics hybrid bearings 1cli

Product Picture

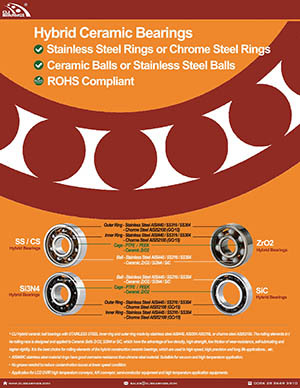

Original ceramic bearings hybrid bearings nw

Download PDF Catalogue

Chrome Steel - Ceramics, HYBRID Ceramic Bearings,
SAE52100/AISI52100 with ceramics ZrO2/Si3N4/SiC balls, ROHS compliant

•  'HCE-CS' series is CLI BEARINGS' hybrid ceramic ball bearings with CHROME STEEL inner ring and outer ring made by SAE52100/AISI52100. The rolling elements in the rolling race is designed and applied to Ceramic Balls ZrO2, Si3N4 or SiC.

•  Ceramic balls have the advantage of low density, high strength, low friction of wear-resistance, self-lubricating and higher rigidity. It is the best choice for rolling elements of the hybrid construction ceramic bearings, which are used in high speed, high precision and long life applications... etc.

•  Application for front and rear hubs, bottom bracket B.B, head sets, redal pivot axel and chain tensioner pulley in bicycles.

• CLI hybrid ceramic bearings also application for roller skater and stateboards.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

Hybrid ceramic bearings, Chrome Steel Rings & PTFE / PEEK Cages with
Zirconia ZrO2 / Si3N4 / SiC Ceramic Balls for shaft sizes from 2.381 mm to 105 mm

Hybrid Ceramic Bearing	Inner Ring & Outer Ring	Balls	Standard Bearing NO.	Cage	Seal	Bearing Dimenon
				Cage	Seal	Bore Dia	Outer Dia	Width
				Type	Type	(d)	(D)	(B)
HCE	CS	ZR / SI /SC	R133	PT / PK / ZR	Open / 2PTS / 2PKS	0.0938" \| 2.381 mm	0.1875" \| 4.763 mm	0.0625" \| 1.588 mm
HCE	CS	ZR / SI /SC	R1-5	PT / PK / ZR	Open / 2PTS / 2PKS	0.0938" \| 2.381 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
HCE	CS	ZR / SI /SC	R144	PT / PK / ZR	Open / 2PTS / 2PKS	0.125" \| 3.175 mm	0.25" \| 6.35 mm	0.0937" \| 2.38 mm
HCE	CS	ZR / SI /SC	R2-5	PT / PK / ZR	Open / 2PTS / 2PKS	0.125" \| 3.175 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
HCE	CS	ZR / SI /SC	R2-6	PT / PK / ZR	Open / 2PTS / 2PKS	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1094" \| 2.779 mm
HCE	CS	ZR / SI /SC	R2	PT / PK / ZR	Open / 2PTS / 2PKS	0.125" \| 3.175 mm	0.375" \| 9.525 mm	0.1562" \| 3.967 mm
HCE	CS	ZR / SI /SC	R2A	PT / PK / ZR	Open / 2PTS / 2PKS	0.125" \| 3.175 mm	0.5" \| 12.7 mm	0.1719" \| 4.366 mm
HCE	CS	ZR / SI /SC	R155	PT / PK / ZR	Open / 2PTS / 2PKS	0.1563" \| 3.969 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
HCE	CS	ZR / SI /SC	R156	PT / PK / ZR	Open / 2PTS / 2PKS	0.1875" \| 4.763 mm	0.3125" \| 7.938 mm	0.1094" \| 2.779 mm
HCE	CS	ZR / SI /SC	R166	PT / PK / ZR	Open / 2PTS / 2PKS	0.1875" \| 4.763 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm
HCE	CS	ZR / SI /SC	R3	PT / PK / ZR	Open / 2PTS / 2PKS	0.1875" \| 4.763 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm
HCE	CS	ZR / SI /SC	R3A	PT / PK / ZR	Open / 2PTS / 2PKS	0.1875" \| 4.763 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm
HCE	CS	ZR / SI /SC	1601	PT / PK / ZR	Open / 2PTS / 2PKS	0.1875" \| 4.763 mm	0.6875" \| 17.463 mm	0.25" \| 6.35 mm
HCE	CS	ZR / SI /SC	R168	PT / PK / ZR	Open / 2PTS / 2PKS	0.25" \| 6.35 mm	0.375" \| 9.525 mm	0.125" \| 3.175 mm
HCE	CS	ZR / SI /SC	R188	PT / PK / ZR	Open / 2PTS / 2PKS	0.25" \| 6.35 mm	0.5" \| 12.7 mm	0.125" \| 3.175 mm
HCE	CS	ZR / SI /SC	R4	PT / PK / ZR	Open / 2PTS / 2PKS	0.25" \| 6.35 mm	0.625" \| 15.875 mm	0.196" \| 4.978 mm
HCE	CS	ZR / SI /SC	1602	PT / PK / ZR	Open / 2PTS / 2PKS	0.25" \| 6.35 mm	0.6875" \| 17.463 mm	0.25" \| 6.35 mm
HCE	CS	ZR / SI /SC	R4A	PT / PK / ZR	Open / 2PTS / 2PKS	0.25" \| 6.35 mm	0.75" \| 19.05 mm	0.2188" \| 5.558 mm
HCE	CS	ZR / SI /SC	R1810	PT / PK / ZR	Open / 2PTS / 2PKS	0.3125" \| 7.938 mm	0.5" \| 12.7 mm	0.1562" \| 3.967 mm
HCE	CS	ZR / SI /SC	1603	PT / PK / ZR	Open / 2PTS / 2PKS	0.3125" \| 7.938 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm
HCE	CS	ZR / SI /SC	1605	PT / PK / ZR	Open / 2PTS / 2PKS	0.3125" \| 7.938 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm
HCE	CS	ZR / SI /SC	1604	PT / PK / ZR	Open / 2PTS / 2PKS	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2812" \| 7.142 mm
HCE	CS	ZR / SI /SC	R6	PT / PK / ZR	Open / 2PTS / 2PKS	0.375" \| 9.525 mm	0.875" \| 22.225 mm	0.2188" \| 5.558 mm
HCE	CS	ZR / SI /SC	1606	PT / PK / ZR	Open / 2PTS / 2PKS	0.375" \| 9.525 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm
HCE	CS	ZR / SI /SC	1614	PT / PK / ZR	Open / 2PTS / 2PKS	0.375" \| 9.525 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm
HCE	CS	ZR / SI /SC	1607	PT / PK / ZR	Open / 2PTS / 2PKS	0.4375" \| 11.113 mm	0.9062" \| 23.017 mm	0.3125" \| 7.938 mm
HCE	CS	ZR / SI /SC	1615	PT / PK / ZR	Open / 2PTS / 2PKS	0.4375" \| 11.113 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm
HCE	CS	ZR / SI /SC	1620	PT / PK / ZR	Open / 2PTS / 2PKS	0.4375" \| 11.113 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
HCE	CS	ZR / SI /SC	1616	PT / PK / ZR	Open / 2PTS / 2PKS	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.375" \| 9.525 mm
HCE	CS	ZR / SI /SC	R8	PT / PK / ZR	Open / 2PTS / 2PKS	0.5" \| 12.7 mm	1.125" \| 28.575 mm	0.25" \| 6.35 mm
HCE	CS	ZR / SI /SC	1621	PT / PK / ZR	Open / 2PTS / 2PKS	0.5" \| 12.7 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
HCE	CS	ZR / SI /SC	1622	PT / PK / ZR	Open / 2PTS / 2PKS	0.5625" \| 14.288 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
HCE	CS	ZR / SI /SC	1623	PT / PK / ZR	Open / 2PTS / 2PKS	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.4375" \| 11.113 mm
HCE	CS	ZR / SI /SC	R10	PT / PK / ZR	Open / 2PTS / 2PKS	0.625" \| 15.875 mm	1.375" \| 34.925 mm	0.2812" \| 7.142 mm
HCE	CS	ZR / SI /SC	1628	PT / PK / ZR	Open / 2PTS / 2PKS	0.625" \| 15.875 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm
HCE	CS	ZR / SI /SC	1633	PT / PK / ZR	Open / 2PTS / 2PKS	0.625" \| 15.875 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm
HCE	CS	ZR / SI /SC	1630	PT / PK / ZR	Open / 2PTS / 2PKS	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.5" \| 12.7 mm
HCE	CS	ZR / SI /SC	R12	PT / PK / ZR	Open / 2PTS / 2PKS	0.75" \| 19.05 mm	1.625" \| 41.275 mm	0.3125" \| 7.938 mm
HCE	CS	ZR / SI /SC	1635	PT / PK / ZR	Open / 2PTS / 2PKS	0.75" \| 19.05 mm	1.75" \| 44.45 mm	0.5" \| 12.7 mm
HCE	CS	ZR / SI /SC	1638	PT / PK / ZR	Open / 2PTS / 2PKS	0.75" \| 19.05 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm
HCE	CS	ZR / SI /SC	R14	PT / PK / ZR	Open / 2PTS / 2PKS	0.875" \| 22.225 mm	1.875" \| 47.625 mm	0.375" \| 9.525 mm
HCE	CS	ZR / SI /SC	1640	PT / PK / ZR	Open / 2PTS / 2PKS	0.875" \| 22.225 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm
HCE	CS	ZR / SI /SC	1641	PT / PK / ZR	Open / 2PTS / 2PKS	1" \| 25.4 mm	2" \| 50.8 mm	0.5625" \| 14.288 mm
HCE	CS	ZR / SI /SC	R16	PT / PK / ZR	Open / 2PTS / 2PKS	1" \| 25.4 mm	2" \| 50.8 mm	0.375" \| 9.525 mm
HCE	CS	ZR / SI /SC	R18	PT / PK / ZR	Open / 2PTS / 2PKS	1.125" \| 28.575 mm	2.125" \| 53.975 mm	0.375" \| 9.525 mm
HCE	CS	ZR / SI /SC	1652	PT / PK / ZR	Open / 2PTS / 2PKS	1.125" \| 28.575 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm
HCE	CS	ZR / SI /SC	R20	PT / PK / ZR	Open / 2PTS / 2PKS	1.25" \| 31.75 mm	2.25" \| 57.15 mm	0.375" \| 9.525 mm
HCE	CS	ZR / SI /SC	1654	PT / PK / ZR	Open / 2PTS / 2PKS	1.25" \| 31.75 mm	2.5" \| 63.5 mm	0.625" \| 15.875 mm
HCE	CS	ZR / SI /SC	1657	PT / PK / ZR	Open / 2PTS / 2PKS	1.25" \| 31.75 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm
HCE	CS	ZR / SI /SC	1658	PT / PK / ZR	Open / 2PTS / 2PKS	1.3125" \| 33.338 mm	2.5625" \| 65.088 mm	0.6875" \| 17.463 mm
HCE	CS	ZR / SI /SC	R22	PT / PK / ZR	Open / 2PTS / 2PKS	1.375" \| 34.925 mm	2.5" \| 63.5 mm	0.4375" \| 11.113 mm
HCE	CS	ZR / SI /SC	R24	PT / PK / ZR	Open / 2PTS / 2PKS	1.5" \| 38.1 mm	2.625" \| 66.675 mm	0.4375" \| 11.113 mm
HCE	CS	ZR / SI /SC	682	PT / PK / ZR	Open / 2PTS / 2PKS	2 mm	5mm	1.5mm
HCE	CS	ZR / SI /SC	MR52	PT / PK / ZR	Open / 2PTS / 2PKS	2 mm	5mm	2mm
HCE	CS	ZR / SI /SC	692	PT / PK / ZR	Open / 2PTS / 2PKS	2 mm	6mm	2.3mm
HCE	CS	ZR / SI /SC	MR62	PT / PK / ZR	Open / 2PTS / 2PKS	2 mm	6mm	2.5mm
HCE	CS	ZR / SI /SC	602	PT / PK / ZR	Open / 2PTS / 2PKS	2 mm	7mm	2.8mm
HCE	CS	ZR / SI /SC	MR72	PT / PK / ZR	Open / 2PTS / 2PKS	2 mm	7mm	2.5mm
HCE	CS	ZR / SI /SC	682x	PT / PK / ZR	Open / 2PTS / 2PKS	2.5 mm	6mm	1.8mm
HCE	CS	ZR / SI /SC	692x	PT / PK / ZR	Open / 2PTS / 2PKS	2.5 mm	7mm	2.5mm
HCE	CS	ZR / SI /SC	602x	PT / PK / ZR	Open / 2PTS / 2PKS	2.5 mm	8mm	2.8mm
HCE	CS	ZR / SI /SC	MR82x	PT / PK / ZR	Open / 2PTS / 2PKS	2.5 mm	8mm	2.5mm
HCE	CS	ZR / SI /SC	MR63	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	6mm	2mm
HCE	CS	ZR / SI /SC	683	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	7mm	2mm
HCE	CS	ZR / SI /SC	693	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	8mm	3mm
HCE	CS	ZR / SI /SC	MR83	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	8mm	2.5mm
HCE	CS	ZR / SI /SC	603	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	9mm	3mm
HCE	CS	ZR / SI /SC	MR93	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	9mm	2.5mm
HCE	CS	ZR / SI /SC	623	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	10mm	4mm
HCE	CS	ZR / SI /SC	633	PT / PK / ZR	Open / 2PTS / 2PKS	3 mm	13mm	5mm
HCE	CS	ZR / SI /SC	MR74	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	7mm	2mm
HCE	CS	ZR / SI /SC	MR84	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	8mm	2mm
HCE	CS	ZR / SI /SC	684	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	9mm	2.5mm
HCE	CS	ZR / SI /SC	MR104	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	10mm	3mm
HCE	CS	ZR / SI /SC	694	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	11mm	4mm
HCE	CS	ZR / SI /SC	604	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	12mm	4mm
HCE	CS	ZR / SI /SC	624	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	13mm	5mm
HCE	CS	ZR / SI /SC	634	PT / PK / ZR	Open / 2PTS / 2PKS	4 mm	16mm	5mm
HCE	CS	ZR / SI /SC	MR85	PT / PK / ZR	Open / 2PTS / 2PKS	5 mm	8mm	2mm
HCE	CS	ZR / SI /SC	MR95	PT / PK / ZR	Open / 2PTS / 2PKS	5 mm	9mm	2.5mm
HCE	CS	ZR / SI /SC	MR105	PT / PK / ZR	Open / 2PTS / 2PKS	5mm	10mm	3mm
HCE	CS	ZR / SI /SC	685	PT / PK / ZR	Open / 2PTS / 2PKS	5mm	11mm	3mm
HCE	CS	ZR / SI /SC	MR115	PT / PK / ZR	Open / 2PTS / 2PKS	5 mm	11mm	4mm
HCE	CS	ZR / SI /SC	695	PT / PK / ZR	Open / 2PTS / 2PKS	5mm	13mm	4mm
HCE	CS	ZR / SI /SC	605	PT / PK / ZR	Open / 2PTS / 2PKS	5 mm	14mm	5mm
HCE	CS	ZR / SI /SC	625	PT / PK / ZR	Open / 2PTS / 2PKS	5 mm	16mm	5mm
HCE	CS	ZR / SI /SC	635	PT / PK / ZR	Open / 2PTS / 2PKS	5 mm	19mm	6mm
HCE	CS	ZR / SI /SC	MR106	PT / PK / ZR	Open / 2PTS / 2PKS	6 mm	10mm	2.5mm
HCE	CS	ZR / SI /SC	MR126	PT / PK / ZR	Open / 2PTS / 2PKS	6 mm	12mm	3mm
HCE	CS	ZR / SI /SC	686	PT / PK / ZR	Open / 2PTS / 2PKS	6 mm	13mm	3.5mm
HCE	CS	ZR / SI /SC	696	PT / PK / ZR	Open / 2PTS / 2PKS	6 mm	15mm	5mm
HCE	CS	ZR / SI /SC	606	PT / PK / ZR	Open / 2PTS / 2PKS	6 mm	17mm	6mm
HCE	CS	ZR / SI /SC	626	PT / PK / ZR	Open / 2PTS / 2PKS	6 mm	19mm	6mm
HCE	CS	ZR / SI /SC	636	PT / PK / ZR	Open / 2PTS / 2PKS	6mm	22mm	7mm
HCE	CS	ZR / SI /SC	MR117	PT / PK / ZR	Open / 2PTS / 2PKS	7 mm	11mm	2.5mm
HCE	CS	ZR / SI /SC	MR137	PT / PK / ZR	Open / 2PTS / 2PKS	7 mm	13mm	3mm
HCE	CS	ZR / SI /SC	687	PT / PK / ZR	Open / 2PTS / 2PKS	7 mm	14mm	3.5mm
HCE	CS	ZR / SI /SC	697	PT / PK / ZR	Open / 2PTS / 2PKS	7 mm	17mm	5mm
HCE	CS	ZR / SI /SC	607	PT / PK / ZR	Open / 2PTS / 2PKS	7 mm	19mm	6mm
HCE	CS	ZR / SI /SC	627	PT / PK / ZR	Open / 2PTS / 2PKS	7 mm	22mm	7mm
HCE	CS	ZR / SI /SC	637	PT / PK / ZR	Open / 2PTS / 2PKS	7 mm	26mm	9mm
HCE	CS	ZR / SI /SC	MR128	PT / PK / ZR	Open / 2PTS / 2PKS	8mm	12mm	2.5mm
HCE	CS	ZR / SI /SC	MR148	PT / PK / ZR	Open / 2PTS / 2PKS	8 mm	14mm	3.5mm
HCE	CS	ZR / SI /SC	688	PT / PK / ZR	Open / 2PTS / 2PKS	8mm	16mm	4mm
HCE	CS	ZR / SI /SC	698	PT / PK / ZR	Open / 2PTS / 2PKS	8mm	19mm	6mm
HCE	CS	ZR / SI /SC	608	PT / PK / ZR	Open / 2PTS / 2PKS	8mm	22mm	7mm
HCE	CS	ZR / SI /SC	628	PT / PK / ZR	Open / 2PTS / 2PKS	8mm	24mm	8mm
HCE	CS	ZR / SI /SC	638	PT / PK / ZR	Open / 2PTS / 2PKS	8 mm	28mm	9mm
HCE	CS	ZR / SI /SC	679	PT / PK / ZR	Open / 2PTS / 2PKS	9mm	14mm	3mm
HCE	CS	ZR / SI /SC	689	PT / PK / ZR	Open / 2PTS / 2PKS	9 mm	17mm	4mm
HCE	CS	ZR / SI /SC	699	PT / PK / ZR	Open / 2PTS / 2PKS	9mm	20mm	6mm
HCE	CS	ZR / SI /SC	609	PT / PK / ZR	Open / 2PTS / 2PKS	9mm	24mm	7mm
HCE	CS	ZR / SI /SC	629	PT / PK / ZR	Open / 2PTS / 2PKS	9 mm	26mm	8mm
HCE	CS	ZR / SI /SC	639	PT / PK / ZR	Open / 2PTS / 2PKS	9mm	30mm	10mm
HCE	CS	ZR / SI /SC	6700	PT / PK / ZR	Open / 2PTS / 2PKS	10mm	15mm	3mm
HCE	CS	ZR / SI /SC	63800	PT / PK / ZR	Open / 2PTS / 2PKS	10mm	19mm	7mm
HCE	CS	ZR / SI /SC	6800	PT / PK / ZR	Open / 2PTS / 2PKS	10mm	19mm	5mm
HCE	CS	ZR / SI /SC	6900	PT / PK / ZR	Open / 2PTS / 2PKS	10mm	22mm	6mm
HCE	CS	ZR / SI /SC	6000	PT / PK / ZR	Open / 2PTS / 2PKS	10 mm	26mm	8mm
HCE	CS	ZR / SI /SC	6200	PT / PK / ZR	Open / 2PTS / 2PKS	10 mm	30mm	9mm
HCE	CS	ZR / SI /SC	6300	PT / PK / ZR	Open / 2PTS / 2PKS	10 mm	35mm	11mm
HCE	CS	ZR / SI /SC	6701	PT / PK / ZR	Open / 2PTS / 2PKS	12mm	18mm	4mm
HCE	CS	ZR / SI /SC	63801	PT / PK / ZR	Open / 2PTS / 2PKS	12mm	21mm	7mm
HCE	CS	ZR / SI /SC	6801	PT / PK / ZR	Open / 2PTS / 2PKS	12mm	21mm	5mm
HCE	CS	ZR / SI /SC	6901	PT / PK / ZR	Open / 2PTS / 2PKS	12mm	24mm	6mm
HCE	CS	ZR / SI /SC	6001	PT / PK / ZR	Open / 2PTS / 2PKS	12 mm	28mm	8mm
HCE	CS	ZR / SI /SC	6201	PT / PK / ZR	Open / 2PTS / 2PKS	12 mm	32mm	10mm
HCE	CS	ZR / SI /SC	6301	PT / PK / ZR	Open / 2PTS / 2PKS	12 mm	37mm	12mm
HCE	CS	ZR / SI /SC	6702	PT / PK / ZR	Open / 2PTS / 2PKS	15mm	21mm	4mm
HCE	CS	ZR / SI /SC	63802	PT / PK / ZR	Open / 2PTS / 2PKS	15mm	24mm	7mm
HCE	CS	ZR / SI /SC	6802	PT / PK / ZR	Open / 2PTS / 2PKS	15mm	24mm	5mm
HCE	CS	ZR / SI /SC	6902	PT / PK / ZR	Open / 2PTS / 2PKS	15mm	28mm	7mm
HCE	CS	ZR / SI /SC	6002	PT / PK / ZR	Open / 2PTS / 2PKS	15 mm	32mm	9mm
HCE	CS	ZR / SI /SC	6202	PT / PK / ZR	Open / 2PTS / 2PKS	15 mm	35mm	11mm
HCE	CS	ZR / SI /SC	6302	PT / PK / ZR	Open / 2PTS / 2PKS	15 mm	42mm	13mm
HCE	CS	ZR / SI /SC	6703	PT / PK / ZR	Open / 2PTS / 2PKS	17mm	23mm	4mm
HCE	CS	ZR / SI /SC	63803	PT / PK / ZR	Open / 2PTS / 2PKS	17mm	26mm	7mm
HCE	CS	ZR / SI /SC	6803	PT / PK / ZR	Open / 2PTS / 2PKS	17mm	26mm	5mm
HCE	CS	ZR / SI /SC	6903	PT / PK / ZR	Open / 2PTS / 2PKS	17mm	30mm	7mm
HCE	CS	ZR / SI /SC	6003	PT / PK / ZR	Open / 2PTS / 2PKS	17 mm	35mm	10mm
HCE	CS	ZR / SI /SC	6203	PT / PK / ZR	Open / 2PTS / 2PKS	17 mm	40mm	12mm
HCE	CS	ZR / SI /SC	6303	PT / PK / ZR	Open / 2PTS / 2PKS	17 mm	47mm	14mm
HCE	CS	ZR / SI /SC	6704	PT / PK / ZR	Open / 2PTS / 2PKS	20mm	27mm	4mm
HCE	CS	ZR / SI /SC	63804	PT / PK / ZR	Open / 2PTS / 2PKS	20mm	32mm	10mm
HCE	CS	ZR / SI /SC	6804	PT / PK / ZR	Open / 2PTS / 2PKS	20mm	32mm	7mm
HCE	CS	ZR / SI /SC	6904	PT / PK / ZR	Open / 2PTS / 2PKS	20mm	37mm	9mm
HCE	CS	ZR / SI /SC	6004	PT / PK / ZR	Open / 2PTS / 2PKS	20 mm	42mm	12mm
HCE	CS	ZR / SI /SC	6204	PT / PK / ZR	Open / 2PTS / 2PKS	20 mm	47mm	14mm
HCE	CS	ZR / SI /SC	6304	PT / PK / ZR	Open / 2PTS / 2PKS	20 mm	52mm	15mm
HCE	CS	ZR / SI /SC	6705	PT / PK / ZR	Open / 2PTS / 2PKS	25mm	32mm	4mm
HCE	CS	ZR / SI /SC	63805	PT / PK / ZR	Open / 2PTS / 2PKS	25mm	37mm	10mm
HCE	CS	ZR / SI /SC	6805	PT / PK / ZR	Open / 2PTS / 2PKS	25mm	37mm	7mm
HCE	CS	ZR / SI /SC	6905	PT / PK / ZR	Open / 2PTS / 2PKS	25mm	42mm	9mm
HCE	CS	ZR / SI /SC	6005	PT / PK / ZR	Open / 2PTS / 2PKS	25 mm	47mm	12mm
HCE	CS	ZR / SI /SC	6205	PT / PK / ZR	Open / 2PTS / 2PKS	25 mm	52mm	15mm
HCE	CS	ZR / SI /SC	6305	PT / PK / ZR	Open / 2PTS / 2PKS	25 mm	62mm	17mm
HCE	CS	ZR / SI /SC	6706	PT / PK / ZR	Open / 2PTS / 2PKS	30mm	37mm	4mm
HCE	CS	ZR / SI /SC	63806	PT / PK / ZR	Open / 2PTS / 2PKS	30mm	42mm	10mm
HCE	CS	ZR / SI /SC	6806	PT / PK / ZR	Open / 2PTS / 2PKS	30mm	42mm	7mm
HCE	CS	ZR / SI /SC	6906	PT / PK / ZR	Open / 2PTS / 2PKS	30mm	47mm	9mm
HCE	CS	ZR / SI /SC	6006	PT / PK / ZR	Open / 2PTS / 2PKS	30 mm	55mm	13mm
HCE	CS	ZR / SI /SC	6206	PT / PK / ZR	Open / 2PTS / 2PKS	30 mm	62mm	16mm
HCE	CS	ZR / SI /SC	6306	PT / PK / ZR	Open / 2PTS / 2PKS	30 mm	72mm	19mm
HCE	CS	ZR / SI /SC	6707	PT / PK / ZR	Open / 2PTS / 2PKS	35mm	44mm	5mm
HCE	CS	ZR / SI /SC	6807	PT / PK / ZR	Open / 2PTS / 2PKS	35mm	47mm	7mm
HCE	CS	ZR / SI /SC	6907	PT / PK / ZR	Open / 2PTS / 2PKS	35mm	55mm	10mm
HCE	CS	ZR / SI /SC	6007	PT / PK / ZR	Open / 2PTS / 2PKS	35 mm	62mm	14mm
HCE	CS	ZR / SI /SC	6207	PT / PK / ZR	Open / 2PTS / 2PKS	35 mm	72mm	17mm
HCE	CS	ZR / SI /SC	6307	PT / PK / ZR	Open / 2PTS / 2PKS	35 mm	80mm	21mm
HCE	CS	ZR / SI /SC	6708	PT / PK / ZR	Open / 2PTS / 2PKS	40mm	50mm	6mm
HCE	CS	ZR / SI /SC	6808	PT / PK / ZR	Open / 2PTS / 2PKS	40mm	52mm	7mm
HCE	CS	ZR / SI /SC	6908	PT / PK / ZR	Open / 2PTS / 2PKS	40mm	62mm	12mm
HCE	CS	ZR / SI /SC	6008	PT / PK / ZR	Open / 2PTS / 2PKS	40 mm	68mm	15mm
HCE	CS	ZR / SI /SC	6208	PT / PK / ZR	Open / 2PTS / 2PKS	40 mm	80mm	18mm
HCE	CS	ZR / SI /SC	6308	PT / PK / ZR	Open / 2PTS / 2PKS	40 mm	90mm	23mm
HCE	CS	ZR / SI /SC	6709	PT / PK / ZR	Open / 2PTS / 2PKS	45mm	55mm	6mm
HCE	CS	ZR / SI /SC	6809	PT / PK / ZR	Open / 2PTS / 2PKS	45mm	58mm	7mm
HCE	CS	ZR / SI /SC	6909	PT / PK / ZR	Open / 2PTS / 2PKS	45mm	68mm	12mm
HCE	CS	ZR / SI /SC	6009	PT / PK / ZR	Open / 2PTS / 2PKS	45 mm	75mm	16mm
HCE	CS	ZR / SI /SC	6209	PT / PK / ZR	Open / 2PTS / 2PKS	45 mm	85mm	19mm
HCE	CS	ZR / SI /SC	6309	PT / PK / ZR	Open / 2PTS / 2PKS	45 mm	100mm	25mm
HCE	CS	ZR / SI /SC	6710	PT / PK / ZR	Open / 2PTS / 2PKS	50mm	62mm	6mm
HCE	CS	ZR / SI /SC	6810	PT / PK / ZR	Open / 2PTS / 2PKS	50mm	65mm	7mm
HCE	CS	ZR / SI /SC	6910	PT / PK / ZR	Open / 2PTS / 2PKS	50mm	72mm	12mm
HCE	CS	ZR / SI /SC	6010	PT / PK / ZR	Open / 2PTS / 2PKS	50 mm	80mm	16mm
HCE	CS	ZR / SI /SC	6210	PT / PK / ZR	Open / 2PTS / 2PKS	50 mm	90mm	20mm
HCE	CS	ZR / SI /SC	6310	PT / PK / ZR	Open / 2PTS / 2PKS	50 mm	110mm	27mm
HCE	CS	ZR / SI /SC	6811	PT / PK / ZR	Open / 2PTS / 2PKS	55mm	72mm	9mm
HCE	CS	ZR / SI /SC	6911	PT / PK / ZR	Open / 2PTS / 2PKS	55mm	80mm	13mm
HCE	CS	ZR / SI /SC	6011	PT / PK / ZR	Open / 2PTS / 2PKS	55 mm	90mm	18mm
HCE	CS	ZR / SI /SC	6211	PT / PK / ZR	Open / 2PTS / 2PKS	55 mm	100mm	21mm
HCE	CS	ZR / SI /SC	6311	PT / PK / ZR	Open / 2PTS / 2PKS	55 mm	120mm	29mm
HCE	CS	ZR / SI /SC	6812	PT / PK / ZR	Open / 2PTS / 2PKS	60mm	78mm	10mm
HCE	CS	ZR / SI /SC	6912	PT / PK / ZR	Open / 2PTS / 2PKS	60mm	85mm	13mm
HCE	CS	ZR / SI /SC	6012	PT / PK / ZR	Open / 2PTS / 2PKS	60 mm	95mm	18mm
HCE	CS	ZR / SI /SC	6212	PT / PK / ZR	Open / 2PTS / 2PKS	60 mm	110mm	22mm
HCE	CS	ZR / SI /SC	6312	PT / PK / ZR	Open / 2PTS / 2PKS	60 mm	130mm	31mm
HCE	CS	ZR / SI /SC	6813	PT / PK / ZR	Open / 2PTS / 2PKS	65mm	85mm	10mm
HCE	CS	ZR / SI /SC	6913	PT / PK / ZR	Open / 2PTS / 2PKS	65mm	90mm	13mm
HCE	CS	ZR / SI /SC	6013	PT / PK / ZR	Open / 2PTS / 2PKS	65 mm	100mm	18mm
HCE	CS	ZR / SI /SC	6213	PT / PK / ZR	Open / 2PTS / 2PKS	65 mm	120mm	23mm
HCE	CS	ZR / SI /SC	6313	PT / PK / ZR	Open / 2PTS / 2PKS	65 mm	140mm	33mm
HCE	CS	ZR / SI /SC	6814	PT / PK / ZR	Open / 2PTS / 2PKS	70mm	90mm	10mm
HCE	CS	ZR / SI /SC	6914	PT / PK / ZR	Open / 2PTS / 2PKS	70mm	100mm	16mm
HCE	CS	ZR / SI /SC	6014	PT / PK / ZR	Open / 2PTS / 2PKS	70 mm	110mm	20mm
HCE	CS	ZR / SI /SC	6214	PT / PK / ZR	Open / 2PTS / 2PKS	70 mm	125mm	24mm
HCE	CS	ZR / SI /SC	6314	PT / PK / ZR	Open / 2PTS / 2PKS	70 mm	150mm	35mm
HCE	CS	ZR / SI /SC	6815	PT / PK / ZR	Open / 2PTS / 2PKS	75mm	95mm	10mm
HCE	CS	ZR / SI /SC	6915	PT / PK / ZR	Open / 2PTS / 2PKS	75mm	105mm	16mm
HCE	CS	ZR / SI /SC	6015	PT / PK / ZR	Open / 2PTS / 2PKS	75 mm	115mm	20mm
HCE	CS	ZR / SI /SC	6215	PT / PK / ZR	Open / 2PTS / 2PKS	75 mm	130mm	25mm
HCE	CS	ZR / SI /SC	6315	PT / PK / ZR	Open / 2PTS / 2PKS	75 mm	160mm	37mm
HCE	CS	ZR / SI /SC	6816	PT / PK / ZR	Open / 2PTS / 2PKS	80mm	100mm	10mm
HCE	CS	ZR / SI /SC	6916	PT / PK / ZR	Open / 2PTS / 2PKS	80mm	110mm	16mm
HCE	CS	ZR / SI /SC	6016	PT / PK / ZR	Open / 2PTS / 2PKS	80 mm	125mm	22mm
HCE	CS	ZR / SI /SC	6216	PT / PK / ZR	Open / 2PTS / 2PKS	80 mm	140mm	26mm
HCE	CS	ZR / SI /SC	6316	PT / PK / ZR	Open / 2PTS / 2PKS	80 mm	170mm	39mm
HCE	CS	ZR / SI /SC	6817	PT / PK / ZR	Open / 2PTS / 2PKS	85mm	110mm	13mm
HCE	CS	ZR / SI /SC	6917	PT / PK / ZR	Open / 2PTS / 2PKS	85mm	120mm	18mm
HCE	CS	ZR / SI /SC	6017	PT / PK / ZR	Open / 2PTS / 2PKS	85 mm	130mm	22mm
HCE	CS	ZR / SI /SC	6217	PT / PK / ZR	Open / 2PTS / 2PKS	85 mm	150mm	28mm
HCE	CS	ZR / SI /SC	6317	PT / PK / ZR	Open / 2PTS / 2PKS	85 mm	180mm	41mm
HCE	CS	ZR / SI /SC	6818	PT / PK / ZR	Open / 2PTS / 2PKS	90mm	115mm	13mm
HCE	CS	ZR / SI /SC	6918	PT / PK / ZR	Open / 2PTS / 2PKS	90mm	125mm	18mm
HCE	CS	ZR / SI /SC	6018	PT / PK / ZR	Open / 2PTS / 2PKS	90 mm	140mm	24mm
HCE	CS	ZR / SI /SC	6218	PT / PK / ZR	Open / 2PTS / 2PKS	90 mm	160mm	30mm
HCE	CS	ZR / SI /SC	6318	PT / PK / ZR	Open / 2PTS / 2PKS	90 mm	190mm	43mm
HCE	CS	ZR / SI /SC	6819	PT / PK / ZR	Open / 2PTS / 2PKS	95mm	120mm	13mm
HCE	CS	ZR / SI /SC	6019	PT / PK / ZR	Open / 2PTS / 2PKS	95 mm	145mm	24mm
HCE	CS	ZR / SI /SC	6219	PT / PK / ZR	Open / 2PTS / 2PKS	95 mm	170mm	32mm
HCE	CS	ZR / SI /SC	6319	PT / PK / ZR	Open / 2PTS / 2PKS	95 mm	200mm	45mm
HCE	CS	ZR / SI /SC	6020	PT / PK / ZR	Open / 2PTS / 2PKS	100 mm	150mm	24mm
HCE	CS	ZR / SI /SC	6220	PT / PK / ZR	Open / 2PTS / 2PKS	100 mm	180mm	34mm
HCE	CS	ZR / SI /SC	6320	PT / PK / ZR	Open / 2PTS / 2PKS	100 mm	215mm	47mm
HCE	CS	ZR / SI /SC	6021	PT / PK / ZR	Open / 2PTS / 2PKS	105 mm	160mm	26mm
HCE	CS	ZR / SI /SC	6221	PT / PK / ZR	Open / 2PTS / 2PKS	105 mm	190mm	36mm
HCE	CS	ZR / SI /SC	6321	PT / PK / ZR	Open / 2PTS / 2PKS	105 mm	225mm	49mm

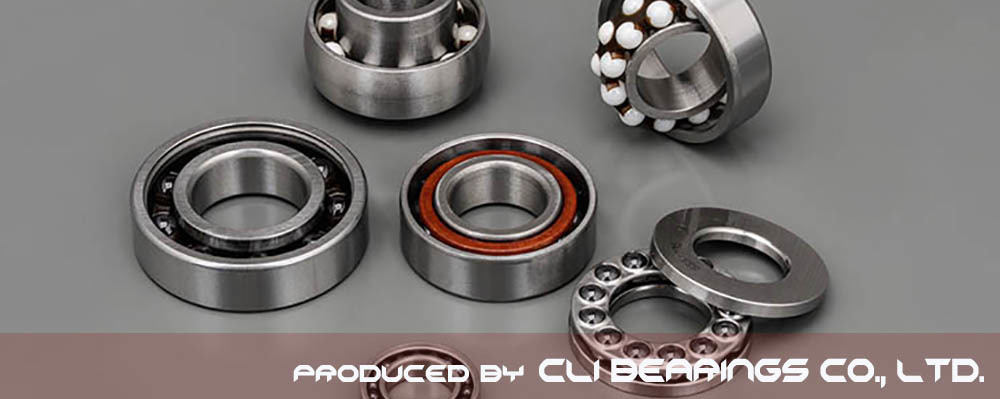

Ceramic Bearings & Plastic Bearings-Hybrid Ceramic Bearings-[HYBRID] Chrome Steel - Ceramics, Hybrid Bearings, AISI52100 with ceramics ZrO2/Si3N4/SiC, ROHS compliant
