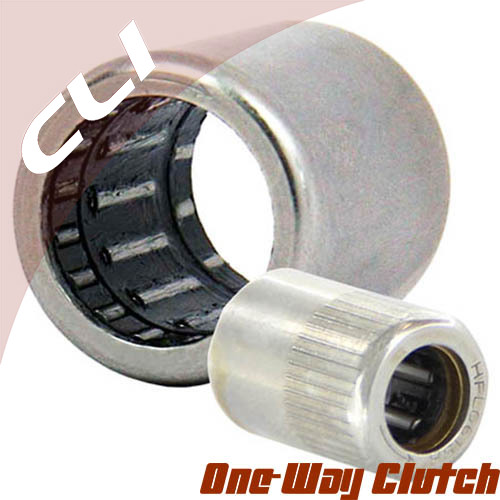

Product Picture

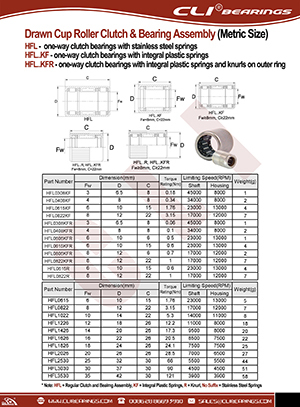

Original 2 one way clutch 2 hfl hf kfl hfl kfr nw

Download PDF Catalogue

HFL / HFL-KF / HFL-R / HFL-KF-R,
One-Way Roller Clutch Bearings,
Drawn Cup Roller Clutches, METRIC Sizes

CLI one-way bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads.

CLI miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

HFL / HFL-KF / HFL-R / HFL-KF-R,
One-Way Roller Clutch Bearings for
shaft sizes from 3 mm to 35 mm

CLI Bearing No.	Seal Type	Bore Dia	Outer Dia	Width	Md per	nGW	nGA
CLI Bearing No.	Seal Type	(Fw)	(D)	(C)	Md per	nGW	nGA
HFL0308-KF	Open	3 mm	6,5 mm	8 mm	0,18 Nm	45000 1/min	8000 1/min
HFL0308-KF-R	Open	3 mm	6,5 mm	8 mm	0,06 Nm	45000 1/min	8000 1/min
HFL0408-KF	Open	4 mm	8 mm	8 mm	0,34 Nm	34000 1/min	8000 1/min
HFL0408-KF-R	Open	4 mm	8 mm	8 mm	0,1 Nm	34000 1/min	8000 1/min
HFL0606-KF-R	Open	6 mm	10 mm	6 mm	0,5 Nm	23000 1/min	13000 1/min
HFL0615	Open	6 mm	10 mm	15 mm	1,76 Nm	23000 1/min	13000 1/min
HFL0615-KF	Open	6 mm	10 mm	15 mm	1,76 Nm	23000 1/min	13000 1/min
HFL0615-KF-R	Open	6 mm	10 mm	15 mm	0,6 Nm	23000 1/min	13000 1/min
HFL0615-R	Open	6 mm	10 mm	15 mm	0,5 Nm	23000 1/min	13000 1/min
HFL0806-KF-R	Open	8 mm	12 mm	6 mm	0,7 Nm	17000 1/min	12000 1/min
HFL0822	Open	8 mm	12 mm	22 mm	3,15 Nm	17000 1/min	12000 1/min
HFL0822-KF	Open	8 mm	12 mm	22 mm	3,15 Nm	17000 1/min	12000 1/min
HFL0822-KF-R	Open	8 mm	12 mm	22 mm	1 Nm	17000 1/min	12000 1/min
HFL0822-R	Open	8 mm	12 mm	22 mm	1 Nm	17000 1/min	12000 1/min
HFL1022	Open	10 mm	14 mm	22 mm	5,3 Nm	14000 1/min	11000 1/min
HFL1226	Open	12 mm	18 mm	26 mm	12,2 Nm	11000 1/min	8000 1/min
HFL1426	Open	14 mm	20 mm	26 mm	17,3 Nm	9500 1/min	8000 1/min
HFL1626	Open	16 mm	22 mm	26 mm	20,5 Nm	8500 1/min	7500 1/min
HFL1826	Open	18 mm	24 mm	26 mm	24,1 Nm	7500 1/min	7500 1/min
HFL2026	Open	20 mm	26 mm	26 mm	28,5 Nm	7000 1/min	6500 1/min
HFL2530	Open	25 mm	32 mm	30 mm	66 Nm	5500 1/min	5500 1/min
HFL3030	Open	30 mm	37 mm	30 mm	90 Nm	4500 1/min	4500 1/min
HFL3530	Open	35 mm	42 mm	30 mm	121 Nm	3900 1/min	3900 1/min

* Note: HFL = Regular Clutch and Beairng Assembly, KF = Integral Plastic Springs, R = Knurl, No Suffix = Stainless Steel Springs
