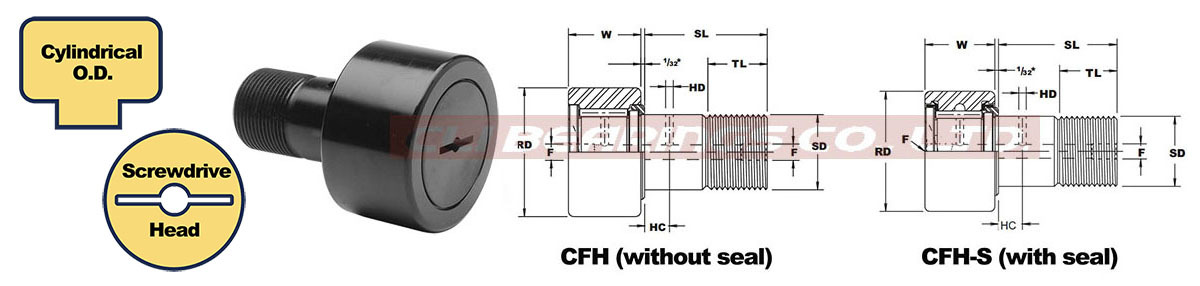

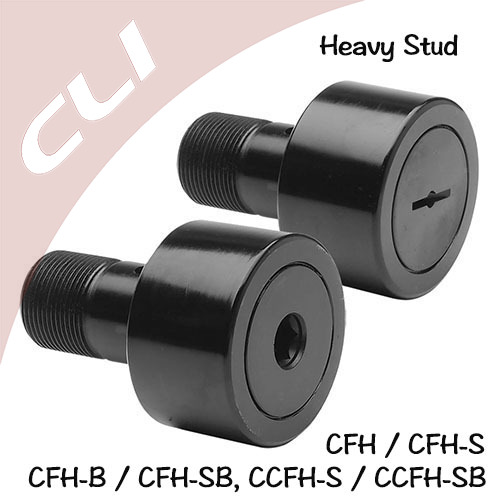

Heavy Stud CFH / CFH-S Cam followers with Cylindrical OD ( inch size )
CLI Part Number ROLLER DIA. ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
Without Seals With Seals RD W SD SL TL THR HC HD F Static Dynamic
CFH-1/2 CFH-1/2-S 0.500 0.375 0.250 5/8 1/4 1/4-28 - - 1/8* 1580 680
CFH-9/16 CFH-9/16-S 0.563 0.375 0.250 5/8 1/4 1/4-28 - - 1/8* 1580 680
CFH-5/8 CFH-5/8-S 0.625 0.438 0.313 3/4 5/16 5/16-24 - - 1/8* 2480 955
CFH-11/16 CFH-11/16-S 0.688 0.438 0.313 3/4 5/16 5/16-24 - - 1/8* 2480 955
CFH-3/4 CFH-3/4-S 0.750 0.500 0.438 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CFH-7/8 CFH-7/8-S 0.875 0.500 0.438 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CFH-1 CFH-1-S 1.000 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CFH-1 1/8 CFH-1 1/8-S 1.125 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CFH-1 1/4 CFH-1 1/4-S 1.250 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CFH-1 3/8 CFH-1 3/8-S 1.375 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CFH-1 1/2 CFH-1 1/2-S 1.500 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CFH-1 5/8 CFH-1 5/8-S 1.625 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CFH-1 3/4 CFH-1 3/4-S 1.750 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CFH-1 7/8 CFH-1 7/8-S 1.875 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CFH-2 CFH-2-S 2.000 1.250 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CFH-2 1/4 CFH-2 1/4-S 2.250 1.250 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CFH-2 1/2 CFH-2 1/2-S 2.500 1.500 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CFH-2 3/4 CFH-2 3/4-S 2.750 1.500 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CFH-3 CFH-3-S 3.000 1.750 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 49820 15720
CFH-3 1/4 CFH-3 1/4-S 3.250 1.750 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 49820 15720
CFH-3 1/2 CFH-3 1/2-S 3.500 2.000 1.750 2 3/4 1 3/8 1 3/4-12 11/16 1/8 1/4 63250 22800
CFH-4 CFH-4-S 4.000 2.250 2.000 3 1/2 1 1/2 2-12 3/4 1/8 1/4 89540 29985
　 CFH-5-S 5.000 2.750 2.500 5 1/16 2 9/16 2 1/2-12 7/8 3/16 1/4 N.P.T. 135900 46575
　 CFH-6-S 6.000 3.250 3.000 6 3 3-12 1 3/16 1/4 N.P.T. 160900 60000
　 CFH-7-S 7.000 3.750 3.500 7 11/16 4 1/8 3 1/2-4 1 1/4 3/16 1/4 N.P.T. 213860 75380

Heavy Stud CFH-B & CFH-SB Cam followers with Hex Hole ( inch size )
CLI
Part Number		 ROLLER DIA. ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
With Seals Without Seals RD W SD SL TL THR HC HD F Static Dynamic
CFH1/2SB CFH1/2B 0.5 0.375 0.25 5/8 1/4 1/4-28 -- -- -- 1580 680
CFH9/16SB CFH9/16B 0.5625 0.375 0.25 5/8 1/4 1/4-28 -- -- -- 1580 680
CFH5/8SB CFH5/8B 0.625 0.4375 0.3125 3/4 5/16 5/16-24 -- -- -- 2480 955
CFH11/16S CFH11/16B 0.6875 0.4375 0.3125 3/4 5/16 5/16-24 -- -- -- 2480 955
CFH3/4SB CFH3/4B 0.75 0.5 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CFH7/8SB CFH7/8B 0.875 0.5 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CFH1SB CFH1B 1 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CFH1-1/8SB CFH1-1/8B 1.125 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CFH1-1/4SB CFH1-1/4B 1.25 0.75 0.75 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CFH1-3/8SB CFH1-3/8B 1.375 0.75 0.75 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CFH1-1/2SB CFH1-1/2B 1.5 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CFH1-5/8SB CFH1-5/8B 1.625 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CFH1-3/4SB CFH1-3/4B 1.75 1 1 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CFH1-7/8SB CFH1-7/8B 1.875 1 1 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CFH2SB CFH2B 2 1.25 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CFH2-1/4SB CFH2-1/4B 2.25 1.25 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CFH2-1/2SB CFH2-1/2B 2.5 1.5 1.25 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CFH2-3/4SB CFH2-3/4B 2.75 1.5 1.25 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CFH3SB CFH3B 3 1.75 1.5 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 49820 15720
CFH3-1/4SB CFH3-1/4B 3.25 1.75 1.5 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 49820 15720
CFH3-1/2SB CFH3-1/2B 3.5 2 1.75 2 3/4 1 3/8 1 3/4-12 11/16 1/8 1/4 63250 22800
CFH4SB CFH4B 4 2.25 2 3 1/2 1 1/2 2-12 3/4 1/8 1/4 89540 29985

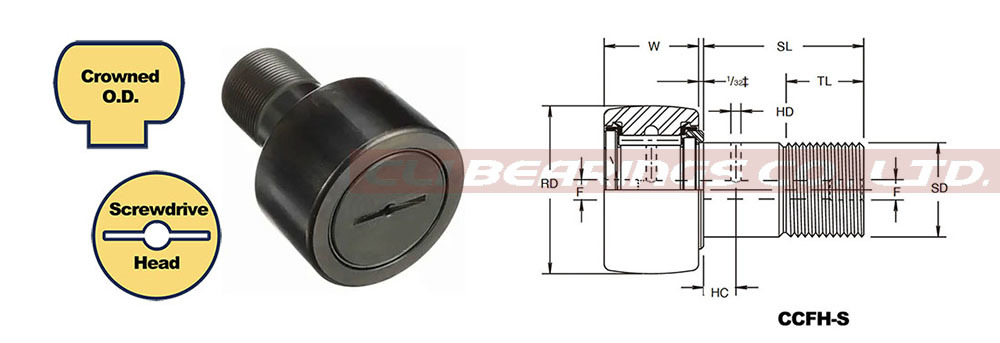

Heavy Duty Cam Stud Follower CCFH-S with Crowned OD & Seals, Screwdrive Head ( inch size )
CLI
Part Number		 ROLLER DIA. ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
Sealed RD W SD SL TL THR HC HD F Static Dynamic
CCFH-1/2-S 0.500 0.375 0.250 5/8 1/4 1/4-28 - - 1/8* 1580 680
CCFH-9/16-S 0.5625 0.375 0.250 5/8 1/4 1/4-28 - - 1/8* 1580 680
CCFH-5/8-S 0.625 0.4375 0.3125 3/4 5/16 5/16-24 - - 1/8* 2480 955
CCFH-11/16-S 0.6875 0.4375 0.3125 3/4 5/16 5/16-24 - - 1/8* 2480 955
CCFH-3/4-S 0.750 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CCFH-7/8-S 0.875 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CCFH-1-S 1.000 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CCFH-1 1/8-S 1.125 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CCFH-1 1/4-S 1.250 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CCFH-1 3/8-S 1.375 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CCFH-1 1/2-S 1.500 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CCFH-1 5/8-S 1.625 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CCFH-1 3/4-S 1.750 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CCFH-1 7/8-S 1.875 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CCFH-2-S 2.000 1.250 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CCFH-2 1/4-S 2.250 1.250 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CCFH-2 1/2-S 2.500 1.500 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CCFH-2 3/4-S 2.750 1.500 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CCFH-3-S 3.000 1.750 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 49820 15720
CCFH-3 1/4-S 3.250 1.750 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 49820 15720
CCFH-3 1/2-S 3.500 2.000 1.750 2 3/4 1 3/8 1 3/4-12 11/16 1/8 1/4 63250 22800
CCFH-4-S 4.000 2.250 2.000 3 1/2 1 1/2 2-12 3/4 1/8 1/4 89540 29985
CCFH-5-S 5.000 2.750 2.500 5 1/16 2 9/16 2 1/2-12 7/8 3/16 1/4 N.P.T. 135900 46575
CCFH-6-S 6.000 3.250 3.000 6 3 3-12 1 3/16 1/4 N.P.T. 160900 60000
CCFH-7-S 7.000 3.750 3.500 7 11/16 4 1/8 3 1/2-4 1 1/4 3/16 1/4 N.P.T. 213860 75380

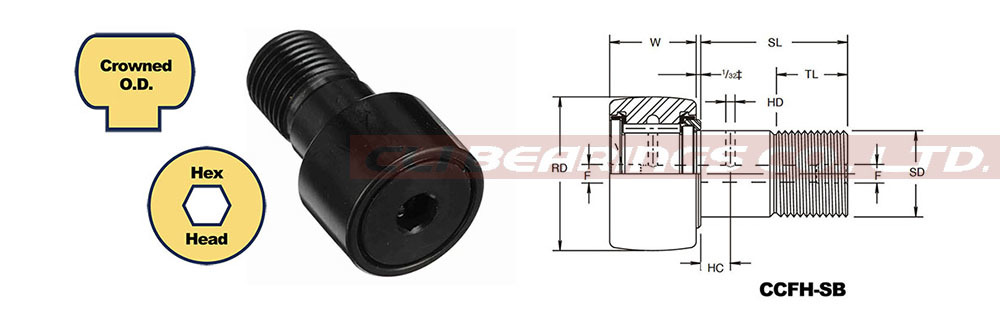

Heavy Duty Cam Stud Follower CCFH-SB with Crowned OD , Seals & Hex Hole ( inch size )
CLI
Part Number		 ROLLER DIA. ROLLER WIDTH STUD DIA STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS OIL HOLE LUB. FITTING SIZE Load Rating (LBS)
Sealed RD W SD SL TL THR HC HD F Static Dynamic
CCFH-1/2-SB 0.500 0.375 0.250 5/8 1/4 1/4-28 - - - 1580 680
CCFH-9/16-SB 0.5625 0.375 0.250 5/8 1/4 1/4-28 - - - 1580 680
CCFH-5/8-SB 0.625 0.4375 0.3125 3/4 5/16 5/16- 24 - - - 2480 955
CCFH-11/16-SB 0.6875 0.4375 0.3125 3/4 5/16 5/16-24 - - - 2480 955
CCFH-3/4-SB 0.750 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CCFH-7/8-SB 0.875 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 4130 1660
CCFH-1-SB 1.000 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CCFH-1 1/8-SB 1.125 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 6120 2225
CCFH-1 1/4-SB 1.250 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CCFH-1 3/8-SB 1.375 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 8500 3930
CCFH-1 1/2-SB 1.500 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CCFH-1 5/8-SB 1.625 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 11280 4840
CCFH-1 3/4-SB 1.750 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CCFH-1 7/8-SB 1.875 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 15840 6385
CCFH-2-SB 2.000 1.250 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CCFH-2 1/4-SB 2.250 1.250 1.125 2 1 1 1/8-12 1/2 1/8 3/16 21140 8090
CCFH-2 1/2-SB 2.500 1.500 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CCFH-2 3/4-SB 2.750 1.500 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 32900 11720
CCFH-3-SB 3.000 1.750 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8  1/4 49820 15720
CCFH-3 1/4-SB 3.250 1.750 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 49820 15720
CCFH-3 1/2-SB 3.500 2.000 1.750 2 3/4 1 3/8 1 3/4-12 11/16 1/8 1/4 63250 22800
CCFH-4-SB 4.000 2.250 2.000 3 1/2 1 1/2 2-12 3/4 1/8 1/4 89540 29985
