Roller Bearings-Needle Roller Bearings-FNTF / FNTK / FNTF Series Unitized Axial Needle Roller Bearing, Metric Size

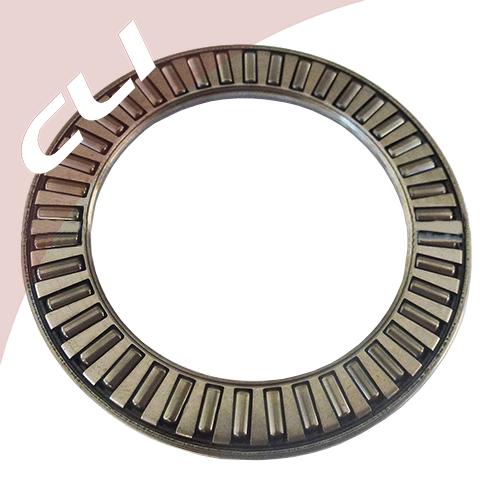

Product Picture

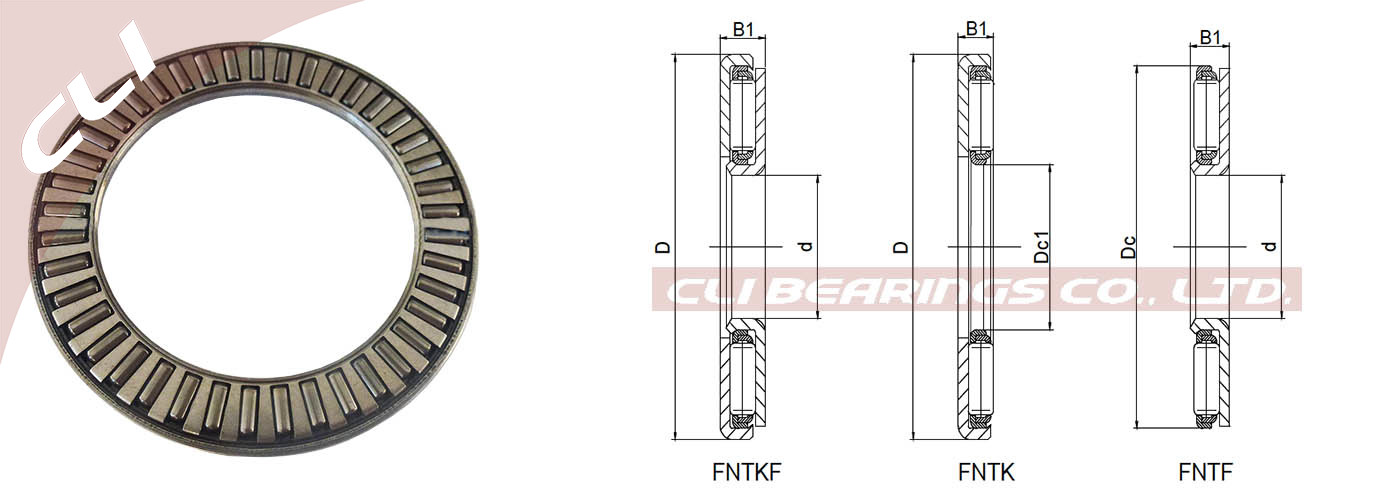

CLI Part Number Dimension (mm) Load Rating (KN) Limiting Speed (RPM） d D B1 Co Cor FNTKF1028 10 28 3.7 9.88 29 16000 FNTKF1330 13 30 3.7 10.1 31.3 15000 FNTKF1532 15 32 3.7 10.8 34.8 14000 FNTKF1837 18 37 3.7 13.8 50.3 12000 FNTKF2344 23 44 3.7 18 75.3 9700 FNTKF2849 28 49 3.7 18.6 82.4 8900 FNTKF3354 33 54 3.7 21.6 104 7900 FNTKF3862 38 62 4.7 31.4 132 7100 FNTKF4367 43 67 4.7 37.8 173 6400 FNTKF4872 48 72 4.7 37.9 179 5900 FNTKF5380 53 80 4.7 48.5 254 5300	CLI Part Number Dimension (mm) Load Rating (KN) Limiting Speed (RPM） d D B1 Co Cor FNTK1228 12 28 2.85 9.88 29 16000 FNTK1530 15 30 2.85 10.1 31.3 15000 FNTK1732 17 32 2.85 10.8 34.8 14000 FNTK2037 20 37 2.85 13.8 50.3 12000 FNTK2544 25 44 2.85 18 75.3 9700 FNTK3049 30 49 2.85 18.6 82.4 8900 FNTK3554 35 54 2.85 21.6 104 7900 FNTK4062 40 62 3.85 31.4 132 7100 FNTK4567 45 67 3.85 37.8 173 6400 FNTK5072 50 72 3.85 37.9 179 5900 FNTK5580 55 80 3.85 48.5 254 5300
CLI Part Number Dimension (mm) Load Rating (KN) Limiting Speed (RPM） d D B1 Co Cor FNTF1026 10 26 2.85 9.88 29 16000 FNTF1328 13 28 2.85 10.1 31.3 15000 FNTF1530 15 30 2.85 10.8 34.8 14000 FNTF1835 18 35 2.85 13.8 50.3 12000 FNTF2342 23 42 2.85 18 75.3 9700 FNTF2847 28 47 2.85 18.6 82.4 8900 FNTF3352 33 52 2.85 21.6 104 7900 FNTF3860 38 60 3.85 31.4 132 7100 FNTF4365 43 65 3.85 37.8 173 6400 FNTF4870 48 70 3.85 37.9 179 5900 FNTF5378 53 78 3.85 48.5 254 5300
