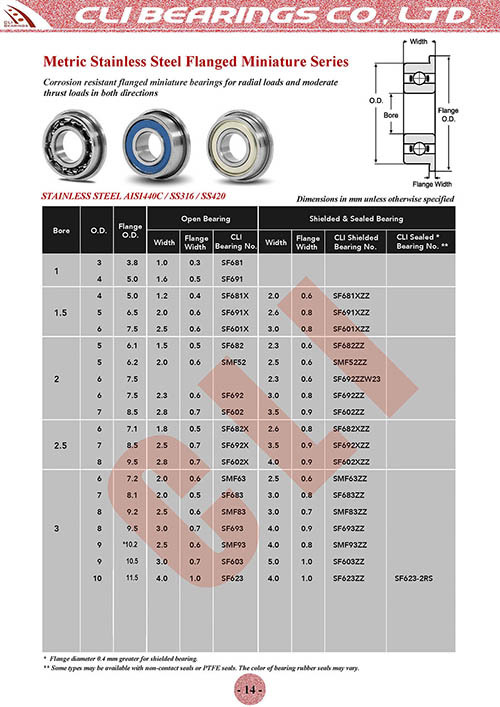

Original 4 flanged miniature ball bearings stainless steel aisi440c nw
Download PDF Catalogue

Flanged miniature ball bearings - STAINLESS STEEL AISI440C
METRIC
sizes



CLI stainless steel flanged miniature bearings have a solid steel flange on the outer ring. This allows the bearing to be more easily located in a housing. The flange can also help to prevent axial movement of the bearing in the event of a thrust load on the bearing. It is easier to maintain the position of a flanged bearing in the housing where a lot of vibration is present. Flanged bearings are sometimes used where the housing is made from a different material and may expand more than the bearing outer ring at higher temperatures. The resulting loose fit may allow a non-flanged bearing to move within the housing.

These bearings, with a stainless steel retainer and a suitable high temperature lubricant, can be used at temperatures of 250°C constant or up to 300°C intermittent.
Above these temperatures, the load capacity of stainless steel is reduced.


CLI flanged stainless steel bearings are suitable for use in mildly corrosive environments as the steel is corrosion resistant but it is affected by seawater and stronger acids or alkalis. 316 stainless steel bearings, plastic bearings or full ceramic bearings should be used in very corrosive environments. Stainless steel bearings do not need preservative oil on the exterior surfaces so they can be used without lubrication (dry).

Most of these flanged stainless steel miniature bearings can be supplied open or with AISI-304 stainless steel shields. The smallest sizes are only available open. The larger sizes may be available with rubber or Teflon contact seals or low friction non-contact rubber seals. The open bearings are normally oil lubricated. Shielded or sealed bearings are generally pre-lubricated with grease but shielded bearings can also be supplied with instrument oil for low torque applications or completely dry for very low speed applications where very low rotational resistance is required.

The standard cage or retainer for a stainless steel flanged miniature bearing is made from either AISI-304 or AISI-420 stainless steel. A one-piece crown cage is more common for the very small and the very thin section bearings due to space constraints. Larger sizes have a two piece ribbon cage.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI440C stainless steel
flanged miniature bearings forshaft sizes from
1 mm to 9 mm




BORE

(mm)

O.D.

(mm)

OPEN BEARING (No Suffix)

SHIELDED BEARING (ZZ)

SEALED BEARING (2RS)

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

WIDTH

(mm)

CLI BEARING

DETAILS

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

NO.

1

3

1

SF681

DETAILS













4

1.6

SF691

DETAILS













1.5

4

1.2

SF681X

DETAILS

2

SF681XZZ

DETAILS







5

2

SF691X

DETAILS

2.6

SF691XZZ

DETAILS







6

2.5

SF601X

DETAILS

3

SF601XZZ

DETAILS







2

5

1.5

SF682

DETAILS

2.3

SF682ZZ

DETAILS







5

2

SMF52

DETAILS

2.5

SMF52ZZ

DETAILS







6

2.3

SF692

DETAILS

3

SF692ZZ

DETAILS







6







2.3

SF692ZZW23

DETAILS







7

2.5

SMF72

DETAILS

3

SMF72ZZ

DETAILS







7

2.8

SF602

DETAILS

3.5

SF602ZZ

DETAILS







2.5

6

1.8

SF682X

DETAILS

2.6

SF682XZZ

DETAILS







7

2.5

SF692X

DETAILS

3.5

SF692XZZ

DETAILS







8

2.8

SF602X

DETAILS

4

SF602XZZ

DETAILS







3

6

2

SMF63

DETAILS

2.5

SMF63ZZ

DETAILS







7

2

SF683

DETAILS

3

SF683ZZ

DETAILS







8

2.5

SMF83

DETAILS

3

SMF83ZZ

DETAILS







8

3

SF693

DETAILS

4

SF693ZZ

DETAILS







9

2.5

SMF93

DETAILS

4

SMF93ZZ

DETAILS







9

3

SF603

DETAILS

5

SF603ZZ

DETAILS







10

4

SF623

DETAILS

4

SF623ZZ

DETAILS

4

SF623-2RS

DETAILS

4

7

2

SMF74

DETAILS

2.5

SMF74ZZ

DETAILS







8

2

SMF84

DETAILS

3

SMF84ZZ

DETAILS







9

2.5

SF684

DETAILS

4

SF684ZZ

DETAILS

4

SF684-2RS

DETAILS

9







3.5

SF684ZZW35

DETAILS







10

3

SMF104

DETAILS

4

SMF104ZZ

DETAILS







11

4

SF694

DETAILS

4

SF694ZZ

DETAILS

4

SF694-2RS

DETAILS

12

4

SF604

DETAILS

4

SF604ZZ

DETAILS

4

SF604-2RS

DETAILS

13

5

SF624

DETAILS

5

SF624ZZ

DETAILS

5

SF624-2RS

DETAILS

16

5

SF634

DETAILS

5

SF634ZZ

DETAILS

5

SF634-2RS

DETAILS

5

8

2

SMF85

DETAILS

2.5

SMF85ZZ

DETAILS







9

2.5

SMF95

DETAILS

3

SMF95ZZ

DETAILS







10

3

SMF105

DETAILS

4

SMF105ZZ

DETAILS

4





11







4

SMF115ZZ

DETAILS

4





11

3

SF685

DETAILS

5

SF685ZZ

DETAILS

5

SF685-2RS

DETAILS

13

4

SF695

DETAILS

4

SF695ZZ

DETAILS

4

SF695-2RS

DETAILS

14

5

SF605

DETAILS

5

SF605ZZ

DETAILS

5

SF605-2RS

DETAILS

16

5

SF625

DETAILS

5

SF625ZZ

DETAILS

5

SF625-2RS

DETAILS

19

6

SF635

DETAILS

6

SF635ZZ

DETAILS

6

SF635-2RS

DETAILS

6

10

2.5

SMF106

DETAILS

3

SMF106ZZ

DETAILS

3





12

3

SMF126

DETAILS

4

SMF126ZZ

DETAILS

4





13

3.5

SF686

DETAILS

5

SF686ZZ

DETAILS

5

SF686-2RS

DETAILS

13







4.5

SF686ZZW45

DETAILS

4.5

SF686-2RSW45

DETAILS

15

5

SF696

DETAILS

5

SF696ZZ

DETAILS

5

SF696-2RS

DETAILS

17

6

SF606

DETAILS

6

SF606ZZ

DETAILS

6

SF606-2RS

DETAILS

19

6

SF626

DETAILS

6

SF626ZZ

DETAILS

6

SF626-2RS

DETAILS

7

11

2.5

SMF117

DETAILS

3

SMF117ZZ

DETAILS







13

3

SMF137

DETAILS

4

SMF137ZZ

DETAILS







14

3.5

SF687

DETAILS

5

SF687ZZ

DETAILS

5

SF687-2RS

DETAILS

17

5

SF697

DETAILS

5

SF697ZZ

DETAILS

5

SF697-2RS

DETAILS

19

6

SF607

DETAILS

6

SF607ZZ

DETAILS

6

SF607-2RS

DETAILS

22

7

SF627

DETAILS

7

SF627ZZ

DETAILS

7

SF627-2RS

DETAILS

8

12

2.5

SMF128

DETAILS

3.5

SMF128ZZ

DETAILS







14

3.5

SMF148

DETAILS

4

SMF148ZZ

DETAILS







16

4

SF688

DETAILS

5

SF688ZZ

DETAILS

5

SF688-2RS

DETAILS

16







6

SF688ZZW6

DETAILS

6

SF688-2RSW6

DETAILS

19

6

SF698

DETAILS

6

SF698ZZ

DETAILS

6

SF698-2RS

DETAILS

22

7

SF608

DETAILS

7

SF608ZZ

DETAILS

7

SF608-2RS

DETAILS

9

17

4

SF689

DETAILS

5

SF689ZZ

DETAILS

5

SF689-2RS

DETAILS

17







6

SF689ZZW6

DETAILS

6

SF689-2RSW6

DETAILS

20

6

SF699

DETAILS

6

SF699ZZ

DETAILS

6

SF699-2RS

DETAILS
