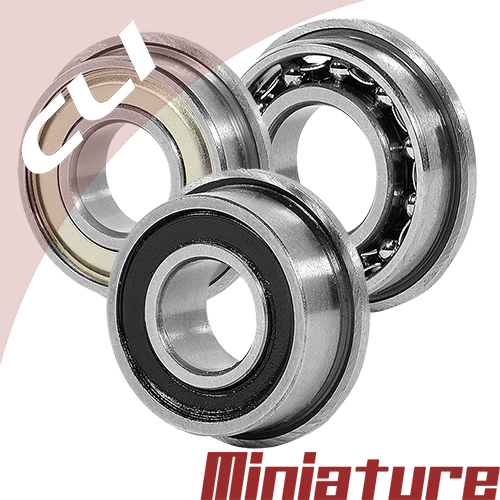

Original miniature bearings flanged chrome 402
Product Picture
Original 2 flanged miniature ball bearings chrome steel aisi52100 nw
Download PDF Catalogue

Flanged miniature ball bearings - CHROME STEEL AISI52100

METRIC size



CLI flanged inch sized miniature bearings have a solid steel flange on the outer ring. This allows the bearing to be more easily located in a housing. The flange can also help to prevent axial movement of the bearing in the event of a thrust load on the bearing.

It is easier to maintain the position of a flanged bearing in the housing where a lot of vibration is present. Flanged bearings are sometimes used where the housing is made from a different material and may expand more than the bearing outer ring at higher temperatures. The resulting loose fit may allow a non-flanged bearing to move within the housing.

CLI flanged chrome steel bearings, with a steel retainer and a suitable lubricant, can be used at temperatures of 120°C constant or up to 150°C intermittent. Above these temperatures, the load capacity of chrome steel is reduced and the steel undergoes more of a dimensional change than stainless steel.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

AISI52100 chrome steel flanged miniature bearings for
shaft sizes from
2mm to 9mm




BORE

(mm)

O.D.

(mm)

OPEN BEARING (No Suffix)

SHIELDED BEARING (ZZ)

SEALED BEARING (2RS)

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

WIDTH

(mm)

CLI BEARING

NO.

DETAILS

2

5

1.5

F682

DETAILS

2.3

F682ZZ

DETAILS







5

2

MF52

DETAILS

2.5

MF52ZZ

DETAILS







6

2.3

F692

DETAILS

3

F692ZZ

DETAILS







6







2.3

F692ZZW23

DETAILS







6

2.5

MF62

DETAILS

2.5

MF62ZZ

DETAILS







7

2.5

MF72

DETAILS

3

MF72ZZ

DETAILS







7

2.8

F602

DETAILS

3.5

F602ZZ

DETAILS







2.5

6

1.8

F682X

DETAILS

2.6

F682XZZ

DETAILS







7

2.5

F692X

DETAILS

3.5

F692XZZ

DETAILS







8

2.5

MF82X

DETAILS













8

2.8

F602X

DETAILS

4

F602XZZ

DETAILS







3

6

2

MF63

DETAILS

2.5

MF63ZZ

DETAILS







7

2

F683

DETAILS

3

F683ZZ

DETAILS







8

2.5

MF83

DETAILS

3

MF83ZZ

DETAILS







8

3

F693

DETAILS

4

F693ZZ

DETAILS







9

2.5

MF93

DETAILS

4

MF93ZZ

DETAILS







9

3

F603

DETAILS

5

F603ZZ

DETAILS







10

4

F623

DETAILS

4

F623ZZ

DETAILS







4

7

2

MF74

DETAILS

2.5

MF74ZZ

DETAILS







8

2

MF84

DETAILS

3

MF84ZZ

DETAILS







9

2.5

F684

DETAILS

4

F684ZZ

DETAILS

4

F684-2RS

DETAILS

9







3.5

F684ZZW35

DETAILS







10

3

MF104

DETAILS

4

MF104ZZ

DETAILS







11

4

F694

DETAILS

4

F694ZZ

DETAILS

4

F694-2RS

DETAILS

12

4

F604

DETAILS

4

F604ZZ

DETAILS

4

F604-2RS

DETAILS

13

5

F624

DETAILS

5

F624ZZ

DETAILS

5

F624-2RS

DETAILS

16

5

F634

DETAILS

5

F634ZZ

DETAILS

5

F634-2RS

DETAILS

5

8

2

MF85

DETAILS

2.5

MF85ZZ

DETAILS







9

2.5

MF95

DETAILS

3

MF95ZZ

DETAILS







10

3

MF105

DETAILS

4

MF105ZZ

DETAILS

4





11







4

MF115ZZ

DETAILS

4





11

3

F685

DETAILS

5

F685ZZ

DETAILS

5

F685-2RS

DETAILS

13

4

F695

DETAILS

4

F695ZZ

DETAILS

4

F695-2RS

DETAILS

13







5

F695ZZW5

DETAILS







14

5

F605

DETAILS

5

F605ZZ

DETAILS

5

F605-2RS

DETAILS

16

5

F625

DETAILS

5

F625ZZ

DETAILS

5

F625-2RS

DETAILS

19

6

F635

DETAILS

6

F635ZZ

DETAILS

6

F635-2RS

DETAILS

6

10

2.5

MF106

DETAILS

3

MF106ZZ

DETAILS

3





12

3

MF126

DETAILS

4

MF126ZZ

DETAILS

4





13

3.5

F686

DETAILS

5

F686ZZ

DETAILS

5

F686-2RS

DETAILS

13







4.5

F686ZZW45

DETAILS

4.5

F686-2RSW45

DETAILS

15

5

F696

DETAILS

5

F696ZZ

DETAILS

5

F696-2RS

DETAILS

17

6

F606

DETAILS

6

F606ZZ

DETAILS

6

F606-2RS

DETAILS

19

6

F626

DETAILS

6

F626ZZ

DETAILS

6

F626-2RS

DETAILS

7

11

2.5

MF117

DETAILS

3

MF117ZZ

DETAILS







13

3

MF137

DETAILS

4

MF137ZZ

DETAILS







14

3.5

F687

DETAILS

5

F687ZZ

DETAILS

5

F687-2RS

DETAILS

17

5

F697

DETAILS

5

F697ZZ

DETAILS

5

F697-2RS

DETAILS

19

6

F607

DETAILS

6

F607ZZ

DETAILS

6

F607-2RS

DETAILS

22

7

F627

DETAILS

7

F627ZZ

DETAILS

7

F627-2RS

DETAILS

8

12

2.5

MF128

DETAILS

3.5

MF128ZZ

DETAILS







14

3.5

MF148

DETAILS

4

MF148ZZ

DETAILS







16

4

F688

DETAILS

5

F688ZZ

DETAILS

5

F688-2RS

DETAILS

16







6

F688ZZW6

DETAILS

6

F688-2RSW6

DETAILS

19

6

F698

DETAILS

6

F698ZZ

DETAILS

6

F698-2RS

DETAILS

22

7

F608

DETAILS

7

F608ZZ

DETAILS

7

F608-2RS

DETAILS

9

17

4

F689

DETAILS

5

F689ZZ

DETAILS

5

F689-2RS

DETAILS

17







6

F689ZZW6

DETAILS

6

F689-2RSW6

DETAILS

20

6

F699

DETAILS

6

F699ZZ

DETAILS

6

F699-2RS

DETAILS
