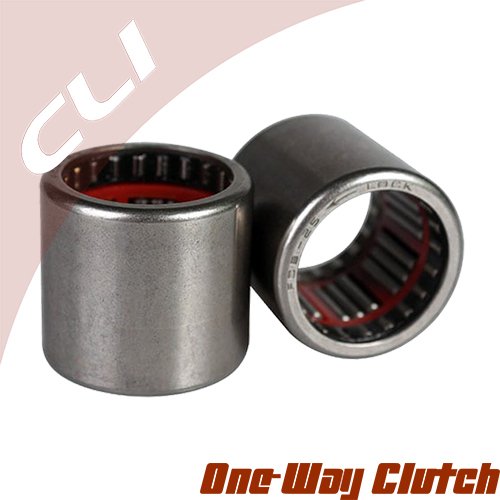

Original 3 picture fc fcb 402
Product Picture
Original 4 one way clutch fc fcb nw
Download PDF Catalogue

FC
One-Way Clutch Bearings,
One-Way Needle-Roller Bearing Clutches,
METRIC Sizes




CLI one-way bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads.

CLI miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

FC One-Way Clutch Bearings,
One-Way Needle-Roller Bearing Clutches for
shaft sizes from
8 mm to 30 mm



CLI Bearing No. Dimensions ( Fw x D x C ) Torque Shaft Weight
Metric (mm) (N.m) (RPM) (g)
FC8 8 x 14 x 12 4.42 21000 7
FC10 10 x 16 x 12 5.82 19000 9
FC12 12 x 18 x 16 14 19000 12
FC16 16 x 22 x 16 21.7 14000 18
FC20 20 x 26 x 16 32.6 11000 21
FC25 25 x 32 x 20 71 8700 34
FC30 30 x 37 x 20 99.1 7300 42


* Note: FC = Regular Clutch with Multi-roller and Stainless Steel Springs
